Connectors (Inlets/Outlets)
www.schurter.com/pg07

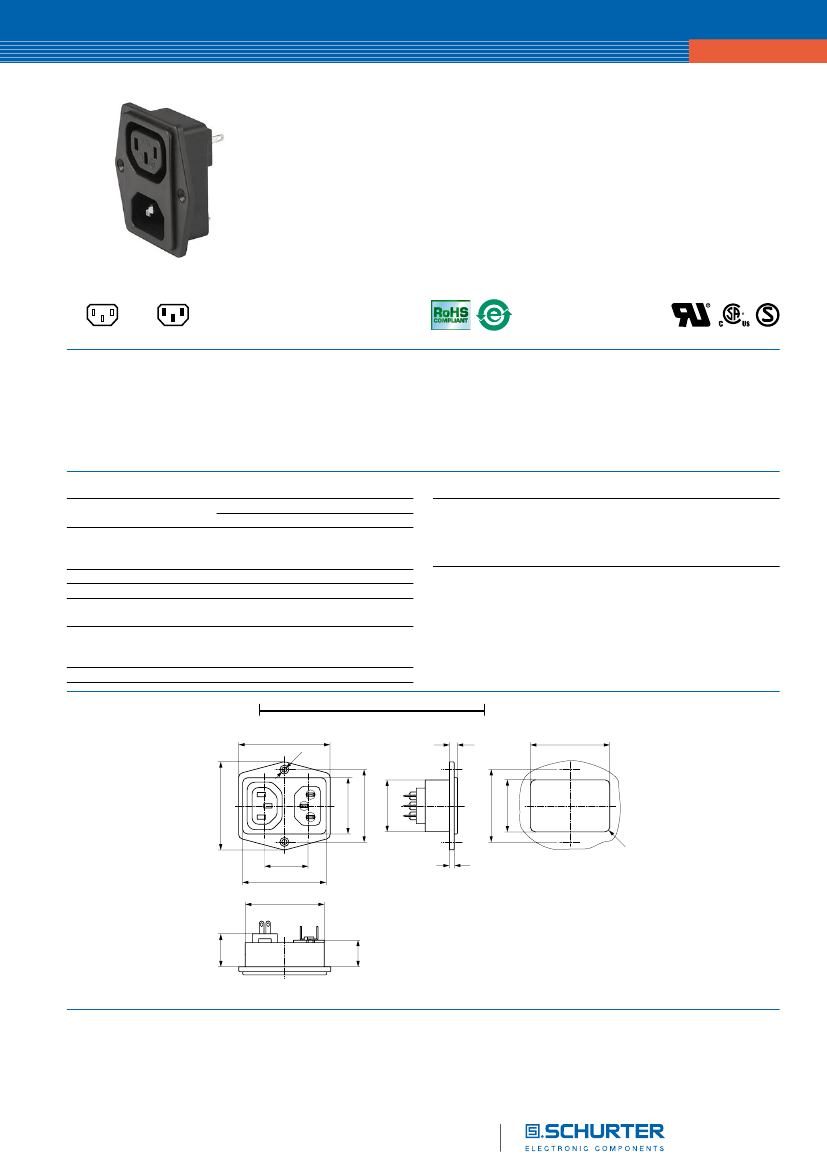

Distribution Unit for Screw-on Mounting with 1 IEC Appliance Inlet C14 and 1 -Connector F
05
F
70° C
C14
70° C
Description
- Panel Mount:
Screw-on mounting, from front side appliance inlet/-outlet, Pin tempe-
rature 70 °C Protection class I Solder terminals or quick connect termi-
nals
References
Weblinks
We recommend for new applications the type 0712
pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,
Mating Connectors, e-Store, SCHURTER-Stock-Check, Distributor-
Stock-Check, Accessories
Approvals
- UL File Number: E45115
- CSA File Number: 1894886
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
15 A / 250 VAC; 60 Hz
> 3 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class 1 acc. to IEC 61140
Solder terminals or quick connect termi-
nals Solder terminals or quick connect
terminals
PA6, black / grey / white, UL 94V-0
Appliance Inlet / Appliance
Outlet
C14 acc. to IEC/EN 60320-1
F acc. to IEC/EN 60320-2-2
UL 498 CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class 1
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Material: Housing
Dimensions
57
ø
3.
2
57 mm
5
49.2
- 0
+0.2
32.2
- 0
54.5
32
35
45
45
+0.2
R
<3
27
52
49
3
20.5
Length of the terminal please find at the order code configuration table
16.5
Connectors
05
www.schurter.com/pg07
Config. Code
Connectors (Inlets/Outlets)
1051
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
1051
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Type
Type
protection class 1
1051
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Terminals
Configuration
key
X
Terminal Ground
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
Blade terminal (4.8 x 0.8 mm)
Configuration
key
2
3
8
9
Blade terminal (6.3 x 0.8 mm)
Symbols similar as in table A
Configuration
key
2
3
8
9
1051
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Terminals
Terminal L
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
Blade terminal (4.8 x 0.8 mm)
Blade terminal (6.3 x 0.8 mm)
1051
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Color
Color
jet black; RAL9005
silver grey; RAL7001
pure white; RAL9010
Configuration
key
A
B
D
1051
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Terminals
Terminal N
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
Blade terminal (4.8 x 0.8 mm)
Blade terminal (6.3 x 0.8 mm)
Symbols similar as in table A
Configuration
key
2
3
8
9
1051
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Style
Style
flange with countersunk holes
flange with through holes
Configuration
key
1
2
Packaging unit
50 Pcs
The specifications, descriptions and illustrations indicated in this document are based on
Connectors
current information. All content is subject to modifications and amendments.
