N Series Crystal
Industry Standard Package
RoHS Compliant Available
Resistance Weld
Frequency Range
Frequency Tolerance / Stability
Operating Temperature Range
Storage Temperature
Aging
Shunt Capacitance
Load Capacitance
Equivalent Series Resistance
Mode of Operation
Drive Level
3.200MHz to 91.730MHz
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-55°C to +125°C
±5ppm / first year max
7pF Max
(See Part Number Guide for Options)
See ESR Chart
Fundamental, or 3
rd
OT
1mW Max
Environmental & Mechanical Detail
Shock
Solderability
Solvent Resistance
Vibration
Gross Leak Test
Fine Leak Test
MSL
MIL-STD-883, Method 2002 Cond B
MIL-STD-883, Method 2003
MIL-STD-202, Method 215
MIL-STD-883, Method 2007, Cond A
MIL-STD-883, Method 1014, Cond C
MIL-STD-883, Method 1014, Cond A2
Level 1 per IPC/JEDEC J-STD 20
Marking Detail
Line 1: MXX.XXX
XX.XXX = Frequency in MHz
Line 2: SYMCCL
S = Internal Code
YM = Date Code (Year/Month)
CC = Crystal Parameters Code
L = Denotes RoHS Compliant
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Specifications are subject to change without notice.
09/13/10 H
Pg 1 of 2

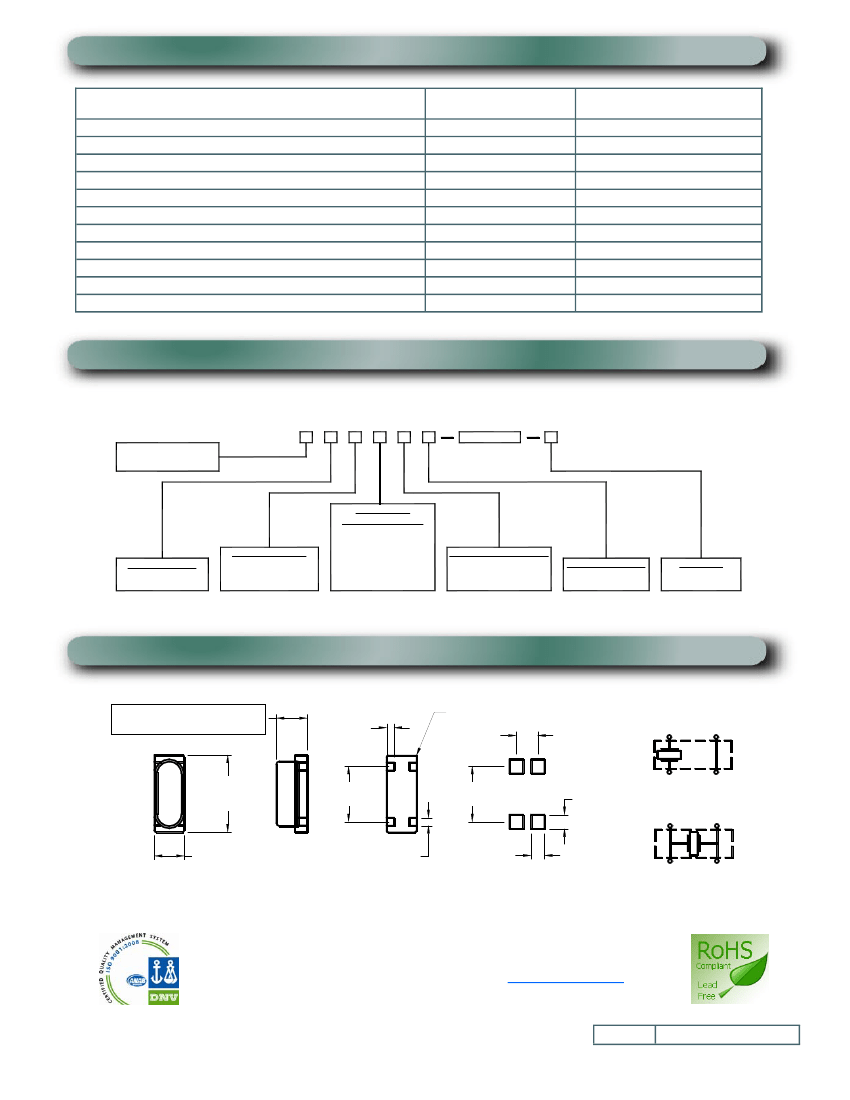

ESR Chart
Frequency Range
3.200MHz to 4.999MHz
5.000MHz to 5.999MHz
6.000MHz to 7.999MHz
8.000MHz to 8.999MHz
9.000MHz to 9.999MHz
10.000MHz to 16.999MHz
17.000MHz to 24.999MHz
25.000MHz to 40.000MHz
24.000MHz to 34.999MHz
35.000MHz to 59.999MHz
60.000MHz to 91.730MHz
ESR (Ohms)
200 Max
150 Max
120 Max
90 Max
80 Max
50 Max
40 Max
25 Max
100 Max
80 Max
60 Max
Mode / Cut
Fund / AT
Fund / AT
Fund / AT
Fund / AT
Fund / AT
Fund / AT
Fund / AT
Fund / AT
3
rd
OT / AT
3
rd
OT / AT
3
rd
OT / AT
Part Number Guide
Frequency
N1, N2, N3, or N4
See M echanical Details for
pin connection and height
Load Capacitance
RoHS Com pliant
Blank = Not Com pliant
F = Is Com pliant
S = Series
20 = 20pF (Standard)
XX = XXpF (8pF to 50pF)
A
B
C
D
E
T
Tem perature
Tolerance/Stability
= ±50 ppm / ±100 ppm
= ±30 ppm / ±50 ppm
= ±15 ppm / ±30 ppm
= ±10 ppm / ±15 ppm
= ±50 ppm / ±50 ppm
= ±5 ppm / ±10 ppm
O perating Tem perature
A = 0°C to +70°c
B = -20°C to +70°c
C = -40°C to +85°c
M ode of O peration
1 = Fundam ental
3 = 3rd Overtone
Packaging
Blank = Bulk
T = Tape and Reel
Mechanical Details
N1 AND N2 = 5.00 [.197] MAX
N3 AND N4 = 4.00 [.157] MAX
SQUARE CORNER DENOTES
PIN 1
3.50 [.138]
N1 AND N3 SERIES
4
1
9.00 [.354]
3
2
2.30 [.091]
3
2
1.19 [.047]
MXX.XXX
SYMCCL
12.50 [.492]
MAX
4
9.00 [.354]
1
N2 AND N4 SERIES
4
3
2
4.85 [.191]
MAX
1.30 [.051]
2.20 [.087]
SUGGESTED
LAND PATTERN
1
DIMENSION IN BRACKETS ARE IN INCHES
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Specifications are subject to change without notice.
09/13/10 H
Pg 2 of 2
