Datasheet> All Categories > Discrete semiconductor> diode> MLL1.4KESD24

MLL1.4KESD24: DescriptionTrans Voltage Suppressor Diode, 400W, 24V V(RWM), Unidirectional, 1 Element, Silicon, DO-213AA, HERMETIC SEALED, GLASS PACKAGE-2; CategoryDiscrete semiconductor diode; File Size200KB，4 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

MLL1.4KESD24 Overview

Trans Voltage Suppressor Diode, 400W, 24V V(RWM), Unidirectional, 1 Element, Silicon, DO-213AA, HERMETIC SEALED, GLASS PACKAGE-2

MLL1.4KESD24 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1439152187
Parts packaging code	DO-213AA
package instruction	O-LELF-R2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Minimum breakdown voltage	26.7 V
Shell connection	ISOLATED
Maximum clamping voltage	53.4 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-213AA
JESD-30 code	O-LELF-R2
JESD-609 code	e0
Maximum non-repetitive peak reverse power dissipation	400 W
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	24 V
Maximum reverse current	1 µA
surface mount	YES
technology	AVALANCHE
Terminal surface	TIN LEAD
Terminal form	WRAP AROUND
Terminal location	END

Preview

Download Datasheet

View All

MLL1.4KESD5.0 thru MLL1.4KESD170CA

SURFACE MOUNT TVS

SCOTTSDALE DIVISION

DESCRIPTION

These small surface mount TVS devices feature the ability to clamp

dangerous high voltage short-term transients such as produced by directed

or radiated electrostatic discharge phenomena before entering sensitive

component regions of a circuit design. They are small economical transient

voltage suppressors targeted primarily for short-term transients below a few

microseconds while still achieving significant peak-pulse-power capability

as illustrated in Figure #1.

APPEARANCE

WWW .

Microsemi

DO-213AA

IMPORTANT:

For the most current data, consult

MICROSEMI’s

website:

http://www.microsemi.com

FEATURES

•

Excellent protection in clamping direct ESD level

transients in excess of 15,000 V per MIL-STD-750,

Method 1020 (approx. 150 ns exponential wave)

•

Absorbs ESD level transients* of 1400 Watts per

MIL-STD-750, Method 1020 (approx. 150 ns

exponential wave, or one microsecond transients up

to 400 watts. See Figure #1 and #2 for overall

transient Peak Pulse Power.

•

Clamps Transients in less than 100 picoseconds

•

Working Stand-off Voltage range of 5 V to 170 V

•

Hermetic DO-213AA Package. Also available in

axial-leaded DO-35 package (see separate data

sheet for 1.4KESD5.0 series)

APPLICATIONS / BENEFITS

•

Protects Sensitive circuits from short duration fast

rise time transients such as Electrostatic Discharge

(ESD) or Electrical Fast Transients (EFT)

•

Low inherent capacitance for high-frequency

applications (See Figure #4)

•

Small surface mount foot print

•

Bidirectional features available by adding a “C” or

“CA” suffix

MAXIMUM RATINGS

•

400 Watts for One Microsecond Square Wave or

1400 watts per ESD Wave form of MIL-STD-750,

method 1020

•

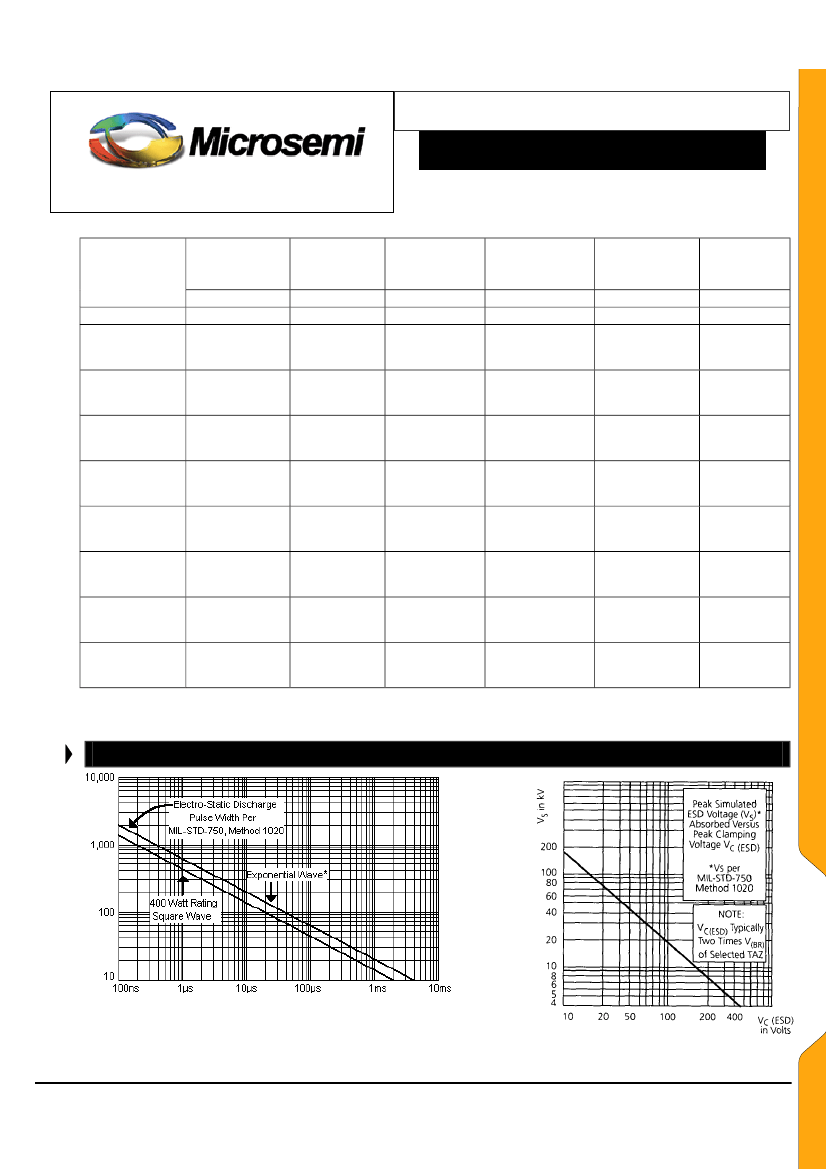

See Surge Rating curves in Figures #1, 2 and 3

•

Operating and storage temperature –65

C to 175

•

THERMAL RESISTANCE: 150

C/W junction to end

cap

•

DC power dissipation 500 mW at T

≤

100

•

Derate at 2.3 W/

C above 25

C for P

(1µs) and at

6.67 mW/ C above 100 C for dc power

•

Forward Surge Current 50 amps for 1µs at T

= 25

(rise time > 100 ns)

MECHANICAL AND PACKAGING

•

CASE: Hermetically sealed glass DO-213AA surface

mount package

•

TERMINALS: Leads, tin-lead plated solderable per

MIL-STD-750, method 2026

•

POLARITY: Banded end is cathode

•

WEIGHT: 0.04 grams (typical)

•

MARKING: Cathode band only

•

TAPE & REEL option: Standard per EIA-481-B (add

“TR” suffix to part number)

•

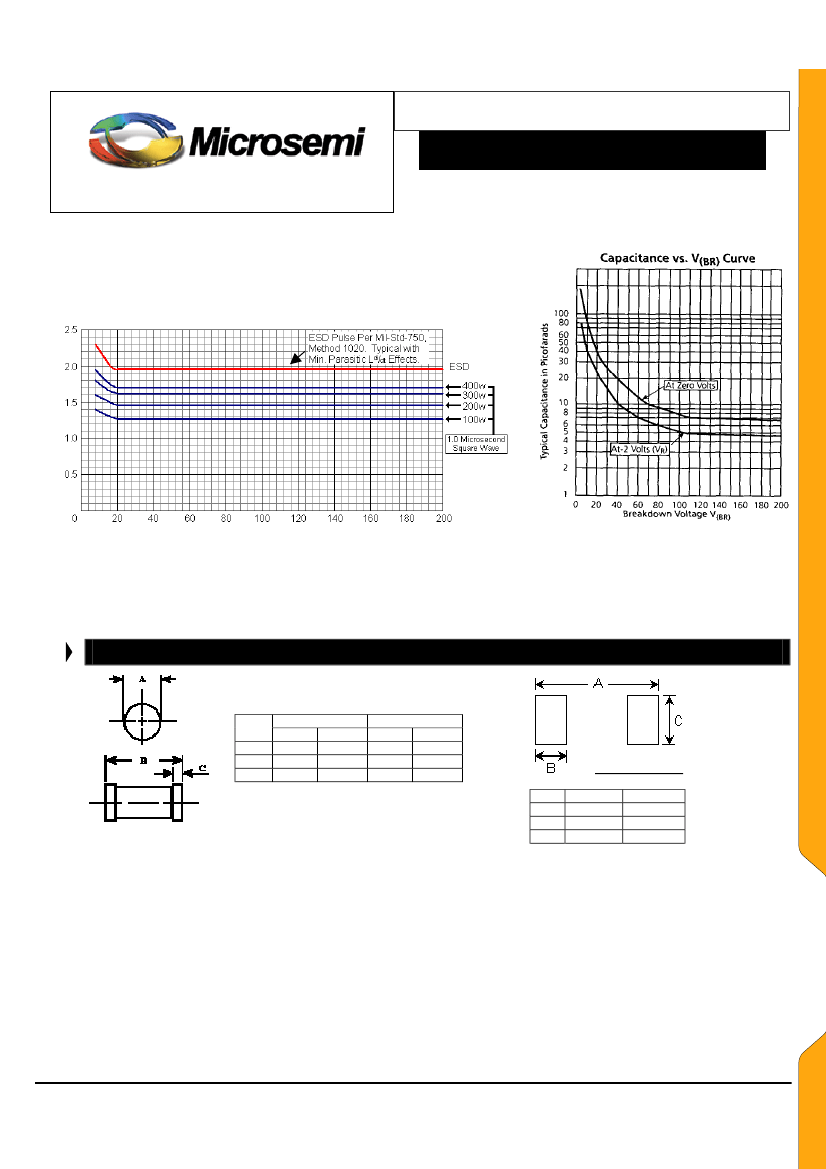

See package dimension on last page

1.4KESD5.0 – 1.4KESD170A



2003

10-06-2003 REV A

Microsemi

Scottsdale Division

8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503

Page 1
