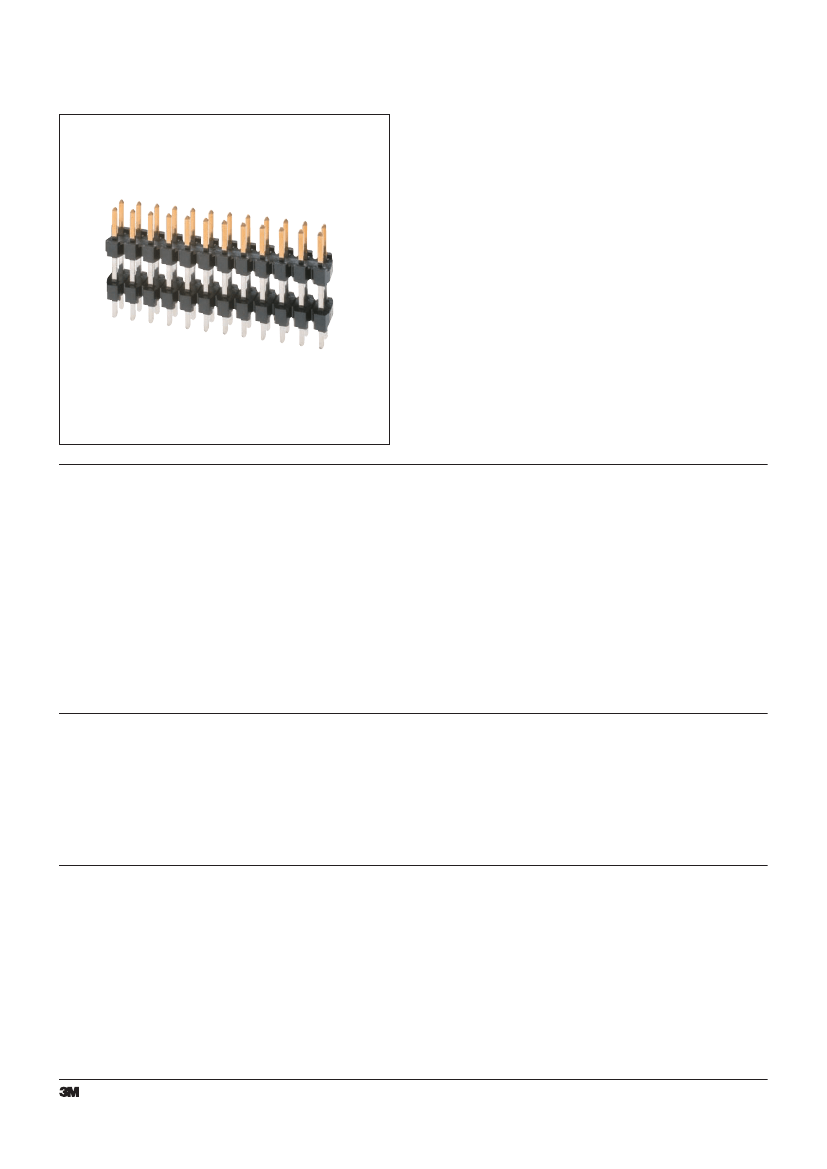

2 mm and 2 mm x 2 mm Dual Insulator, Straight, Solder Tail
•
•
•
•
•
•
951 Series
High temperature dielectric
“No lead” wave and reflow solder compatible
Maximizes use of PC board space
End stackable feature
Side stackable feature

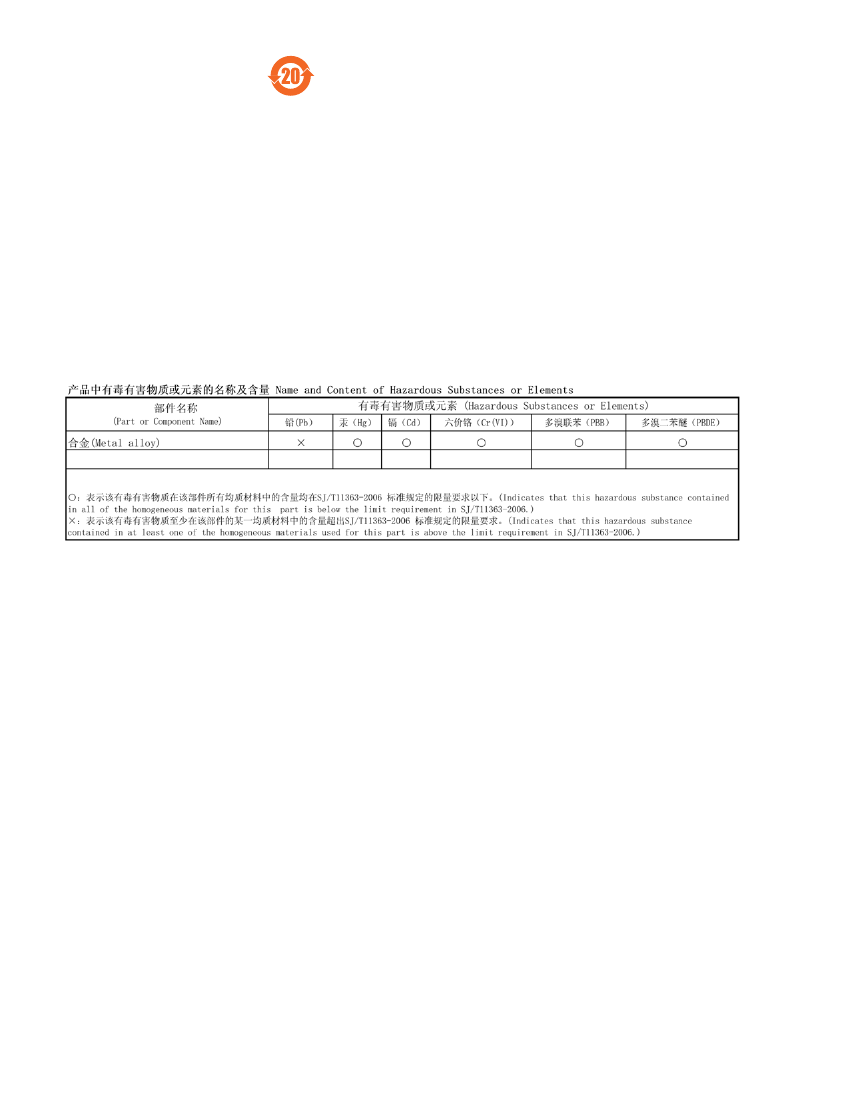

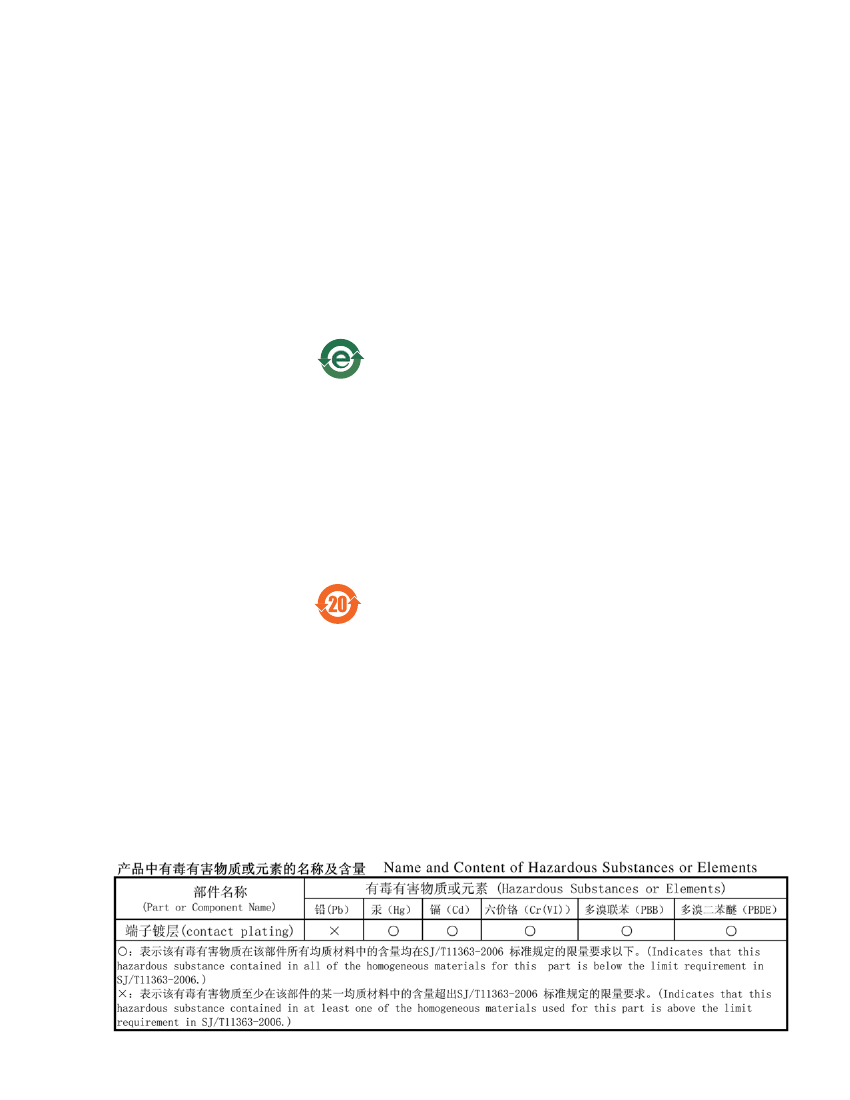

See Regulatory Information Appendix for
chemical compliance information
Date Modified: February 14, 2008
TS-2160-B
Sheet 1 of 2
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating
Underplating:
Wiping Area:
Solder Tail Area:
High Temperature Thermoplastic
UL 94V-0
Black
Copper Alloy
1.25–2.5 µm [100 µ’’] Nickel
0.25 µm [10 µ’’] Gold
1–3 µm [40–118 µ’’] Matte Tin
Electrical
Current Rating:
Insulation Resistance:
Withstanding Voltage:
Transition Resistance:
1A
> 5 x 10
8
Ohm at 100 V
DC
1000 V
DC
≤ 20 mOhm
Environmental
Temperature Range:
-40 °C ... +105 °C
Processing Temperature:
max. 260 °C (Profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
3M
™

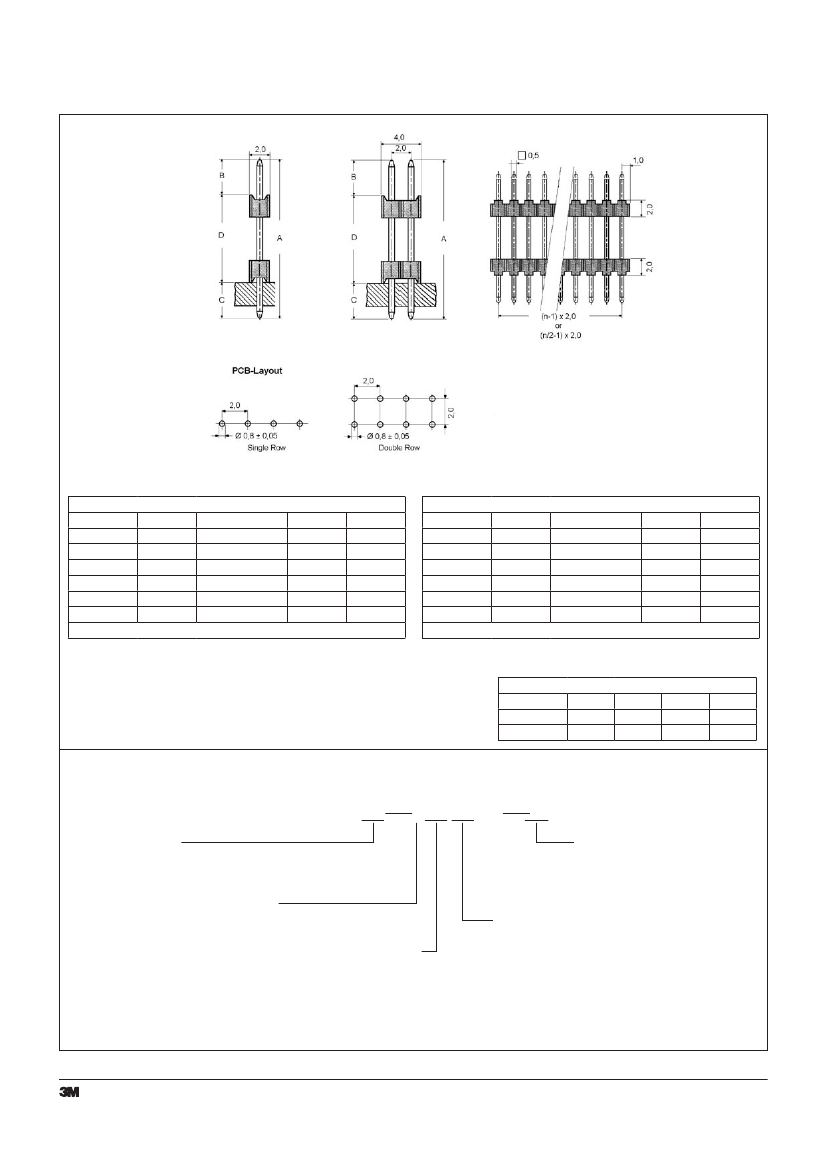

Pin Strip Header
2 mm and 2 mm x 2 mm Dual Insulator, Straight, Solder Tail
951 Series
Coding No.
A
08
10.8
11
11.9
15
14.3
19
16.5
22
18.6
25
21.2
Others on Request
Contact Dimensions
Mating Length B
4.0
4.0
4.0
4.0
4.0
4.0
C
2.8
2.8
2.8
2.8
2.8
2.8
D
4.0
5.1
7.5
9.7
11.8
14.4
Coding No.
A
08
12.7
11
13.8
15
16.2
19
18.4
22
20.5
25
23.1
Others on Request
Contact Dimensions
Mating Length B
5.9
5.9
5.9
5.9
5.9
5.9
C
2.8
2.8
2.8
2.8
2.8
2.8
D
4.0
5.1
7.5
9.7
11.8
14.4
n = No. of Contacts
Tolerance Unless Noted [mm]
Nominal Size
0.5–3
3–6
6–30
Linear Dim
+/- 0.1 +/- 0.1 +/- 0.2
Radii
+/- 0.2 +/- 0.5
+/- 1
30–120
+/- 0.3
+/- 1
Ordering Information
9514XX
Contact Quantity:
02-40 Pins / 1 Row
04–80 Pins / 2 Row
X XX XX 06
AR
Plating:
AR = Selective Au 0.25 µm / Sn
Ref Appendix E1 & C1
Mounting Style:
8 = Solder Tail, 2 Row
9 = Solder Tail, 1 Row
Mating Pin Length
Dimension B:
01 = 4.0 mm
06 = 5.9 mm
Bord Stacking Height (D):
Coding Number: see Table
TS-2160-B
Sheet 2 of 2
