GRM1556S1H2R7CZ01D: Descriptioncap cer 2.7pf 50v s2h 0402; CategoryPassive components capacitor; File Size333KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

GRM1556S1H2R7CZ01D Overview

cap cer 2.7pf 50v s2h 0402

GRM1556S1H2R7CZ01D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0000027 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.5 mm
JESD-609 code	e3
length	1 mm
Manufacturer's serial number	GRM15
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	9.2593%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	9.2593%
Rated (DC) voltage (URdc)	50 V
series	GRM
size code	0402
surface mount	YES
Temperature characteristic code	S2H
Temperature Coefficient	-330+/-60ppm/Cel ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.5 mm

Preview

Download Datasheet

View All

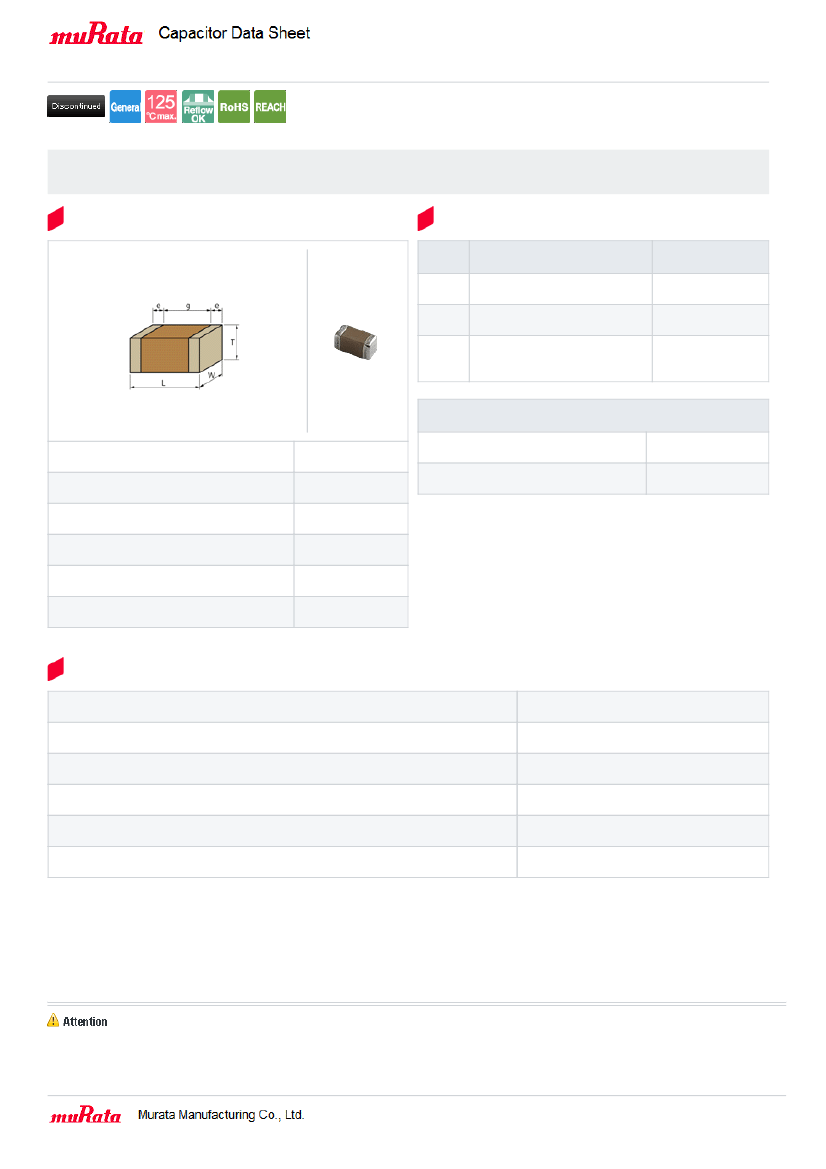

GRM1556S1H2R7CZ01#

Date of discontinuation: 31 Mar 2014

< List of part numbers with package codes >

“#” indicates a package specification code.

GRM1556S1H2R7CZ01D , GRM1556S1H2R7CZ01W , GRM1556S1H2R7CZ01J

Shape

References

Packaging

D

J

Specifications

φ180mm

Paper taping

φ330mm

Paper taping

φ180mm

Paper taping (W8P1*)

* Width : 8mm, Pocket pitch : 1mm

Minimum quantity

10000

50000

W

20000

Mass (typ.)

1 piece

φ180mm

Reel

1.6mg

118g

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

1.0 ±0.05mm

0.5 ±0.05mm

0.15 to 0.35mm

0.3mm min.

0402 (1005M)

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

2.7pF ±0.25pF

50Vdc

S2H(EIA)

-330±60ppm/℃

25 to 85℃

-55 to 125℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2017/11/17
