COMPONENTS PRODUCT INFORMATION
RoHS Compliant
CONNECTOR
MB-0157-1
NEW

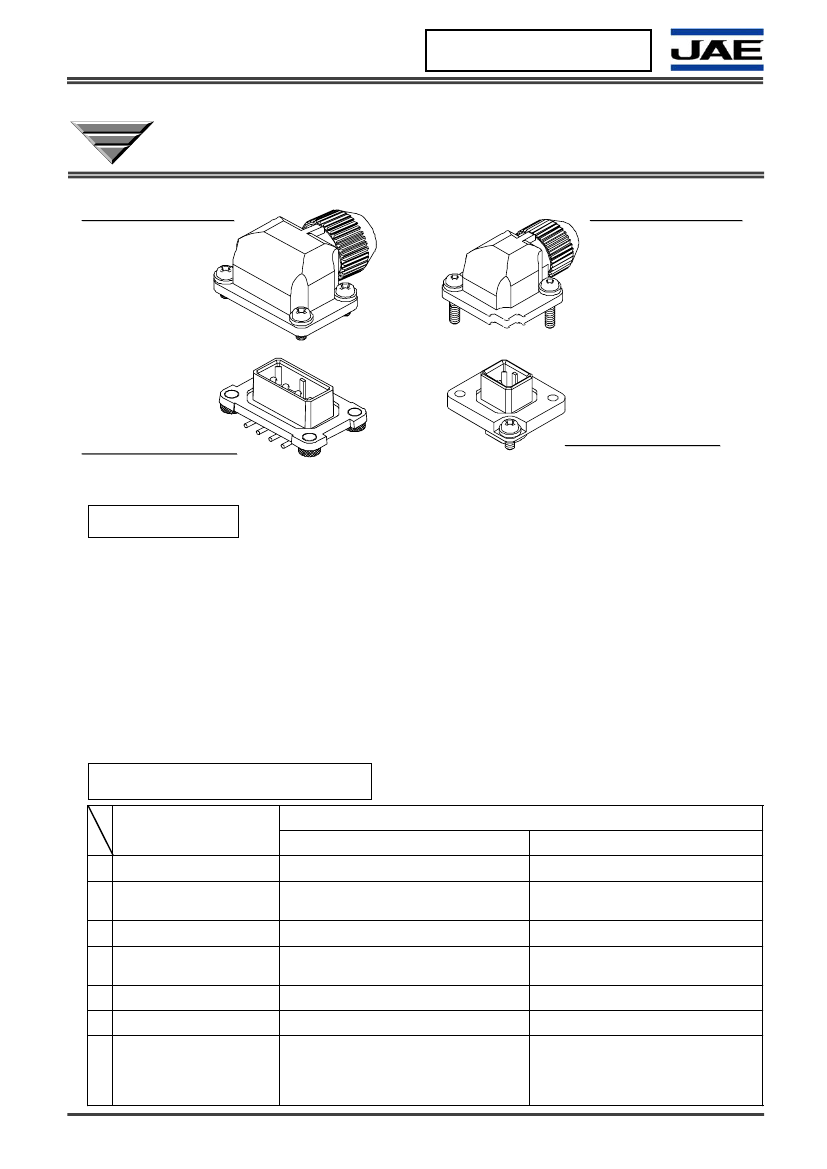

4 contact Angle Plug
Small Waterproof Connector
JN4 Series
August 2006
2 contact Angle Plug
4 contact Receptacle
2 contact Receptacle
Small waterproof connector developed as an interface for small motors for industrial devices .
Features
All plastic lightweight connector
Plug allover length 27mm, plug height is low profile 13.7mm (4pos.)
Oil resistant, superb environmental proof performance
Waterproof and dustproof that conform to IP67 class (when mated)
Receptacle mounting arrangement
4pos. : fixed to case by mold in method
2pos. : fixed to case with screw by 2 points
Cable pulling out direction of plug can be selected from two directions(180 degrees)
Cable pullout slot for 4pos. plug is in lean of 7 degrees.
Plug is selectable from the cabtire or individual cable type.
General Specifications
Item
1
2
3
4
5
6
7
Rated current
Rated voltage
Withstanding voltage
Insulation resistance
Waterproof
Operating temperature
Specification of wire
connection
Specification and Performance
for power (4pos.)
7A max. (per 1pos.)
200VAC (pollution degree 2,
over voltage category II)
1500VAC
1000M ohm min.
(DC500V energized )
IP67 (when mated)
-20 Deg. C to +130 Deg.C
Receptacle: Angle trough-hole
Plug: Crimp connection
(AWG20 to 18)
for brake (2 pos.)
5A max. (per 1pos.)
200VAC
1500VAC
1000M ohm min.
(DC500V energized )
IP67 (when mated)
-20 Deg. C to +130 Deg.C
Receptacle: Crimp connection
(AWG22 to 20)
Plug: Crimp connection
(AWG22 to 20)
JAE PMK Div. Proprietary. Copyright © 2006, Japan Aviation Electronics Industry, Ltd.
1/7
MB-0157-1
Materials and Finishes
1) Receptacle
Components
Pin contact
Pin Insulator
Insert nut
“O” ring
Materials and Finishes
Copper alloy, Au plating
Synthetic resin
Copper alloy
Synthetic rubber
2) Plug
Components
Socket contact
Socket insulator
Hood
Grand nut
Gasket
Bushing
Plate
Screw
Materials and Finishes
Copper alloy
Synthetic resin
Synthetic resin
Synthetic resin
Synthetic rubber
Synthetic rubber
Stainless steel
Steel
Ordering Information
JN4 A T 04 N J 1 - R
Series
Connector type
A: Square flange
receptacle
F: Angle plug
Shell size
No. of contacts
Special code
Modification No.
Contact size
J: size #18
Connection method
N: Angle through hole pin size #18
P: Crimp pin
S: Crimp socket
JAE PMK Div. Proprietary. Copyright © 2006, Japan Aviation Electronics Industry, Ltd.
2/7
MB-0157-1
Connector
Part Number
1
2
3
4
5
6
JN4AT04NJ1-R
JN4FT04SJ1-R
JN4FT04SJ2-R
JN4AT02PJ1-R
JN4FT02SJ1-R
JN4FT02SJ2-R
SJ Drawing
SJ106322
SJ105539
SJ105542
SJ105540
SJ105541
SJ105543
Characteristics
4pos./ Square flange receptacle
4pos./ Angle plug
(compatible to cabtire cable)
4pos./ Angle plug
(compatible to individual cable)
2pos./ Square flange receptacle
2pos./ Angle plug
(compatible to cabtire cable)
2pos./ Angle plug
(compatible to individual cable)
Connection method
Angle through-hole(pin contact)
Crimp (Socket contact)
Crimp (Socket contact)
Crimp (Pin contact)
Crimp (Socket contact)
Crimp (Socket contact)
Crimp contact
Applicable
connector
JN4FT04SJ*
JN4FT02SJ*
JN4AT02PJ1
Type
Socket
contact
Pin
contact
Category
Individual (100pcs.)
Reel (3500pcs.)
Individual (100pcs.)
Reel (3500pcs.)
Part Number
ST-TMH-S-C1B-100-(A534G)
ST-TMH-S-C1B-3500-(A534G)
ST-JN4-P-C1-100-(A534G)
ST-JN4-P-C1-3500-(A534G)
SJ
Drawing
SJ038822
SJ038821
SJ038859
SJ038858
Crimping tools
Applicable contact Part No.
ST-TMH-S-C1B-100-(A534G)
ST-TMH-S-C1B-3500-(A534G)
ST-JN4-P-C1-100-(A534G)
ST-JN4-P-C1-3500-(A534G)
Tool
CT160-3-TMH5B
350-TMH5B-2B
CT160-3-JN4
350-TMH5-2
Tool category
Hand crimp
(for individual contact)
Semi-automatic crimp
(for reel contact)
Hand crimp
(for individual contact)
Semi-automatic crimp
(for reel contact)
Tool handling
Instruction
T700255
T703322
T700264
T703273
** For RoHS compliance information concerning connection and removal tools
which appear in this brochure, please consult us.
JAE PMK Div. Proprietary. Copyright © 2006, Japan Aviation Electronics Industry, Ltd.
3/7
MB-0157-1
Applicable Cables
No.
Part No.
AWG No.
1
2
3
4
5
6
JN4AT04NJ1-R
JN4FT04SJ1-R
JN4FT04SJ2-R
JN4AT02PJ1-R
JN4FT02SJ1-R
JN4FT02SJ2-R
---
#20 to #18
#20 to #18
#22 to #20
#22 to #20
#22 to #20
Applicable cable
Coated outer dia.
Cable outer dia.
Remarks
---
1.3 to 1.8 dia.
1.3 to 1.8 dia
2.4 dia. max.
1.3 to 1.4 dia
1.3 to 1.4 dia
---
5.3 to 6.5 dia.
---
---
3.6 to 4.8 dia.
---
Attached to board
Cabtire cable
Individual cable
Individual cable
Cabtire cable
Individual cable
* Applicable cables are indicated in the Handling Instruction.
Adjustment
will be needed for other cables.
Related Information
Title
1. Specification
2. Handling
Instruction
JN4 Connector
Specification
JN4 Connector
Handling Instruction
Document Number
JACS-5122
JAHL- 5122
Remarks
---
---
JAE PMK Div. Proprietary. Copyright © 2006, Japan Aviation Electronics Industry, Ltd.
4/7
MB-0157-1
4 contact type Receptacle (JN4AT04NJ1-R)
±０.１
(Pitch)
３.２
（ピッチ）
4 contact type Plug for cabtire (JN4FT04SJ1-R)
4 contact type Plug for individual cable (JN4FT04SJ2-R)
JAE PMK Div. Proprietary. Copyright © 2006, Japan Aviation Electronics Industry, Ltd.
5/7
