322V102F51W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 322V102F51W

322V102F51W: DescriptionBoard Connector, 102 Contact(s), 3 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Jackscrew,; CategoryThe connector The connector; File Size549KB，1 Pages; ManufacturerNICOMATIC; Environmental Compliance

Download Datasheet Parametric View All

322V102F51W Overview

Board Connector, 102 Contact(s), 3 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Jackscrew,

322V102F51W Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145156545641
Reach Compliance Code	compliant
Country Of Origin	France
YTEOL	8.7
Board mount options	M2 THREADED HOLES
body width	0.315 inch
subject depth	0.407 inch
body length	3.189 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Filter function	NO
Insulation resistance	1000000000 Ω
insulator material	POLYPHENYLENE SULFIDE
JESD-609 code	e4
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	JACKSCREW
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	260 °C
Minimum operating temperature	-60 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2 mm
Plating thickness	49u inch
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.118 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	102
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

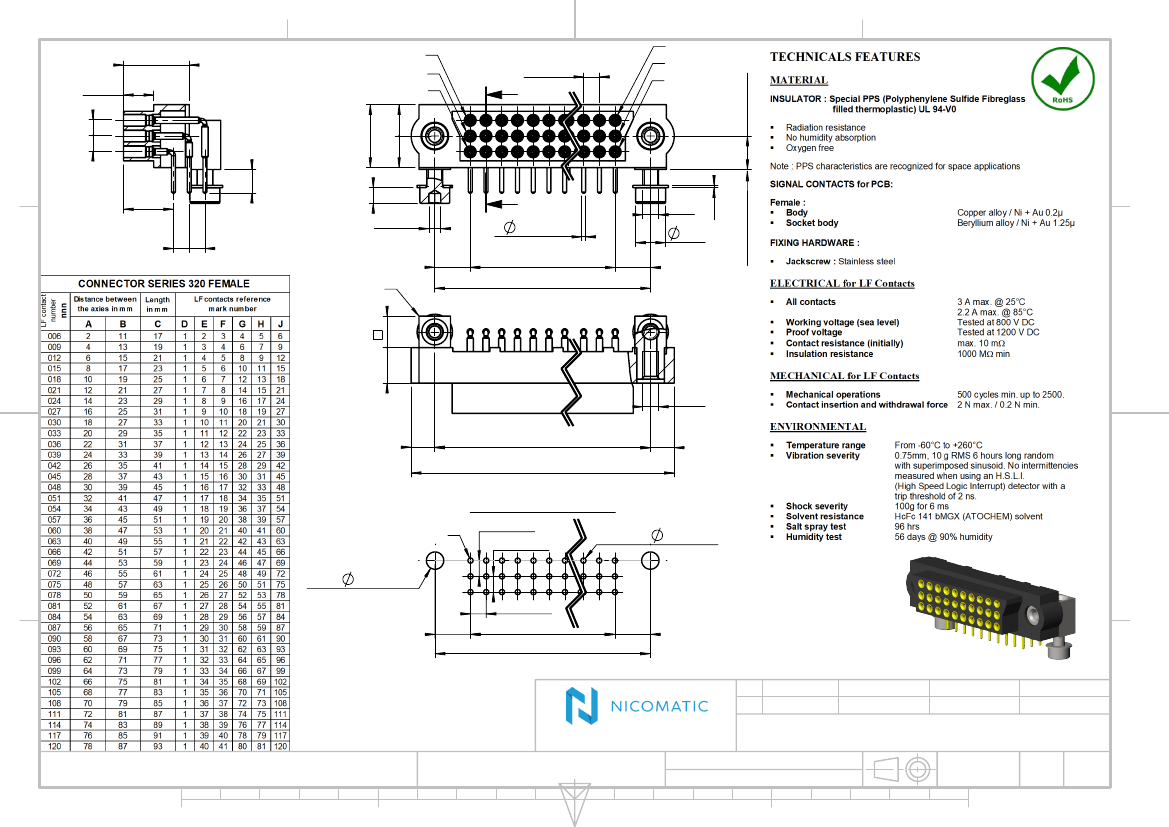

8.35

±0.10

(3.85)

2 2

4.25

+0.10

First LF contact D

Pitch=2

Last LF

contact J

±0.10

6.35

2 2

CUT A-A

Hex.1.5

Fixing

hardware

F51W

0.5

±0.05

(A)

±0.10

(4.5)

3.8

(4.5)

Connector

Support face

0.3

4.5

First LF contact

(3)

±0.10

Recommended PCB layout :

(3)

Pitch=2

nnn x

0.65

min.

2.2 min.

(4.5)

Pitch=2

(A)

(4.5)

3D View

Scale : 1.5:1

www.nicomatic.com

This document is the property of Nicomatic. It may not be reproduced without the

prior written permission of the owner. Law of 11 March 1902.

Drawn

Checked

Date

Iss

Item : Connector CMM320 female 90° on PCB, nnn LF contacts,

F51W

General

tolerance±0.2

Scale

2:1

2 28/06/18

C.B.

J.D.

Approved

Page

1/1

Catalogue

Reference :

322VnnnF51W

Compliant matrix :

Customer reference :
