B3P-LV-TA-BK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> B3P-LV-TA-BK

B3P-LV-TA-BK: DescriptionRectangular Power Connector, 3 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size308KB，3 Pages; ManufacturerJST

Download Datasheet Parametric View All

B3P-LV-TA-BK Overview

Rectangular Power Connector, 3 Contact(s), Male, Solder Terminal

B3P-LV-TA-BK Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	JST
Reach Compliance Code	unknown
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	LV
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYAMIDE66
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

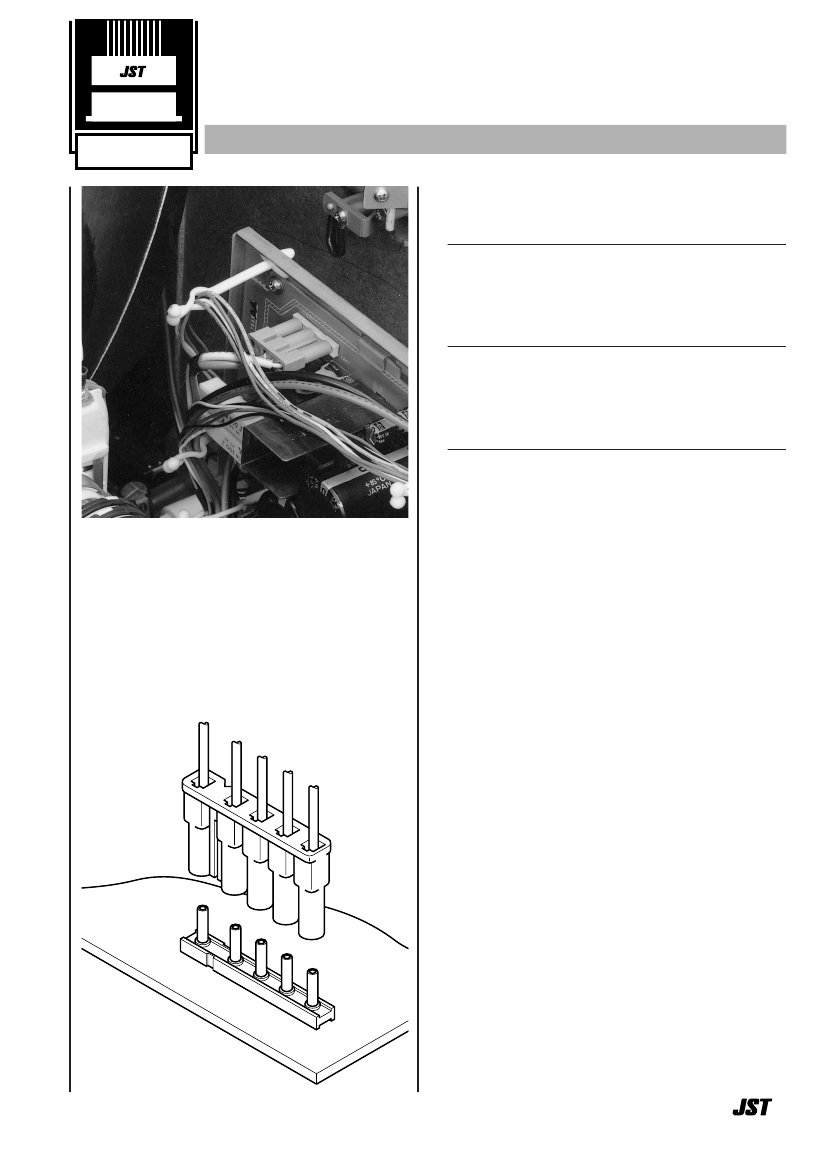

Crimp

CONNECTOR

8.0mm

pitch

Disconnectable Crimp style connectors for 2.36 diameter pins

Features ––––––––––––––––––––––––

• Three-point contact

The mating section of the contact has a triangular configuration

so that the terminal grips the round mating pin at three points.

Furthermore, this contact keeps its high force after mating and

unmating many times, thus assuring high reliability.

• Anti-misinsertion construction

The pitch between positions 1 and 2 of the housings and the

headers having three or more circuits is 10.0mm, while the pitch

of the other circuits is 8.0mm. This provides polarization which

in turn prevents mismating the connector.

• Flux entry prevention

The solder side of the header pins are closed so as to

completely prevent flux or solder from entering. The tight

press-fit of the pin into the header insulator also prevents flux

from coming up the pin.

This connector can be connected to

headers having 2.36mm diameter pins.

Since the pitch between circuits is large,

8.0mm, this connector is ideally suited for

the power supply circuits of TVs, stereo

systems and VCRs.

Specifications –––––––––––––––––––

• Current rating: SVF-01T-2.36N: 5A AC, DC (AWG #20)

SVF-01T-2.36LN: 7A AC, DC (AWG #18)

• Voltage rating: 250V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/10m

Ω

max.

After environmental testing/20m

Ω

max.

• Insulation resistance: 1,000M

Ω

min.

• Withstanding voltage: 1,500V AC/minute

• Applicable wire: SVF-01T-2.36N: AWG #24 to #20

SVF-01T-2.36LN: AWG #24 to #18

• Applicable PC board thickness: 1.6mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Standards ––––––––––––––––––––––

Recognized E60389

Certified LR20812

R75121
