DMC56407
Silicon NPN epitaxial planar type
For digital circuits
Features
High forward current transfer ratio h
FE
with excellent linearity
Low collector-emitter saturation voltage V
CE(sat)
Halogen-free / RoHS compliant
(EU RoHS / UL-94 V-0 / MSL: Level 1 compliant)

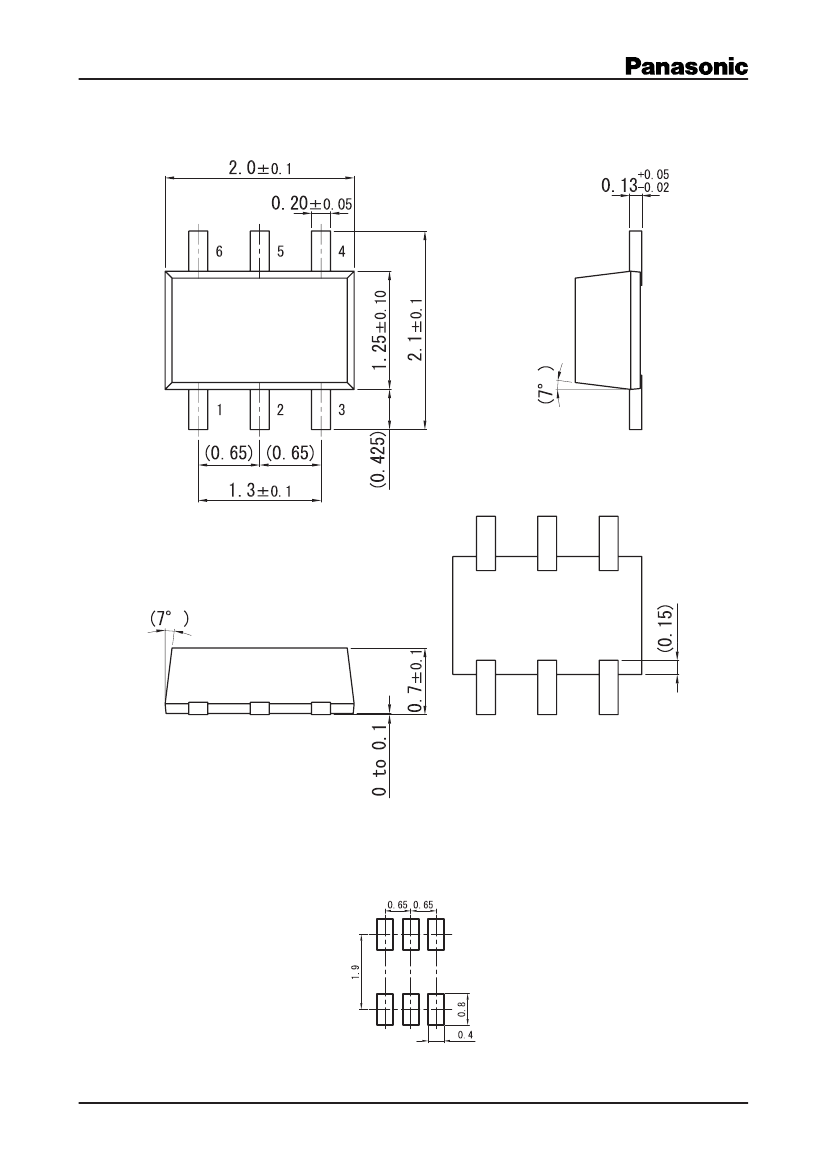

Unit: mm
Marking Symbol: N7
Basic Part Number
Dual DRC2124T (Individual)
1: Emitter (Tr1)
2: Base (Tr1)
3: Collector (Tr2)
Panasonic
JEITA
Code
(C1)
6
Packaging
DMC564070R Embossed type (Thermo-compression sealing): 3 000 pcs / reel (standard)
Absolute Maximum Ratings
T
a
= 25°C
Parameter
Tr1
Tr2
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Collector current
Total power dissipation
Overall
Junction temperature
Operating ambient temperature
Storage temperature
Symbol
V
CBO
V
CEO
I
C
P
T
T
j
T
opr
T
stg
Rating
50
50
100
150
150
–40 to +85
–55 to +150
Unit
V
V
mA
mW
°C
°C
°C
4: Emitter (Tr2)
5: Base (Tr2)
6: Collector (Tr1)
SMini6-F3-B
SC-113DB
SOT-363
(B2)
5
R
1
(E2)
4
Tr1
Tr2
R
1
1
(E1)
2
(B1)
3
(C2)
Resistance value
R
1
22
kΩ
Electrical Characteristics
T
a
= 25°C±3°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Collector-base cutoff current (Emitter open)
Collector-emitter cutoff current (Base open)
Emitter-base cutoff current (Collector open)
Forward current transfer ratio
Collector-emitter saturation voltage
Input voltage (ON)
Input voltage (OFF)
Input resistance
Symbol
V
CBO
V
CEO
I
CBO
I
CEO
I
EBO
h
FE
V
CE(sat)
V
I(on)
V
I(off)
R
1
Conditions
I
C
= 10 µA, I
E
= 0
I
C
= 2 mA, I
B
= 0
V
CB
= 50 V, I
E
= 0
V
CE
= 50 V, I
B
= 0
V
EB
= 6 V, I
C
= 0
V
CE
= 10 V, I
C
= 5 mA
I
C
= 10 mA, I
B
= 0.5 mA
V
CE
= 0.2 V, I
C
= 5 mA
V
CE
= 5 V, I
C
= 100 µA
–30%
22
1.8
0.4
+30%
160
Min
50
50
0.1
0.5
0.01
460
0.25
Typ
Max
Unit
V
V
µA
µA
mA
V
V
V
kΩ
Note) Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
Publication date: October 2013
Ver. DED
