2N3871 datasheet, PDF - EEWORLD Datasheet

2N3871: DescriptionSILICON CONTROLLED RECTIFIER,200V V(DRM),11A I(T),TO-203AA; CategoryAnalog mixed-signal IC Trigger device; File Size225KB，4 Pages; ManufacturerFREESCALE (NXP)

Download Datasheet Parametric View All

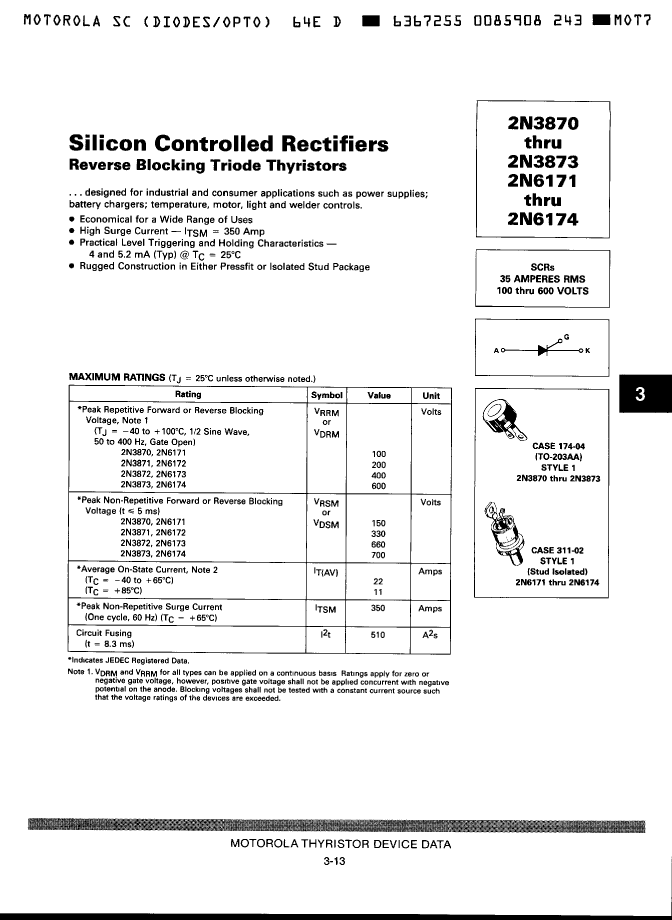

2N3871 Overview

SILICON CONTROLLED RECTIFIER,200V V(DRM),11A I(T),TO-203AA

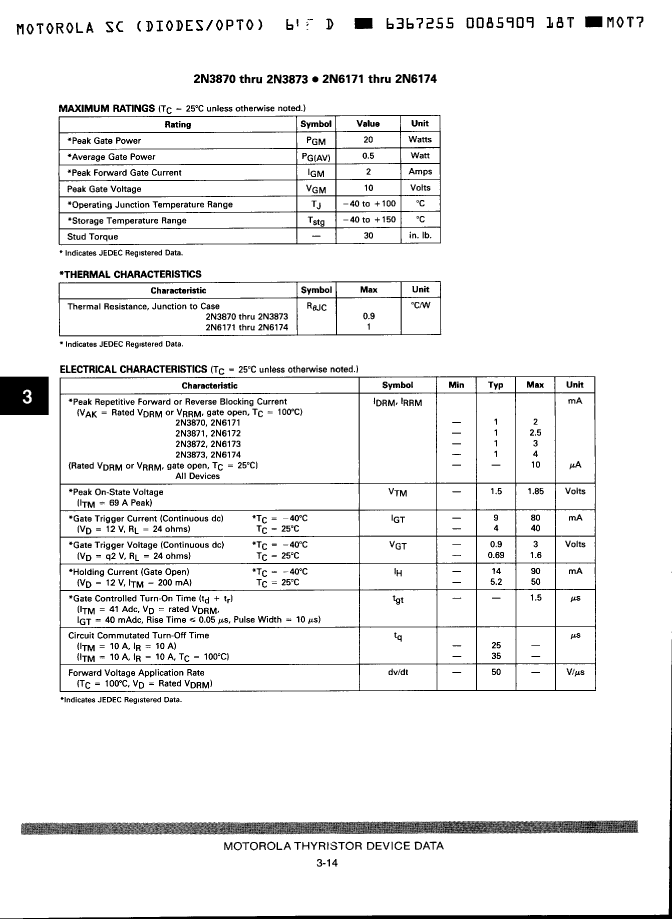

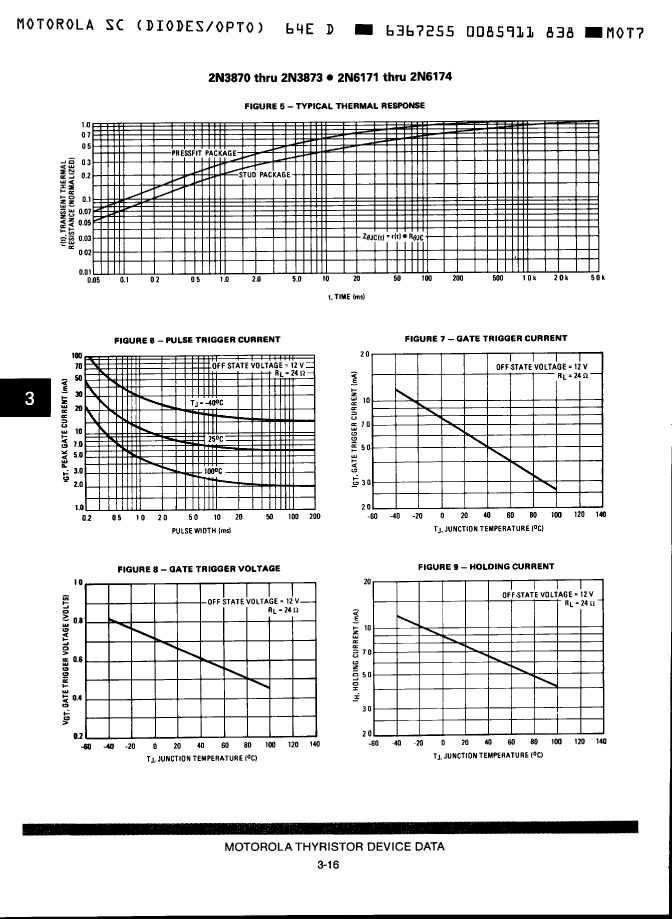

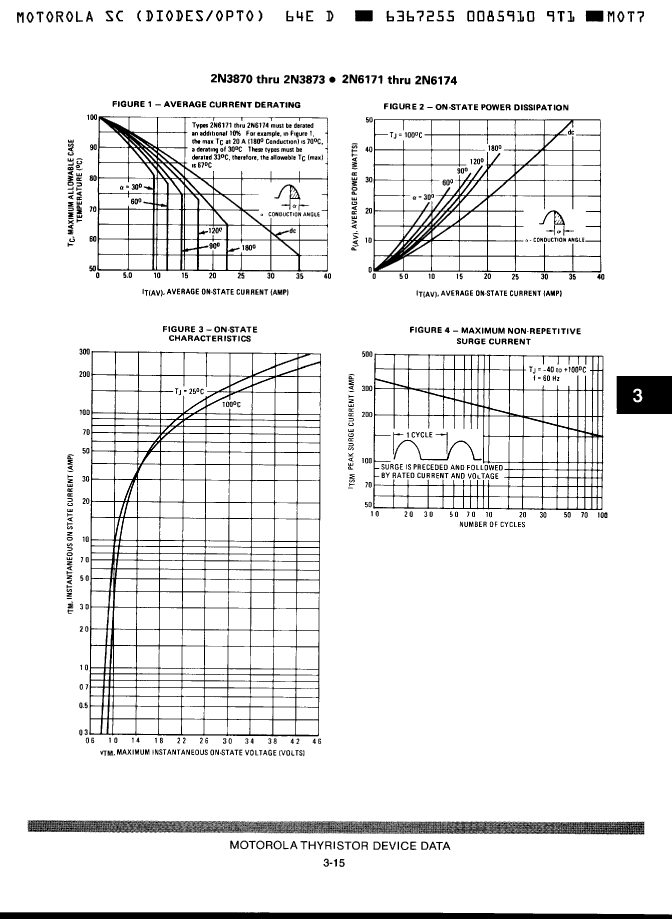

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	105348321
package instruction	PRESS FIT, O-MUPF-D2
Reach Compliance Code	unknown
YTEOL	0
Nominal circuit commutation break time	40 µs
Critical rise rate of minimum off-state voltage	50 V/us
Maximum DC gate trigger current	80 mA
Maximum DC gate trigger voltage	3 V
JESD-609 code	e0
Maximum leakage current	2.5 mA
On-state non-repetitive peak current	350 A
Maximum on-state voltage	1.8 V
Maximum on-state current	11000 A
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	200 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	SCR
