SERIES 28
HiPer-D
®
Standard and High-Density Connectors

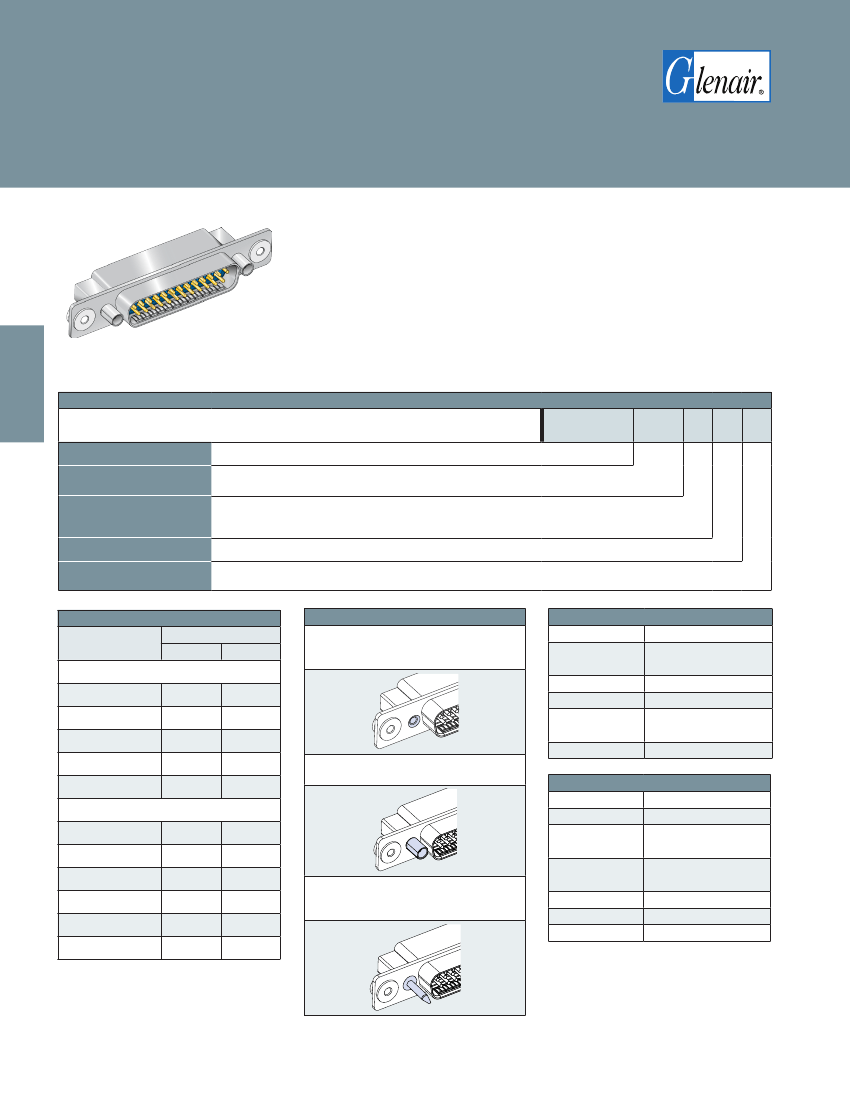

280-030P float mount pin connectors for blind mating, crimp
termination
280-030P HiPer-D® pin connectors feature stainless steel float bushings for blind
mating. Attach to panel with #4-40 screws (not supplied with connector). Crimp,
rear-releaseable size #20 or #22 contacts. Intermateable with standard M24308-type
D-Subminiature connectors, the HiPer-D® features a rugged machined aluminum shell,
rubber seals and optional ground springs for improved resistance to electromagnetic
interference. Threaded holes on the rear of the connector allow direct attachment of
HiPer-D® EMI backshells. Contacts are packaged with connector. Terminate contacts
with crimp tools purchased separately. Glass-reinforced thermoset epoxy insulators,
copper alloy retention clips. Fluorosilicone face seal and rear grommet meet IP67
immersion requirement (mated). 1000 VAC, 5 Amps (#22) or 7.5 Amps (#20).
Ordering Information
Sample Part Number
Basic Part Number
Shell Size-
Contact Arrangement
Shell Finish
Ground Spring
Mating Hardware
280-030P
See Shell Size - Contact Arrangements Table
ME
= Electroless Nickel (RoHS)
JF
= Cadmium with Yellow Chromate
Z1
= Passivated Stainless Steel (RoHS)
G
= Supplied with EMI Ground Spring
N
= No Hardware (supplied with #8-32 tapped hole)
B
= Female Guide Bushings
Mating Hardware
N
No Hardware
#8-32 tapped hole
MT
= Nickel-PTFE (RoHS)
Z2
= Gold (RoHS)
N
= No Ground Spring
G
= Male Guide Pins
B
280-030P
6H104 MT
N
N
Shell Size - Contact Arrangements
Shell Size-
Contact Arr.
1S9
2S15
3S25
4S37
5S50
Contact Size and Qty
#20
9
15
25
37
50
High Density
1H15
2H26
3H44
4H62
5H78
6H104
15
26
44
62
78
104
#22
Materials and Finishes
Shell
Aluminum alloy
Contacts
Insulators
Retention Clips
Grommet, Seal,
O-ring
Copper alloy, 50 microin.
gold plated
Thermoset epoxy
Copper alloy
Fluorosilicone rubber
300 series stainless steel
Specifications
Current Rating
Test Voltage
Insulation
Resistance
#22 5 AMPS, #20 7.5 AMPS
1000 VAC RMS
5000 megohms
minimum
-65° C. to +200° C.
IP 67
300 g.
43.92 g.
Standard Density
B
Female Guide Bushings
Hardware
G
Male Guide Pins
Operating
Temperature
Ingress Protection
Shock
Vibration, Random
B-14
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 28 HiPer-D Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
SERIES 28
HiPer-D
®
Standard and High-Density Connectors
280-030P float mount pin connectors for blind mating, crimp
termination

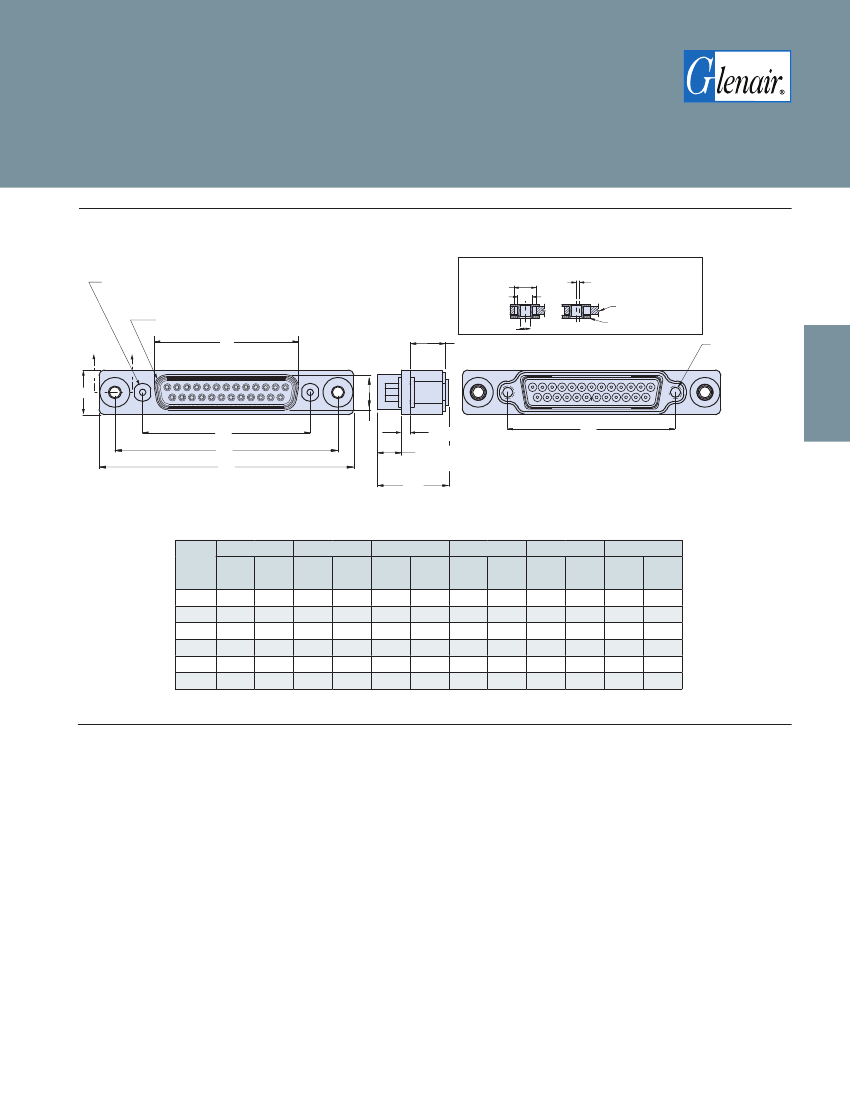

280-030P DIMENSIONS
SECTION G-G
.040±.040 (1.02±1.02)
DIAMETRAL FLOAT
CONNECTOR
FLOAT BUSHING
4-40 UNC-2B
.150 MIN. DEEP
TYP 2 PLCS
GUIDE PIN, GUIDE BUSHING, OR 8-32
UNC 2B .150 (3.81) MIN. DEEP 2PLCS
REF
R .134 (3.41)
G
G
D
.250 (6.35)
.170 (4.32)
.120 (3.05)
.390±.005
(9.91±0.13)
B
C
F
A
E
C
B
.094 (2.39)
.262±.003
(6.65±0.08)
.784
(19.92)
Shell
Size
1
2
3
4
5
6
± .015
± 0.38
± .015
± 0.38
1.986 50.44
2.314 58.78
2.854 72.49
3.502 88.95
3.408 86.56
3.502 88.95
.494 12.55
.494 12.55
.494 12.55
.494 12.55
.600 15.24
.662 16.81
in
A
mm
in
B
mm
C Basic
in.
mm
± .005
± 0.13
± .005
± 0.13
.726 18.44
1.054 26.77
1.594 40.49
2.242 56.95
2.139 54.33
2.272 57.71
.389
.389
.389
.389
9.88
9.88
9.88
9.88
in
D
mm
in
E
mm
F Basic
in
mm
.984 24.99
1.312 33.32
1.852 47.04
2.500 63.50
2.406 61.11
2.500 63.50
1.636 41.55
1.964 49.89
2.504 63.60
3.152 80.06
3.058 77.67
3.152 80.06
.501 12.73
.563 14.30
NOTES
1. HiPer-D® connectors are available with a wide variety of materials and finishes. See
About Series 28 HiPer-D® Shell Plating Options
for additional choices . Glenair offers the industry’s widest selection of plating and material choices with no setup charge, no
minimum order quantity and no schedule impact.
2. For panel cutout dimensions, refer to
Panel Cutouts and Printed Circuit Board Footprints.
3. Connectors are supplied with crimp contacts per M39029. Contacts are not installed. Refer to
HiPer-D® Contacts and Crimp Tools
for
contact part numbers, specifications, crimp tool information, and insertion/extraction tools.
4. HiPer-D® connectors meet the requirements of MIL-DTL-24308 and are intermateable with standard M24308-type D-Subminiature
connectors with corresponding contact arrangements and type.
5. Additional electrical, mechanical and environmental specifications are listed in
HiPer-D® Product Specification.
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 28 HiPer-D Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
B-15
