DK807
&
809 Series

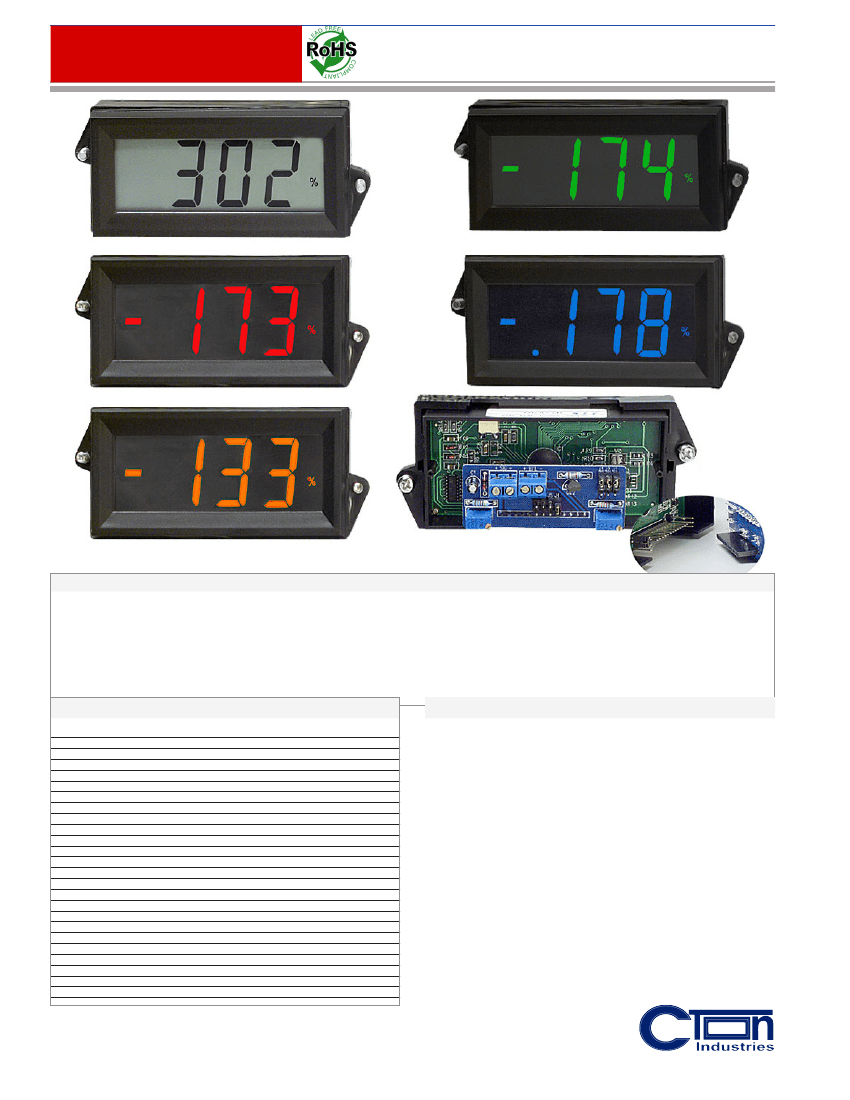

Large 1" - 3½ Digit Loop Powered or Voltage Controlled LCD DPM
Adjustable LCD Digital Panel Meters
Features:
◊ Large 1”, 3½ digit display for easy viewing.
◊ Decimal point user selectable
◊ Engineering units user selectable
◊ Non-backlit LCD or choice of AMBER, GREEN, RED or BLUE backlit LCD
◊ Wide ZERO (Offset) & SPAN (Gain) adjustment
◊ Standard ⅛ DIN package
◊ Snap-in panel mounting
◊ Gasket and clamp provided for NEMA 4, NEMA 12, & IP66 applications

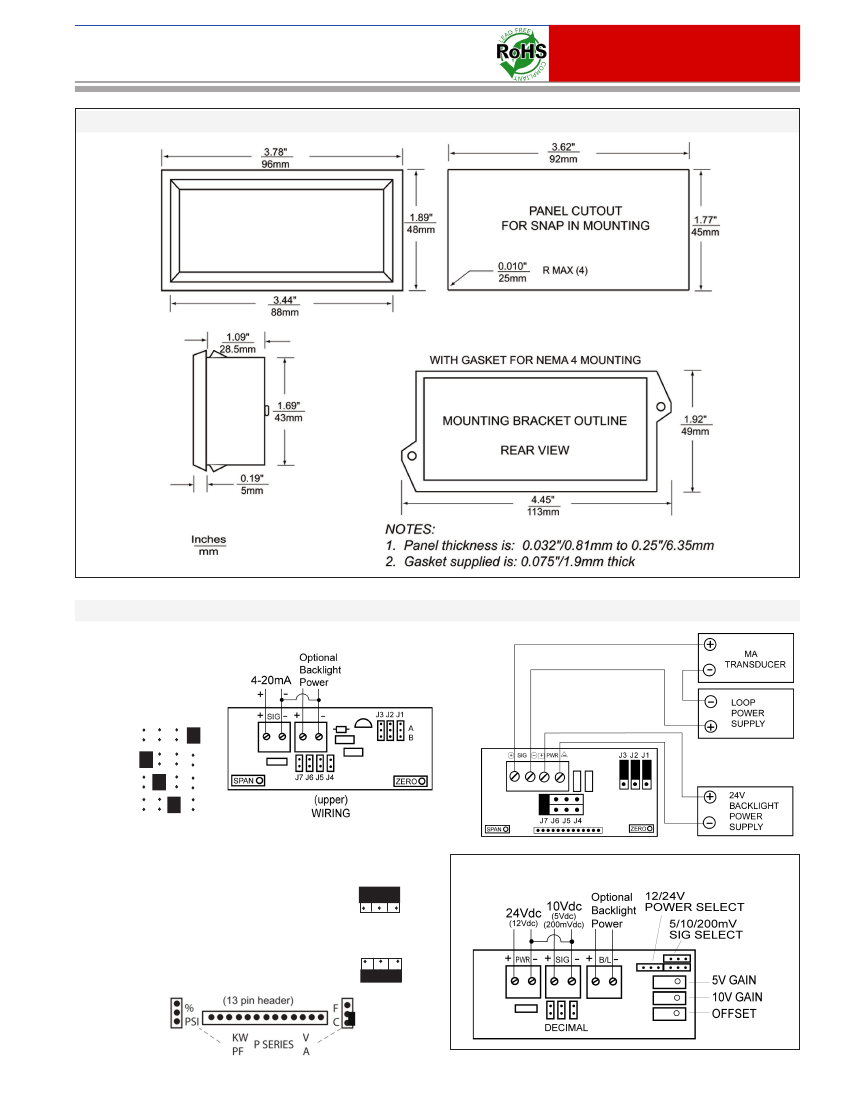

Specifications:
Display:
Inputs:
Performance:
Adjustments:
Environment:
Power
Supply:
Mounting:
Connection:
Digits:
Type:
Polarity:
Annuciators:
Decimal Points:
Overrange:
Voltage Ranges:
Current Range:
Configuration:
Impedance:
Accuracy:
Conversion Rate:
Normal Mode Rejection:
Warmup:
Temperature Coefficient:
Offset Range:
Gain Range:
Operating Range:
Storage Range:
Loop Powered:
Voltage Controlled:
Backlighting:
3 ½ digits (±1999 counts)
1" (24.9 mm) 7 segment high contrast LCD
automatic, “-” displayed
°F, °C, PSI, %, user selectable, V, A, KW, PF
3 position, user selectable
three lower order digits blank for inputs >1999 & < -1999
200 mV, 5 V, 10 V (809 Series)
4 to 20mA (807 Series)
single ended (809 Series)
390KΩ (809 Series)
±(0.05% of full scale + 1 count)
3 per second
>30 dB @ 60 Hz
10 minutes typical
± 100 ppm per °C typical
25 turn potentiometers
-1999 to +1999
1 to 1999 (custom ranges available)
-10 to 50 °C
-40 to 75 °C
300Ω nominal at 20 mA (807 series)
10 mA at 12 V (9 to 16 V) or 24 V (16 to 32 V) (809 series)
35 mA typical @ 24 VDC
snap-in panel mount or clamp and gasket (included)
screw terminals
Ordering Information:
PART NUMBER ..... BACKLIGHT COLOR ....... METER INPUT ...........METER POWER .. BACKLIGHT POWER
DK807A* ..........NO BACKLIGHT ........4-20mA .............. mA loop ..................... NONE
DK757B* .................. BLUE .................4-20mA .............. mA loop .................... 24VDC
DK857B* ................... RED ..................4-20mA .............. mA loop .................... 24VDC
DK947B* .................AMBER ................4-20mA ............... mA loop .................... 24VDC
DK957B* .................GREEN ................4-20mA ............... mA loop .................... 24VDC
DK809* ............NO BACKLIGHT ........Voltage ..............12/24VDC ..................... NONE
DK759* .................... BLUE .................Voltage .............12/24VDC .................... 24VDC
DK859* ..................... RED ..................Voltage .............12/24VDC .................... 24VDC
DK949* ...................AMBER .............Voltage .............12/24VDC .................... 24VDC
.
DK959* ...................GREEN ................Voltage .............12/24VDC .................... 24VDC
*Add (P) for Power Engineering Units V, A, KW, PF
PW2-12 ..................................................Regulated 120V AC to 12V DC Power Supply
.
PW2-24 ..................................................Regulated 120V AC to 24V DC Power Supply
.
PW1.0 .......................................................................... 24V AC to adjustable DC output
CPW1.5 ....................................................................... 24V AC to adjustable DC output
CVC ................................................................................................................. Calibrator
C-TON I
NdusTrIes
• PO B
Ox
172 • S
unaPee
, nH, 03782 • uSa • P
HOne
(603)456-2655 •
email
:
INfO
@
CTONINdusTrIes
.
COm
DK800/900 Series

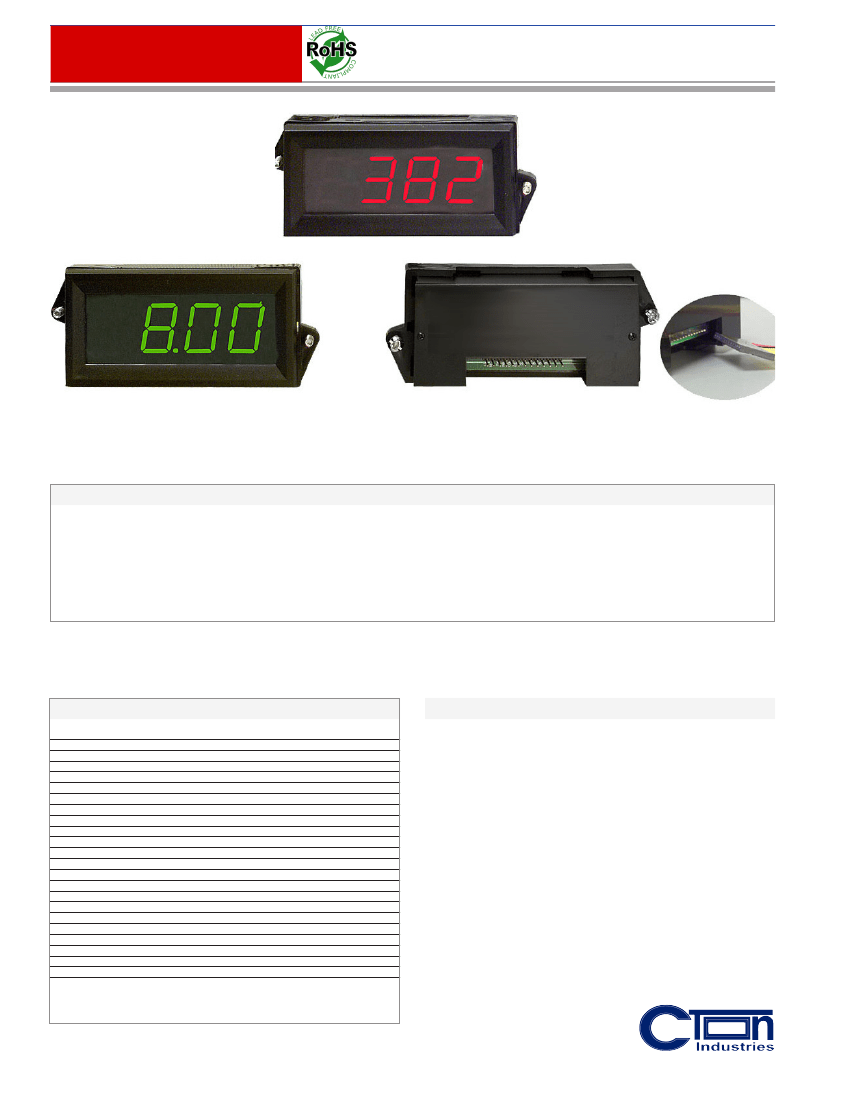

Large 3½ Digit LED Digital Panel Meter
LED Digital Panel Meters
Features:
◊ Large, 0.8”, 3½ digit, GREEN or RED display for easy viewing
◊ Standard ⅛ DIN package
◊ Decimal point user selectable
◊ Snap-in panel mounting - no tools or hardware required
◊ Gasket and clamp provided for NEMA4, NEMA12, & IP66 applications
Specifications:
Display:
Inputs:
Performance:
Environment:
Power Supply:
Mounting:
Connection:
Digits:
Type:
Polarity:
Decimal Points:
Overrange:
Hold:
Ranges:
Configuration:
Protection:
Impedance:
Accuracy:
Conversion Rate:
Normal Mode Rejection:
Common Mode Range:
Common Mode Rej.:
Zero Adjustment:
Warmup:
Temperature Coefficient:
Operating Range:
Storage Range:
3 ½ digits (±1999 counts)
0.8” (20.3 mm) LED
automatic, “-” displayed.
3 position, user selectable
three lower order digits blank for inputs >1999 & < -1999
display hold function is standard
±200.0 mV, +/-2.000 V, +/-20.00 VDC
bipolar, differential
±350 VDC, (±100 VDC on 200 mV range)
>1 MΩ, (>10 MΩ on 200 mV range)
±(0.05% FS +1 counts)
3 per second
>30 dB @ 60 Hz
±1V DC
>86 dB
automatic
10 minutes typical
±100 ppm per °C typical
-10 to 50 °C
-40 to 75 °C
+5V DC (± 5%) 180 mA @ 5 V
snap-in panel mount or clamp and gasket (included)
13 pin male connection
Ordering Information:
PART NUMBER
METER COLOR
METER INPUT
DK851A .......................................... RED ........................................................... 200mV
DK852A .......................................... RED .................................................................. 2V
DK853A .......................................... RED ................................................................ 20V
DK951A ....................................... GREEN ......................................................... 200mV
DK952A ....................................... GREEN ................................................................ 2V
DK953A ....................................... GREEN .............................................................. 20V
J4C13 .......................................................................13 Pin Connector / Wire Assembly
PW2-5 ......................................................Regulated 120V AC to 5V DC Power Supply
.
PW1.0 ........................................................... 24V AC to adjustable DC output
CPW1.5 ........................................................ 24V AC to adjustable DC output
CVC ..................................................................................................Calibrator
C-TON I
NdusTrIes
• PO B
Ox
172 • S
unaPee
, nH, 03782 • uSa • P
HOne
(603)456-2655 •
email
:
INfO
@
CTONINdusTrIes
.
COm
