DK191-XEC Overview

panel meter lcd 4-20ma loop

Preview

Download Datasheet

View All

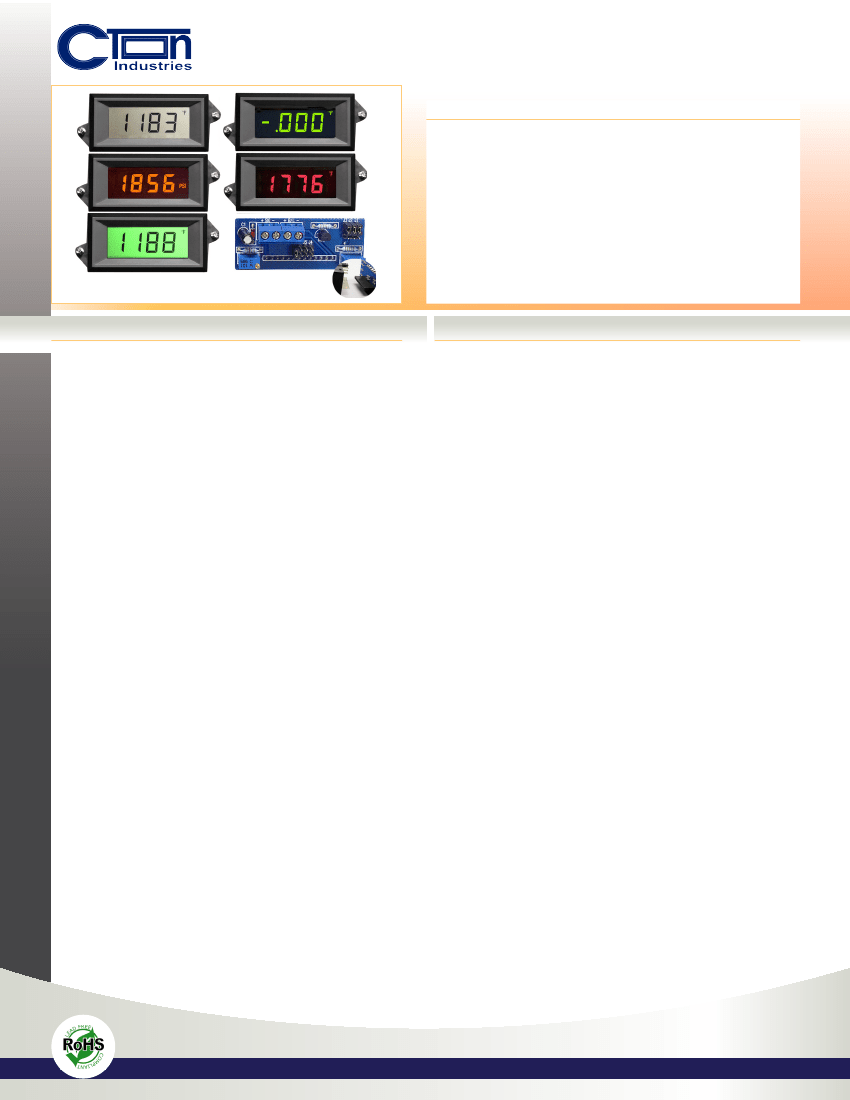

DK190-XEC

LCD Digital Panel Meters

Specifications Installation and Operating Instructions

3½ Digit LCD with Loop Powered Board

FEATURES

}

Low-cost,}high-performance}replacement}for}many}} EM}DPMs

Optional}RED,}GREEN,}AMBER}or}POS}GREEN}backlit}LCD}

Snap-in}bezel}mount}eliminates}mounting}hardware

Resistant}to}RF}and}EMI

3½}digits}with}high-contrast}LCD}

4-20}mA}loop}powered}input

User-selectable,}displayed}engineering}units}

SPECIFICATIONS

DISPLAY

Digits:

Type:

Backlighting:

Polarity:

Annunciators:

Decimal Points:

Overrange:

3 ½ digits (±1999 counts)

0.45" (11.4 mm) 7 segment LCD

Optional Red Negative

(red numbers/black background)

Optional Green Negative

(green numbers/black background)

Optional Amber Negative

(amber numbers/black background)

Optional Green Positive

(black numbers/green background)

automatic, “-” displayed

°F, °C, PSI, % , user selectable

3 position, user selectable

three lower order digits blank for

inputs >1999 & < -1999

4-20 mA DC

bipolar differential

300Ω nominal

±(0.1% fs + 2 count)

3 per second

>30 dB @ 60 Hz

±1 VDC max

>86 dB

span (gain) and zero (offset)

10 minutes typical

± 100 ppm per °C typical

0 to 50 °C

-10 to 70 °C

24 VDC at 35 mA typical

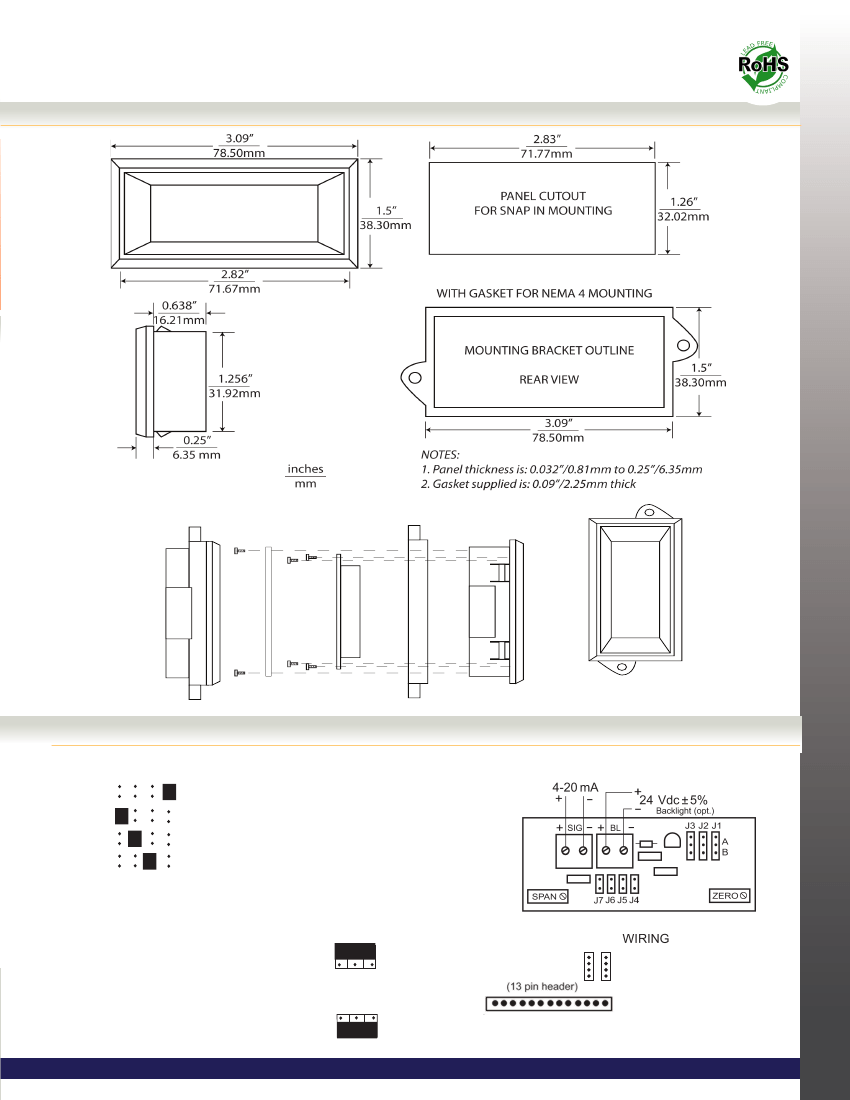

snap-in bezel mount or clamp and gasket

2 screw terminal (4 with backlight)

ORDERING INFO

PART NUMBER

BACKLIGHT COLOR

BACKLIGHT POWER

DK191-XEC .......................... NO BACKLIGHT .......................................NONE

DK192-XEC ........................... NEG AMBER ....................................... 24VDC

DK194-XEC ..............................NEG RED .......................................... 24VDC

DK193-XEC ............................NEG GREEN ....................................... 24VDC

DK195-XEC ............................POS GREEN ....................................... 24VDC

ACCESSORIES

PW2-24 ................................... Regulated 120V AC to 24V DC Power Supply

PW1.0..........................................................24V AC to adjustable DC output

PW1.5..........................................................24V AC to adjustable DC output

CVC ..............................................................................................Calibrator

INPUTS

Ranges:

Configuration:

Impedance:

PERFORMANCE

Accuracy:

Conversion Rate:

Normal Mode Rejection:

Common Mode Range:

Common Mode Rej.:

Adjustments:

Warmup:

Temperature Coeff.:

ENVIRONMENT

Operating Range:

Storage Range:

POWER SUPPLY

MOUNTING

CONNECTION

Optional Backlight:

C-TON I

NdusTrIes

• PO Box 11746 • Memphis, TN 38111 • USA (603) 471-0158 •

INfO

CTONINdusTrIes

COm

DK191-XEC Related Products

	DK191-XEC	DK192-XEC	DK193-XEC	DK194-XEC	DK195-XEC
Description	panel meter lcd 4-20ma loop	panel meter lcd 4-20ma amber	panel meter lcd 4-20ma grn	panel meter lcd 4-20ma red	panel meter lcd 4-20ma pos grn
Standard Package	-	1	1	1	1
Category	-	Industrial Controls, Meters	Industrial Controls, Meters	Industrial Controls, Meters	Industrial Controls, Meters
Family	-	Panel Meters	Panel Meters	Panel Meters	Panel Meters
Type	-	Process Mete	Process Mete	Process Mete	Process Mete
Measuring Range	-	4 ~ 20mA	4 ~ 20mA	4 ~ 20mA	4 ~ 20mA
Display Type	-	LCD - Amber Characters, Backligh	LCD - Green Characters, Backligh	LCD - Red Characters, Backligh	LCD - Black Characters, Green Backligh
Number Of Characters Per Row	-	3.5	3.5	3.5	3.5
Display Characters - Heigh	-	0.449" (11.40mm)	0.449" (11.40mm)	0.449" (11.40mm)	0.449" (11.40mm)
Voltage - Supply	-	Loop Power, 24VDC (Backlight)	Loop Power, 24VDC (Backlight)	Loop Power, 24VDC (Backlight)	Loop Power, 24VDC (Backlight)
Panel Cutout Dimensions	-	Rectangular - 71.77mm x 32.02mm	Rectangular - 71.77mm x 32.02mm	Rectangular - 71.77mm x 32.02mm	Rectangular - 71.77mm x 32.02mm
Mounting Type	-	Panel Mou	Panel Mou	Panel Mou	Panel Mou
Termination Style	-	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal
Operating Temperature	-	0°C ~ 50°C	0°C ~ 50°C	0°C ~ 50°C	0°C ~ 50°C
Dynamic Catalog	-	DK190-XEC Series	DK190-XEC Series	DK190-XEC Series	DK190-XEC Series
Associated Produc	-	CDPM1009-ND - CALIBRATOR VOLT .59" LCD BLUCDPM1010-ND - POWER SUPPLY REG 0.5A 24VDC 40VACDPM1002-ND - POWER SUPPLY 24VDC OUT 100MA	CDPM1009-ND - CALIBRATOR VOLT .59" LCD BLUCDPM1010-ND - POWER SUPPLY REG 0.5A 24VDC 40VACDPM1002-ND - POWER SUPPLY 24VDC OUT 100MA	CDPM1009-ND - CALIBRATOR VOLT .59" LCD BLUCDPM1010-ND - POWER SUPPLY REG 0.5A 24VDC 40VACDPM1002-ND - POWER SUPPLY 24VDC OUT 100MA	CDPM1009-ND - CALIBRATOR VOLT .59" LCD BLUCDPM1010-ND - POWER SUPPLY REG 0.5A 24VDC 40VACDPM1002-ND - POWER SUPPLY 24VDC OUT 100MA
Other Names	-	CDPM1068DK192XEC	CDPM1067DK193XEC	CDPM1066DK194XEC	CDPM1065DK195XEC
