DK800
LCD Digital Panel Meters
Specifications Installation and Operating Instructions

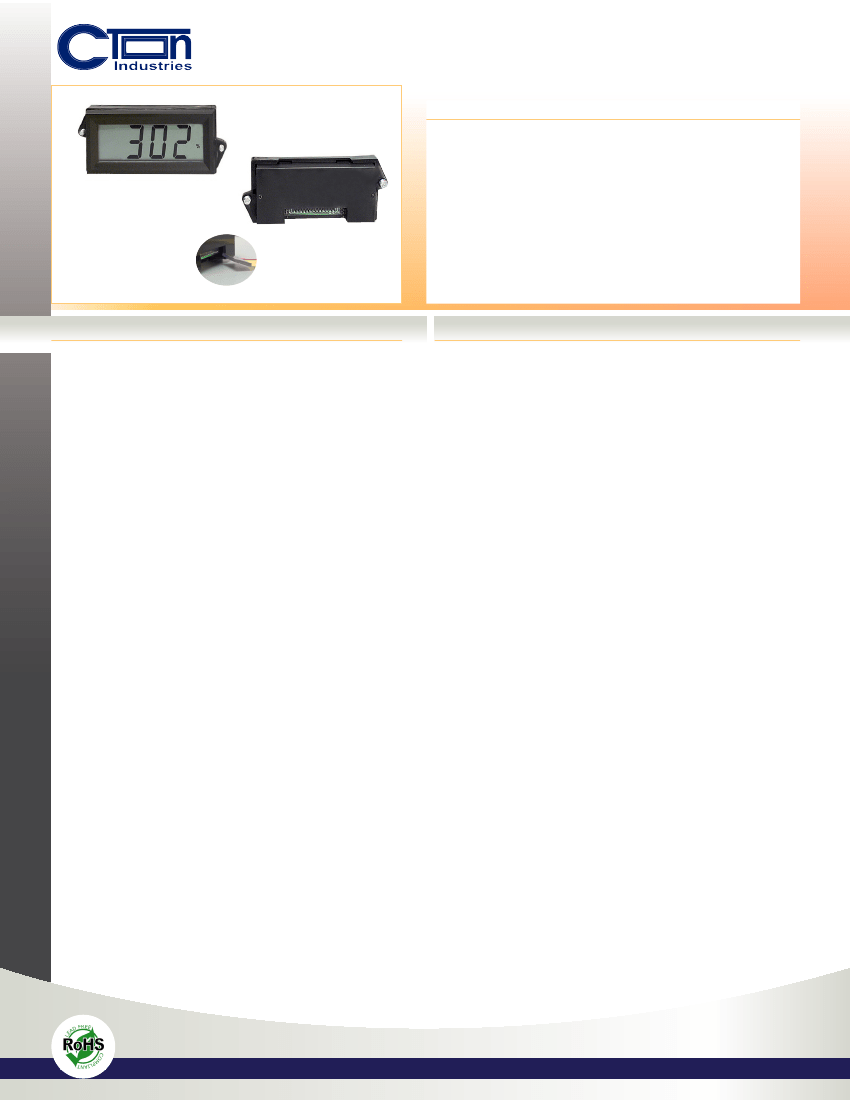

Large 1" - 3½ Digit LCD Digital Panel Meter
FEATURES
}
}
}
}
}
}
}
}
}
}
}
}
}
}
}
Large,}1”,}3½}digit}display}for}easy}viewing}}
Standard}1/8}DIN}package
User-selectable}decimal}points
User-selectable}engineering}units}
Snap-in}panel}mounting}-}no}tools}or}hardware}required
13}pin}connector}/}wiring}harness}included
Gasket}and}clamp}provided}for}NEMA}4,}NEMA}12}&}IP66}}
applications
}
SPECIFICATIONS
DISPLAY
Digits:
Type:
Polarity:
Decimal Points:
Overrange:
Hold:
Annunciators:
Ranges:
Configuration:
Protection:
Impedance:
Accuracy:
Conversion Rate:
Normal Mode Rejection:
Common Mode Range:
Common Mode Rej.:
Zero Adjustment:
Warmup:
Temperature Coeff.:
3 ½ Digits (±1999 counts)
1” ( 24.9 mm) high contrast LCD
automatic, “-” displayed.
3 position, user-selectable
three lower order digits blank for
inputs >1999 & < -1999
display hold function is standard
PSI, °F, °C, % user-selectable
ORDERING INFO
PART NUMBER
METER INPUT
DK801A .......................................................................................... 200mV
DK802A .................................................................................................2V
DK803A ...............................................................................................20V
ACCESSORIES
J4C13 ..................................................... 13 Pin Connector / Wire Assembly
.
PW2-5 ....................................... Regulated 120V AC to 5V DC Power Supply
CVC ..............................................................................................Calibrator
INPUTS
±200.0 mV, +/-2.000 V, +/-20.00 VDC
bipolar, differential
±350 VDC, (±100 VDC on 200 mV range)
>1 MΩ, (>10 MΩ on 200 mV range)
±(0.05% FS +1 counts)
3 per second
>30 dB @ 60 Hz
±1 VDC
>86 dB
automatic
10 minutes typical
±100 ppm per °C typical
-10 to 50 °C
-10 to 75 °C
PERFORMANCE
ENVIRONMENT
Operating Range:
Storage Range:
POWER SUPPLY
5V powered:
+5 VDC (±5%) 3 mA @ 5 V
MOUNTING
snap-in panel mount or clamp and gasket
(included)
CONNECTION
13 pin male connection
C-TON I
NdusTrIes
• PO Box 11746 • Memphis, TN 38111 • USA (603) 471-0158 •
emaIl
:
INfO
@
CTONINdusTrIes
.
COm
LCD Digital Panel Meters
Specifications Installation and Operating Instructions
Large 1" - 3½ Digit LCD Digital Panel Meter
DK800

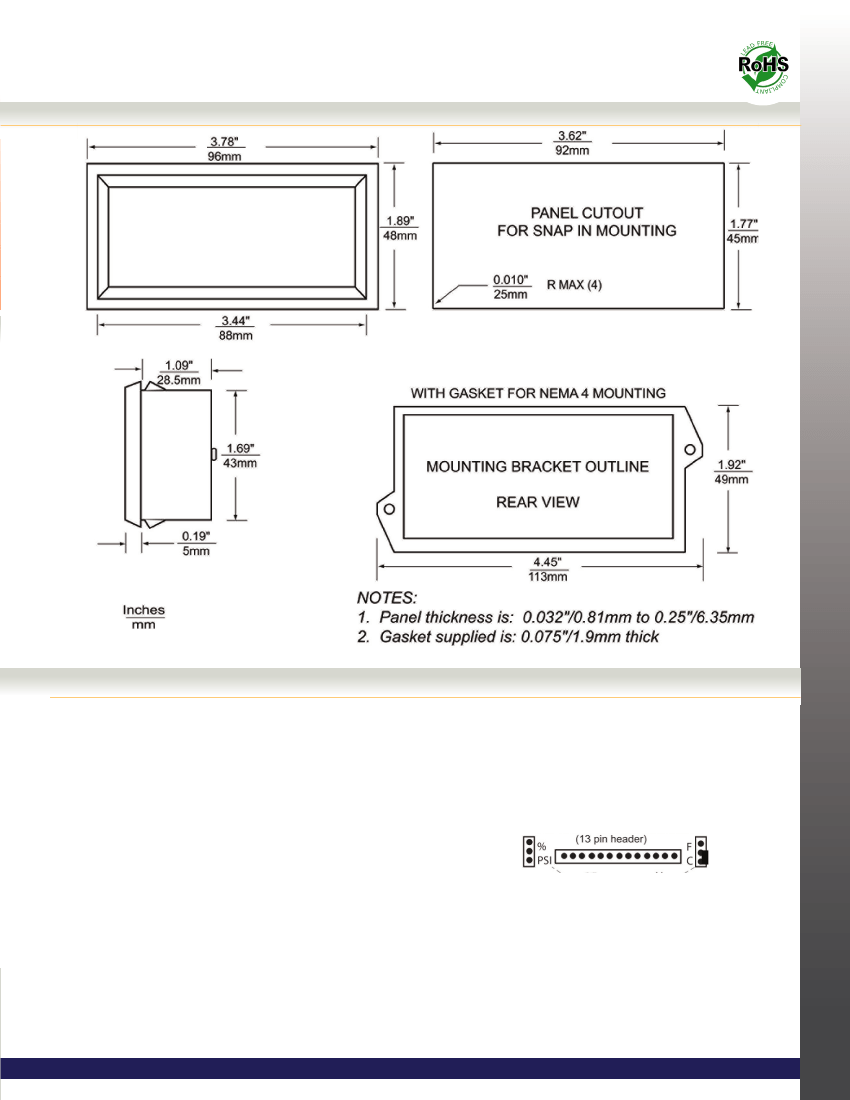

DIMENSIONS
WIRING
PIN # DESCRIPTION
1
+5V POWER SUPPLY
2
NEGATIVE SUPPLY
3
INHI
4
INLO
5
DECIMAL COMMON
6
DECIMAL 000.0 WHEN CONNECTED TO DECIMAL COMMON
7
DECIMAL 00.00 WHEN CONNECTED TO DECIMAL COMMON
8
DECIMAL 0.000 WHEN CONNECTED TO DECIMAL COMMON
9
NO CONNECTION REQUIRED
10 NO CONNECTION REQUIRED
11 DISPLAY HOLD WHEN CONNECTED TO +5V
12 NO CONNECTION
13 NO CONNECTION
* Note: Pins 2 &4 should be tied together for proper operation
