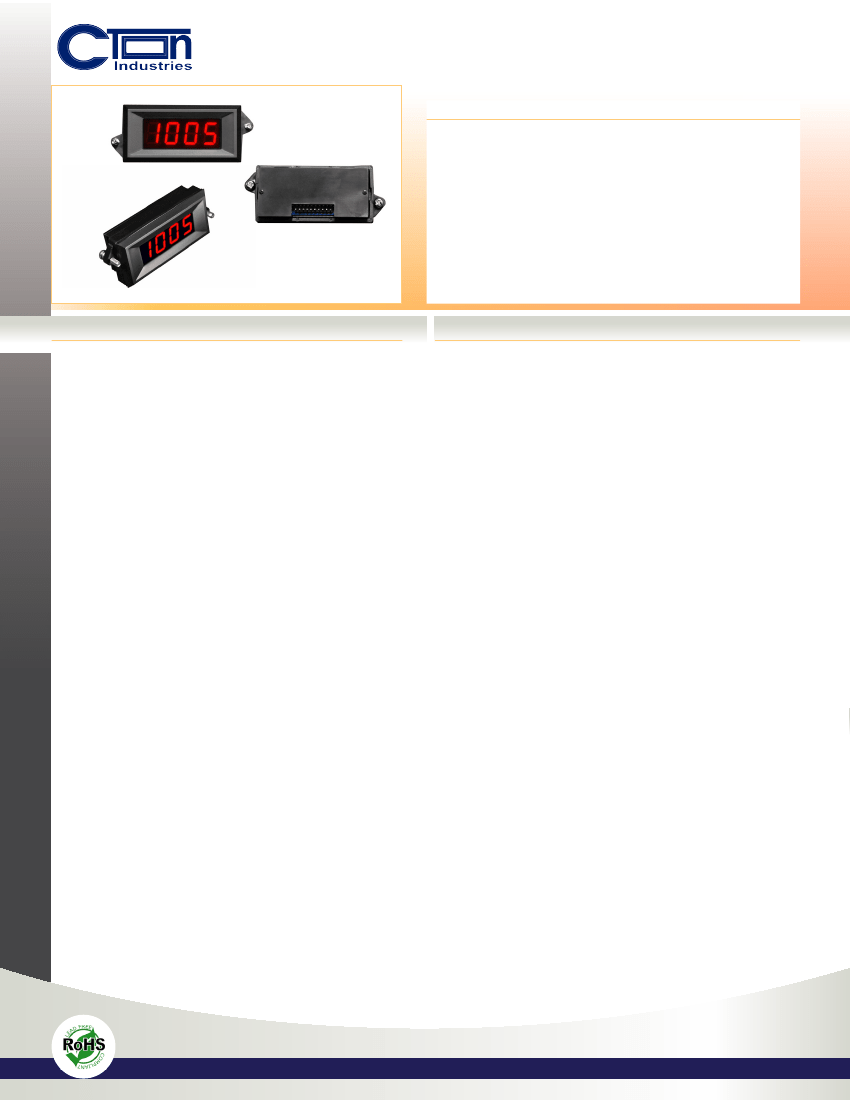

DK610
LED Digital Panel Meters
Specifications Installation and Operating Instructions
3½ Digit LED Display for voltage inputs
FEATURES
}
}
}
}
}
}
}
}
}
}
}
Display}hold}function}standard
3½}digits}with}0.56”}RED}or}GREEN}LED
10}wire}harness}included
Gasket}and}clamp}provided}for}NEMA4,}NEMA12}&}IP66}}
applications
User-selectable}decimal}points
}
SPECIFICATIONS
DISPLAY
Digits:
Type:
Digit Height:
Polarity:
Decimal Point:
Overrange:
3 ½ (±1999 count)
7- segment LED (red or green)
.56 in (14.2 mm)
automatic “-” for neg input
3 position selectable
three lower order digits blank for
inputs >1999 & < -1999
ORDERING INFO
PART NUMBER
METER COLOR
METER POWER
DK611 ...................................... GREEN .................................... 200mV DC
DK612 ...................................... GREEN ............................................ 2VDC
DK613 ....................................... GREEN .......................................... 20VDC
DK614 ......................................... RED ...................................... 200mV DC
DK615 ......................................... RED .............................................2V DC
DK616 ......................................... RED ...........................................20V DC
SIGNAL INPUTS
Configuration:
bipolar, differential
Full-Scale Input:
±200 mV, ±2 V, ±20 V
Input Offset Adjustment: auto zero
Input Impedance:
>100 MΩ (±200 mV),-1 MΩ
(other ranges)
Common Mode Range: ±1 VDC
Common Mode Rejection: >86 dB
Protection:
±350 VDC (±100 VDC for 200 mV range)
Input Bias Current:
1 pA typical, 100 pA max
Control Inputs:
decimal point select, hold,
span adjust trimpot
Sampling Rate:
3.3 readings / seconds
Accuracy:
± (0.1% + 2 counts) typical
±(0.2% + 2 counts) max
Warmup, typical:
10 min
Temperature Drift, typical: 100 ppm / °C
+5 VDC ±5%
200 mA
ACCESSORIES
C10-5 ...............................................5" - 10 Pin Connector / Wire Assembly
J1C10 ............................................12" - 10 Pin Connector / Wire Assembly
.
PW2-5 ....................................... Regulated 120V AC to 5V DC Power Supply
PW1.0..........................................................24V AC to adjustable DC output
CPW1.5B .....................................................24V AC to adjustable DC output
CVC ..............................................................................................Calibrator
PERFORMANCE
POWER SUPPLY
ENVIRONMENT
Supply Voltage:
Supply Current, typical:
Operating Temperature: 0 to 50°C
Storage Temperature:
-10 to 60°C
Relative Humidity:
0 to 95% non-condensing
PHYSICAL
Package Style:
Dimensions:
Panel Cutout:
Weight:
Connector:
CONNECTION:
NEMA bezel mount
3.09 x 1.5 x .66"
2.83 x 1.26"
1.0 oz
J1C-10 or C10-5 optional
10 pin
C-TON I
NdusTrIes
• PO Box 11746 • Memphis, TN 38111 • USA (603) 471-0158 •
emaIl
:
INfO
@
CTONINdusTrIes
.
COm
LED Digital Panel Meters
Specifications Installation and Operating Instructions
3½ Digit LED Display for voltage inputs
DK610

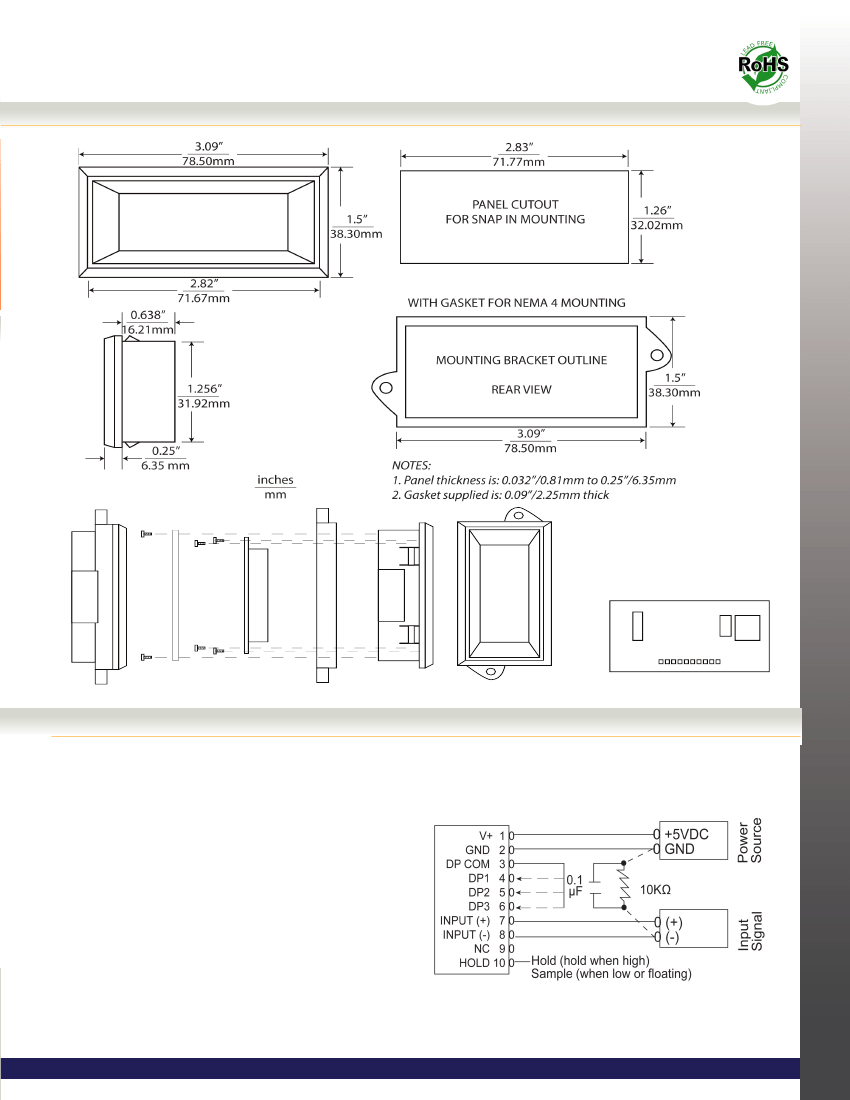

DIMENSIONS
1
10
WIRING
Pin No.
Pin Name Description
1
V+
+5V power supply
2
GND
Power supply ground
3
DP COM Decimal point return
4
DP1
1XX.X (connect to DP COM to turn on)
5
DP2
1X.XX (connect to DP COM to turn on)
6
DP3
1.XXX (connect to DP COM to turn on)
7
INPUT(+) Positive input signal
8
INPUT(-) Negative input signal
9
NC
No connection required
10 HOLD Hold last display
C-TON I
NdusTrIes
• PO Box 11746 • Memphis, TN 38111 • USA (603) 471-0158 •
emaIl
:
INfO
@
CTONINdusTrIes
.
COm
