552EB945M000GR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 552EB945M000GR

552EB945M000GR: DescriptionOscillator; CategoryPassive components oscillator; File Size218KB，12 Pages; ManufacturerSilicon Laboratories Inc

Download Datasheet Parametric View All

552EB945M000GR Overview

Oscillator

552EB945M000GR Parametric

Parameter Name	Attribute value
Objectid	110368689
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

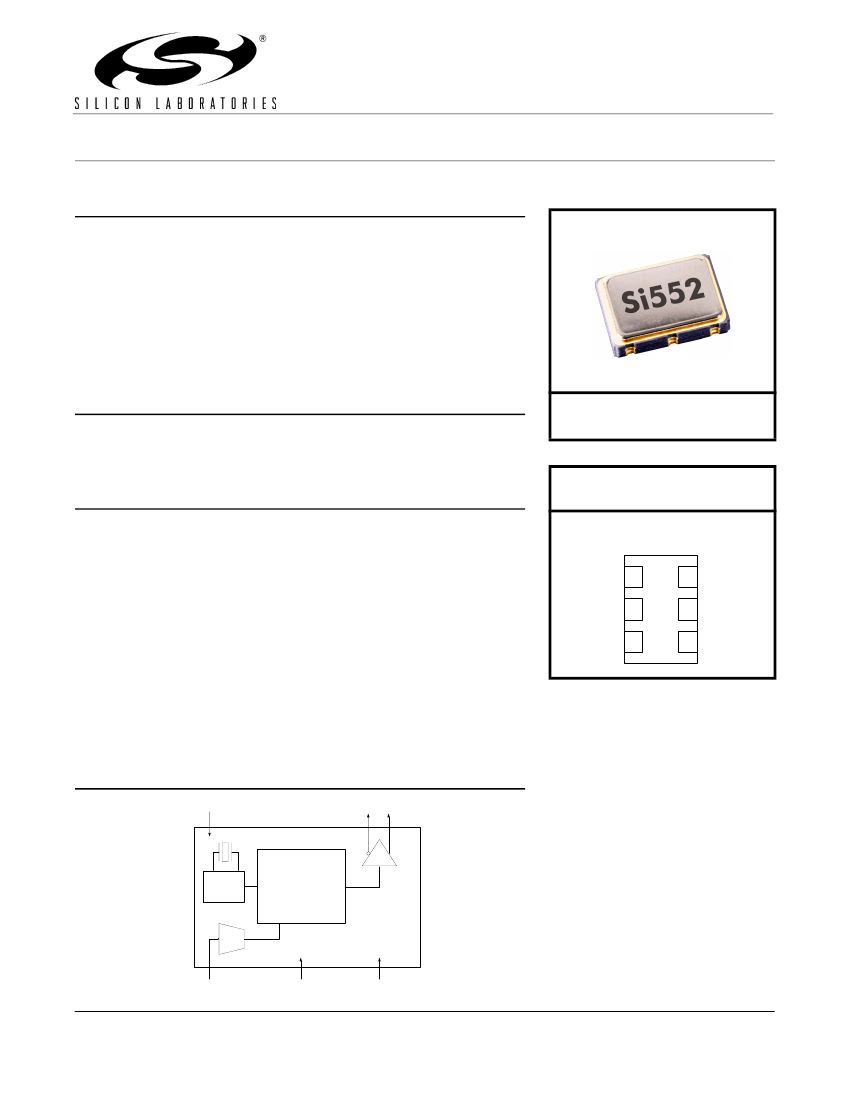

Si552

R E L I M I N A R Y

A TA

H E E T

U A L

R E Q U E N C Y

VCXO (10 M H

Features

Available with any-rate output

frequencies from 10–945 MHz and

select frequencies to 1.4 GHz

Two selectable output frequencies

3rd generation DSPLL

with superior

jitter performance

3x better frequency stability than

SAW-based oscillators

1.4 GH

)

Internal fixed crystal frequency

ensures high reliability and low

aging

Available CMOS, LVPECL, LVDS

& CML outputs

3.3, 2.5, and 1.8 V supply options

Industry-standard 5 x 7 mm

package and pinout

Pb-free/RoHS-compliant

Si5602

Applications

SONET/SDH

xDSL

10 GbE LAN / WAN

Low-jitter clock generation

Optical Modules

Clock and data recovery

Ordering Information:

See page 8.

Description

The Si552 dual frequency VCXO utilizes Silicon Laboratories advanced

DSPLL

circuitry to provide a very low jitter clock for all output frequencies.

The Si552 is available with any-rate output frequency from 10 to 945 MHz

and select frequencies to 1400 MHz. Unlike traditional VCXO’s where a

different crystal is required for each output frequency, the Si552 uses one

fixed crystal frequency to provide a wide range of output frequencies. This

IC based approach allows the crystal resonator to provide exceptional

frequency stability and reliability. In addition, DSPLL clock synthesis

provides superior supply noise rejection, simplifying the task of generating

low jitter clocks in noisy environments typically found in communication

systems. The Si552 IC based VCXO is factory configurable for a wide

variety of user specifications including frequency, supply voltage, output

format, tuning slope, and temperature stability. Specific configurations are

factory programmed at time of shipment, thereby eliminating long lead times

associated with custom oscillators.

Pin Assignments:

See page 7.

(Top View)

GND

CLK–

CLK+

Functional Block Diagram

CLK- CLK+

Fixed

Frequency XO

Any-rate

10–1400 MHz

DSPLL

Clock Synthesis

ADC

GND

Preliminary Rev. 0.3 5/06

Si552

This information applies to a product under development. Its characteristics and specifications are subject to change without notice.
