playback) and call screening features. This product enables playback of messages while the phone is
in standby, AND both simplex and duplex playback of messages while on a phone call.
Additional voice storage features for digital cellular phones include: 1) a personalized outgoing
message can be sent to the person by getting caller-ID information from the host chipset 2) a private
call announce while on call can be heard from the host by giving caller-ID on call waiting information
from the host chipset.
Logic Interface Options of 2.0V and 3.0V are supported by the ISD5116 to accommodate portable
communication products customers (2.0- and 3.0-volt required).
Like other ChipCorder
®
products, the ISD5116 integrates the sampling clock, anti-aliasing and
smoothing filters, and the multi-level storage array on a single-chip. For enhanced voice features, the
ISD5116 eliminates external circuitry by integrating automatic gain control (AGC), a power
amplifier/speaker driver, volume control, summing amplifiers, analog switches, and a car kit interface.
Input level adjustable amplifiers are also included, providing a flexible interface for multiple
applications.
Recordings are stored into on-chip nonvolatile memory cells, providing zero-power message storage.
This unique, single-chip solution is made possible through Winbond’s patented multilevel storage
technology. Voice and audio signals are stored directly into solid-state memory in their natural,
uncompressed form, providing superior quality voice and music reproduction.
-2-
ISD5116
2. FEATURES
Fully-Integrated Solution
•
Single-chip voice record/playback solution
•
Dual storage of digital and analog information
Low Power Consumption
•
+2.7 to +3.3V (V
CC
) Supply Voltage
•
Supports 2.0V and 3.0V interface logic
•
Operating Current:
I
CC Play
= 15 mA (typical)
I
CC Rec
= 30 mA (typical)
I
CC Feedthrough
= 12 mA (typical)
•
Standby Current:
I
SB
= 1µA (typical)
•
Most stages can be individually powered down to minimize power consumption
Enhanced Voice Features
•
One or two-way conversation record
•
One or two-way message playback
•
Voice memo record and playback
•
Private call screening
•
In-terminal answering machine
•
Personalized outgoing message
•
Private call announce while on call
Digital Memory Features
•
Up to 4 MB available
•
Storage of phone numbers, system configuration parameters and message address table in
cellular application
Easy-to-use and Control
•
No compression algorithm development required
•
User-controllable sampling rates
•
Programmable analog interface
•
Standard & Fast mode I
2
C serial interface (100kHz – 400 kHz)
•
Fully addressable to handle multiple messages
HIGH QUALITY SOLUTION
•
High quality voice and music reproduction
•
Winbond’s standard 100-year message retention (typical)
•
100K record cycles (typical) for analog data
•
10K record cycles (typical) for digital data
OPTIONS
•
Available in die form, µBGA (available upon request), TSOP and SOIC and PDIP
•
Extended (-20 to +70°C) and Industrial (-40 to +85°C) available, besides Commercial (0 to +70°C)
-3-
Publication Release Date: August, 2002
Revision 2.0
ISD5116

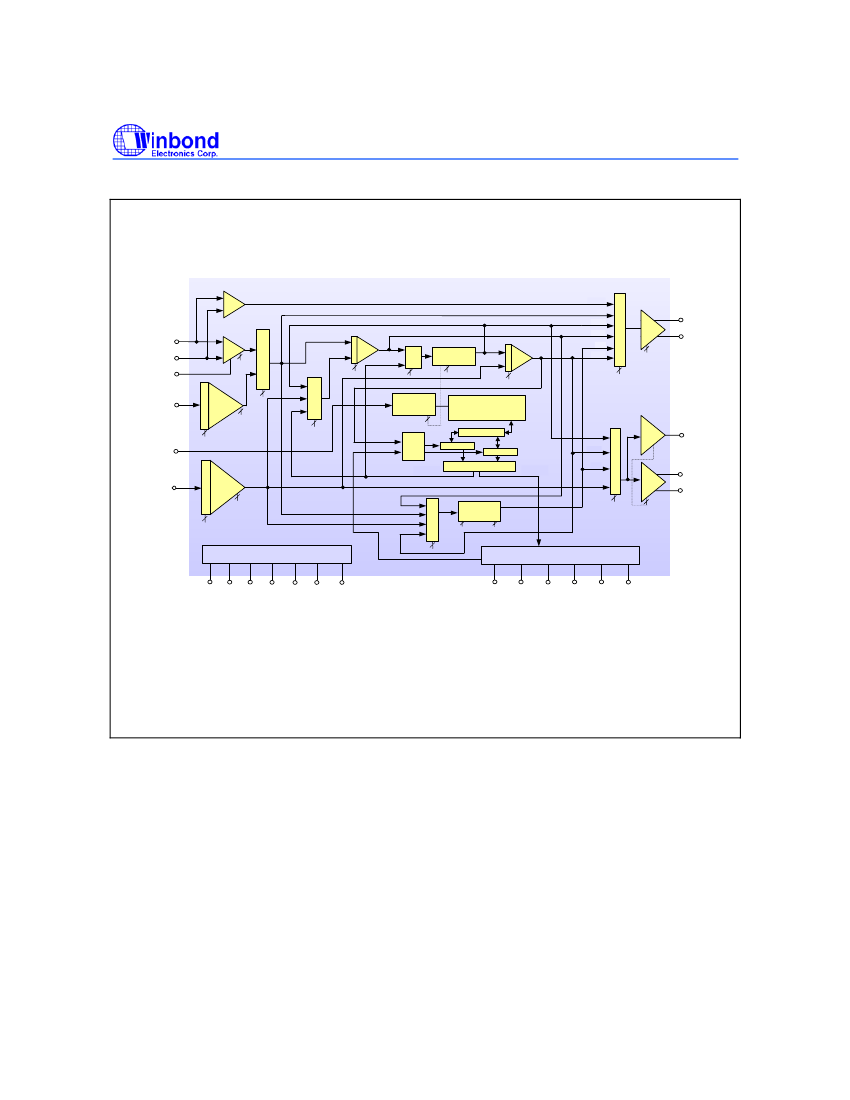

3. BLOCK DIAGRAM
ISD5116 Block Diagram
6dB
FTHRU
ANA OUT MUX
INP
MICROPHONE
Input Source MUX
FILTO
INP
SUM1 MUX
SUM1
Summing
AMP
SUM1
ARRAY
SUM1
SUM2
Summing
AMP
MIC+
MIC -
AGCCAP
1.0 / 1.4 / 2.0 / 2.8
MIC IN
ANA
OUT
AMP
1
ANA OUT+
ANA OUT-
AGC
(AGPD)
AUX IN
1
Σ
2
Low Pass
Filter
1
(FLPD)
FILTO
ANA IN
2
VOL
SUM2
(
S1M0
)
S1M1
FILTO
ANA IN
ARRAY
Σ
Filter
MUX
1
(FLS0)
(AOPD)
(
S2M0
)
S2M1
AUX IN
AUX IN
AMP
(INS0)
(AXPD)
1
1
Internal
Clock
( )
AOS0
AOS1
AOS2
FILTO
AUX
OUT
AMP
3
SUM1 MUX
2
2
(
AXG0
AXG1
)
(
S1S0
S1S1
)
SUM2
(ANALOG)
(
FLD0
)
FLD1
ARRAY
INPUT
MUX
Multilevel/Digital
Storage Array
2
Array I/O Mux
64-bit/samp.
64-bit/samp.
AUX OUT
Output MUX
XCLK
0.625/0.883/1.25/1.76
SUM2
VOL
ANA IN
CTRL
(DIGITAL)
ARRAY OUT
(ANALOG)
ARRAY OUTPUT MUX
ARRAY OUT
(DIGITAL)
SPEAKER
Spkr.
AMP
SP+
SP-
ANA IN
ANA IN
AMP
(AIPD)
1
SUM1
INP
ANA IN
SUM2
Volume
Control
1
(
AIG0
)
AIG1
Power Conditioning
2
(V
LPD
)
3
( )
VOL0
VOL1
VOL2
(
OPS0
OPS1
2
)
(
OPA0
)
OPA1
2
Vol MUX
2
(
VLS0
VLS1
)
Device Control
V
CCA
V
SSA
V
SSA
V
SSD
V
SSD
V
CCD
V
CCD
SCL
SDA
INT
RAC
A0
A1
-4-
ISD5116
4. TABLE OF CONTENTS
1. GENERAL DESCRIPTIONS ............................................................................................................... 2
2. FEATURES ......................................................................................................................................... 3
