08055C221KA12A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.00022uF, Surface Mount, 0805, CHIP; CategoryPassive components capacitor; File Size328KB，12 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

08055C221KA12A Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.00022uF, Surface Mount, 0805, CHIP

08055C221KA12A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1629414440
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
capacitance	0.00022 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e4
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, PAPER, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
size code	0805
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Silver/Palladium (Ag/Pd)
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

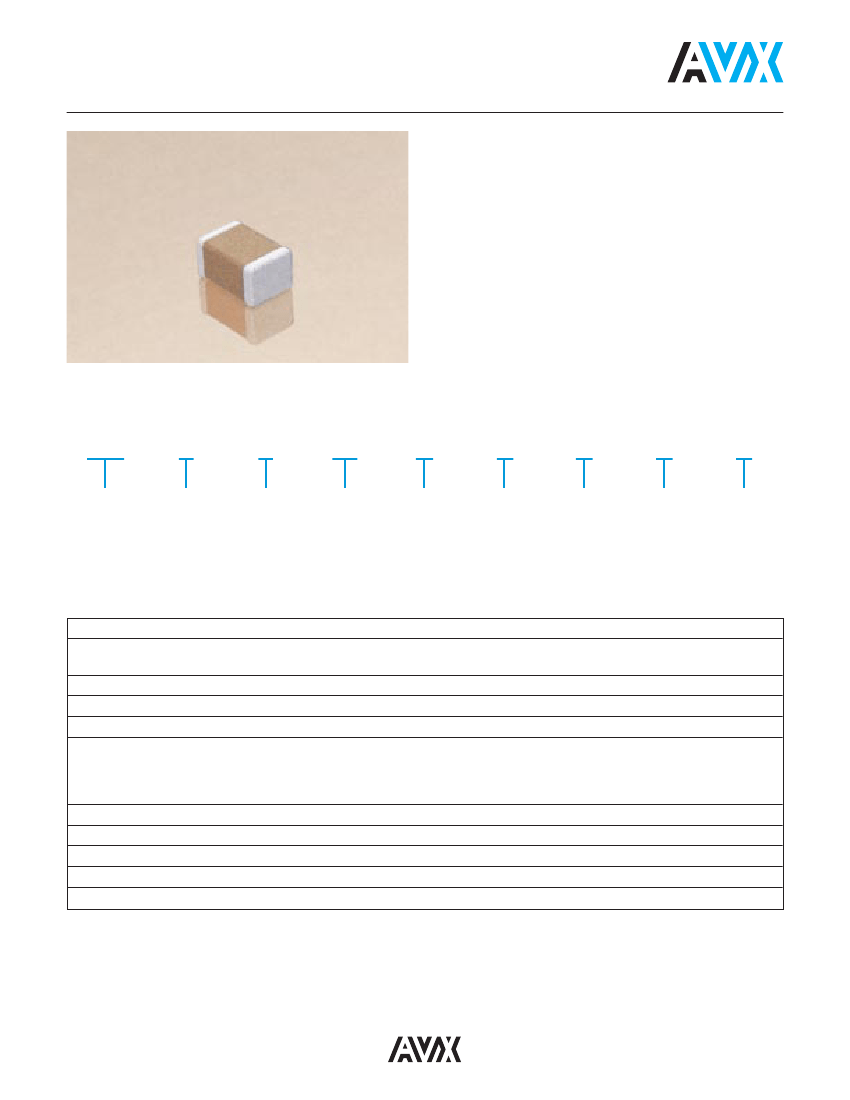

X7R Dielectric

General Specifications

X7R formulations are called “temperature stable” ceramics

and fall into EIA Class II materials. X7R is the most popular

of these intermediate dielectric constant materials. Its tem-

perature variation of capacitance is within ±15% from

-55°C to +125°C. This capacitance change is non-linear.

Capacitance for X7R varies under the influence of electrical

operating conditions such as voltage and frequency.

X7R dielectric chip usage covers the broad spectrum of

industrial applications where known changes in capaci-

tance due to applied voltages are acceptable.

PART NUMBER (see page 3 for complete part number explanation)

0805

Size

(L" x W")

Voltage

10V = Z

16V = Y

25V = 3

50V = 5

100V = 1

Dielectric

X7R = C

103

Capacitance

Code

Capacitance

Tolerance

Preferred

M = ± 20%

K = ±10%

Failure

Rate

A = Not

Applicable

Terminations

T = Plated Ni

and Solder

Packaging

2 = 7" Reel

4 = 13" Reel

Special

Code

A = Std.

Product

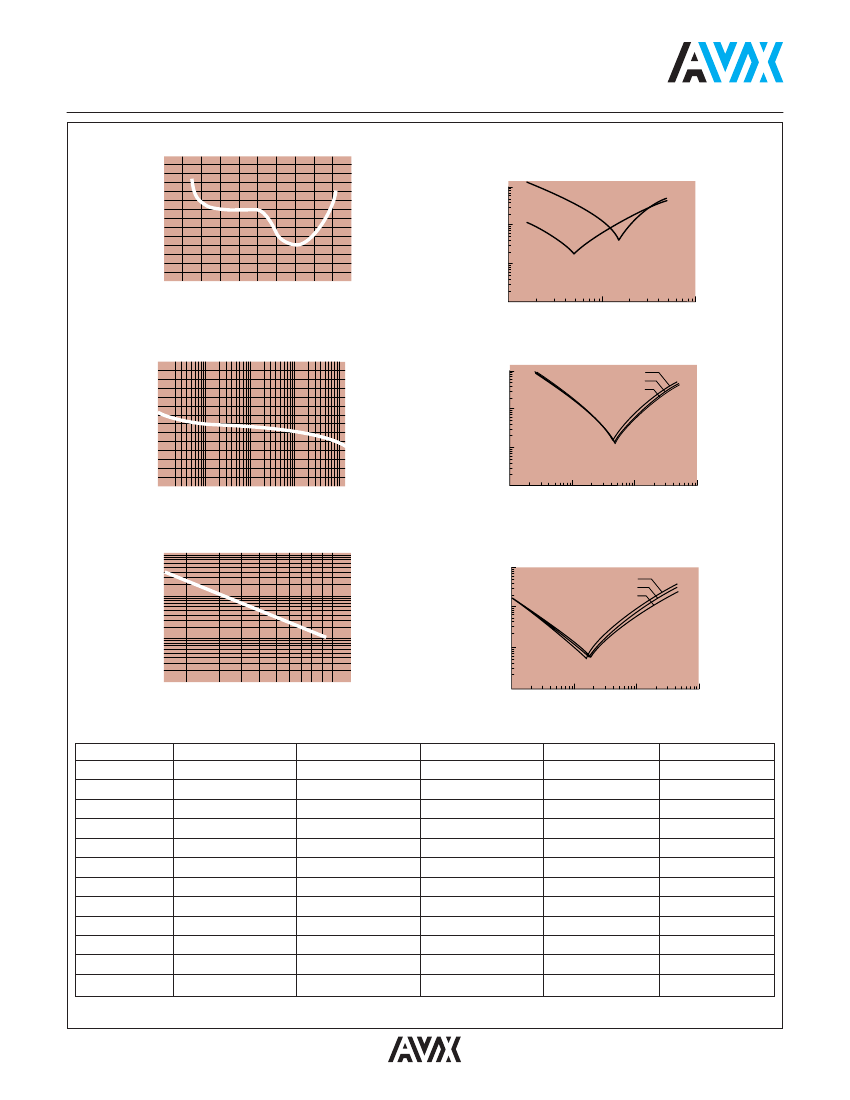

PERFORMANCE CHARACTERISTICS

Capacitance Range

Capacitance Tolerances

Operating Temperature Range

Temperature Characteristic

Voltage Ratings

Dissipation Factor

100 pF to 2.2 µF (1.0 ±0.2 Vrms, 1kHz)

Preferred ±10%, ±20%

others available: ±5%, +80 –20%

-55°C to +125°C

±15% (0 VDC)

10, 16, 25, 50, 100 VDC (+125°C)

For 50 volts and 100 volts: 2.5% max.

For 25 volts: 3.0% max.

For 16 volts: 3.5% max.

For 10 volts: 5% max.

100,000 megohms min. or 1000 MΩ - µF min., whichever is less

10,000 megohms min. or 100 MΩ - µF min., whichever is less

250% of rated voltage for 5 seconds at 50 mamp max. current

1.0 ± 0.2 Vrms

1 KHz

Insulation Resistance

(+25°C, RVDC)

Insulation Resistance

(+125°C, RVDC)

Dielectric Strength

Test Voltage

Test Frequency
