DFAS2-LS10.0MHZB0.5

Description
Oscillator
CategoryPassive components    oscillator
File Size95KB,1 Pages
ManufacturerCTS
Download Datasheet Parametric View All

DFAS2-LS10.0MHZB0.5 Overview

Oscillator

DFAS2-LS10.0MHZB0.5 Parametric

Parameter NameAttribute value
Objectid106443531
Reach Compliance Codeunknown
YTEOL0

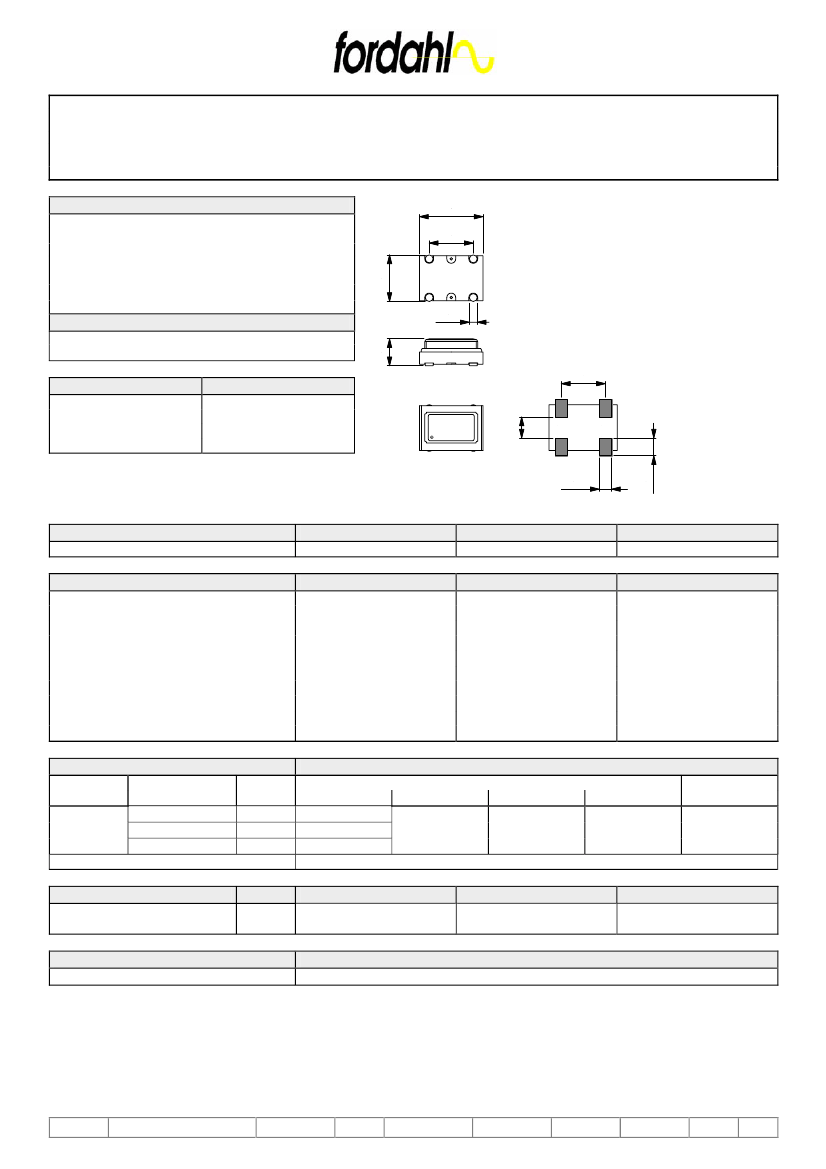

FREQUENCY CONTROL PRODUCTS
ULTRA MINIATURE SURFACE MOUNT TCXO
DFA S2-KS / LS / US
KEY FEATURES
10 to 30 MHz
5.3±0.1
7.2±0.2
5.08
Miniature size
Analogue temperature compensation
APPLICATIONS
Mobile communications/Microwave
Function
NC or V control
GND
Output
Vcc
0.9
3.2±0.2
DFA S2
1
2
3
4
4
1
2.4
5.08
3
2
PC board footprint
1.4
TYPE
Frequency Range
DFA S2-KS
10 to 30 MHz
DFA S2-LS
10 to 30 MHz
2.0
DFA S2-US
10 to 30 MHz
ELECTRICAL SPECIFICATIONS
supply voltage
supply current ( no load)
output load
high/low levels or output amplitude
harmonics
spurious
start-up
5V ±5%
2 mA
sine wave 10 kΩ//10 pF
1.0 V p-p
-25 dBc
-70 dBc
10 ms @ 4.75 V
3.3 V ± 5 %
2 mA
sine wave 10 kΩ//10 pF
1.0 V p-p
-25 dBc
-70 dBc
10 ms @ 3.15 V
3.0 V ± 5 %
2 mA
sine wave 10 kΩ//10 pF
1.0 V p-p
-25 dBc
-70 dBc
10 ms @ 2.85 V
FREQUENCY STABILITY
type
all types
remark
temperature
range
0 to 70°C
-20 to 70°C
-30 to 75°C
model
code
B0.5
C1.5
N2.5
temperature
± 0.5
± 1.5
± 2.5
detailed tolerances [ ppm ]
stability versus:
Vcc ± 5 %
load ± 10 %
± 0.3
± 0.3
ageing is 1
st
year at 25°C
ageing
±1
calibration
@ 25°C
±1
OPTIONS
voltage control (positive slope )
CODE
V
± 5 ppm,
≤ ±
15 ppm
2.5 V ± 2 V
± 5 ppm,
≤ ±
15 ppm
1.65 V ± 1.35 V
± 5 ppm,
≤ ±
15 ppm
1.5 V ± 1.0 V
ORDERING CODE
Example
type + option code + frequency + model code
DFA S2-LSV 12.8 MHz B0.5
TYPE
DFA S2-KS/LS/US
REVISION
02
CHECKED
NE
DATE
10.10.2004
PAGE
57
