54FCT193ADB datasheet, PDF - EEWORLD Datasheet

54FCT193ADB: DescriptionCDIP-16, Tube; Categorylogic logic; File Size361KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

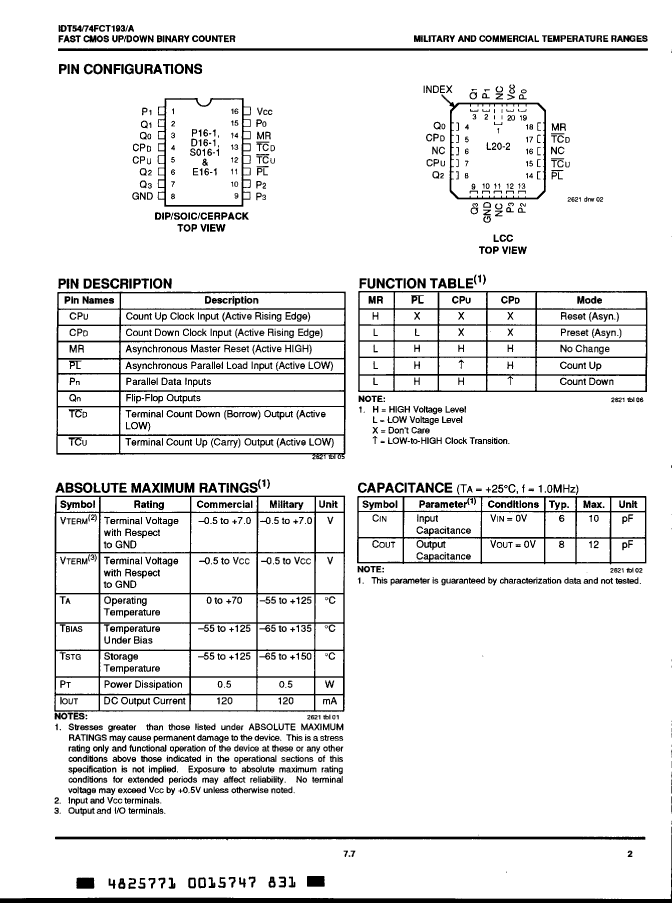

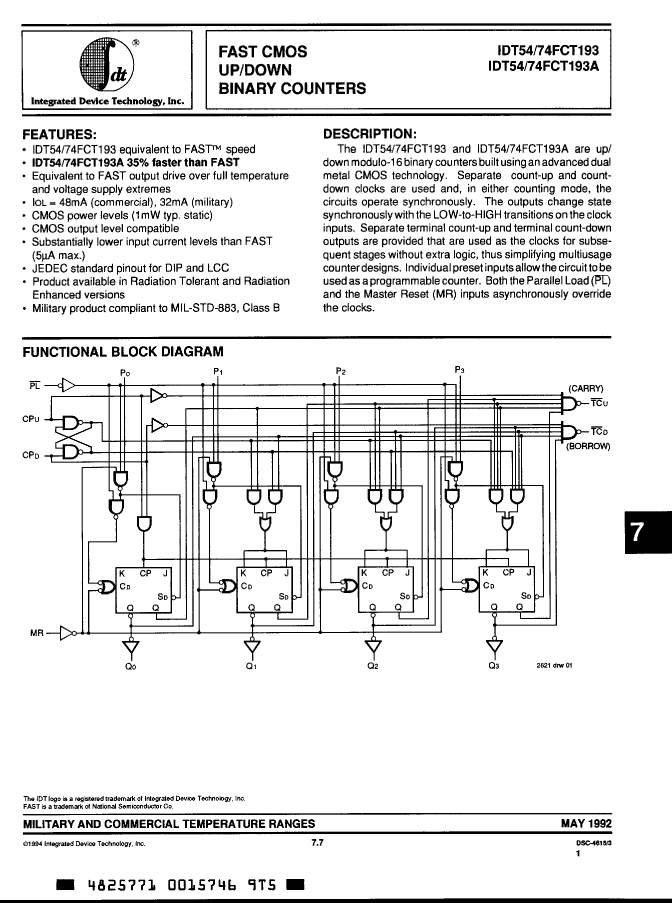

54FCT193ADB Overview

CDIP-16, Tube

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1164056607
Parts packaging code	CDIP
package instruction	DIP, DIP16,.3
Contacts	16
Manufacturer packaging code	CD16
Reach Compliance Code	not_compliant
YTEOL	0
Counting direction	BIDIRECTIONAL
series	FCT
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	83300000 Hz
MaximumI(ol)	0.032 A
Operating mode	SYNCHRONOUS
Humidity sensitivity level	1
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	240

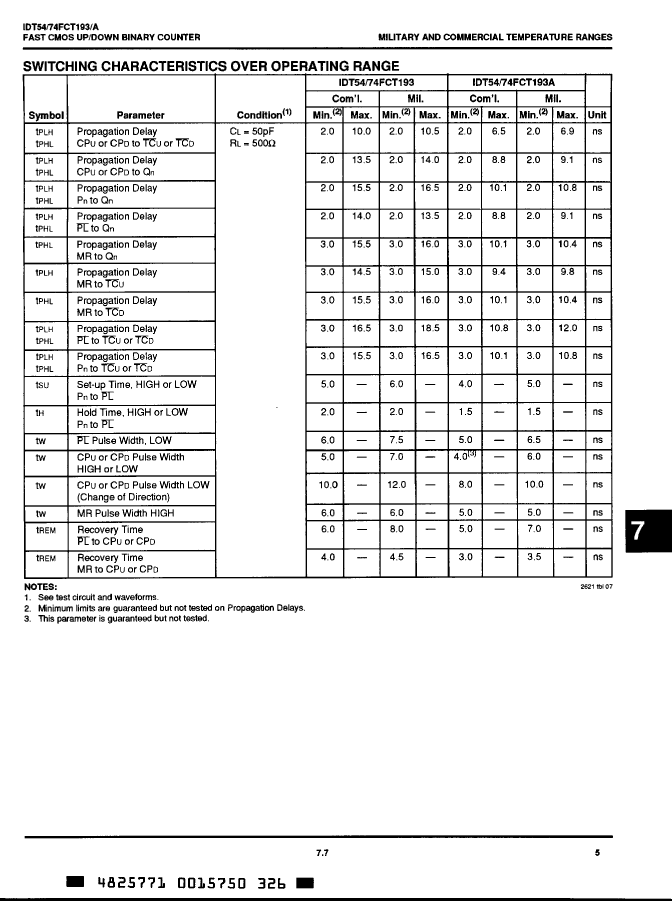

Prop。Delay @ Nom-Sup	9.1 ns
propagation delay (tpd)	9.1 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B

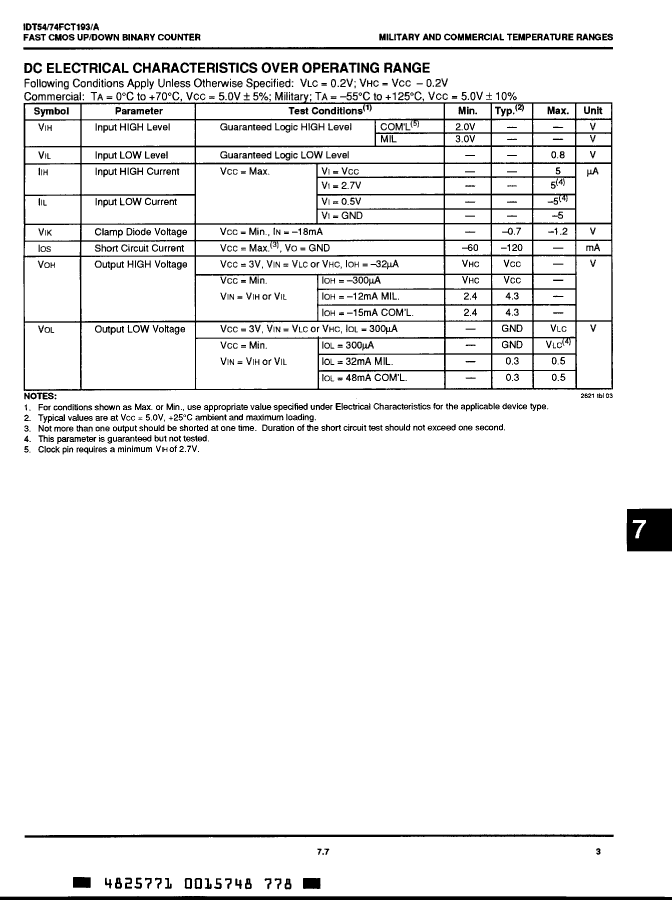

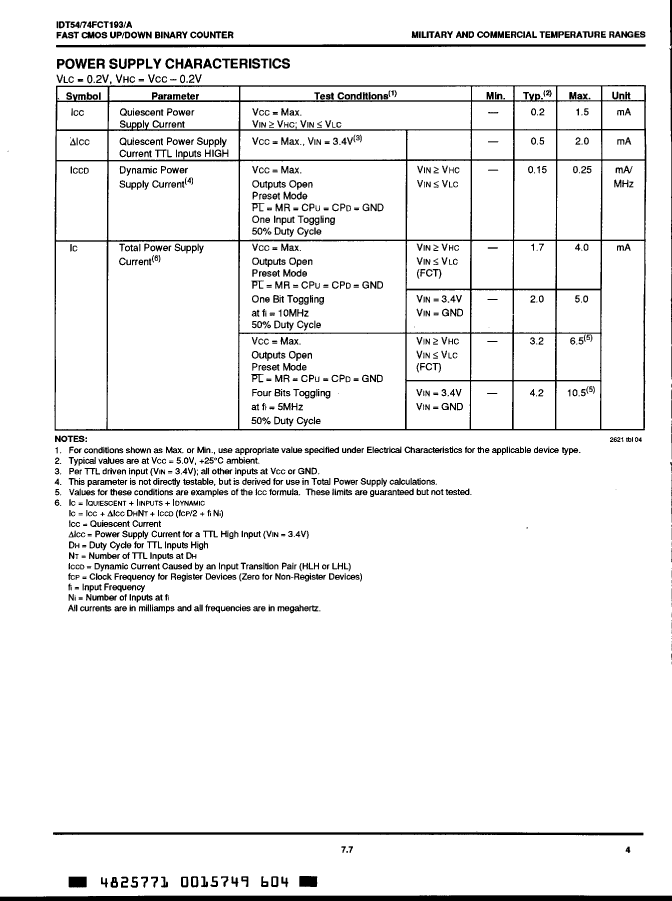

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
