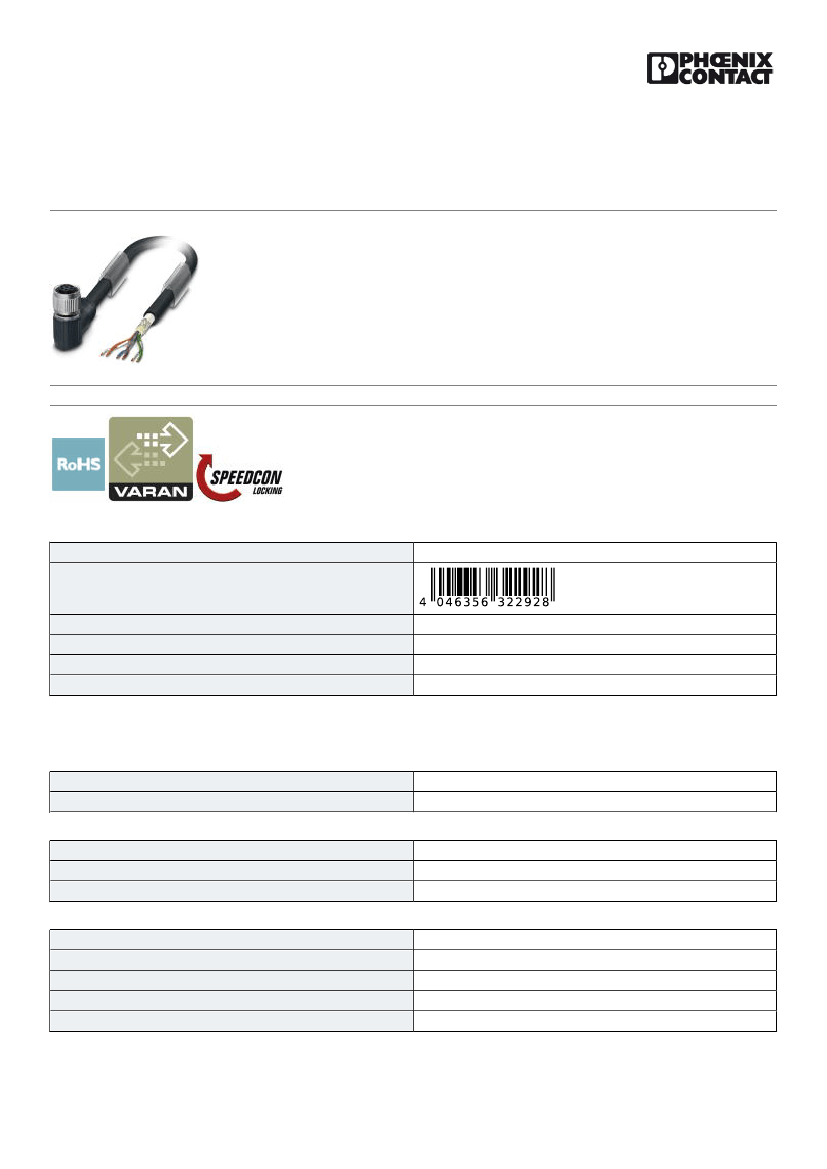

Bus system cable - SAC-6P-15,0-970/FR SCO - 1428649
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Bus system cable, VARAN (100 Mbps), 6-position, SANTOPRENE halogen-free, black RAL 9005, shielded,
free cable end, on Socket angled M12 SPEEDCON, A-coded, cable length: 15 m
Key Commercial Data
Packing unit
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4046356322928
1,196.460 g
85444290
Poland
1 pc
Technical data
Dimensions
Length of cable
Stripping length of the free conductor end
15 m
50 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Color handle area
2A
30 V AC
30 V DC
6
black
01/06/2019 Page 1 / 5
https://www.phoenixcontact.com/in/products/1428649
Bus system cable - SAC-6P-15,0-970/FR SCO - 1428649
Technical data
General
Insulation resistance
Coding
Signal type/category
Status display
Overvoltage category
Degree of pollution
Torque
≥ 100 MΩ
A - standard
VARAN, 100 Mbps
No
II
3
0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuZn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Pin assignment
Contact | Color (signal designation) | Contact (optional)
1 (Socket)
4 (Socket)
6 (Socket) | BU (Power)
7 (Socket) | BN (Power)
5 (Socket) | GN/WH (RD+)
8 (Socket) | GN (RD-)
2 (Socket) | OG/WH (TD+)
3 (Socket) | OG (TD-)
Standards and Regulations
Flammability rating according to UL 94
HB
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
Cable structure
Conductor cross section
AWG signal line
AWG power supply
Conductor structure signal line
Conductor structure, voltage supply
Core diameter including insulation
VARAN
970
Li9YD12Y
1x2xAWG22/19 + 1x4xAWG24/19
4x 0.25 mm² (Signal line)
2x 0.38 mm² (Power supply)
24
22
19x 0.13 mm
19x 0.16 mm
1.35 mm (Signal line)
1.5 mm (Power supply)
01/06/2019 Page 2 / 5
https://www.phoenixcontact.com/in/products/1428649
Bus system cable - SAC-6P-15,0-970/FR SCO - 1428649
Technical data
Cable
Wire colors
Type of pair shielding
Overall twist
Shielding
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material, inner sheath
Material, filler
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Transmission characteristics (category)
Working capacitance
Wave impedance
Nominal voltage, cable
Test voltage, cable
Halogen-free
Ambient temperature (operation)
Brown, blue, white/orange, white/green, green, orange
Tinned copper braided shield, 95 % covering
1 star quad and 2 wires with 2 fillers
Tinned copper-braided shield, approx. 85% covering
black RAL 9005
7.8 mm ±0.2 mm
≥ 93 mm
≥ 93 mm
3000000
93 mm
2m
1 m/s
2 m/s²
81 kg/km
SANTOPRENE halogen-free
TPE
Yarn
PP
Bare Cu litz wires
5 GΩ*km (Data cable)
77 Ω/m (Data cable)
CAT5 (IEC 11801:2002)
50 nF (Data cable)
100 Ω ±15 %
125 V (Data cable)
48 V (Power supply)
2000 V (Power supply)
max. 700 V AC (Data cable)
in accordance with DIN EN 50267-2-1
-20 °C ... 80 °C (Cable)
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
01/06/2019 Page 3 / 5
https://www.phoenixcontact.com/in/products/1428649
Bus system cable - SAC-6P-15,0-970/FR SCO - 1428649

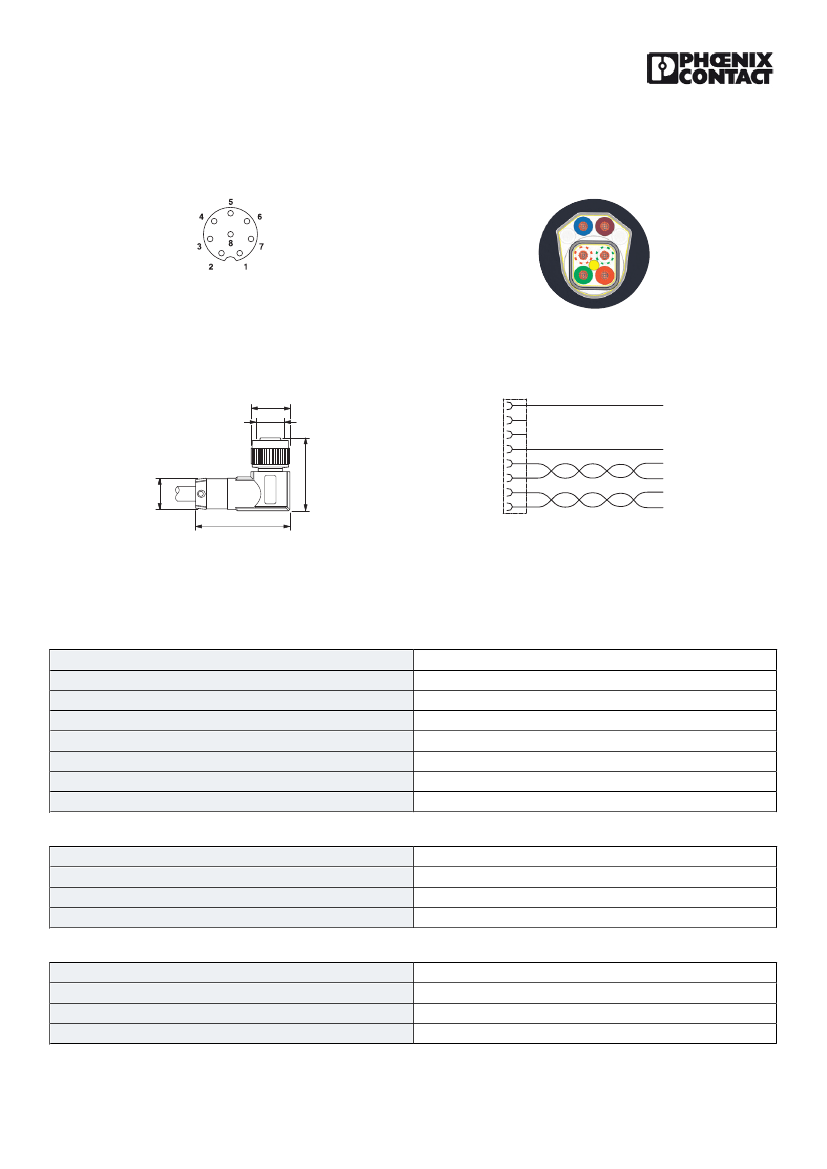

Schematic diagram
Cable cross section
Pin assignment M12 socket, 8-pos., A-coded, view female side
VARAN [970]
Dimensional drawing
Ø15
M12
6
4
1
7
Circuit diagram
BU
N.C.
N.C.
BN
GR/WH
GR
OG/WH
OG
27,5
5
8
2
3
Ø12
36,25
Contact assignment of the M12 socket
M12 x 1 socket, angled, shielded
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27060306
27060306
27061801
27061800
27279200
27279218
27279218
27060308
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC001855
EC001855
EC002599
EC000830
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
31251501
31251501
31251501
31251501
01/06/2019 Page 4 / 5
https://www.phoenixcontact.com/in/products/1428649
Bus system cable - SAC-6P-15,0-970/FR SCO - 1428649
Classifications
UNSPSC
UNSPSC 13.2
31251501
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC
EAC-Zulassung
