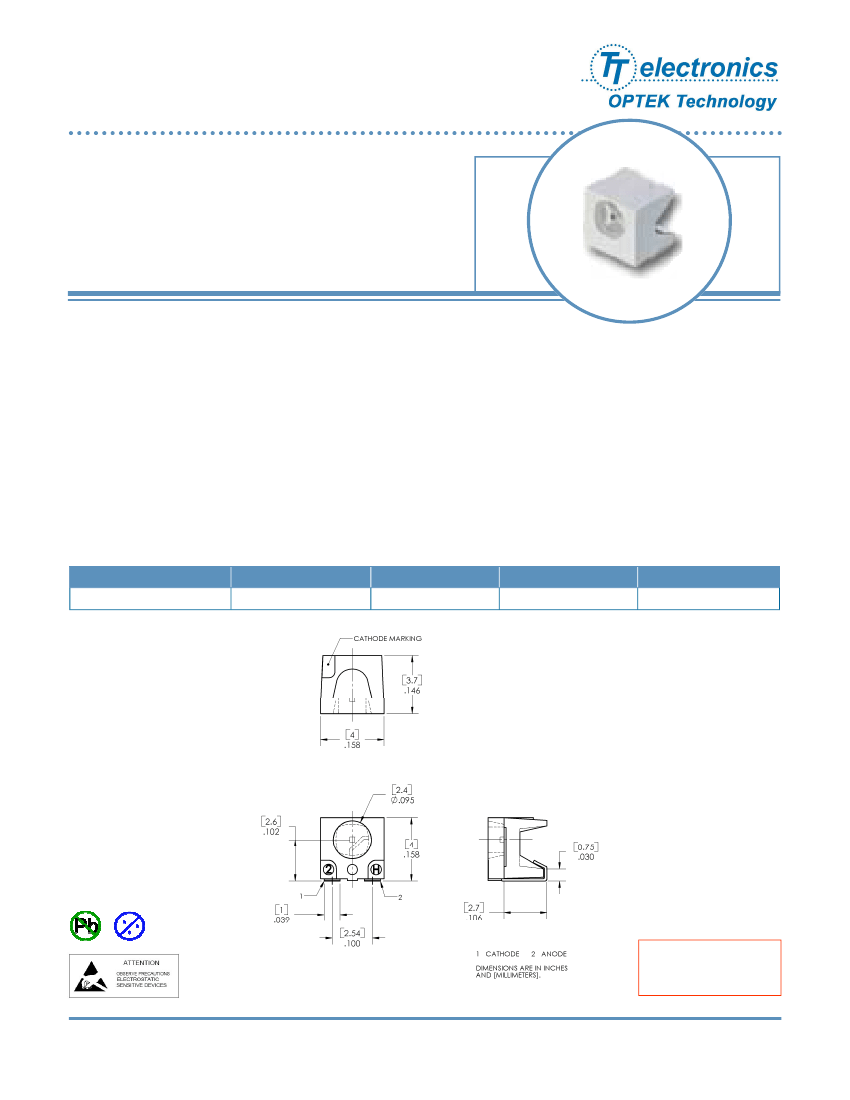

Blue-Green Side-Emitting SMD LED
(4 x 4 mm, 120° Viewing Angle)
x
x
x
x
x
OVSR9CBCR8
Compact size allows use in space conscious devices
Thin profile offers unlimited design flexibility
Long life span reduces maintenance cost
Suitable for all SMT assembly methods
Blue-green (505 nm) water clear lens
Product Photo Here
The
OVSR9CBCR8
is a side-looking blue-green 4.0 mm x 4.0 mm 120° surface-mounted LED that can be used as
a light source in many applications. Its compact size and thin profile offer maximum design flexibility coupled with
a long life span that reduces maintenance cost.
Applications
x
Optical indicators
x
Coupling into light guides
x
Back lights (LCD switches, keys, displays, illuminated advertising, general lighting)
x
Interior automotive lighting (dashboard backlighting, etc.)
x
Automotive applications
x
Marker lights (e.g., steps, exit ways, etc.)
x
Signal and symbol luminaire
Part Number
OVSR9CBCR8
Material
InGaN
Emitted Color
Blue-Green
Intensity Typ. mcd
400
Lens Color
Water Clear
RoHS
Moisture
DO NOT LOOK DIRECTLY
AT LED WITH UNSHIELDED
EYES OR DAMAGE TO
RETINA MAY OCCUR.
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue A.2 04/06
Page 1 of 4
Blue-Green Side-Emitting SMD LED
OVSR9CBCR8
Absolute Maximum Ratings
T
A
= 25
o
C unless otherwise noted
Storage Temperature Range
Operating Temperature Range
Junction Temperature
Junction/Ambient
1
Junction/Solder Point
Reverse Voltage
Continuous Forward Current
Peak Forward Current (10% Duty Cycle, PW
2
Power Dissipation
Notes:
1. Rth test condition: Mounted on PCBoard FR 4 (pad size>=16 mm
2
).
2. Pulse width <=0.1 msec, duty <=1/10.
-40 ~ +100° C
-40 ~ +100° C
110° C
350° C/W
250° C/W
5V
20 mA
100 mA
85 mW
Electrical Characteristics
T
A
= 25
o
C unless otherwise noted
SYMBOL
I
V
V
F
I
R
D
PARAMETER
Luminous Intensity
Forward Voltage
Reverse Current
Dominant Wavelength
50% Power Angle
MIN
280
----
----
495
----
TYP
400
3.6
----
505
120
MAX
----
4.2
10
515
----
UNITS
mcd
V
µA
nm
deg
CONDITIONS
I
F
= 20 mA
I
F
=20 mA
V
R
= 5 V
I
F
= 20 mA
I
F
=20 mA
2
½
Lamps are sorted to luminous intensity (I
V
) and dominant wavelength (
D
) bins shown.
Orders for OVSR9CBCR8 may be filled with any or all bins contained as below.
710 mcd
560 mcd
450 mcd
355 mcd
280 mcd
495 nm
U2
U1
T2
T1
515 nm
Standard Bins
(I
F
= 20mA)
Dominant Wavelength (
D
)
Notes:
1. All ranks will be included per delivery. Rank ratio will be based on the chip distribution.
2. To designate luminous intensity ranks, please contact OPTEK.
Luminous intensity is at
T1 bin or above.
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A.2 04/06
Page 2 of 4
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Blue-Green Side-Emitting SMD LED
OVSR9CBCR8

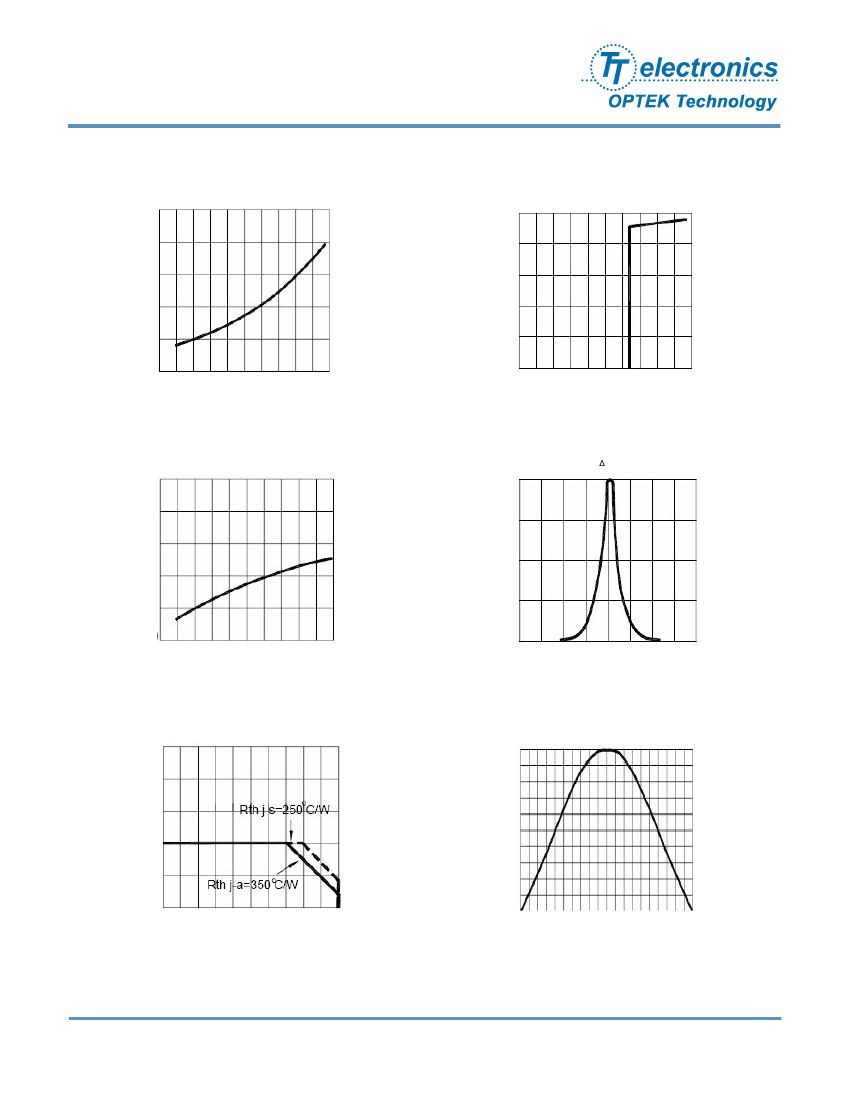

Typical Electro-Optical Characteristics Curves
V
R
100.0
80.0
mA
-50
-40
-30
-20
-10
0
0.0
-10.0
-20.0
-30.0
-40.0
mA
60.0
40.0
20.0
0.0
3.2
3.6
4.0
V
4.4
4.8
5.2
-50.0
Forward Current vs Forward Voltage
Reverse Current vs Reverse Voltage
Half Power WL = 28 nm
500
400
%
100
75
%
300
200
100
0
0
20
40
mA
50
25
0
60
80
100
300
400
500
nm
600
700
Relative Luminous Intensity vs Forward Current
50% Power Angle: 120°
Relative Luminous Intensity vs Wavelength
50% Power Angle: 120°
50
40
mA
100
80
60
%
30
20
10
0
0
20
40
°
C
40
20
60
80
100
0
-
90
-
60
-
30
0
°
C
30
60
90
Maximum Forward Current vs Ambient
Temperature
Far Field Pattern
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue A.2 04/06
Page 3 of 4
Blue-Green Side-Emitting SMD LED
OVSR9CBCR8

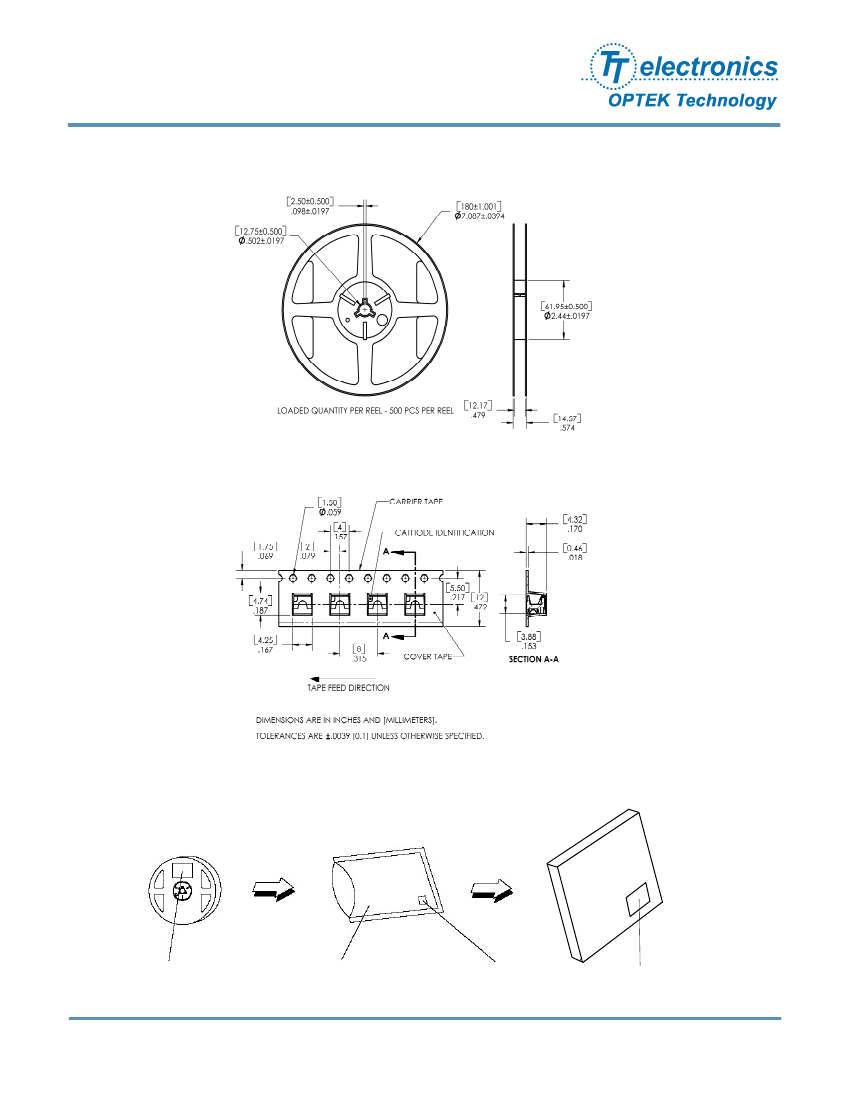

Reel Dimensions: 7-inch reel
Carrier Tape Dimensions: Loaded quantity 500 pieces per reel
Moisture Resistant Packaging
Label
Aluminum Moisture-proof Bag
Desiccant
Bar Code Label
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A.2 04/06
Page 4 of 4
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
