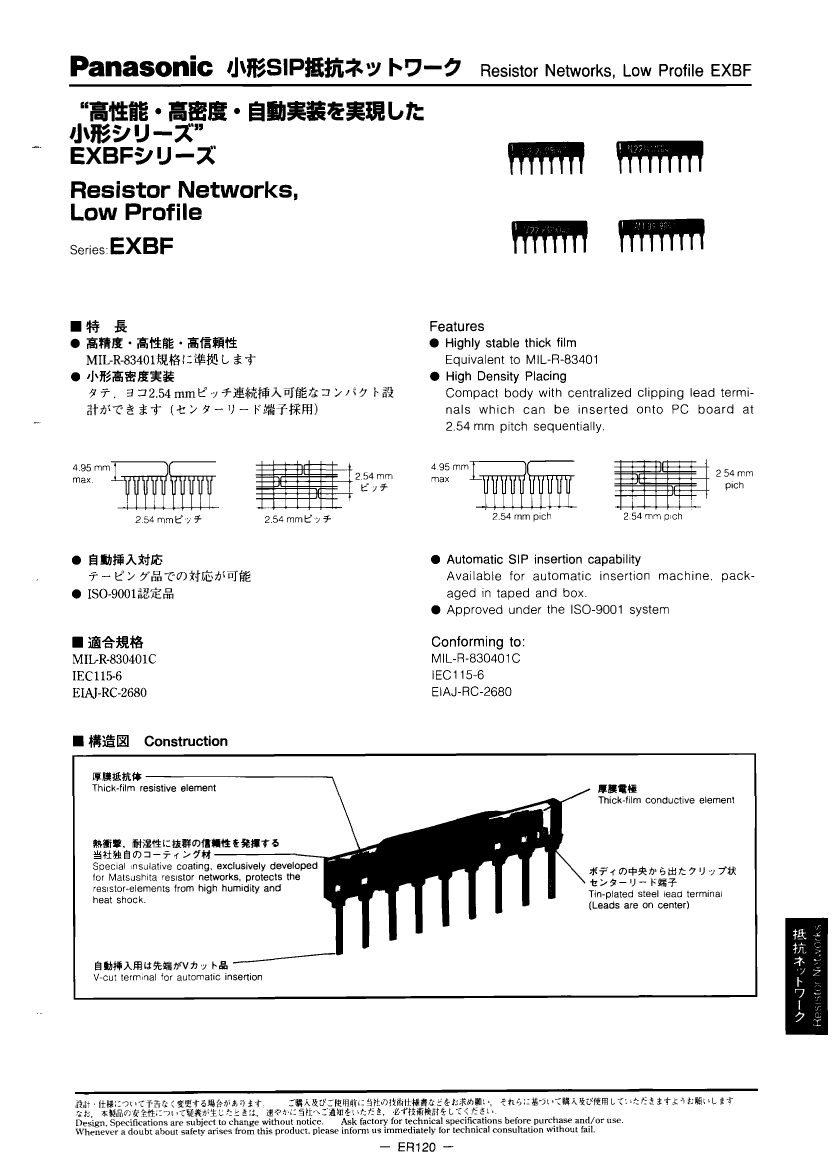

Array/Network Resistor, Bussed, Metal Glaze/thick Film, 1.125W, 100V, 2% +/-Tol, 200ppm/Cel, Through Hole Mount, SIP

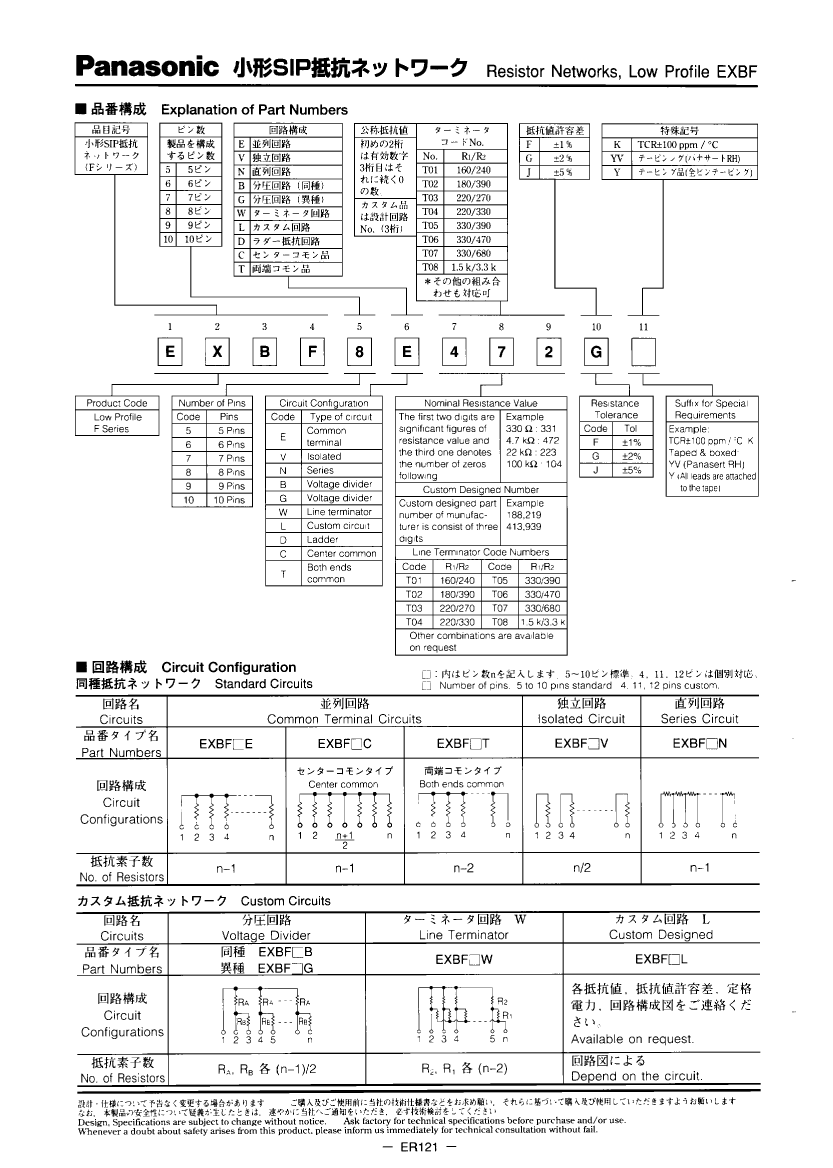

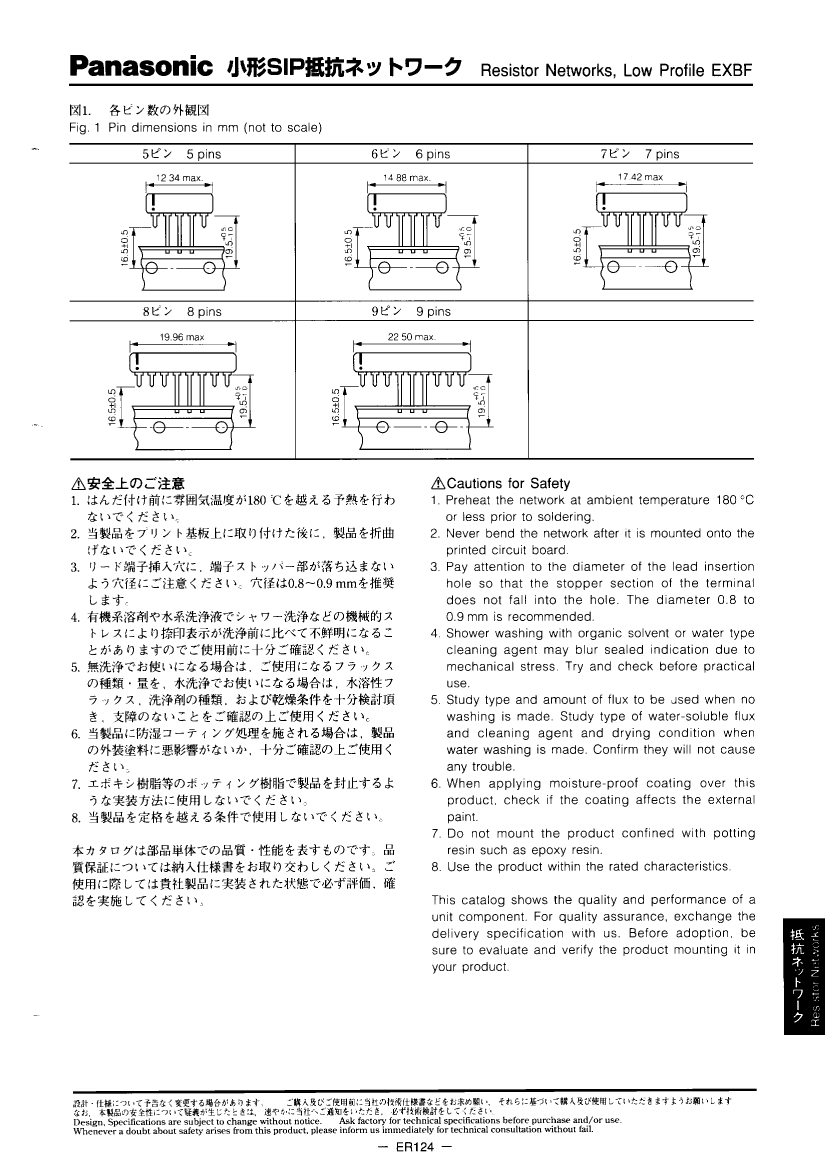

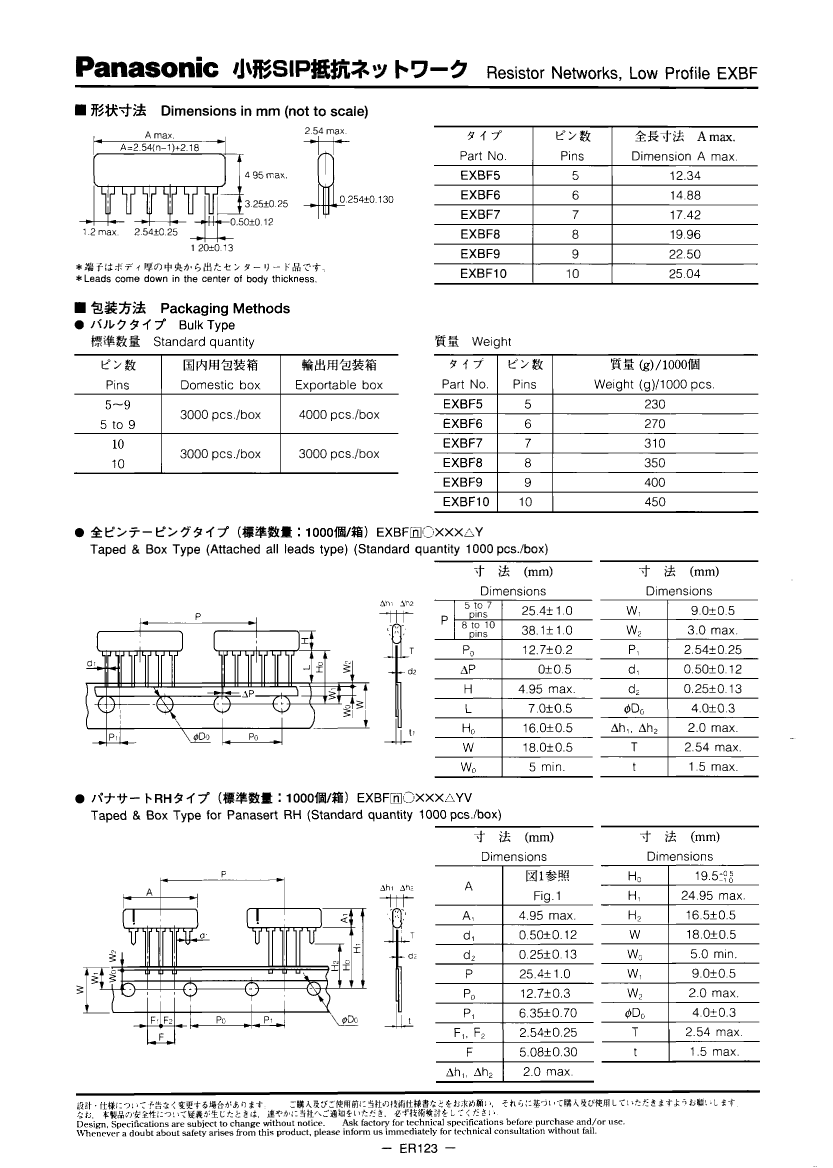

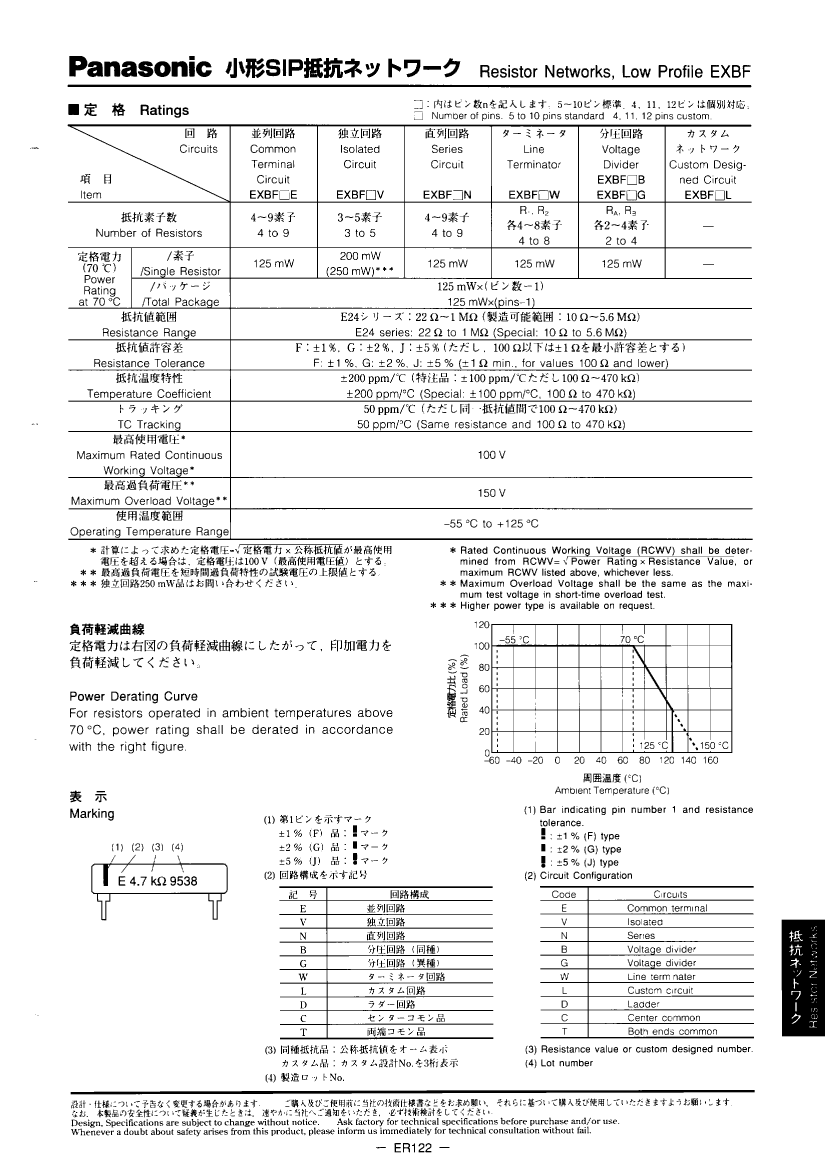

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Panasonic |
| package instruction | , |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Component power consumption | 0.125 W |
| The first element resistor | 51000 Ω |
| JESD-609 code | e3 |
| Manufacturer's serial number | EXBF |
| Installation features | THROUGH HOLE MOUNT |
| Network Type | BUSSED |
| Number of components | 9 |
| Number of functions | 1 |
| Number of terminals | 10 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -55 °C |
| Package shape | RECTANGULAR PACKAGE |
| method of packing | BULK |
| Rated power dissipation(P) | 1.125 W |
| Rated temperature | 70 °C |
| Resistor type | ARRAY/NETWORK RESISTOR |
| surface mount | NO |
| technology | METAL GLAZE/THICK FILM |
| Temperature Coefficient | 200 ppm/°C |
| Temperature coefficient tracking | 50 ppm/°C |
| Terminal surface | Matte Tin (Sn) - with Nickel (Ni) barrier |
| Terminal shape | FLAT |
| Tolerance | 2% |
| Operating Voltage | 100 V |
| Base Number Matches | 1 |
| EXBF10E513G | EXBF6E513G | EXBF10E330G | EXBF10E104G | EXBF6E104G | EXBF10E564G | |
|---|---|---|---|---|---|---|
| Description | Array/Network Resistor, Bussed, Metal Glaze/thick Film, 1.125W, 100V, 2% +/-Tol, 200ppm/Cel, Through Hole Mount, SIP | Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.625W, 100V, 2% +/-Tol, 200ppm/Cel, Through Hole Mount, SIP | Array/Network Resistor, Bussed, Metal Glaze/thick Film, 1.125W, 100V, 2% +/-Tol, 200ppm/Cel, Through Hole Mount, SIP | Array/Network Resistor, Bussed, Metal Glaze/thick Film, 1.125W, 100V, 2% +/-Tol, 200ppm/Cel, Through Hole Mount, SIP | Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.625W, 100V, 2% +/-Tol, 200ppm/Cel, Through Hole Mount, SIP | Array/Network Resistor, Bussed, Metal Glaze/thick Film, 1.125W, 100V, 2% +/-Tol, 200ppm/Cel, Through Hole Mount, SIP |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to |
| package instruction | , | , | SIP | SIP | SIP | SIP |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Component power consumption | 0.125 W | 0.125 W | 0.125 W | 0.125 W | 0.125 W | 0.125 W |
| The first element resistor | 51000 Ω | 51000 Ω | 33 Ω | 100000 Ω | 100000 Ω | 560000 Ω |
| JESD-609 code | e3 | e3 | e3 | e3 | e3 | e3 |
| Manufacturer's serial number | EXBF | EXBF | EXBF | EXBF | EXBF | EXBF |
| Installation features | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT |
| Network Type | BUSSED | BUSSED | BUSSED | BUSSED | BUSSED | BUSSED |
| Number of components | 9 | 5 | 9 | 9 | 5 | 9 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 10 | 6 | 10 | 10 | 6 | 10 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package shape | RECTANGULAR PACKAGE | RECTANGULAR PACKAGE | RECTANGULAR PACKAGE | RECTANGULAR PACKAGE | RECTANGULAR PACKAGE | RECTANGULAR PACKAGE |
| method of packing | BULK | BULK | BULK | BULK | BULK | BULK |
| Rated power dissipation(P) | 1.125 W | 0.625 W | 1.125 W | 1.125 W | 0.625 W | 1.125 W |
| Rated temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Resistor type | ARRAY/NETWORK RESISTOR | ARRAY/NETWORK RESISTOR | ARRAY/NETWORK RESISTOR | ARRAY/NETWORK RESISTOR | ARRAY/NETWORK RESISTOR | ARRAY/NETWORK RESISTOR |
| surface mount | NO | NO | NO | NO | NO | NO |
| technology | METAL GLAZE/THICK FILM | METAL GLAZE/THICK FILM | METAL GLAZE/THICK FILM | METAL GLAZE/THICK FILM | METAL GLAZE/THICK FILM | METAL GLAZE/THICK FILM |
| Temperature Coefficient | 200 ppm/°C | 200 ppm/°C | 200 ppm/°C | 200 ppm/°C | 200 ppm/°C | 200 ppm/°C |
| Temperature coefficient tracking | 50 ppm/°C | 50 ppm/°C | 50 ppm/°C | 50 ppm/°C | 50 ppm/°C | 50 ppm/°C |
| Terminal surface | Matte Tin (Sn) - with Nickel (Ni) barrier | Matte Tin (Sn) - with Nickel (Ni) barrier | Matte Tin (Sn) - with Nickel (Ni) barrier | Matte Tin (Sn) - with Nickel (Ni) barrier | Matte Tin (Sn) - with Nickel (Ni) barrier | Matte Tin (Sn) - with Nickel (Ni) barrier |
| Terminal shape | FLAT | FLAT | FLAT | FLAT | FLAT | FLAT |
| Tolerance | 2% | 2% | 2% | 2% | 2% | 2% |
| Operating Voltage | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V |
| Maker | Panasonic | Panasonic | Panasonic | Panasonic | Panasonic | - |
