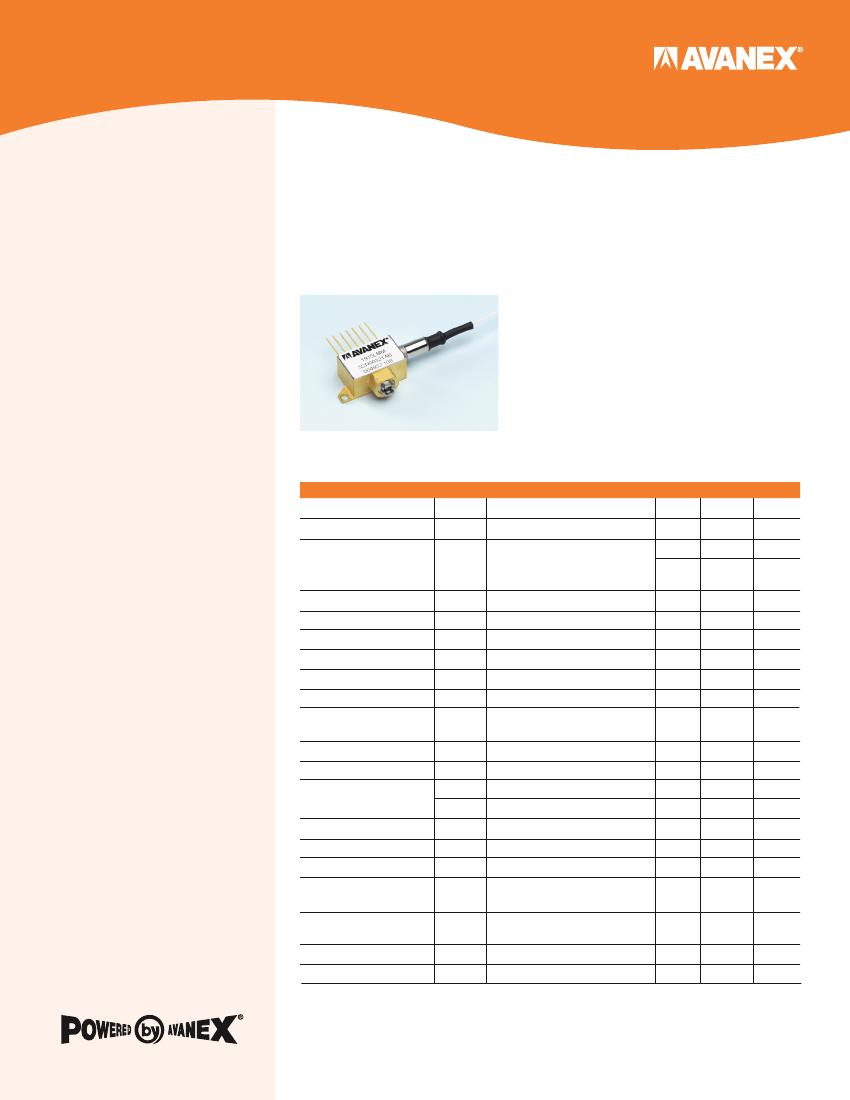

PowerSource 1915 LMM
TM
10 Gb/s Digital Electro-Absorption Laser Module - 1600 ps/nm Application
TDM and WDM Applications
The PowerSource
TM
1915 LMM contains an DFB laser with monolithically integrated electro-
absorption modulator (EA-ILM). The modulation voltage is applied to the modulator section
while the DFB laser operates CW. Without the complexity of LiNbO
3
external modulators,
the PowerSource
TM
1915 LMM is dedicated to STM64/OC-192 bit rate with reduced size and
reduced cost. This device allows 10 Gb/s data transmission with an extinction ratio higher
than 10 dB and less than 2 V modulation voltage. The PowerSource
TM
1915 LMM is optimized
for 10 Gb/s TDM and WDM transmission systems supporting dispersion up to 1600 ps/nm.
FEATURES
• 7-Pin Package with Either GPO or
K Connector RF Input
• High Frequency RF Connector
Package with 50
Ω
RF Impedance
• InGaAsP Monolithically Integrated
DFB Laser and Modulator Chip
• Low Drive Voltage (≤ 2 Vpp)
• Very Low Dispersion Penalty Up to
80 km for 10 Gb/s Operation (up to
1600 ps/nm)
• Wavelength Selection According
to ITU-G.692
OPTICAL CHARACTERISTICS
Table 1
Parameter
Case Operating Temperature
Threshold Current
Operating Current
Sym
Tc
I
th
I
f
Conditions
CW, V
bias
= 0 V
WDM Applications, CW, V
bias
Single Channel Applications,
CW, V
bias
I
f
, V
mod
, [1] [2] [3]
CW, I
f
, V
bias
= 0 V
See [1] [3]
See [1] [3]
I
f
, [1] [2] [3]
See Table 3
See [3]
See [1] [3]
- 3 dB, V
bias
@ I
f
DC to 6 GHz
6 to 10 GHz
See [1] [2] [3]
See [1] 10%, 90%
I
f
, V = - 5 V
ΔT
= 50 °C, I
f
+20%(EOL)
Tc = 70 °C, V
bias
= - 1 V
ΔT
= 50 °C, I
f
+20%(EOL)
Tc = 70 °C, V
bias
= - 1 V
Tsubmount = 25 °C
Tsubmount = 25 °C
Min
0
5
55
60
-2
Max
70
35
85
100
+2
2
Unit
°C
mA
mA
mA
dBm
V
V
V
dB
nm
°C
dB
GHz
dB
Optical Output Power
APPLICATIONS
• Metro SONET/SDH and DWDM
Equipment
• Long-Haul WDM Power
Consumption/Size/Cost Optimized
Equipment
• Terminals for Submarine WDM
Transmission Systems
• STM-64 (Intra-Office, Short-Haul
and Long-Haul) and OC-192
(Short-Reach, Intermediate-Reach
and Long-Reach) Size Optimized
Transceiver and Transponder
P
ave
V
f
V
bias
V
mod
DER
λ
Twave
SMSR
S21
S11
S11
Laser Forward Voltage
Modulator Bias Voltage
Modulator Drive Voltage
Dynamic Extinction Ratio
Emission Wavelength
Laser Chip Temperature
Range for Tunability
Side Mode Suppression
Cut Off Frequency
RF Return Loss
-2
0
2
10
1529.55 1569.59
20
40
8
10
6
2
45
20
1500
1.3
2.5
9.5
3800
10.5
4000
35
dB
dB
ps
µA
A
V
kΩ
K
Dispersion Penalty
Rise Time / Fall Time
Monitor Diode Current
TEC Current
TEC Voltage
Thermistor Resistance
Thermistor Coefficient
ΔS
Tr/Tf
I
m
I
t
V
t
R
TH
β
All limits start of life Tcase in the range [0°C ; 70°C], Tsubmount = Twave for WDM applications and Tsubmount = 25°C for
Single Channel applications, monitor bias = - 5 V, unless otherwise stated.
[1] BER = 10-10; 9.953 Gbit/s modulation; 223-1 PRBS; NZR line code.
[2] 1600 ps/nm dispersion assuming fiber with an average dispersion of 18 ps/nm/km @ 1550 nm.
D2301
[3] For WDM application Tsubmount = Twave. Twave is the chip temperature required to meet target wavelength (see table
3).
1
PowerSource 1915 LMM
TM
10 Gb/s Digital Electro-Absorption Laser Module - 1600 ps/nm Application
ABSOLUTE MAXIMUM RATINGS
Table 2
Parameter
Operating Case Temperature
Storage Temperature
Laser Forward Current
Laser Reverse Voltage
Modulator Forward Voltage
Modulator Reverse Voltage
Photodiode Forward Current
Photodiode Reverse Voltage
TEC Voltage
TEC Current
Lead Soldering Time (at 260°C)
Fiber Bend Radius
Packing Mounting Screw Torque
25
0.2
Min
0
-40
Max
70
85
150
2
1
5
1
20
2.8
1.4
10
Unit
°C
°C
mA
V
V
V
mA
V
V
A
s
mm
nm

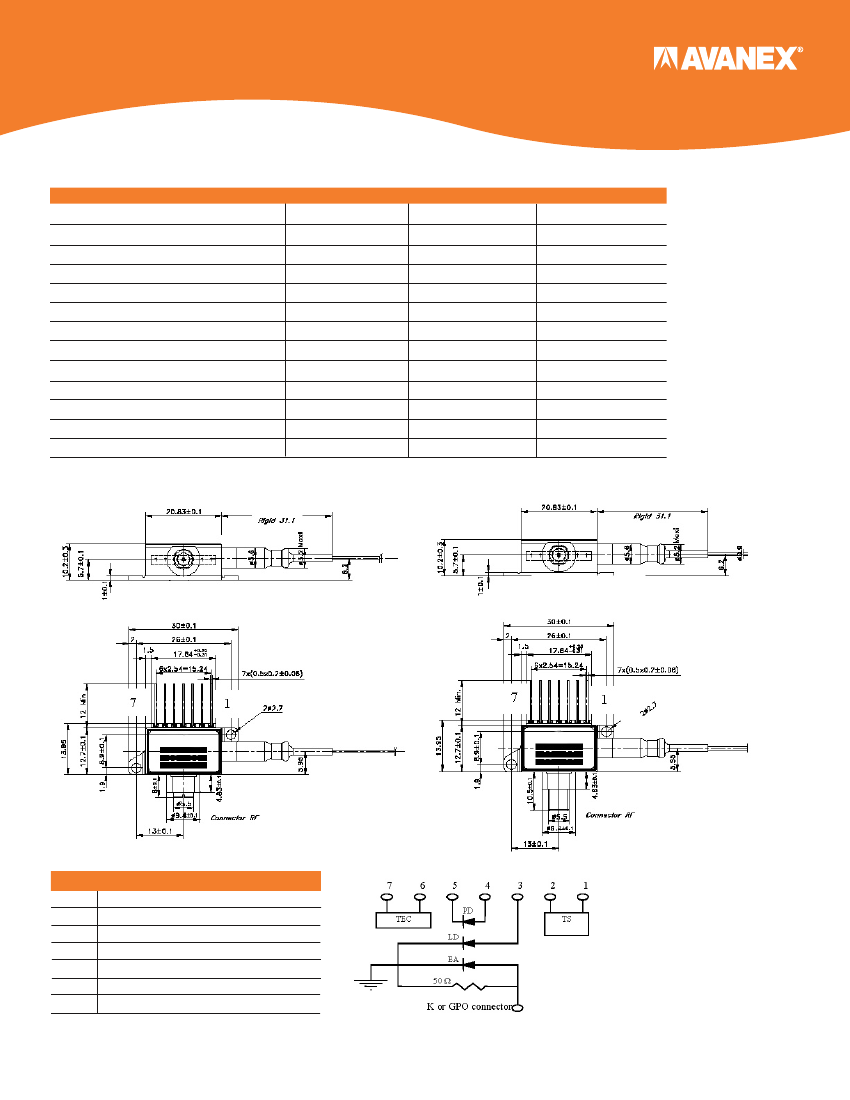

MECHANICAL DETAILS
GPO Connector
K Connector
Dimensions are in mm
Fiber length 1600 ± 100 mm
(including optical connector)
PIN-OUT
Nº
1
2
3
4
5
6
7
Description
Thermistor
Thermistor
Laser DC Bias (-)
Photodetector Anode (-)
Photodetector Cathode (+)
TEC (+)
TEC (-)
D2301
2
PowerSource 1915 LMM
TM
10 Gb/s Digital Electro-Absorption Laser Module - 1600 ps/nm Application
MAJOR CHARACTERISTICS

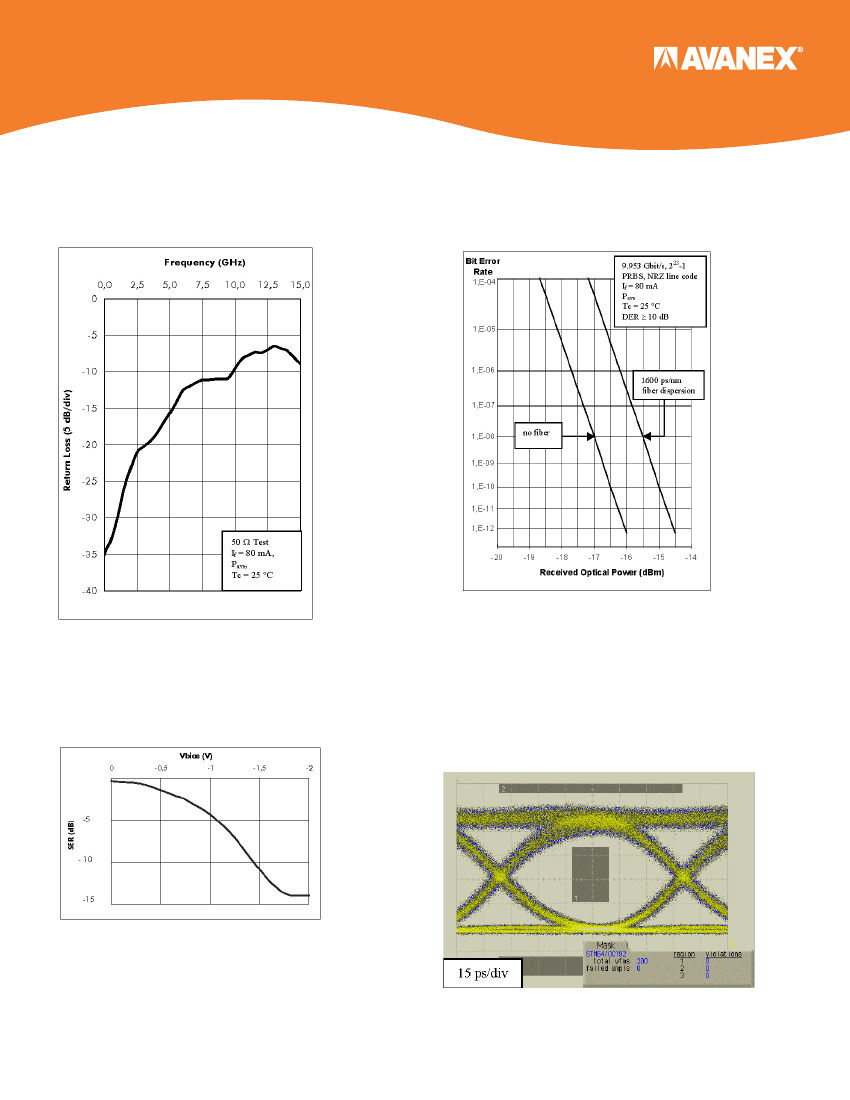

Fig. 1. Return Loss Response
Fig. 2. Typical Bit Error Rate
Fig. 3 Typical Extinction Ratio vs. Bias Voltage
Fig. 4 Typical Filtered Output Eye Diagram with a Driver circuit
(without fiber; see recommended circuit in Application Note)
9.953 Gb/s, 223 -1 PRBS NRZ, Tc = 25°C,
Tsubmount = Twave, If = 80 mA, P
ave
and DER
≥10
dB
D2301
3
PowerSource 1915 LMM
TM
10 Gb/s Digital Electro-Absorption Laser Module - 1600 ps/nm Application
QUALIFICATION, RELIABILITY AND STANDARDS
Avanex Handling policy for all products is to carry out a complete qualification program. This qualification is based on manufacturers’
qualification in agreement with Telcordia GR-468-Core (generic reliability assurance requirements for optoelectronic devices used in
Telecommunications equipment - central office level), MIL STD 883E (Test method and procedures for microelectronics) and following the
standards ITU-T G652 and G-691. All products pass strict tests before shipping. Failure criteria are defined during the product qualification
process.
DEVICE MARKING
The device shall be legibly and permanently marked with the following information:
Avanex logo
Product family name: 1915 LMM
Product code: 3CN number (see Ordering Information section)
Serial number
SHIPMENT PACKAGING
Each device is individually packed in an anti-static container and in such a manner as to prevent damage in transit.
The packing shall include the following information:
Avanex logo
Product family name: PowerSource
TM
1915 LMM
Product code: 3CN number (see Ordering Information section)
Serial number
Hazard warning label (ESD)
Laser Safety Class Label
DELIVERABLE DATA
The following data shall be supplied with each device for
WDM and Single Channel applications:
L(I) / V(I) / I
m
(I) curves
Values for V
mod
, V
on
(On-state voltage [0 data]), V
bias
(bias voltage), DER, S0 (received optical power without fiber),
Δ
S and
P
ave
@ I
f
DER and dispersion penalty (Δ S)
For Single Channel applications:
Plot of SER vs V
mod
over the range 0 V to –3 V @ I
f
= 80 mA and Tcase = Tsubmount = 25°C
For WDM applications:
Plot of SER vs V
mod
over the range 0 V to –3 V @ I
f
, Twave and Tc = 25°C
LASER SAFETY INFORMATION
Take appropriate precautions to prevent undue exposure to naked eye. This product is classified Class 3A Laser Product according to
IEC-60825-1. FDA/CDRH Class IIIb laser product. All versions are Class IIIb laser products per CDRH, 21 CFR 1040 Laser. Safety
requirements under accession number 0120546-00.
HANDLING
This product is sensitive to electrostatic discharge and should not be handled except at a static free workstation. Take precautions to prevent
ESD; use wrist straps, grounded work surfaces and recognized anti-static techniques when handling the PowerSource
TM
1915 LMM module.
Handle the laser module by its package only, never hold it by its pigtail. Care should be taken to avoid supply transient and over voltage.
Over voltage above the maximum specified in absolute maximum rating section may cause permanent damage to the device.
D2301
4
PowerSource 1915 LMM
TM
ORDERING INFORMATION
PowerSource
TM
1915 LMM - 1600 ps/nm Application
Application
Single Channel
WDM
Single Channel
WDM
Single Channel
WDM
Single Channel
WDM
Single Channel
WDM
Single Channel
WDM
10 Gb/s Digital Electro-Absorption Laser Module - 1600 ps/nm Application
Part Number
3CN00772AA
3CN00772##
3CN00773AA
3CN00773##
3CN00774AA
3CN00774##
3CN00775AA
3CN00775##
3CN00776AA
3CN00776##
3CN00777AA
3CN00777##
Electrical Connector
K type
K type
K type
K type
K type
K type
GPO type
GPO type
GPO type
GPO type
GPO type
GPO type
Optical Connector
FC/PC
FC/PC
LC/PC
LC/PC
SC/PC
SC/PC
FC/PC
FC/PC
LC/PC
LC/PC
SC/PC
SC/PC
Table 3
λ(nm)
1529.55
1530.33
1531.12
1531.90
1532.68
1533.47
1534.25
1535.04
1535.82
1536.61
1537.40
1538.19
1538.98
1539.77
1540.56
1541.35
1542.14
1542.94
1543.73
1544.53
1545.32
1546.12
1546.92
1547.72
1548.51
1549.32
THz
196.00
195.90
195.80
195.70
195.60
195.50
195.40
195.30
195.20
195.10
195.00
194.90
194.80
194.70
194.60
194.50
194.40
194.30
194.20
194.10
194.00
193.90
193.80
193.70
193.60
193.50
Code ##
BP
BR
BT
BV
BX
BZ
CB
CD
CF
CH
CK
CM
CP
CR
CT
CV
CX
CZ
DB
DD
DF
DH
DK
DM
DP
DR
λ(nm)
1550.12
1550.92
1551.72
1552.52
1553.33
1554.12
1554.94
1555.75
1556.55
1557.36
1558.17
1558.98
1559.79
1560.61
1561.42
1562.23
1563.05
1563.86
1564.68
1565.49
1566.31
1567.13
1567.95
1568.77
1569.59
THz
193.40
193.30
193.20
193.10
193.00
192.90
192.80
192.70
192.60
192.50
192.40
192.30
192.20
192.10
192.00
191.90
191.80
191.70
191.60
191.50
191.40
191.30
191.20
191.10
191.00
Code##
DT
DV
DX
DZ
EB
ED
EF
EH
EK
EM
EP
ER
ET
EV
EX
EZ
FB
FD
FF
FH
FK
FM
FP
FS
FU
All wavelengths referenced to vacuum and Twave for WDM applications.
www.avanex.com
Nasdaq: AVNX
40919 Encyclopedia Circle, Fremont, CA 94538 USA • Telephone 510-897-4188 • Fax 510-897-4189
D2301
©2005 Avanex Corporation. Actual data will vary according to the specific product and the specific application.
5
