EHH1320TTS-2.585M-G2

Description
CMOS, Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 8 Pin DIP Metal Thru-Hole Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 8 Pin DIP Metal Thru-Hole
CategoryPassive components    oscillator
File Size10MB,10 Pages
ManufacturerECLIPTEK
Websitehttp://www.ecliptek.com
Environmental Compliance
Download Datasheet Parametric View All

EHH1320TTS-2.585M-G2 Overview

CMOS, Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 8 Pin DIP Metal Thru-Hole Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 8 Pin DIP Metal Thru-Hole

EHH1320TTS-2.585M-G2 Parametric

Parameter NameAttribute value
Brand NameEcliptek
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid7035980142
Parts packaging code8 Pin DIP
Contacts4
Manufacturer packaging code8 Pin DIP
Reach Compliance Codecompliant
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time6 ns
Frequency Adjustment - MechanicalNO
frequency stability20%
JESD-609 codee3
Manufacturer's serial numberEHH13
Installation featuresSURFACE MOUNT
Nominal operating frequency2.585 MHz
Maximum operating temperature70 °C
Minimum operating temperature
Oscillator typeCMOS
Output load30 pF

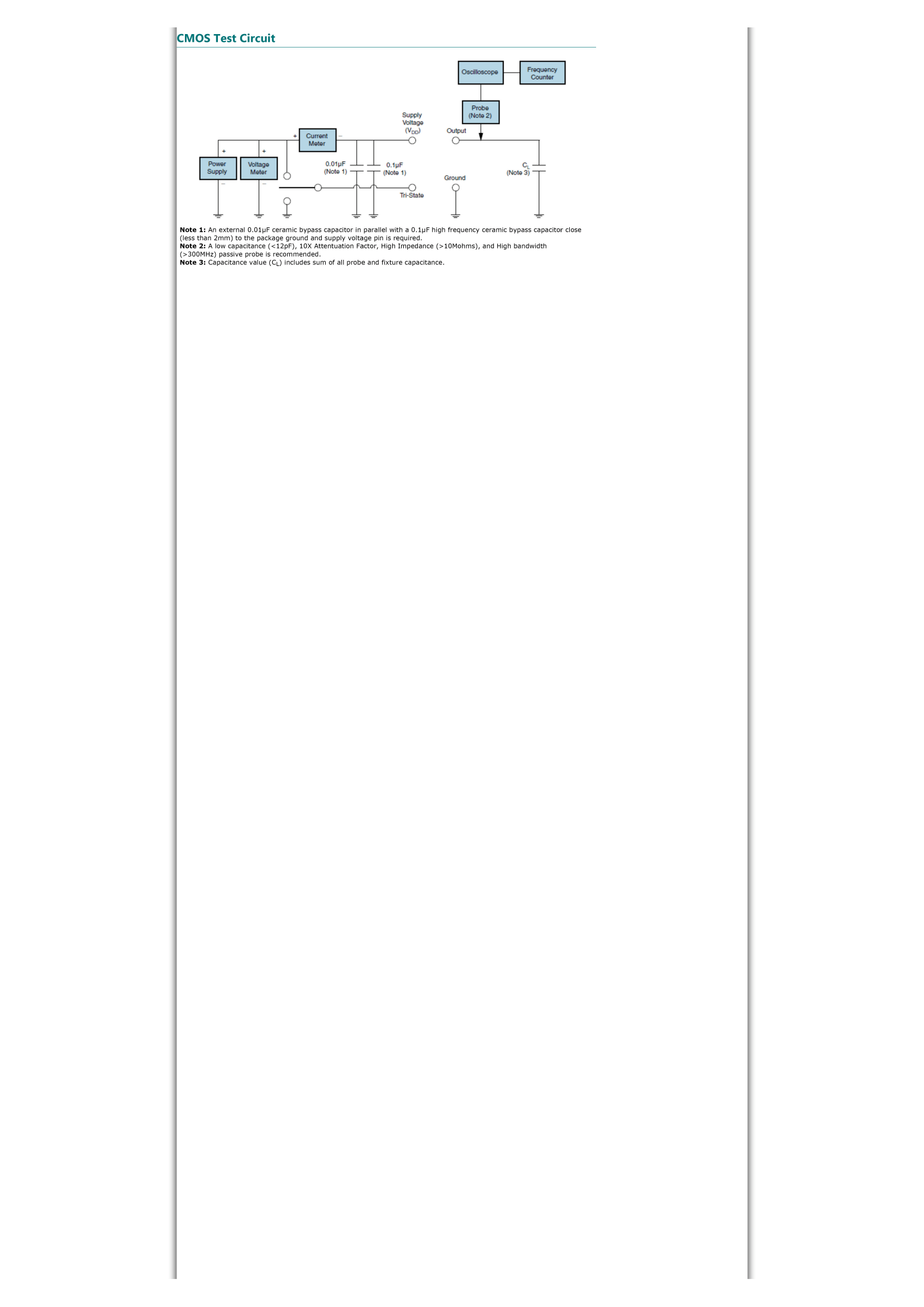

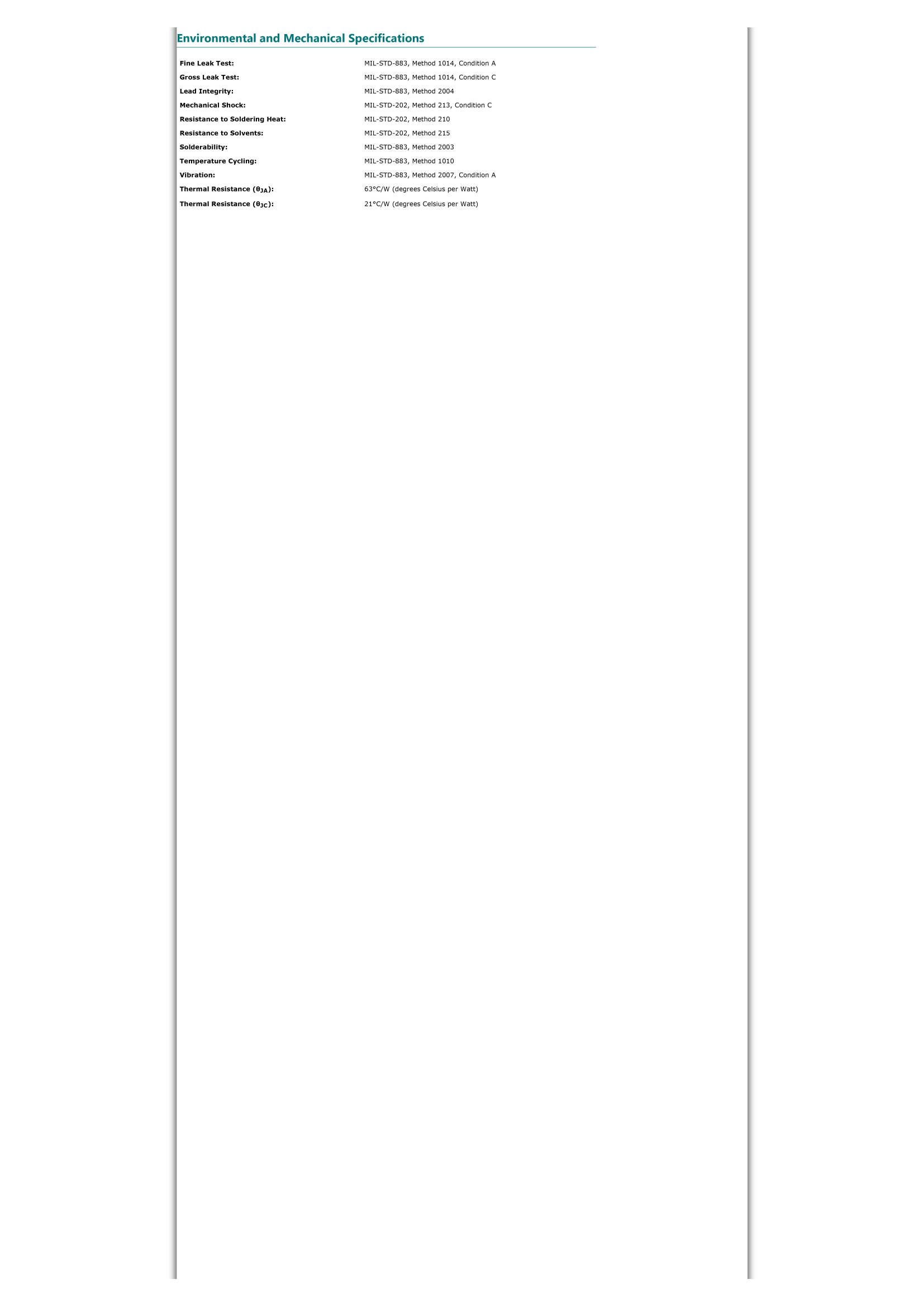

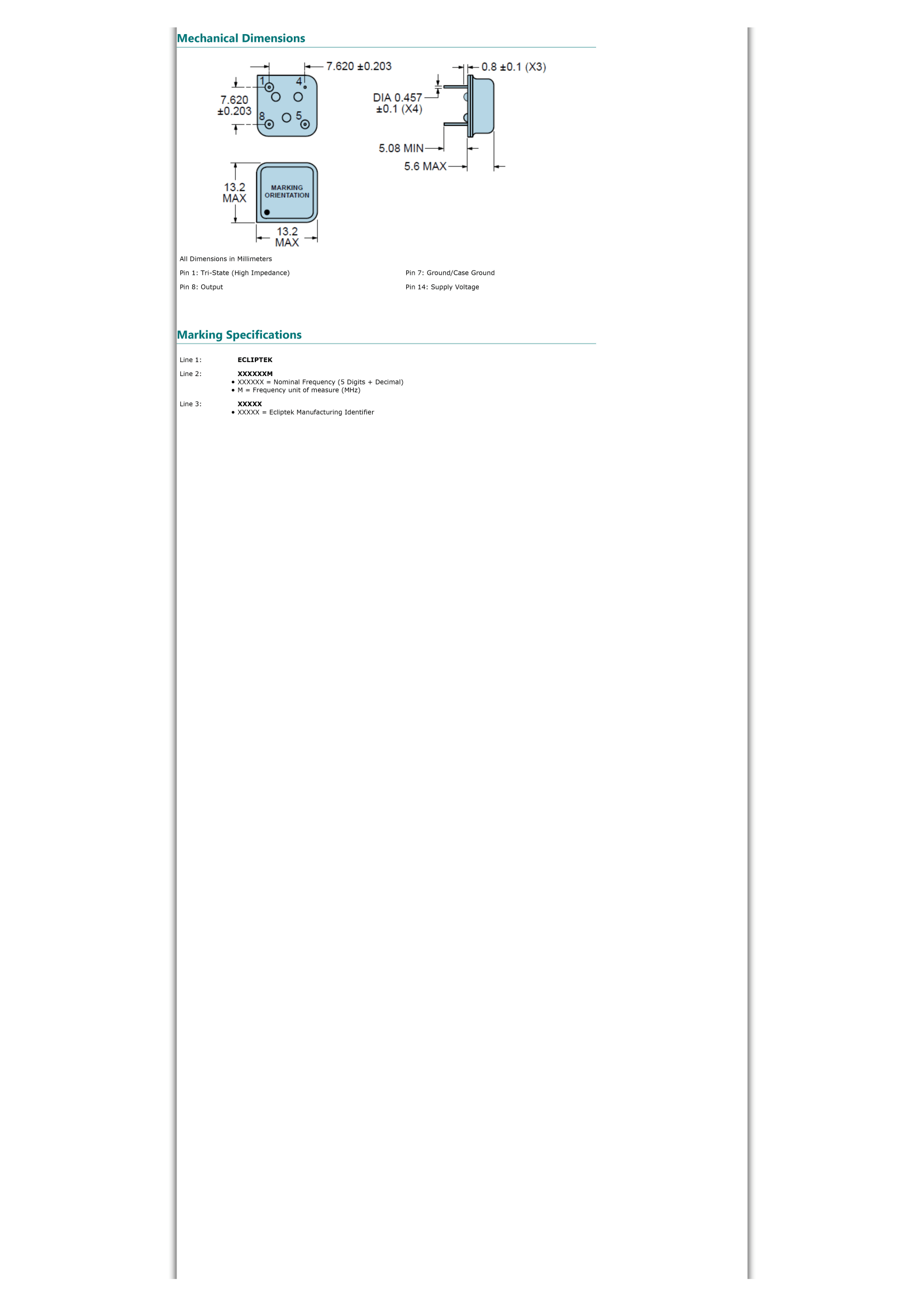

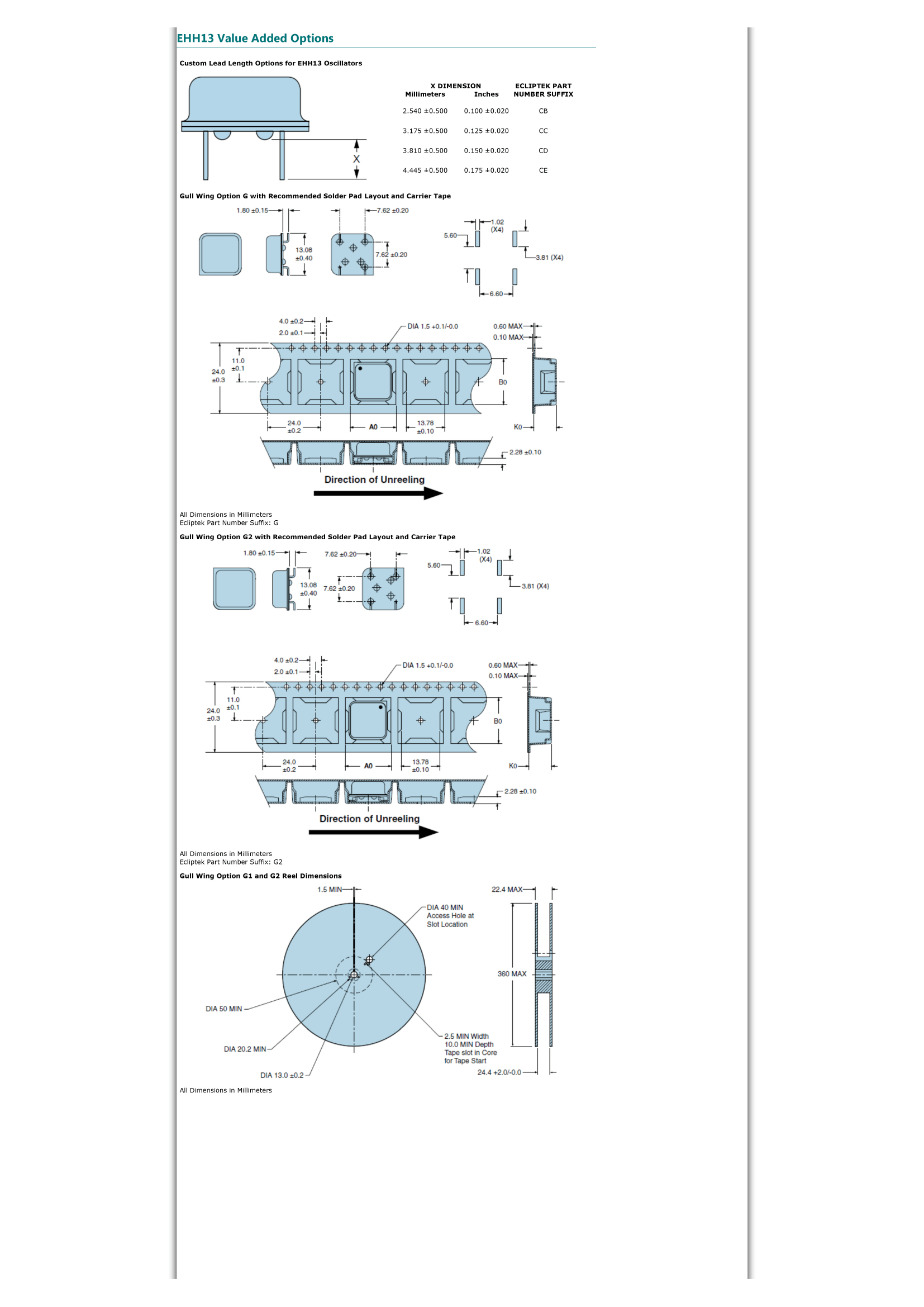

physical size13.2mm x 13.2mm x 7.4mm
longest rise time6 ns
Maximum supply voltage3.6 V
Minimum supply voltage3 V
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry55/45 %
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier

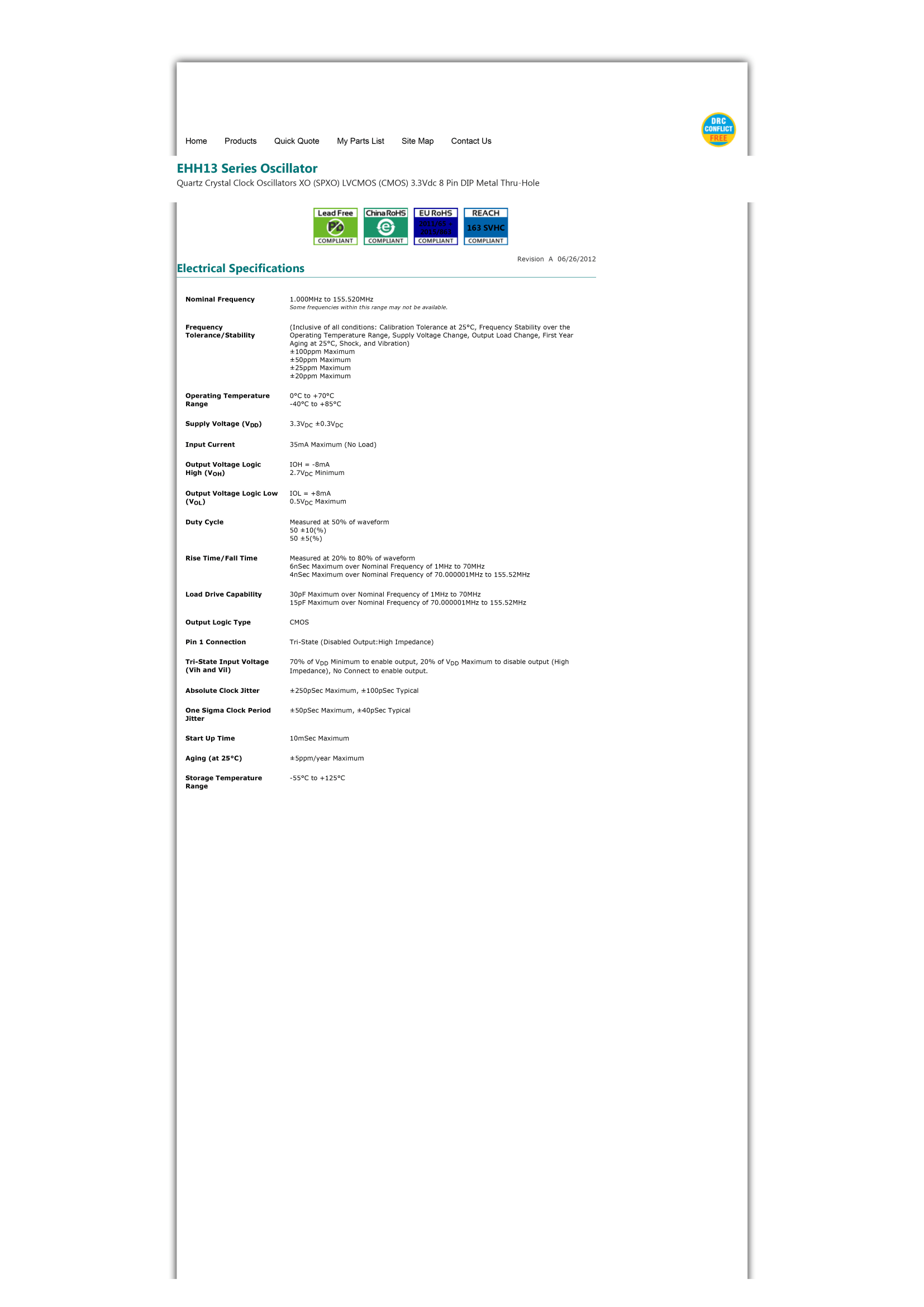

Ecliptek | EHH13 Series Oscillator
http://ecliptek.com/oscillators/EHH13/
Log On
| 714-433-1200 |
Email Customer Support
1 of 10
18-Jan-2016 10:05 AM
