BXY44
HiRel
Silicon PIN Diode
•
•
•
•
•
T
HiRel
Discrete and Microwave
Semiconductor
Current controlled RF resistor for RF
attenuators and switches
High reverse voltage
Hermetically sealed microwave
package
Space Qualified
ESA/SCC Detail Spec. No.: 5513/030
Type Variant No.s 04 to 07
T2
FP
T1
ESD: Electrostatic discharge
sensitive
device,
observe handling precautions!

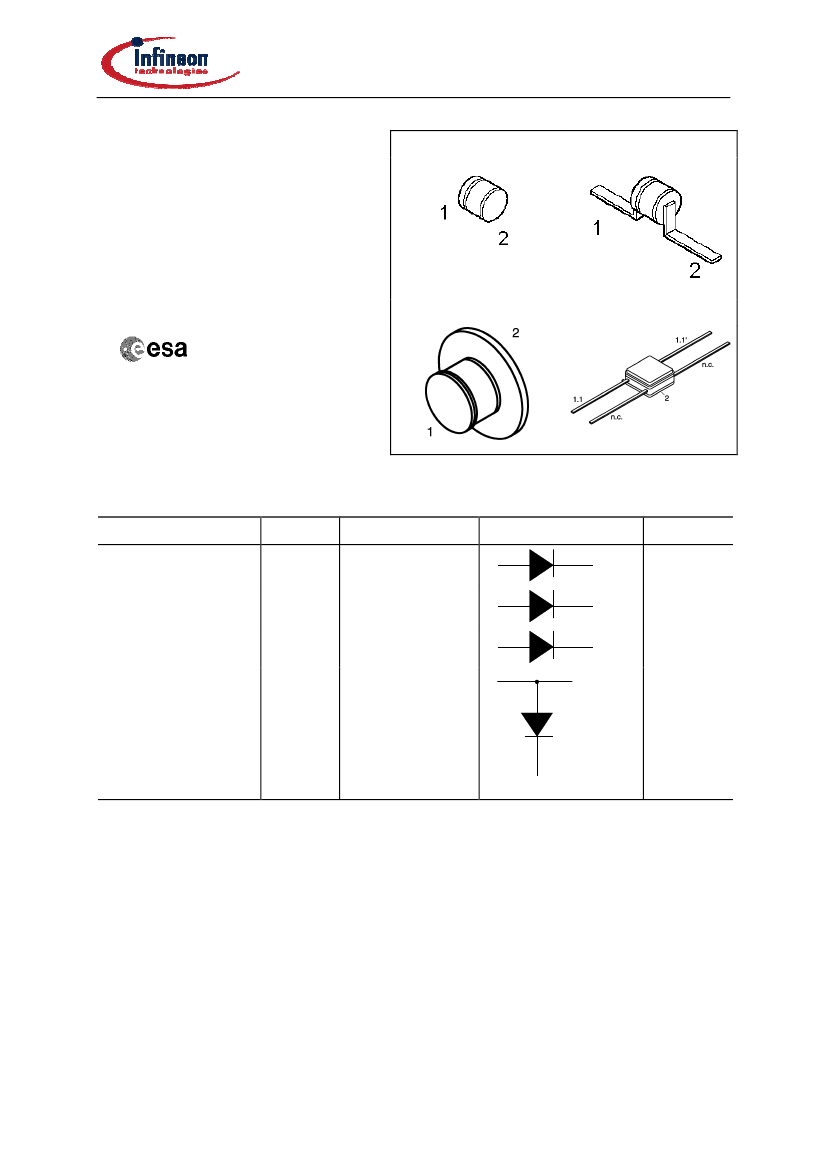

Type
BXY44-T (ql)
BXY44-T1 (ql)
BXY44-T2 (ql)
BXY44-FP (ql)
Marking
-
Ordering Code
see below
Pin Configuration
Package
T
T1
T2
FP
1
1
1
1
1'
2
2
2
2
(ql) Quality Level:
P: Professional Quality,
H: High Rel Quality,
S: Space Quality,
ES: ESA Space Quality,
(see order instructions for ordering example)
Ordering Code:
Ordering Code:
Ordering Code:
Ordering Code:
Q62702X148
on request
on request
Q62702X162
Semiconductor Group
1 of 6
Draft B, September 99
BXY44
Maximum Ratings
Parameter
Reverse Voltage
Forward Current
Power Dissipation
1)
Operating Temperature Range
Storage Temperature Range
Soldering Temperature
2)
Junction Temperature
Thermal Resistance Junction-Case
BXY44-T
BXY44-T1
BXY44-T2
BXY44-FP
Symbol
V
R
I
F
P
tot
T
op
T
stg
T
sol
T
j
R
th(j-c)
Values
200
400
500
-55 to +150
-65 to +175
+235
150
110
140
110
110
Unit
V
mA
mW
°C
°C
°C
°C
K/W
Notes.:
1.) For BXY44-T; -T2, -FP: At T
CASE
= 95 °C. For T
CASE
> 95 °C derating is required.
For BXY44-T1: At T
CASE
= 80 °C. For T
CASE
> 80 °C derating is required.
2.) During 5 sec. maximum. The same terminal shall not be resoldered until 5 minutes have
elapsed.
Electrical Characteristics
at T
A
=25°C; unless otherwise specified
Parameter
DC Characteristics
Reverse Current 1
V
R1
=200V
Reverse Current 2
V
R2
=100V
Forward Voltage
I
F
=100mA
V
F
-
1,0
1,05
V
I
R2
-
-
5
nA
I
R1
-
-
100
nA
Symbol
min.
Values
typ.
max.
Unit
Semiconductor Group
2 of 6
Draft B, September 99
BXY44
Electrical Characteristics
(continued)
Parameter
AC Characteristics
Total Capacitance
V
R
=50V; f=1MHz
BXY44-T, -T1, -T2
BXY44-FP
Forward Resistance 1
f=100MHz, I
F1
=10µA
BXY44-T, -T1, -T2
BXY44-FP
Forward Resistance 2
f=100MHz, I
F2
=1mA
BXY44-T, -T1, -T2
BXY44-FP
Forward Resistance 3
f=100MHz, I
F3
=10mA
BXY44-T, -T1, -T2
BXY44-FP
Minority Carrier Lifetime
I
F
=10mA, I
R
=6mA, I
R
=3mA
τ
L
2,0
2,0
300
3,0
3,8
800
5,0
5,0
-
ns
R
F3
12
11
16
20
28
27
Ω
R
F2
800
700
900
900
1300
1200
Ω
R
F1
-
-
0,20
0,50
0,35
0,75
Ω
C
T
pF
Symbol
min.
Values
typ.
max.
Unit
Semiconductor Group
3 of 6
Draft B, September 99
BXY44
Order Instructions:
Full type variant including package variant and quality level must be specified by the orderer.
For
HiRel
Discrete and Microwave Semiconductors the ordering code specifies device family
and quality level only.
Ordering Form:
Ordering Code: Q..........
BXY44- (x) (ql)
(x): Package Variant
(ql): Quality Level
Ordering Example:
Ordering Code: Q62702X162
BXY44-T1 ES
For BXY44 in T1 Package; ESA Space Quality Level
Further Informations:
See our WWW-Pages:
- Discrete and RF-Semiconductors (Small Signal Semiconductors)
www.infineon.com/products/discrete/hirel.htm
-
HiRel
Discrete and Microwave Semiconductors
www.infineon.com/products/discrete/hirel.htm
Please contact also our marketing division :
Tel.:
Fax.:
e-mail:
Address:
++89 234 24480
++89 234 28438
martin.wimmers@infineon.com
Infineon Technologies Semiconductors,
High Frequency Products Marketing,
P.O.Box 801709,
D-81617 Munich
Semiconductor Group
4 of 6
Draft B, September 99
BXY44
T Package
X1
C
Y1
Y2
B
A
Symbol
A
B
C
1
2
Millimetre
min
max
1,30
1,45
1,15
1,35
-
0,40
T1 Package
X1
B
Y1
Y2
C
2
A
Symbol
A
B
C
D
E
F
G
H
1
D
F
E
G
G
H
Millimetre
min
max
1,30
1,45
1,15
1,35
-
0,40
0,10
0,50
-
0,30
0,06
0,10
5,50
-
0,40
0,60
T2 Package
X1
Y2
Y1
B
A
1
2
Symbol
∅A
∅B
C
D
C
D
Millimetre
min
max
1,30
1,45
2,0
2,2
0,60
1,25
0,08
0,20
Semiconductor Group
5 of 6
Draft B, September 99
