Type 350
105 ºC, Low Inductance, Radial, Aluminum Electrolytic
High Frequency, Solid Aluminum Top
Type 350’s solid aluminum top assures extremely low
impedance. With a typical 4 to 6 nH ESL, the self reso-
nant frequency is well above 100 kHz. The very low
ESR assures the low impedance rating. The capacitors
are fitted with three rugged welded mounting leads to
provide maximum resistance
Highlights
•
•
•
Operates to beyond 200 kHz
Less than 10 nH ESL
Solid aluminum top
Specifications
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature Range:
Shelf Life:
Leakage Current:
Cold Impedance:
90 to 11,000 F
6.3 to 100 Vdc
–10 +75%
–55 ºC to +105
ºC
500 hours @ +105 ºC
≤0.5 √CV µA at 25 ºC
–55 º multiple of 25 ºC Z ≤
6 for 6.3 V, 3 flr 10 to 50 V, 2 for 75 & 100 V
Ripple Current Multipliers:
Ambient Temperature
45 ºC
1.66
55 ºC
1.52
65 ºC
1.37
75 ºC
1.20
85 ºC
1.00
95 ºC
0.75
105 ºC
0.36
Frequency
60 Hz
6.3 to 20 V
25 to 35 V
50 to 75 V
100 V
0.53
0.45
0.36
0.29
120 Hz
0.65
0.55
0.50
0.40
360 Hz
0.73
0.65
0.60
0.52
1 kHz
0.90
0.85
0.80
0.75
5 kHz 10 kHz & up
0.95
0.92
0.90
0.87
1.00
1.00
1.00
1.00
Load Life:
Shelf Life:
Vibration:

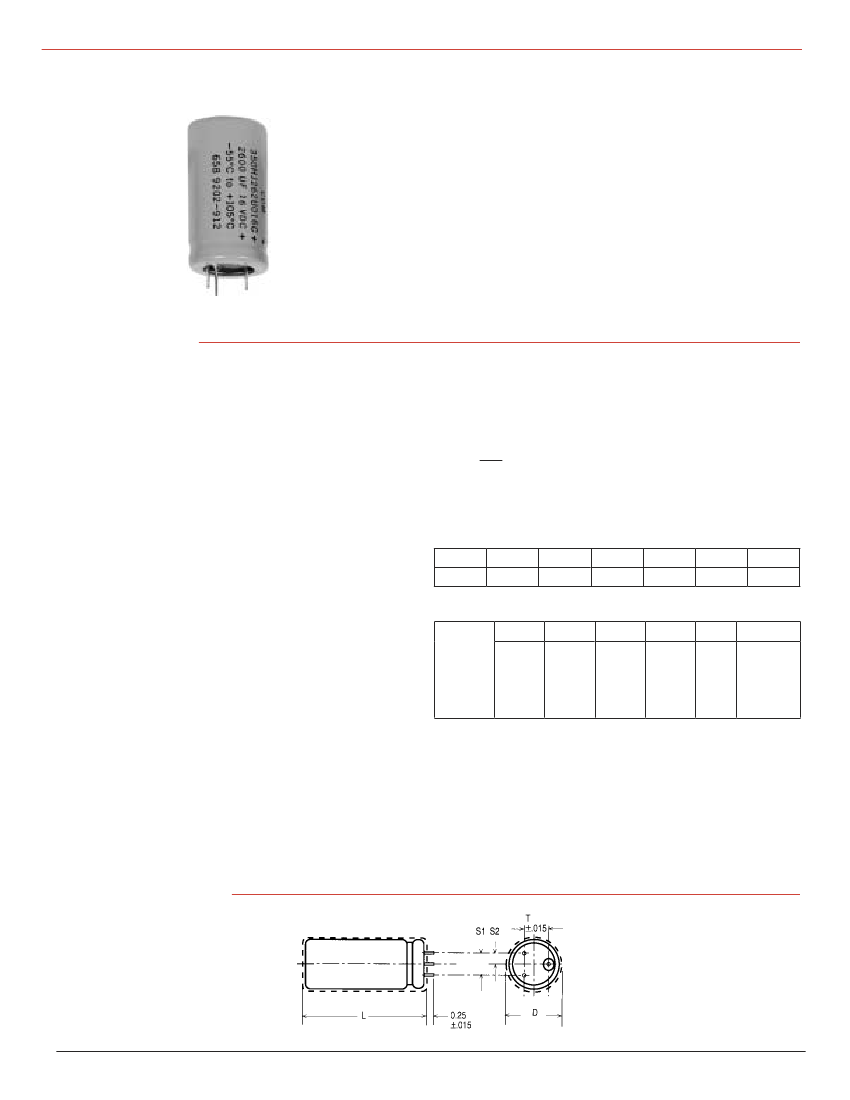

Outline Drawing
4,000 h @ +105 ºC at full load
∆ Capacitance ±10%
ESR 150% of limit
DCL 100% of limit
500 h @ 105 ºC, capacitance, ESR and DCL,
initial requirement
10 to 55 Hz, 0.06” and 10 g max, 2h in each
plane
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
Type 350
105 ºC, Low Inductance, Radial, Aluminum Electrolytic
Case Dimensions
Case
Code
GE
GJ
GL
GP
HE
HJ
HL
HP
JJ
Nominal
DxL
3/4 x 1 1/8
3/4 x 1 5/8
3/4 x 2 1/8
3/4 x 2 5/8
7/8 x 1 1/8
7/8 x 1 5/8
7/8 x 2 1/8
7/8 x 2 5/8
1 x 1 5/8
Insulated
DxL
0.775 x 1.157
0.775 x 1.657
0.775 x 2.157
0.775 x 2.657
0.900 x 1.157
0.900 x 1.657
0.900 x 2.157
0.900 x 2.657
1.025 x 1.657
Inches
S1
±0.015
0.2
0.2
0.2
0.2
0.3
0.3
0.3
0.3
0.3
S2
±0.015
0.10
0.10
0.10
0.10
0.15
0.15
0.15
0.15
0.15
0.3
0.3
0.3
0.3
0.4
0.4
0.4
0.4
0.4
T
Part Numbering System
350
Type
350
JP
Case Code
See table
1152
Capacitance
900 = 90 µF
161 = 160 µF
882 = 8800 µF
1152 = 11500 µF
U
Tolerance
U = –10 +75%
T = –10 +50%
6R3
Voltage
6R3 = 6.3 Vdc
063 = 63 Vdc
100 = 100 Vdc
C
Insulation
O = Bare can
B = Plastic insulation with epoxy
C = Plastic insulation, no epoxy

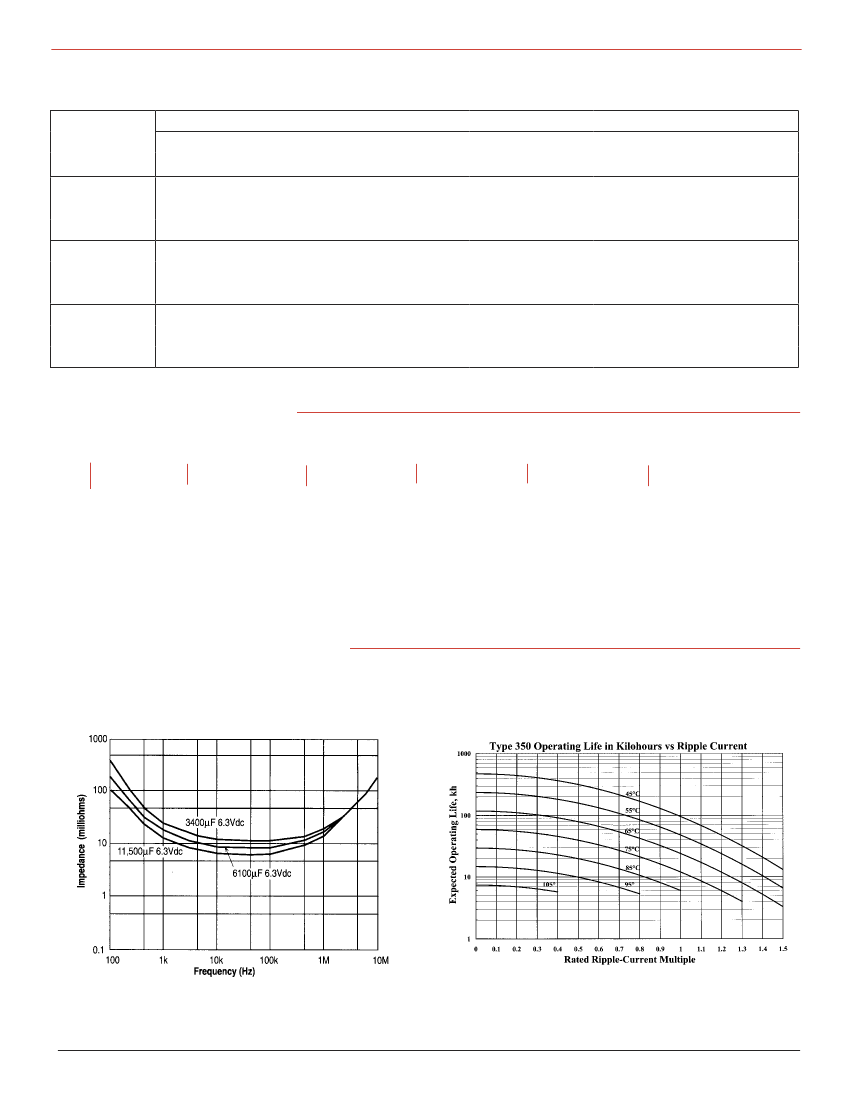

Typical Performance Curves
Type 350 Impedance vs Frequency
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
Type 350
105 ºC, Low Inductance, Radial, Aluminum Electrolytic

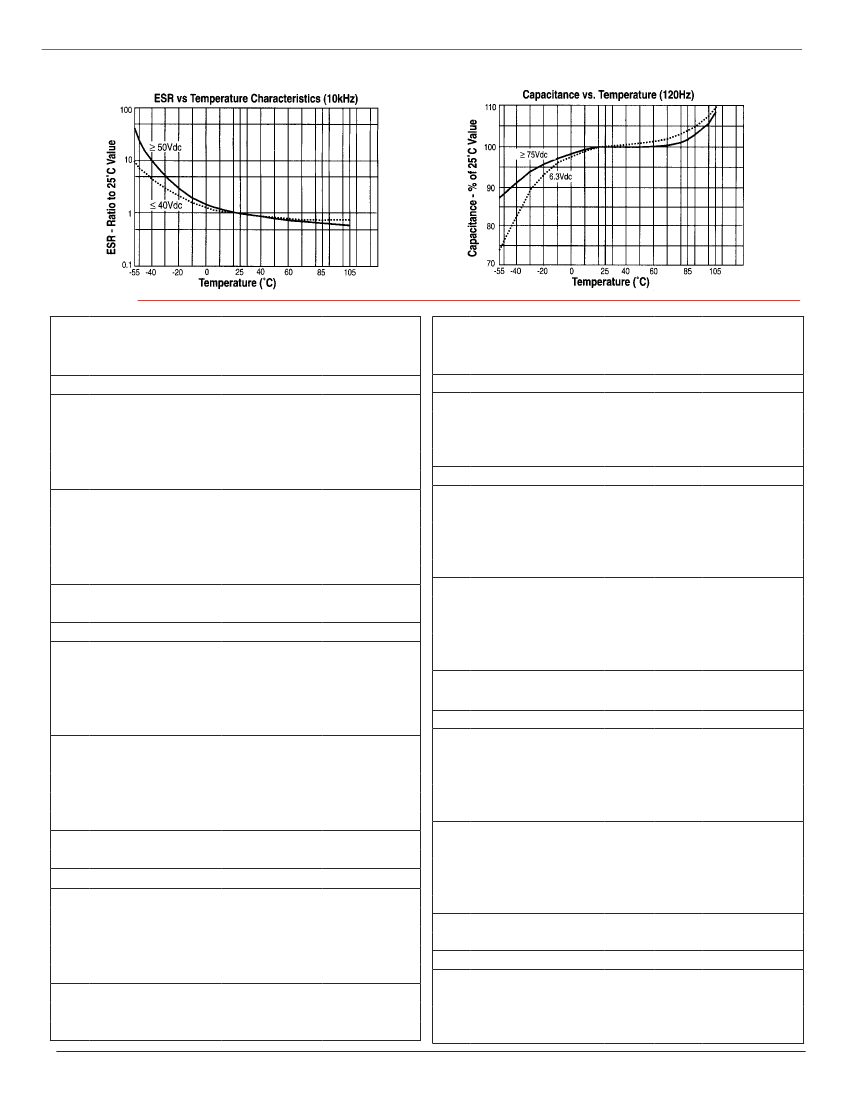

Typical Performance Curves
Ratings
ESR Max Ω
Cap
(µF)
Catalog
Part Number
+25 ºC
120 Hz
0.087
0.065
0.050
0.058
0.035
0.037
0.029
0.033
0.027
0.022
0.024
0.020
0.091
0.068
0.052
0.059
0.037
0.039
0.030
0.034
0.028
0.023
0.025
0.020
0.098
0.072
0.055
0.062
0.039
0.041
0.031
0.036
20 kHz
0.043
0.035
0.025
0.031
0.018
0.020
0.015
0.018
0.015
0.013
0.014
0.012
0.044
0.035
0.026
0.031
0.018
0.021
0.015
0.018
0.015
0.013
0.014
0.012
0.045
0.035
0.026
0.032
0.019
0.021
0.015
0.019
Imped.
100 kHz
0.040
0.034
0.025
0.031
0.019
0.022
0.017
0.020
0.018
0.016
0.016
0.015
0.040
0.034
0.025
0.030
0.019
0.022
0.016
0.019
0.018
0.016
0.016
0.014
0.040
0.034
0.025
0.030
0.019
0.022
0.016
0.020
Ripple
20 kHz
3.2
3.7
4.6
4.0
6.6
5.6
8.0
6.2
7.5
8.8
8.1
9.6
3.2
3.7
4.6
3.9
6.6
5.6
7.9
6.1
7.4
8.8
8.0
9.5
3.1
3.6
4.5
3.6
6.5
5.5
7.8
5.7
Nom
Cap
(µF)
Catalog
Part Number
ESR Max Ω
+25 ºC
120 Hz
0.030
0.024
0.026
0.021
0.108
0.079
0.061
0.067
0.044
0.045
0.035
0.038
0.032
0.026
0.028
0.023
0.116
0.085
0.066
0.071
0.047
0.048
0.037
0.041
0.034
0.028
0.029
0.024
0.125
0.089
0.070
0.075
20 kHz
0.015
0.013
0.014
0.012
0.046
0.036
0.027
0.032
0.019
0.021
0.016
0.029
0.016
0.013
0.014
0.012
0.047
0.037
0.027
0.033
0.020
0.022
0.016
0.019
0.016
0.013
0.014
0.012
0.048
0.038
0.028
0.033
Imped.
100 kHz
0.018
0.016
0.016
0.015
0.042
0.034
0.025
0.031
0.020
0.022
0.017
0.020
0.018
0.016
0.016
0.015
0.042
0.035
0.025
0.031
0.020
0.022
0.017
0.020
0.018
0.016
0.016
0.015
0.042
0.035
0.026
0.031
Ripple
20 kHz
7.3
8.7
7.5
9.0
3.1
3.6
4.4
3.8
6.4
5.4
7.7
6.0
7.2
8.6
7.8
9.3
3.0
3.5
4.3
3.7
6.3
5.3
7.6
5.9
7.1
8.4
7.7
9.2
3.0
3.5
4.2
3.7
Nom
DxL
7/8 x 2 1/8
7/8 x 2 5/8
1 x 2 1/8
1 x 2 5/8
3/4 x 1 1/8
7/8 x 1 1/8
3/4 x 1 5/8
1 x 1 1/8
3/4 x 2 1/8
7/8 x 1 5/8
3/4 x 2 5/8
1 x 1 5/8
7/8 x 2 1/8
7/8 x 2 5/8
1 x 2 1/8
1 x 2 5/8
3/4 x 1 1/8
7/8 x 1 1/8
3/4 x 1 5/8
1 x 1 1/8
3/4 x 2 1/8
7/8 x 1 5/8
3/4 x 2 5/8
1 x 1 5/8
7/8 x 2 1/8
7/8 x 2 5/8
1 x 2 1/8
1 x 2 5/8
3/4 x 1 1/8
7/8 x 1 1/8
3/4 x 1 5/8
1 x 1 1/8
Ω +25 ºC A +85 ºC Size (in)
DxL
3/4 x 1 1/8
7/8 x 1 1/8
3/4 x 1 5/8
1 x 1 1/8
3/4 x 2 1/8
7/8 x 1 5/8
3/4 x 2 5/8
1 x 1 5/8
7/8 x 2 1/8
7/8 x 2 5/8
1 x 2 1/8
1 x 2 5/8
3/4 x 1 1/8
7/8 x 1 1/8
3/4 x 1 5/8
1 x 1 1/8
3/4 x 2 1/8
7/8 x 1 5/8
3/4 x 2 5/8
1 x 1 5/8
7/8 x 2 1/8
7/8 x 2 5/8
1 x 2 1/8
1 x 2 5/8
3/4 x 1 1/8
7/8 x 1 1/8
3/4 x 1 5/8
1 x 1 1/8
3/4 x 2 1/8
7/8 x 1 5/8
3/4 x 2 5/8
1 x 1 5/8
Ω +25 ºC A +85 ºC Size (in)
6.3 Vdc (8.5 Vdc Surge)
1600 350GE162U6R3C
2400 350HE242U6R3C
3000 350GJ302U6R3C
3400 350JE342U6R3C
4200 350GL422U6R3C
4400 350HJ442U6R3C
5400 350GP542U6R3C
6100
350JJ612U6R3C
6300 350HL632U6R3C
8300 350HP832U6R3C
8800
350JL882U6R3C
11000 350JP113U6R3C
1500 350GE152U7R5C
2300 350HE232U7R5C
2700 350GJ272U7R5C
3200 350JE322U7R5C
3900 350GL392U7R5C
4200 350HJ422U7R5C
5100 350GP512U7R5C
5800
350JJ582U7R5C
6000 350HL602U7R5C
7900 350HP792U7R5C
8400
350JL842U7R3C
11000 350JP113U7R5C
1400 350GE142U010C
2100 350HE212U010C
2600
3000
3900
5400
350GJ262U010C
350JE302U010C
350HJ392U010C
350JJ542U010C
10 Vdc (12 Vdc Surge)
5600 350HL562U010C
7300 350HP732U010C
7800 350JL782U010C
10000 350JP103U010C
1100 350GE112U012C
1700 350HE172U012C
2000 350GJ202U012C
2400 350JE242U012C
2900 350GL292U012C
3000 350HJ302U012C
3700 350GP372U012C
4200
350JJ422U012C
4400 350HL442U012C
5800 350HP582U012C
6100 350JL612U012C
8000 350JP802U012C
950
350GE951U016C
12 Vdc (18 Vdc Surge)
7.5 Vdc (10 Vdc Surge)
16 Vdc (20 Vdc Surge)
1500 350HE152U016C
1700 350GJ172U016C
2000 350JE202U016C
2500 350GL252U016C
2600 350HJ262U016C
3200 350GP322U016C
3600
350JJ362U016C
3800 350HL382U016C
4900 350HP492U016C
5200 350JL522U016C
6800 350JP682U016C
800
350GE801U020C
10 Vdc (12 Vdc Surge)
3800 350GL382U010C
4800 350GP482U010C
20 Vdc (25 Vdc Surge)
1200 350HE122U020C
1500 350GJ152U020C
1700 350JE172U020C
