BF044G0224JDA: DescriptionFilm Capacitor, Polyester, 250V, 5% +Tol, 5% -Tol, 0.22uF, Through Hole Mount, 5MMH RADIAL LEADED; CategoryPassive components capacitor; File Size67KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric View All

BF044G0224JDA Overview

Film Capacitor, Polyester, 250V, 5% +Tol, 5% -Tol, 0.22uF, Through Hole Mount, 5MMH RADIAL LEADED

BF044G0224JDA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1942475124
package instruction	,
Reach Compliance Code	not_compliant
ECCN code	EAR99
YTEOL	0
capacitance	0.22 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
JESD-609 code	e0
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	AMMO PACK; TR
positive tolerance	5%
Rated (AC) voltage (URac)	160 V
Rated (DC) voltage (URdc)	250 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE

Preview

Download Datasheet

View All

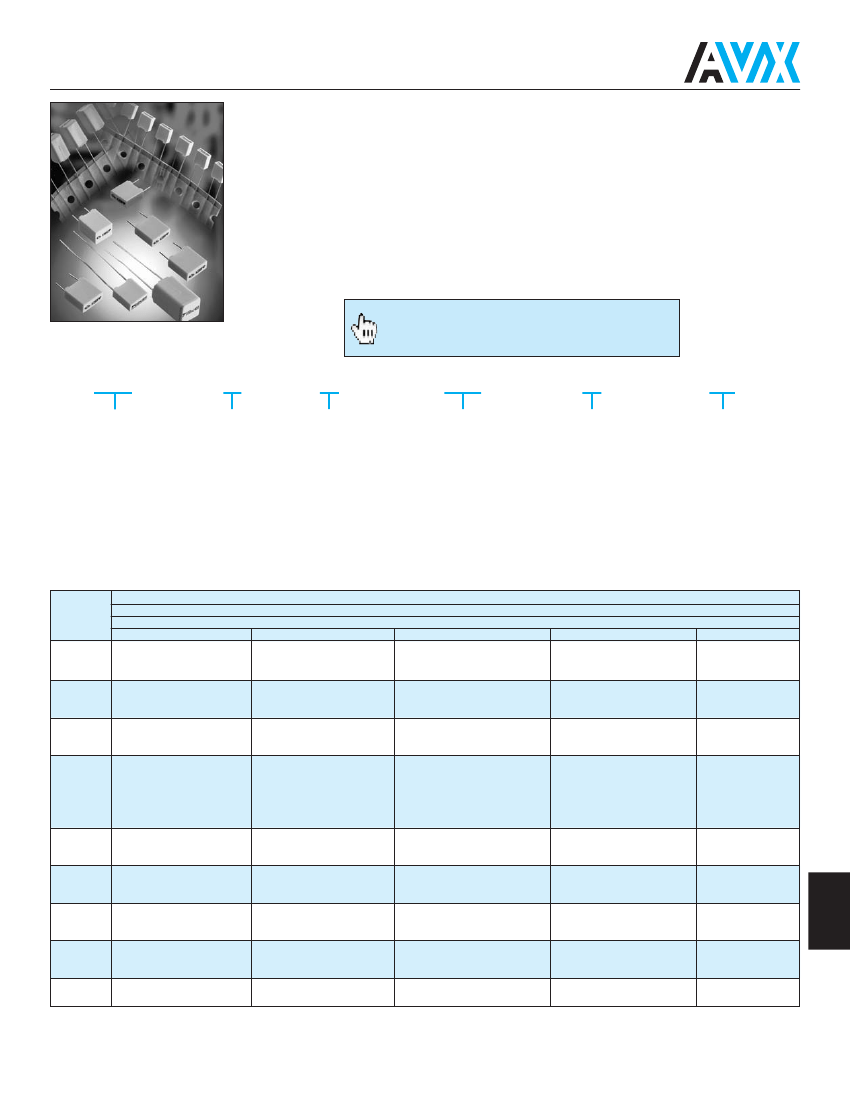

BF/BQ/BH Film Capacitors

Radial Leaded (BQ/BH-RoHS) 5mm

Dielectric: Metallized polyester film (Polyethylene terephtalate)

Stacked-film

Leads: Radial tin - plated wire

Protection: Plastic case (UL 94: V-O) / Epoxy Resin

Marking: Logo BH

Marking: Logo BF/BQ

DC Nominal Voltage

Nominal Capacitance

Tolerance (EIA)

DC Nominal Voltage

Batch Code Number

Example:

T 100nK 63

Example:

T D474KC8L

Delivery Mode: Bulk

Taped (reel or ammopack)

Check for up-to-date CV Tables at

HOW TO ORDER

BF07

Identification

Code

Radial Leads

BF 01 BQ 01 BH 01

BF 02 BQ 02 BH 02

BF 04 BQ 04 BH 04

BF 05 BQ 05 BH 05

BF 06 BQ 06 BH 06

BF 07 BQ 07 BH 07

http://www.avx.com/docs/catalogs/bf-bq.pdf

http://www.avx.com/docs/catalogs/bh.pdf

Dielectric Class

Polyester: 4

Voltage Code

D = 50/63 V

E = 100 V

G = 250 V

I = 400 V

K = 600/630 V

0104

––

Suffix

DA - DB - DC - DD: lead spacing

5.08 mm taped on reel or

ammopack

Capacitance (EIA code)

Tolerance Code

Capacitance expressed by 2

J = ±5%

significant figures

K = ±10%

1st digit:

0 (zero)

2nd and 3rd digit:

the 2

significant figures of the

capacitance value

4th digit:

- for values

≥

10 pF and

≤

990 µF:

the number of zeros to be added

to the capacitance values

Capacitance

Range

)

63/40 (voltage code: D)

1,000

1,200

1,500

1,800

2,200

2,700

3,300

3,900

4,700

5,600

6,800

8,200

10,000

12,000

15,000

18,000

22,000

27,000

33,000

39,000

47,000

56,000

68,000

82,000

100

120

150

180

220

270

330

390

470

560

680

820

1.5

2.2

BF01 / BQ01 / BH01

BF02 / BQ02 / BH02

BF02/****BF01 / BQ02/****BQ01 / BH02

BF02 / BQ02 / BH07

BF07 / BQ07 / BH07

BF05* / BQ05* / BH05

BF05** / BQ05** / BH05**

100/63 (voltage code: E)

BF01 / BQ01 / BH01

BF02 / BQ02 / BH02

BF07/****BF02 / BQ07/****BQ02 / BH07

BF07 / BQ07 / BH07

BF07 / BQ07 / BH05

BF05/****BF06 / BQ05/****BQ06 / BH05

BF05 / BQ05 / BH05

Reference

BF /

/ BH

R-

/ V

250/160 (voltage code: G)

BF01 / BQ01 / BH01

BF01 / BQ01 / BH02

BF02 / BQ02 / BH02

BF02/****BF01 / BQ02/****BQ01 / BH07

BF02 / BQ02 / BH07

BF07 / BQ07 / BH07

BF07 / BQ07 / BH06

BF06/****BF07 / BQ06/****BQ07 / BH05

BF06 / BQ06 / BH05

BF04 / BQ04

BF04/****BF05 / BF04/****BF05

400/200 (voltage code: I)

BF01 / BQ01 / BH01

BF01 / BQ01 / BH02

BF01 / BQ01 / BH07

BF02/****BF01 / BQ02/****BQ01 / BH07

BF02 / BQ02 / BH06

BF07/****BF02 / BQ07/****BQ02 / BH06

BF06 / BQ06 / BH05

BF04 / BQ04

630/230 (voltage code: K)

BF01 / BQ01

BF02 / BQ02

BF07 / BQ07

BF06 / BQ06

BF05 / BQ05

µF

*Upon request -

no change

**Upon request & only available 50 V (V

) -

no change

****New Case size reduction: BF02 to BF01, BF07 to BF02,

BF06 to BF07, BF04 to BF05, BF05 to BF06

Leaded

Capacitors – Film
