9
8
7
6
5
4
3
2
1
RIGHT ANGLE
E
E
+0.97
-0.00
+.038
-.000
D
(7.9)
.31
REF
(1.91)
.075
OPTIONAL VOIDED CIRCUIT
SEE CHART FOR LOCATION
BOTTOM ENTRY
D
C
+0.15
-0.71
+.006
-.028
SEE NOTE 9
(NOT AVAILABLE ON RIGHT ANGLE)
TOP ENTRY
(4.62)REF.
.182
B
2016/08/22
2016/08/24
2016/08/26
(1.47)REF.
.058
CIRCUIT 1
⌀
(1.52)
±
0.05 DIA TYP
.060
±
.002
+0.28
-0.48
+.011
-.019
SEE NOTE 9
NOTES:
1. MATERIAL: HOUSING: POLYESTER, RATED UL 94V-0, COLOR: NATURAL (WHITE)
2. FINISH:
(197) = OVERALL REFLOWED MATTE TIN: 0.00152/.000060 MIN
OVER 0.00127/.000050 MIN NICKEL.
(208) = SELECT GOLD: 0.00038/.000015 MIN,
SELECT TIN: 0.00254/.000100 MIN,
OVERALL NICKEL UNDERPLATE: 0.00127/.000050 MIN.
(228) = SELECT GOLD: 0.00076/.000030 MIN,
SELECT TIN: 0.00254/.000100 MIN,
OVERALL NICKEL UNDERPLATE: 0.00127/.000050 MIN.
(909) = OVERALL TIN: 0.00254/.000100 MIN.
3. PRODUCT SPECIFICATION: PS-08-50
4. PACKAGING: SEE CHARTS
5. FOR TOP ENTRY AND RIGHT ANGLE ASSEMBLIES WITH LOWER INSERTION
FORCE USE SINGLE BEAM CONTACT. (TERMINAL NO. 4244)
6. SOLDERABILITY: WHEN PARTS ARE SOLDERED AT A TEMPERATURE OF 230
°
C
(446
°
F) FOR 5 SECONDS EACH SOLDERED SURFACE SHALL BE A MINIMUM OF 95%
COVERED WITH A SMOOTH CONTINUOUS ADHERENT COATING. FOR ADDITIONAL
INFORMATION SEE SMES-152.
7. PARTS ARE STACKABLE END TO END ON (3.96)/.156 CENTERLINE.
8. THIS PART CONFORMS TO CLASS B REQUIREMENTS OF COSMETIC SPEC PS-45499-002.
9. DIMENSION ‘C” MEASURED WITH TERMINAL PUSHED IN AGAINST THE STOP.
C
B
QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
SYMBOLS
=
=
=
=
=
=
=
0
DIM C TOLERANCE
GENERAL TOLERANCES
(UNLESS SPECIFIED)
MM/IN
DRWN BY
DATE
NTS
0
0
0
0
0
0
0
MM
INCH
±
±
0.01
±
0.015
±
±
4 PLACES
3 PLACES
2 PLACES
±
±
±
0.25
±
0.38
±
SAMIEC
CHK'D BY
DATE
1987/01/28
1987/01/28
DATE
A
107740
MKIPPER
JBELL
FSMITH
SAMIEC
APPR BY

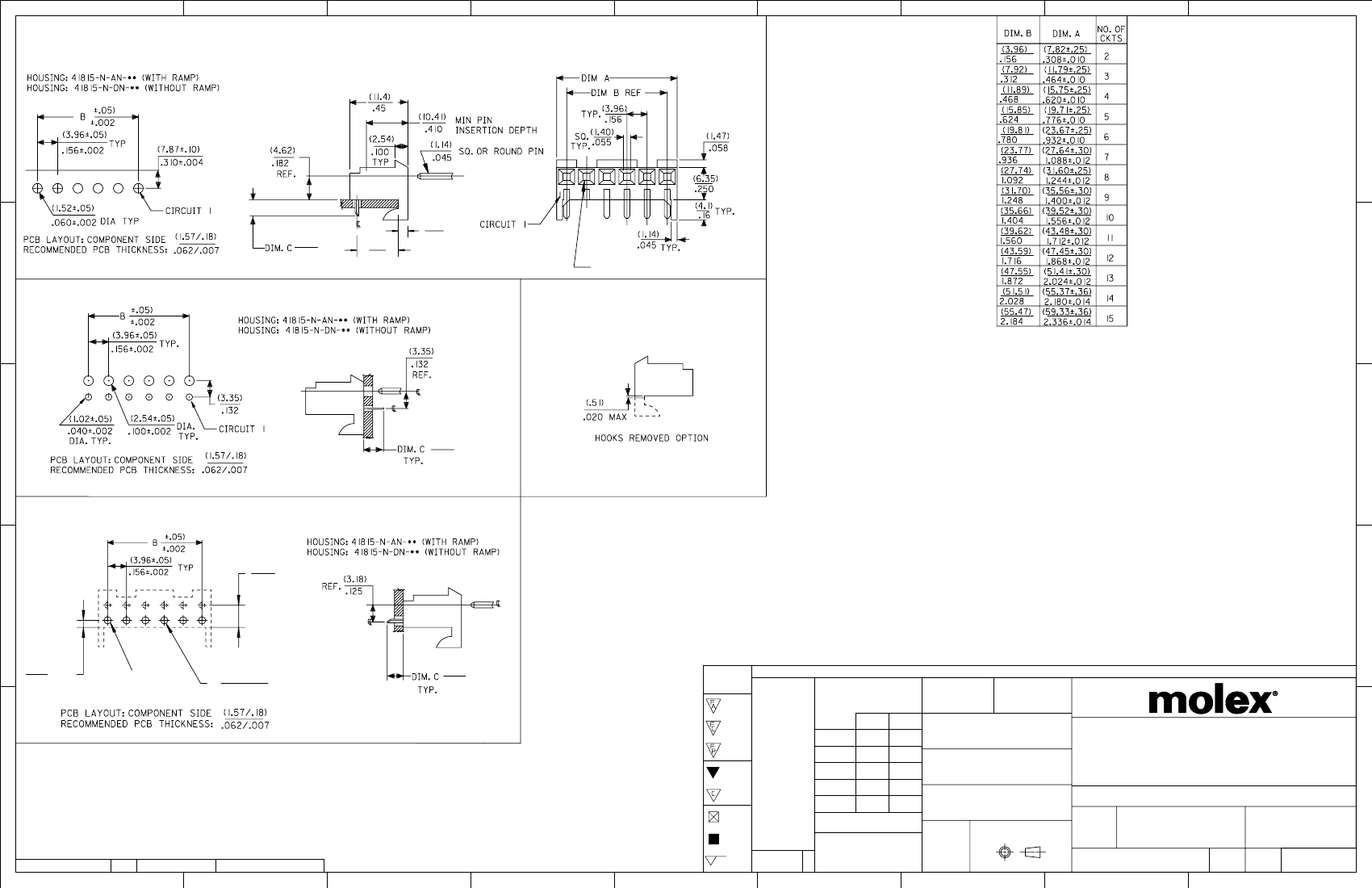

KK 156 HOUSING PCB
41815 SERIES
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
1 PLACES
0 PLACES
A
SAMIEC
DRAWING SIZE
1987/01/28
THIRD ANGLE PROJECTION
EC NO:
DRWN:
CHK'D:
APPR:
ANGULAR TOL
±
0.5
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
RELEASE STATUS
FORMAT: Eng-lega-master-tb-prod-B
REVISION: C
DATE: 2016/04/04
9
RELEASE DATE
C
=
8
7
6
5
AP
4
B
41815
DOCUMENT NUMBER
SEE CHART
GENERAL MARKET
DOC TYPE DOC PART
SHEET NUMBER
3
2
SDA-41815
PSD
000
1
1 OF *
REV
