IoT OPTIMIZED LOW PROFILE QUARTZ CRYSTAL
ABM10W SERIES
FEATURES
•
Optimized for energy saving wearables and IoT
applications
•
Plated at exceptionally low plating capacitance,
as low as 4pF, with optimized ESR
•
0.6 mm max height ideally suited for height
constrained designs
•
Seam sealed for longterm reliability
APPLICATIONS
•
•
•
•
•
•
•
•
Wearables
Internet of Things (IoT)
Bluetooth/Bluetooth Low Energy (BLE)
Wireless modules
Machine-to-machine (M2M) connectivity
Ultra-low power MCU
Near Field Communication (NFC)
ISM Band
2.5 x 2.0 x 0.6mm
Pb
RoHS/RoHS II Compliant
MSL = N/A: NOT APPLICABLE
STANDARD SPECIFICATIONS
Parameters
Frequency Range
Operation Mode
Operating Temperature Range
Storage Temperature
Frequency Tolerance @ +25°C
Frequency Stability over the Operating
Temperature ( ref. to +25°C)
Equivalent series resistance (R1)
Shunt capacitance (C0)
Load capacitance (CL)
Drive Level
Aging (1 year)
Insulation Resistance
< 1.0
4.0
10
-2
500
Minimum
16.000
-40
-55
-10
-10
Typical
Fundamental
+125
+125
+10
+10
100
70
2.0
100
+2
ºC
ºC
ppm
ppm
Ω
pF
pF
µW
ppm
MΩ
See options
See options
See options
16.000 – 29.999MHz
30.000 – 50.000MHz
See options
@ 25°C±3°C
@ 100Vdc ± 15V
Maximum
50.000
Units
MHz
Notes
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
REVISED: 04/04/2017
ABRACON IS
ISO9001-2008
CERTIFIED
IoT OPTIMIZED LOW PROFILE QUARTZ CRYSTAL
ABM10W SERIES
2.5 x 2.0 x 0.6mm
Pb
RoHS/RoHS II Compliant
MSL = N/A: NOT APPLICABLE
OPTIONS AND PART IDENTIFICATION
ABM10W-
Frequency in MHz
Please specify the
Frequency in MHz
(e.g. 16.000MHz)
Load
Capacitance (pF)
8: 8pF
7: 7pF
6: 6pF
4: 4pF
MHz -
-
-
-
Packaging
Blank: Bulk
T3: 3kpcs / reel
Custom ESR
if other than standard
R □: Specify a value
in Ω (e.g.: R40)
Operating Temp.
I: 0°C ~ 50°C
E: 0°C ~ +70°C
B: -20°C ~ +70°C
C: -30°C ~ +70°C
N: -30°C ~ +85°C
D: -40°C ~ +85°C
J: -40°C ~ +105°C (*)
K: -40°C ~ +125°C (*)
(*) Only offered @ Freq. Stability
options: Z & Q.
Contact ABRACONfor tighter
Frequency Stability.
Freq. Tolerance
1: ± 10 ppm
7: ± 15 ppm
2: ± 20 ppm
3: ± 25 ppm
4: ± 30 ppm
5: ± 50 ppm
Freq. Stability
U: ± 10 ppm (*)
G: ± 15 ppm (**)
X: ± 20 ppm (**)
W: ± 25 ppm (**)
Y: ± 30 ppm (**)
H: ± 35 ppm (**)
Z: ± 50 ppm
Q: ± 100 ppm
(*) Only offered @ Operating
Temp. Range options: I, E, & B
(**) Only offered @ Operating
Temp. Range options: I, E, B,
C, N, & D
Contact ABRACON for wider
Operating Temp. Range.
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
REVISED: 04/04/2017
ABRACON IS
ISO9001-2008
CERTIFIED
IoT OPTIMIZED LOW PROFILE QUARTZ CRYSTAL
ABM10W SERIES
2.5 x 2.0 x 0.6mm
Pb
RoHS/RoHS II Compliant
MSL = N/A: NOT APPLICABLE

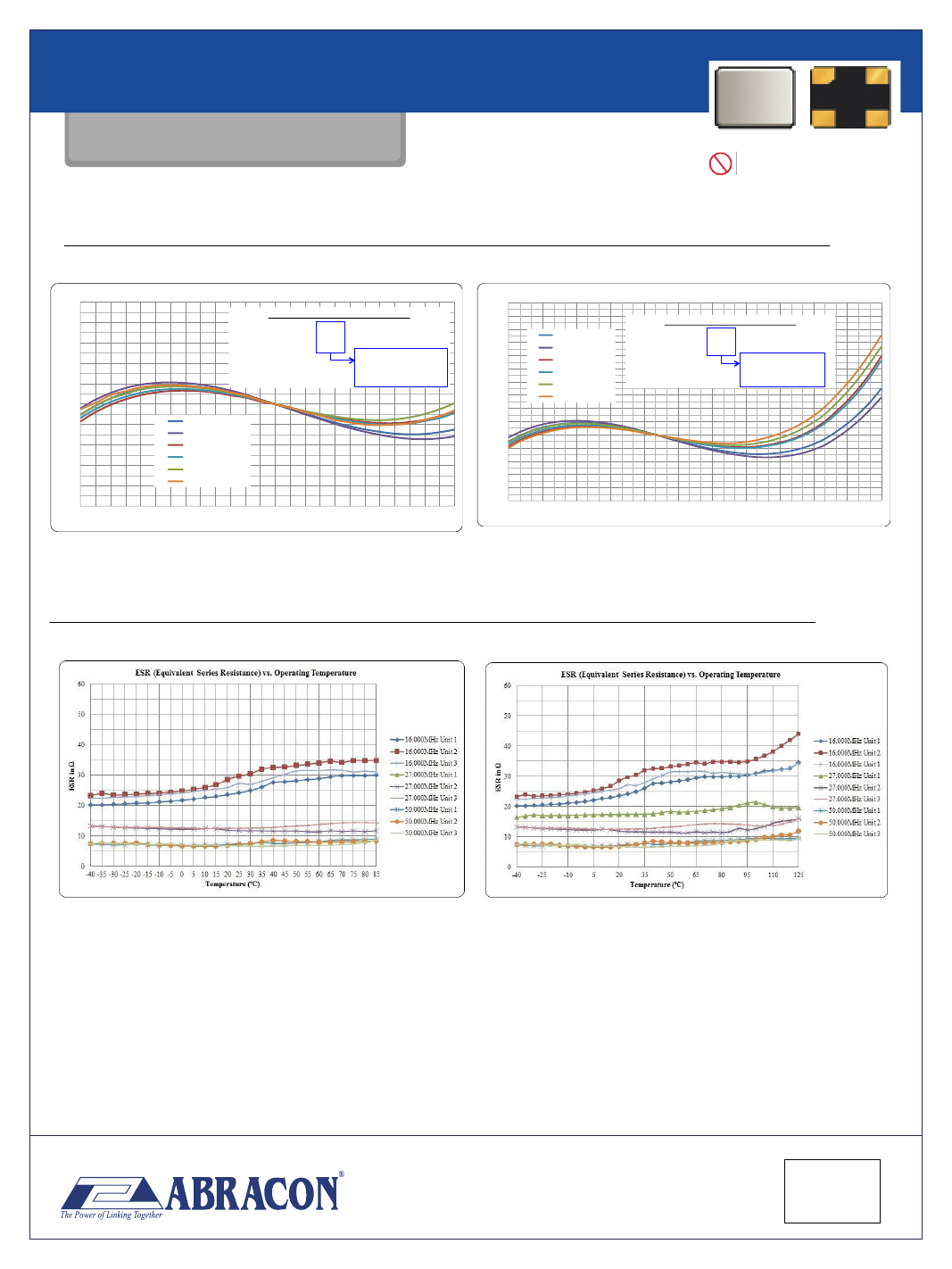

TYPICAL FREQUENCY Vs. TEMPERATURE CHARACTERISTICS
50
40
30
Frequency Stability (ppm)
Frequency Stability vs. Temperature
Part number configuration of samples tested
100
90
80
70
Frequency Stability vs. Temperature
Part number configuration of samples tested
16.000MHZ Unit 1
16.000MHZ Unit 2
27.000MHz Unit 1
27.000MHz Unit 2
50.000MHz Unit 1
50.000MHz Unit 2
ABM10W-16.000MHz-
4-D2Z
-T
ABM10W-27.000MHz-
4-D2Z
-T
ABM10W-50.000MHz-
4-D2Z
-T
Frequency Stability (ppm)
20
10
0
-10
-20
-30
-40
-50
16.000MHz Unit 1
16.000MHz Unit 2
27.000MHz Unit 1
27.000MHz Unit 2
50.000MHz Unit 1
50.000MHz Unit 2
4
: CL@4pF
D
: -40°C to + 85°C
2
: Freq.Tolerance@±20ppm
Z
: Freq.Stability@±50ppm
60
50
40
30
20
10
0
-10
-20
-30
-40
-50
-40
-25
ABM10W-16.000MHz-
4-K2Q
-T
ABM10W-27.000MHz-
4-K2Q
-T
ABM10W-50.000MHz-
4-K2Q
-T
4
: CL@4pF
K
: -40°C to + 125°C
2
: Freq.Tolerance@±20ppm
Q
: Freq.Stability@±100ppm
-40 -35 -30 -25 -20 -15 -10 -5
0
5
10
15 20 25 30 35
Temperature (ºC)
40
45
50
55
60
65
70
75
80
85
-10
5
20
35
50
Temperature (ºC)
65
80
95
110
125
TYPICAL ESR (EQUIVALENT SERIES RESISTANCE) Vs. TEMPERATURE CHARACTERISTICS
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
REVISED: 04/04/2017
ABRACON IS
ISO9001-2008
CERTIFIED
IoT OPTIMIZED LOW PROFILE QUARTZ CRYSTAL
ABM10W SERIES
2.5 x 2.0 x 0.6mm
Pb
RoHS/RoHS II Compliant
MSL = N/A: NOT APPLICABLE

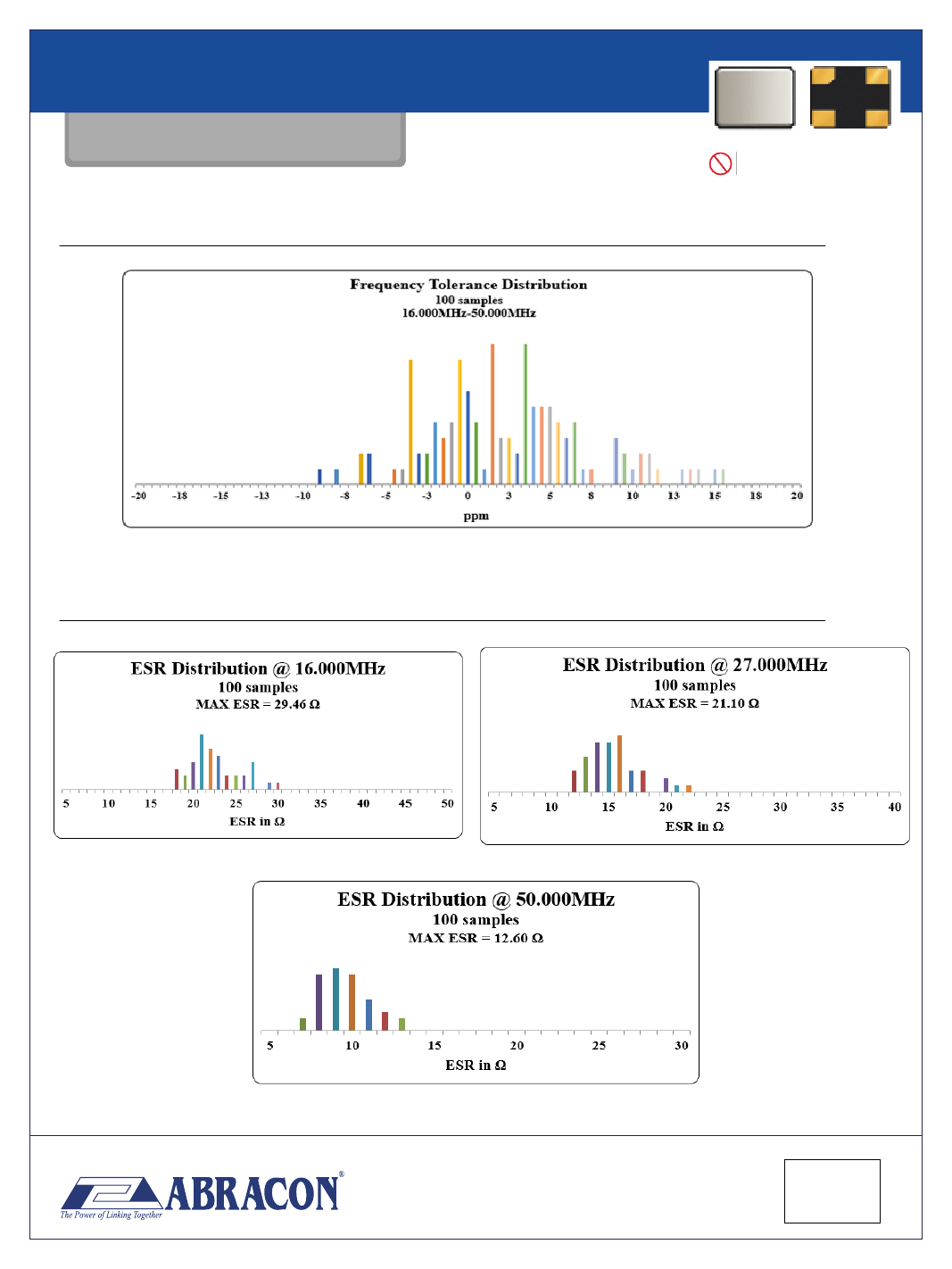

TYPICAL FREQUENCY TOLERANCE DISTRIBUTION (AT 25°C
±
3°C)
TYPICAL ESR DISTRIBUTION (AT 25°C
±
3°C)
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
REVISED: 04/04/2017
ABRACON IS
ISO9001-2008
CERTIFIED
IoT OPTIMIZED LOW PROFILE QUARTZ CRYSTAL
ABM10W SERIES
2.5 x 2.0 x 0.6mm
Pb
RoHS/RoHS II Compliant
MSL = N/A: NOT APPLICABLE

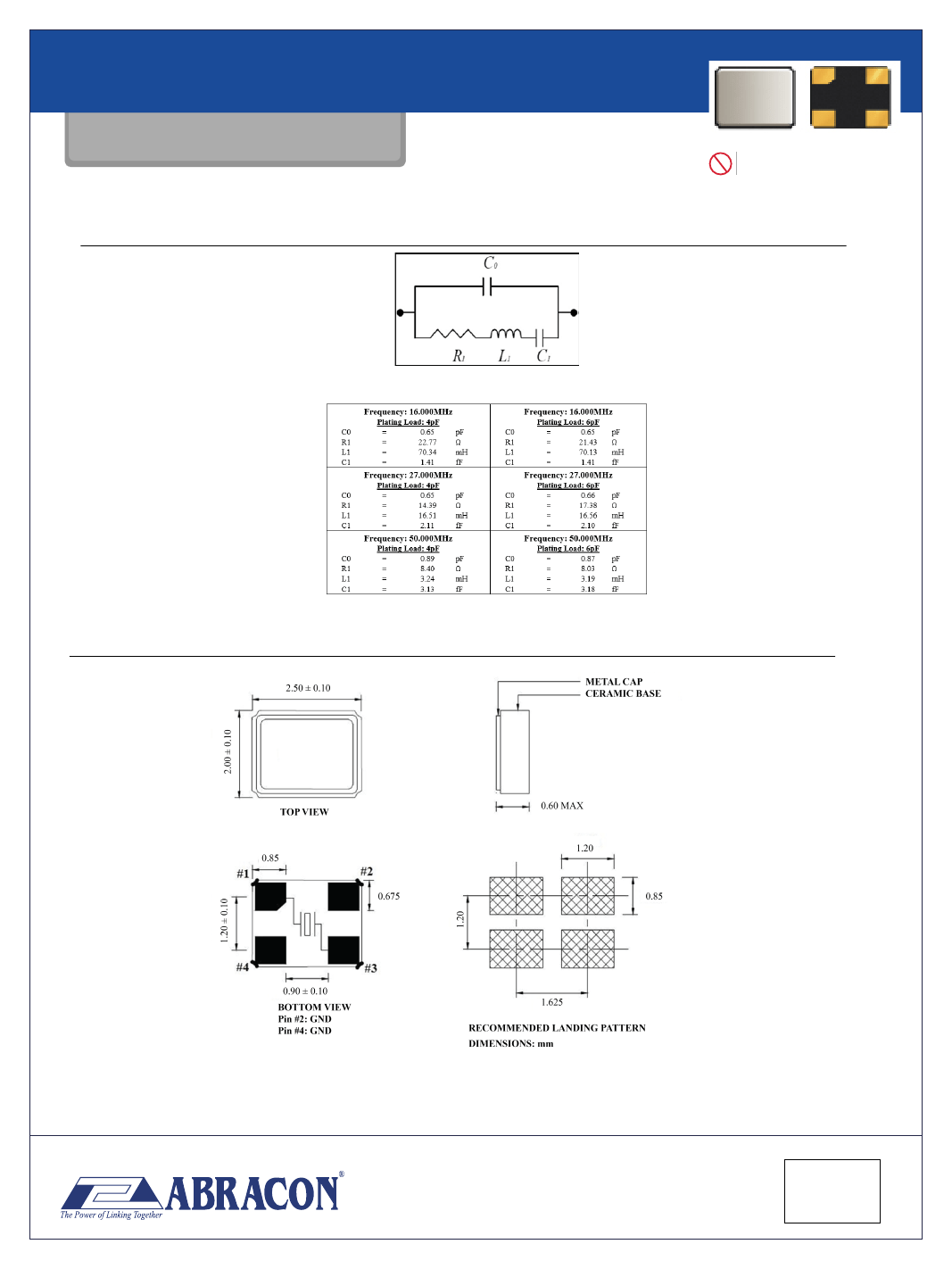

SPICE MODELS (BASED ON TYPICAL VALUES AT 25°C
±
3°C)
MECHANICAL DIMENSIONS
DIMENSIONS: mm
Note:
Due to material availability the Chamfer could be located on pin #1, 2 or 4. Be advised that the Chamfer location has no impact on the
electrical performance of the device.
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
REVISED: 04/04/2017
ABRACON IS
ISO9001-2008
CERTIFIED
