284391-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 284391-9

284391-9: DescriptionTERMI-BLOK PCB SIDE ENTRY STAC; CategoryThe connector terminals; File Size161KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

284391-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	284391-9	-	-	View	Buy Now

284391-9 Overview

TERMI-BLOK PCB SIDE ENTRY STAC

284391-9 Parametric

Parameter Name	Attribute value
Brand Name	Buchanan
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	9 weeks 2 days
Other features	BUCHANAN, POLYAMIDE66, 94V-0
Fastening method	SCREW
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	9
Rated current	12 A
Rated voltage	300 V
safety certificate	UL
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Conductor cross section	1.5 mm2
Wire gauge	14 AWG
Base Number Matches	2

Preview

Download Datasheet

View All

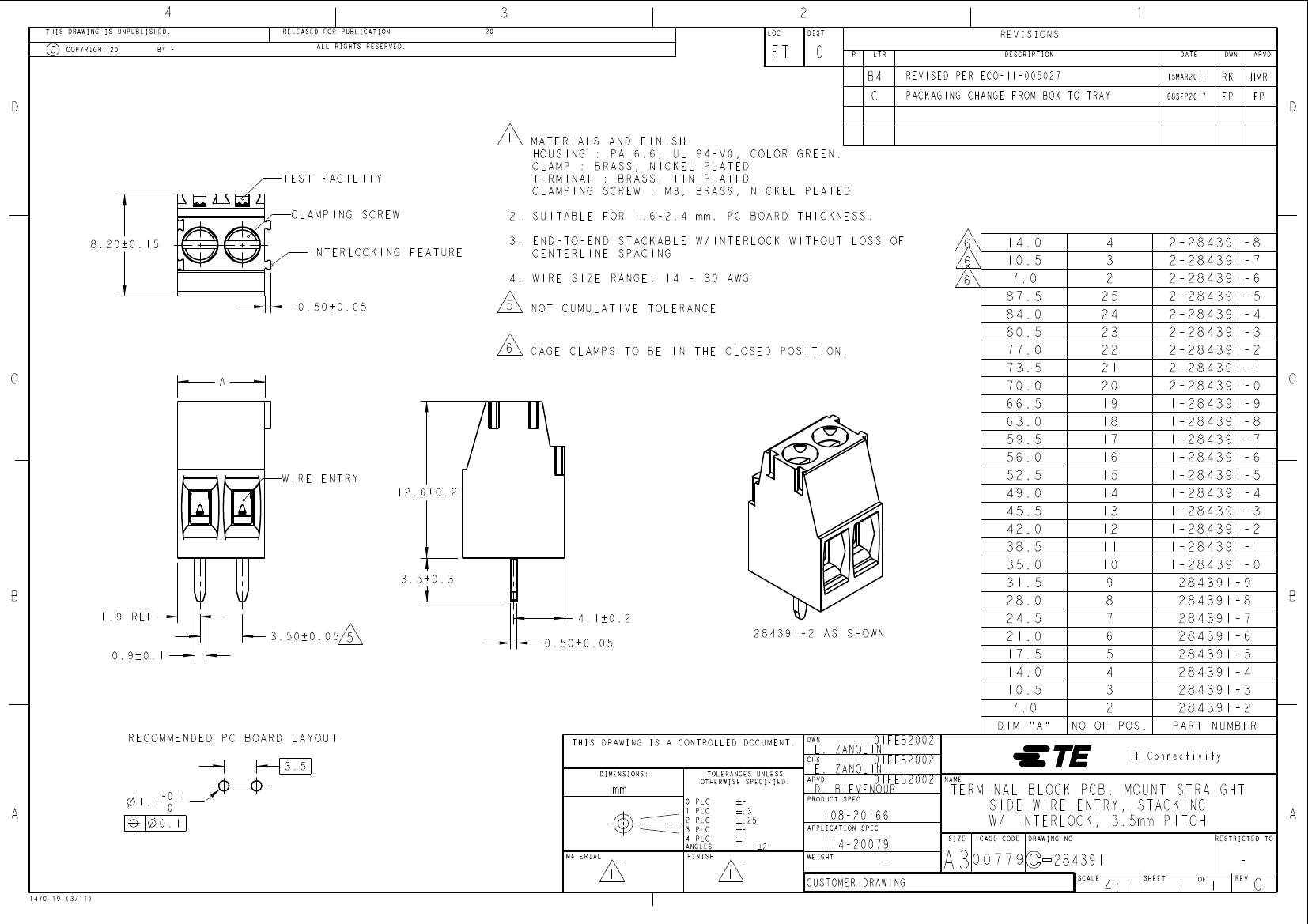

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECO-11-005027

PACKAGING CHANGE FROM BOX TO TRAY

15MAR2011

08SEP2017

HMR

TEST FACILITY

CLAMPING SCREW

8.20 ±0.15

INTERLOCKING FEATURE

MATERIALS AND FINISH

HOUSING : PA 6.6, UL 94-V0, COLOR GREEN.

CLAMP : BRASS, NICKEL PLATED

TERMINAL : BRASS, TIN PLATED

CLAMPING SCREW : M3, BRASS, NICKEL PLATED

2. SUITABLE FOR 1.6-2.4 mm. PC BOARD THICKNESS.

3. END-TO-END STACKABLE W/INTERLOCK WITHOUT LOSS OF

CENTERLINE SPACING

4. WIRE SIZE RANGE: 14 - 30 AWG

0.50 ±0.05

NOT CUMULATIVE TOLERANCE

CAGE CLAMPS TO BE IN THE CLOSED POSITION.

WIRE ENTRY

12.6 ±0.2

1.9 REF

3.50±0.05

0.9±0.1

3.5 ±0.3

4.1 ±0.2

0.50 ±0.05

284391-2 AS SHOWN

RECOMMENDED PC BOARD LAYOUT

3.5

1.1

+0.1

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

E. ZANOLINI

01FEB2002

NAME

DIM "A"

14.0

10.5

7.0

87.5

84.0

80.5

77.0

73.5

70.0

66.5

63.0

59.5

56.0

52.5

49.0

45.5

42.0

38.5

35.0

31.5

28.0

24.5

21.0

17.5

14.0

10.5

7.0

NO OF POS.

2-284391-8

2-284391-7

2-284391-6

2-284391-5

2-284391-4

2-284391-3

2-284391-2

2-284391-1

2-284391-0

1-284391-9

1-284391-8

1-284391-7

1-284391-6

1-284391-5

1-284391-4

1-284391-3

1-284391-2

1-284391-1

1-284391-0

284391-9

284391-8

284391-7

284391-6

284391-5

284391-4

284391-3

284391-2

PART NUMBER

TE Connectivity

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

MATERIAL

ANGLES

PLC

.25

PRODUCT SPEC

01FEB2002

D. BIEVENOUR

APPLICATION SPEC

108-20166

114-20079

1470-19 (3/11)

FINISH

WEIGHT

CUSTOMER DRAWING

00779

SIZE

TERMINAL BLOCK PCB, MOUNT STRAIGHT

SIDE WIRE ENTRY, STACKING

W/ INTERLOCK, 3.5mm PITCH

CAGE CODE

DRAWING NO

RESTRICTED TO

284391

SCALE

4:1

SHEET

REV
