Ordering number : ENN7670
TT2170LS
NPN Triple Diffused Planar Silicon Transistor
TT2170LS
Color TV Horizontal Deflection
Output Applications
Features
•
•
•
•
•
Package Dimensions
unit : mm
2079D
[TT2170LS]
10.0
3.2
3.5
7.2
High speed.
High breakdown voltage(VCBO=1500V).
High reliability(Adoption of HVP process).
Adoption of MBIT process.
On-chip damper diode.
4.5
2.8
16.1
16.0
3.6
0.9
1.2
14.0
1.2
0.75
0.7
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
PC
Tj
Tstg
Tc=25°C
Conditions
2.55
2.55
2.4
1 2 3
1 : Base
2 : Collector
3 : Emitter
SANYO : TO-220FI(LS)
0.6
Ratings
1500
800
5
5
12
2.0
25
150
--55 to +150
Unit
V
V
V
A
A
W
W
°C
°C
Electrical Characteristics
at Ta=25°C
Parameter
Collector Cutoff Current
Collector Cutoff Current
Collector Sustain Voltage
Emitter Cutoff Current
Symbol
ICBO
ICES
VCEO(sus)
IEBO
Conditions
VCB=800V, IE=0
VCE=1500V, RBE=0
IC=100mA, IB=0
VBE=4V, IC=0
800
40
130
Ratings
min
typ
max
10
1.0
Unit
µA
mA
V
mA
Continued on next page.
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
42004KC TS IM TA-100822 No.7670-1/4
TT2170LS
Continued from preceding page.
Parameter
Collector-to-Emitter Saturation Voltage
Base-to-Emitter Saturation Voltage
DC Current Gain
Diode Forward Voltage
Fall Time
Symbol
VCE(sat)
VBE(sat)
hFE1
hFE2
VF
tf
Conditions
IC=2.7A, IB=0.54A
IC=2.7A, IB=0.54A
VCE=5V, IC=0.5A
VCE=5V, IC=3A
IEC=4A
IC=1.8A, IB1=0.36A, IB2=--0.72A
10
5
8
2
0.3
V
µs
Ratings
min
typ
max
3
1.5
Unit
V
V
Switching Time Test Circuit
PW=20µs
D.C.≤1%
INPUT
IB1
IB2
RB
VR
OUTPUT
RL=111Ω
+
+
470µF
VCC=200V
50Ω
100µF
VBE= --5V
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
0
1

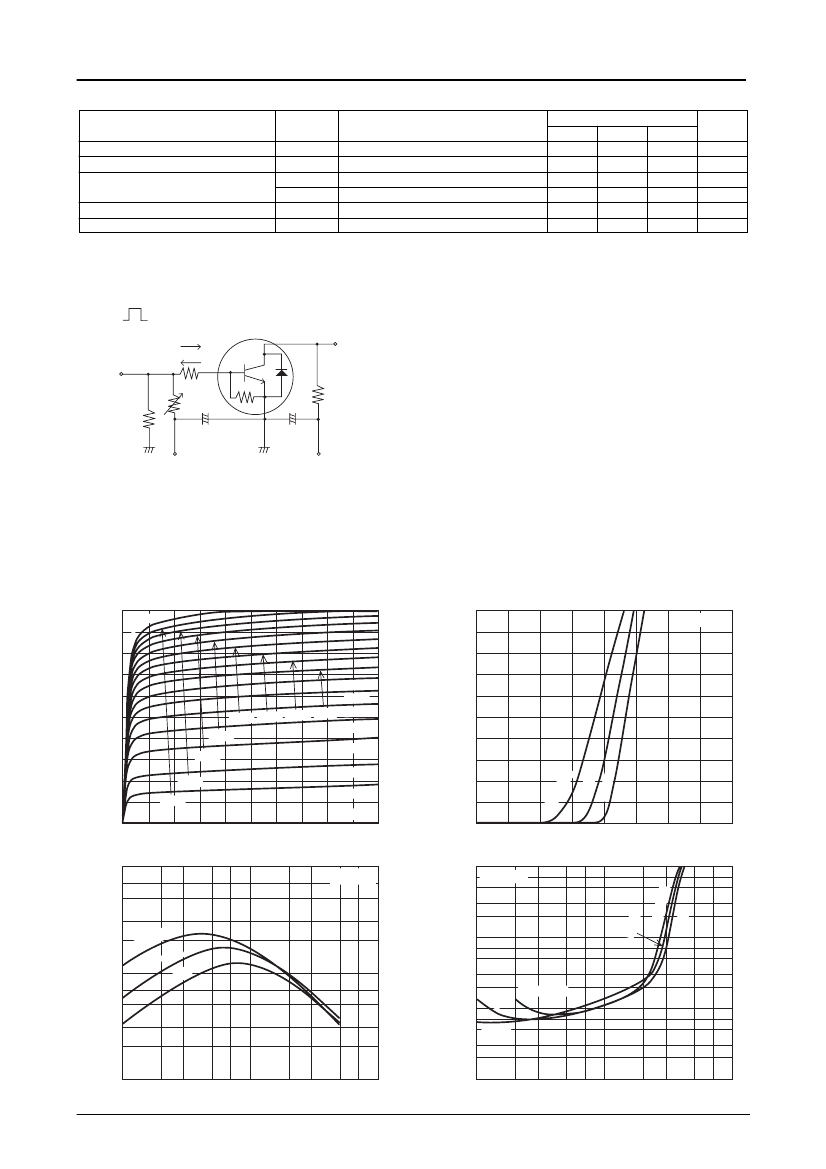

IC -- VCE
A
1.5
Collector Current, IC -- A
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
IC -- VBE
VCE=5V
Collector Current, IC -- A
0.6A
0.5A
7A 0.4A
1.0A 0.9A 0.8A 0.
0.3A
1.1A
0.2A
1.2A
0.1A
1.3A
0.05A
1.4A
IB=0
2
3
4
5
6
7
8
9
10
C
0
0.2
0.4
25
°
C
0.5
0
Ta=
120
°
1.0
0.6
--40
°
C
0.8
1.0
1.2
1.4
1.6
Collector-to-Emitter Voltage, VCE -- V
100
7
5
IT06478
10
7
5
hFE -- IC
Base-to-Emitter Voltage, VBE -- V
IT06479
VCE (sat) -- IC
VCE=5V
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- V
IC / IB=5
Ta= --
4
2
3
DC Current Gain, hFE
2
12
Ta=
0
°
C
C
25
°
0
°
C
--4
1.0
7
5
3
2
0.1
7
5
3
2
10
7
5
3
2
25
°
C
120°C
Ta= --40°C
1.0
0.1
2
3
5
7
1.0
2
3
5
7
10
0.01
0.1
2
3
5
7
120
°
3
2
25
°
C
5
10
IT06481
7
3
1.0
Collector Current, IC -- A
IT06480
Collector Current, IC -- A
C
0
°
C
No.7670-2/4
TT2170LS
10
7
SW Time -- IC
Switching Time, SW Time --
µs
VCC=200V
IC / IB1=5
IB2 / IB1=2
R load
tstg
10
7
5
3
2
SW Time -- IB2
VCC=200V
IC=1.8A
IB1=0.36A
R load
tstg
Switching Time, SW Time --
µs
5
3
2
1.0
7
5
3
2
1.0
7
5
tf
3
2
tf
2
3
5
7
1.0
2
3
5
10
IT06482
7
0.1
0.1
0.1
0.1
2
3
5
7
1.0
2
3
5
3
2
10
7
5
3
2
1.0
7
5
3
2
Forward Bias A S O
ICP=12A
Collector Current, IC -- A
3
2
10
Reverse Bias A S O
L=500µH
IB2= --1.0A
Tc=25°C
Single pulse
Base Current, IB2 -- A
7 10
IT06483
Collector Current, IC -- A
Collector Current, IC -- A
IC=5A
=1
PT
P
C=
7
5
3
2
1.0
7
5
3
2
0.1
10
00
µ
s
30
25
s
0
µ
W
s
1m
10
ms
DC
0.1
7
5
3
2
0.01
1.0
op
era
tio
Tc=25°C
Single pulse
2
3
5 7 10
2
3
5 7 100
2
Collector-to-Emitter Voltage, VCE -- V
3.0
n
3
5 7 1000
IT06484
2
3
5
7 100
2
3
5
7 1000
2
3
5

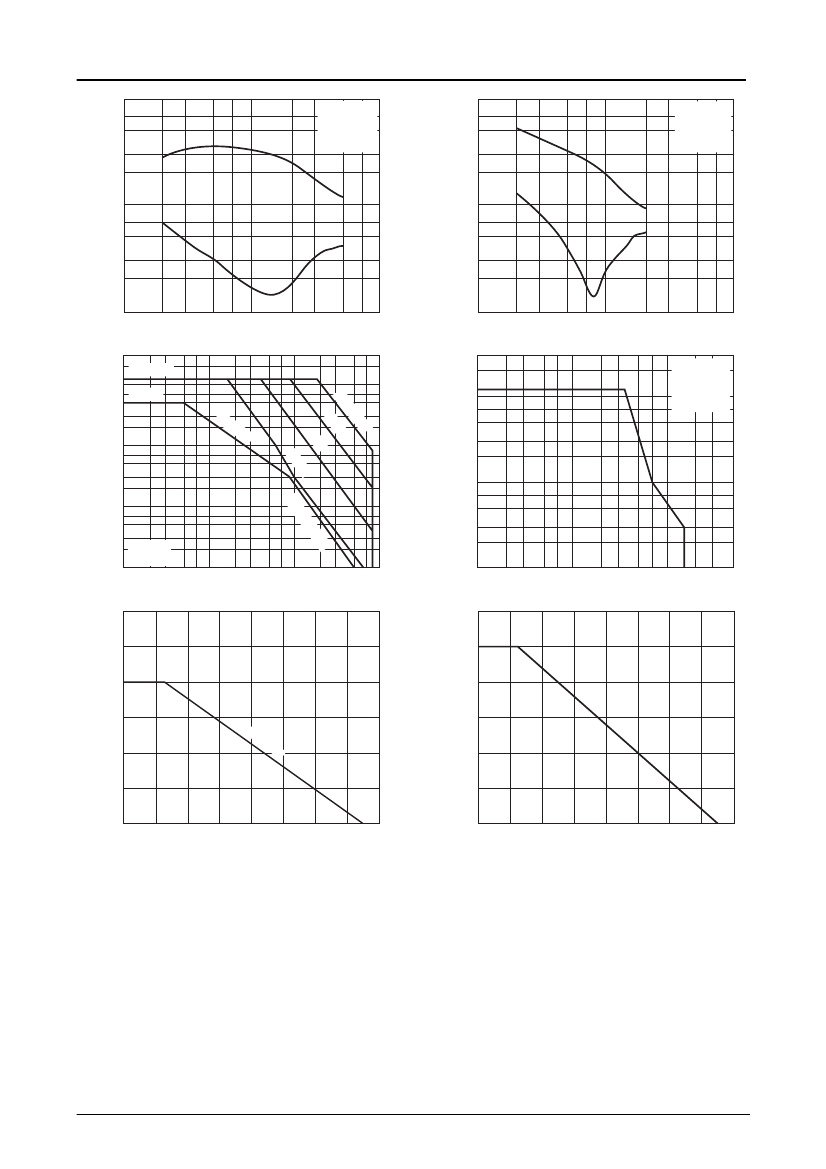

PC -- Ta
Collector-to-Emitter Voltage, VCE -- V
30
IT06485
PC -- Tc
Collector Dissipation, PC -- W
2.0
Collector Dissipation, PC -- W
2.5
25
20
1.5
No
15
he
at
1.0
sin
k
10
0.5
5
0
0
20
40
60
80
100
120
140
160
0
0
20
40
60
80
100
120
140
160
Ambient Temperature, Ta --
°C
IT06486
Case Temperature, Tc --
°C
IT06487
No.7670-3/4
TT2170LS
