56111-002-3G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 56111-002-3G

56111-002-3G: DescriptionD Subminiature Connector, 15 Contact(s), Male, Solder Terminal, Plug,; CategoryThe connector The connector; File Size155KB，4 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

56111-002-3G Overview

D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, Plug,

56111-002-3G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL
Contact completed and terminated	Gold Flash (Au) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	100
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

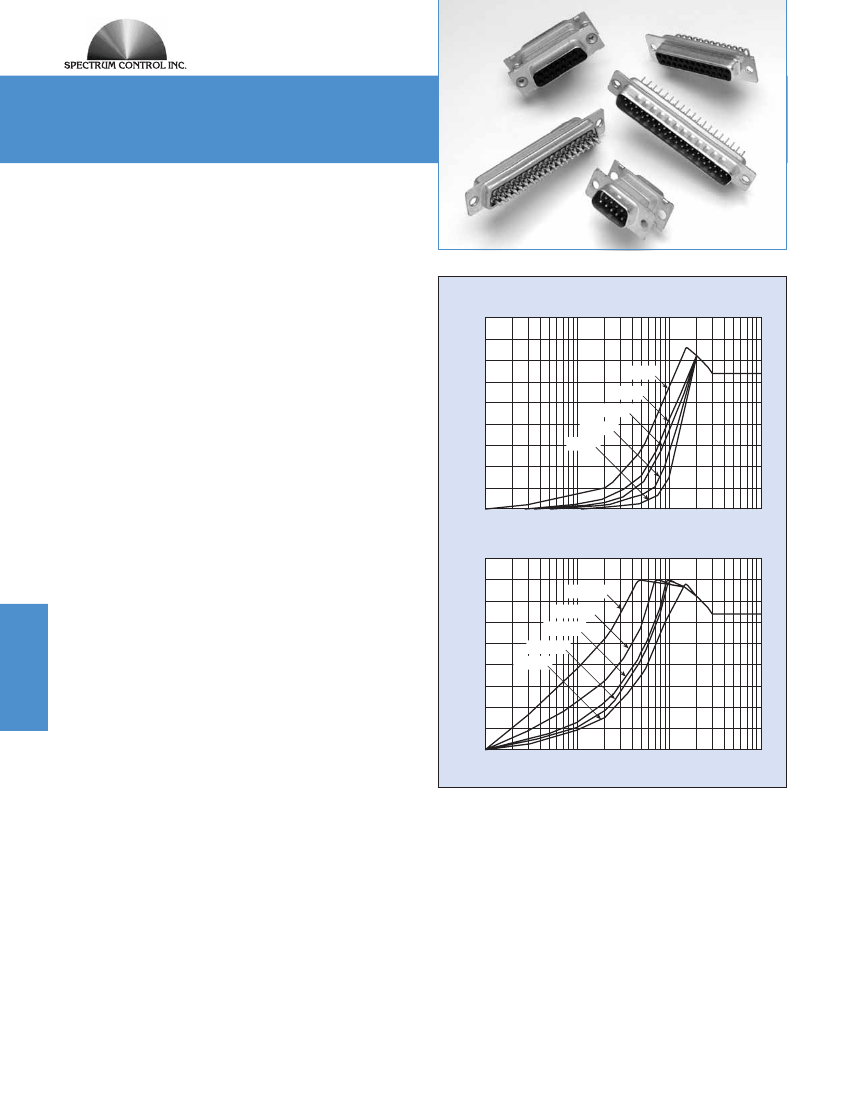

Series 100 Chip-Cap

Filtered Connectors

These versatile and widely used PCB connectors are an

inexpensive filtering method that eliminates the problem

of conducted electromagnetic interference (EMI).

Chip-cap plug and receptacles are available in

9, 15, 25 and 37 positions. These connectors are “drop-in”

replacements for non-filtered D-subminiature connectors

with matched PCB footprints. Housings are made of

UL 94V-0 rated thermoplastic material. Low cost front

metal shells are compatible with full metal-shell threaded

insert mating hardware. Integral boardlocks secure posted

connectors to the PC board, prior to soldering.

Typical Insertion Loss

Insertion Loss (dB)

470 pF

220 pF

1 MHz

10 MHz

Frequency

5600 pF

Insertion Loss (dB)

2200 pF

1 MHz

10 MHz

Frequency

100 MHz

1 GHz

1500 pF

1000 pF

820 pF

100 MHz

1 GHz

180 pF

100 pF

50 pF

Features

Offer economical, high performance EMI/RFI protection

Matched .318", .405" and .590" PCB footprints mean

“Drop-in” replacement for non-filtered connectors

Low cost chip capacitors

Connectors have industry standard interface

Connector insulators made of UL 94V-0 rated high

temperature, thermoplastic

Connector body is recognized under the Component

Program of Underwriters Laboratories, Inc. (E149046)

Connector body is certified by the Canadian

Standards Association

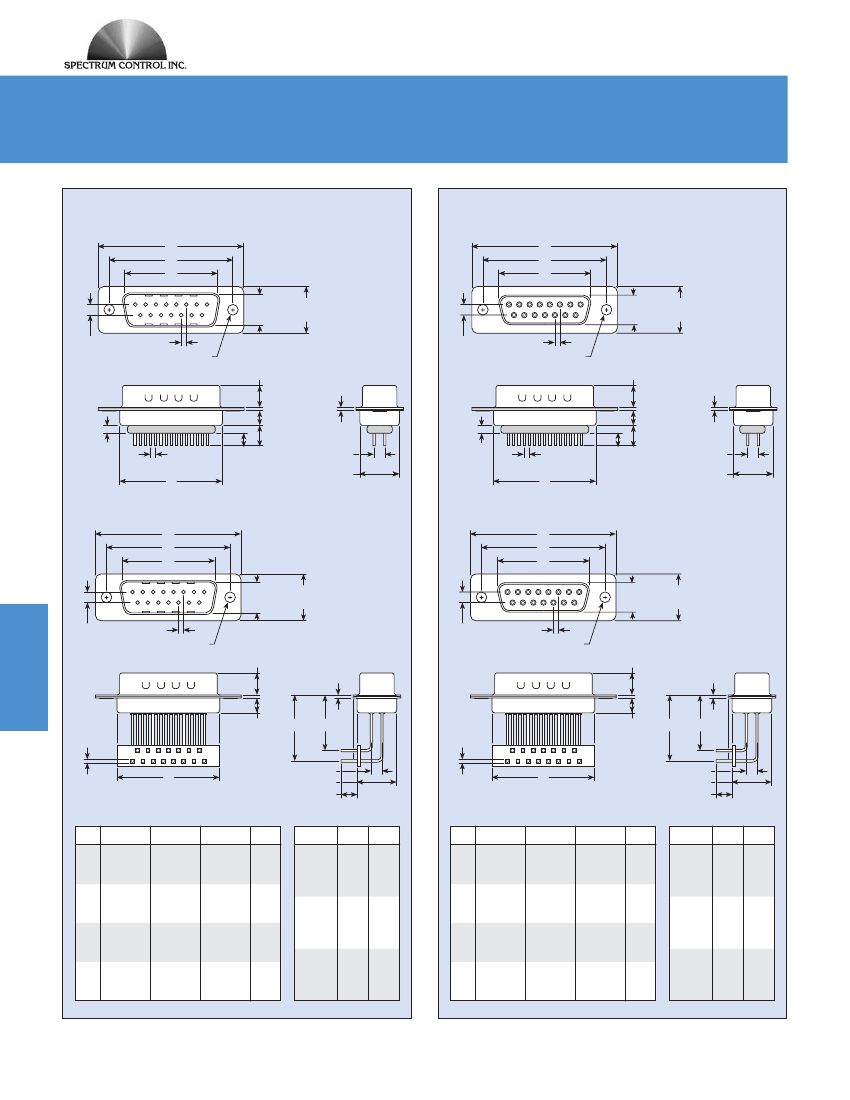

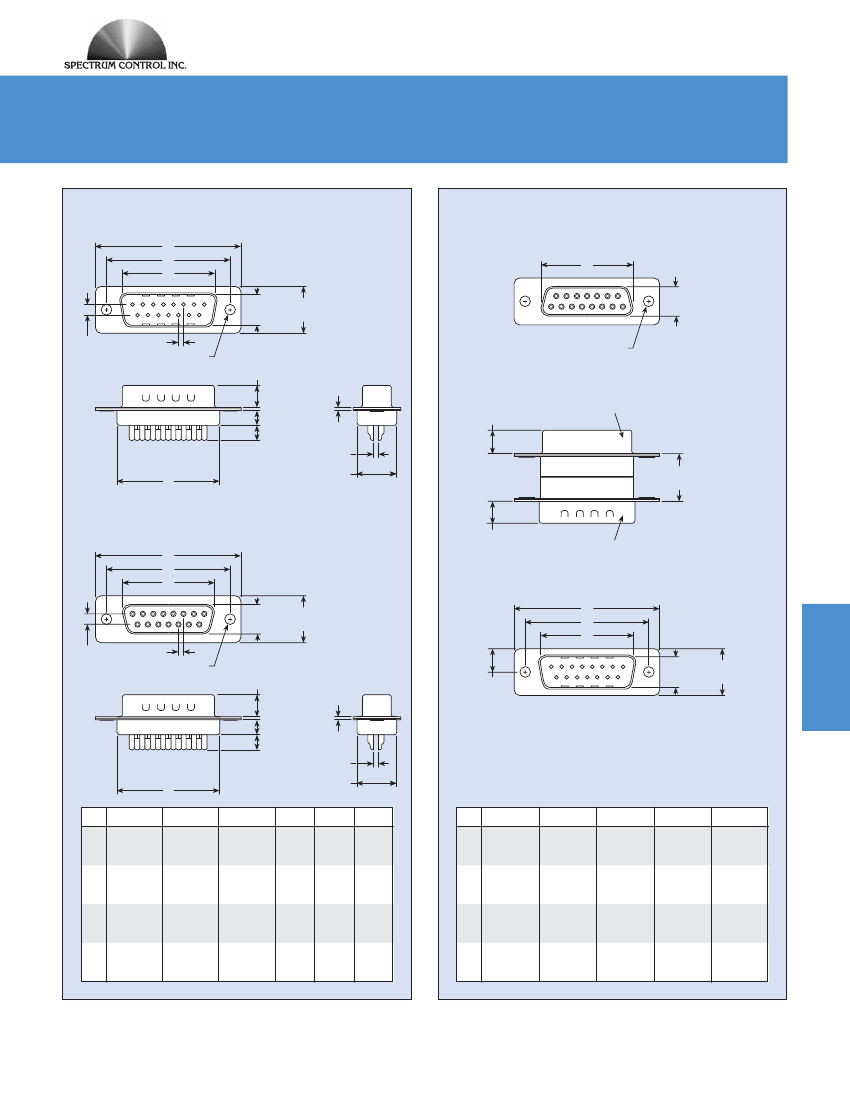

Mechanical Specifications

Shells.

. . . . . . . . . . . . . . . . Steel, tin plated

Insulators

. . . . . . . . . . . . . 94V-0 rated thermoplastic,

. . . . . . . . . . . . . . . . . . . . .

black

Eyelets.

. . . . . . . . . . . . . . . Brass, tin plated

Threaded Inserts.

. . . . . . . . Zinc

Boardlocks

. . . . . . . . . . . . . Copper alloy, tin plated

Pin Contacts

. . . . . . . . . . . Brass

Socket Contacts

. . . . . . . . . Phosphor Bronze

Contact Plating

. . . . . . . . . Duplex plated

. . . . . . . . . . . . . . . . . . . . .

as follows: 15uin (.38um)

. . . . . . . . . . . . . . . . . . . . .

gold on mating end, with

. . . . . . . . . . . . . . . . . . . . .

entire contact 50uin (1.27um)

. . . . . . . . . . . . . . . . . . . . .

min. nickel underplated and

. . . . . . . . . . . . . . . . . . . . .

flash gold finish

Filtered Connectors

Performance Specifications

Current Rating

. . . . . . . . . 5 Amps

Contact Resistance

. . . . . . . 8 Milliohms max.

Capacitance

. . . . . . . . . . . . 50, 100, 180, 220, 470, 820

. . . . . . . . . . . . . . . . . . . . .

1,000, 1,500, 2,200, 5,600 pF

. . . . . . . . . . . . . . . . . . . . .

and 47 nF ± 20% (custom valves

. . . . . . . . . . . . . . . . . . . . .

and selective loading available)

Dielectric Withstanding

Voltage

. . . . . . . . . . . . . . . 700 VDC min. for 5 sec.

Insulator Resistance

. . . . . . 500 Megohms min. @ 100 VDC

Working Voltage

. . . . . . . . 200 VDC (100 VDC for 47 nF)

Operating Temperature

. . . . -55°C/+85°C

137

SPECTRUM CONTROL INC.

• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com

SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
