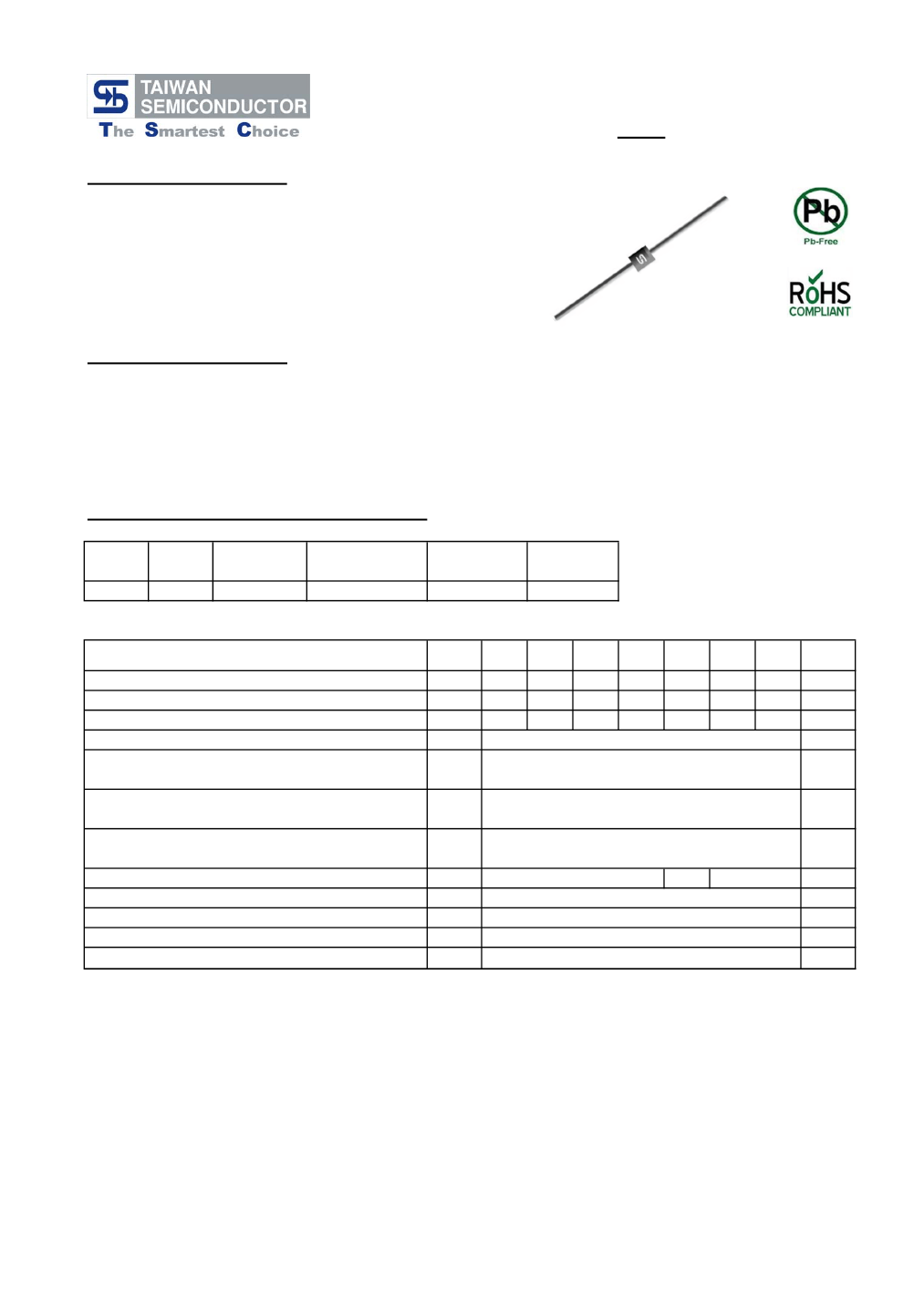

FR101SG - FR107SG
1.0AMP Glass Passivated Fast Recovery Rectifiers

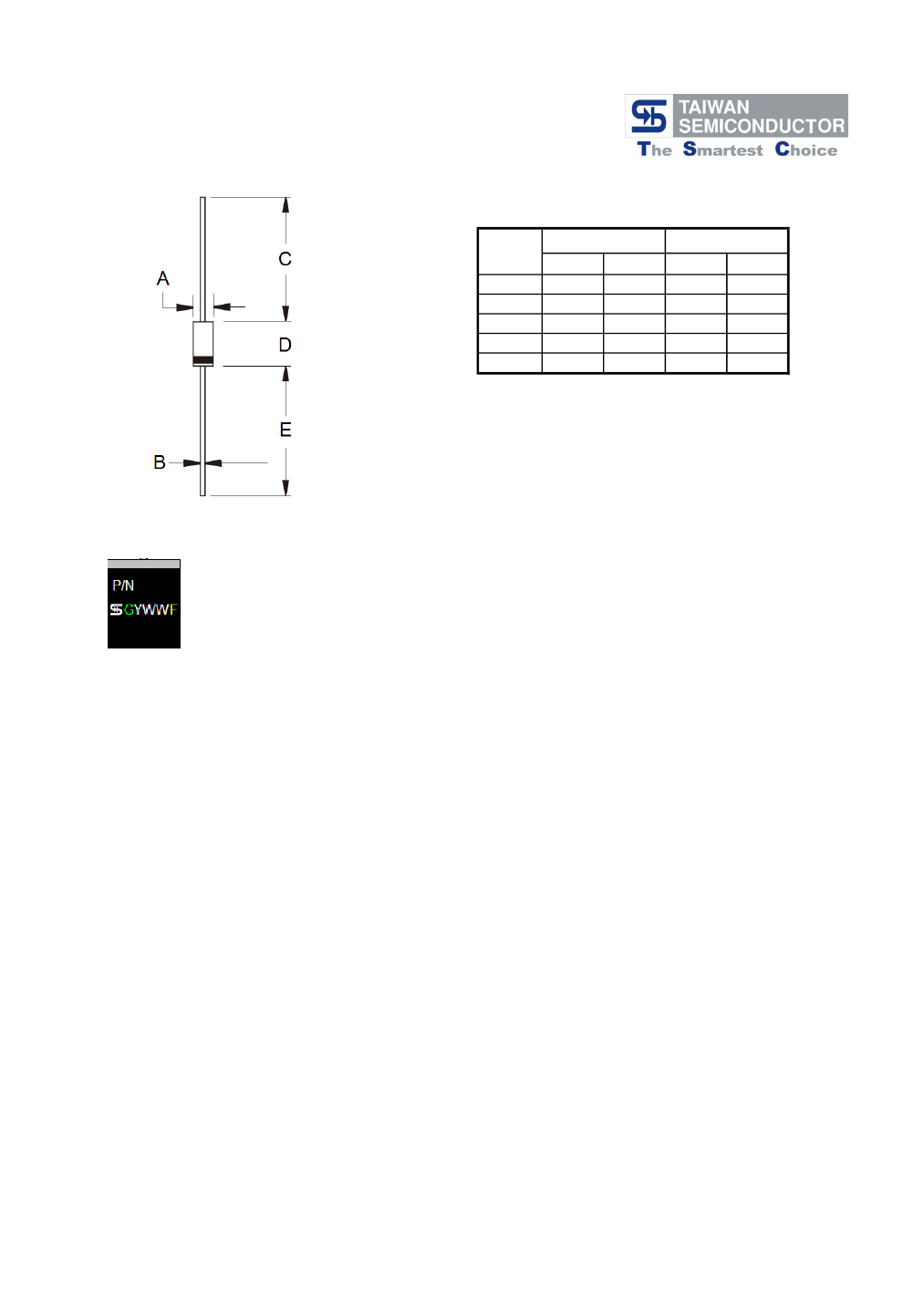

A-405
Features
Glass passivated chip junction
High efficiency, Low VF
High current capability
High reliability
High surge current capability
Low power loss
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Cases: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Pure tin plated, lead free, solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: Color band denotes cathode end
High temperature soldering guaranteed: 260℃/10s
Weight: 0.22 grams
Ordering Information (example)
Part No.
FR101SG
Package
A-405

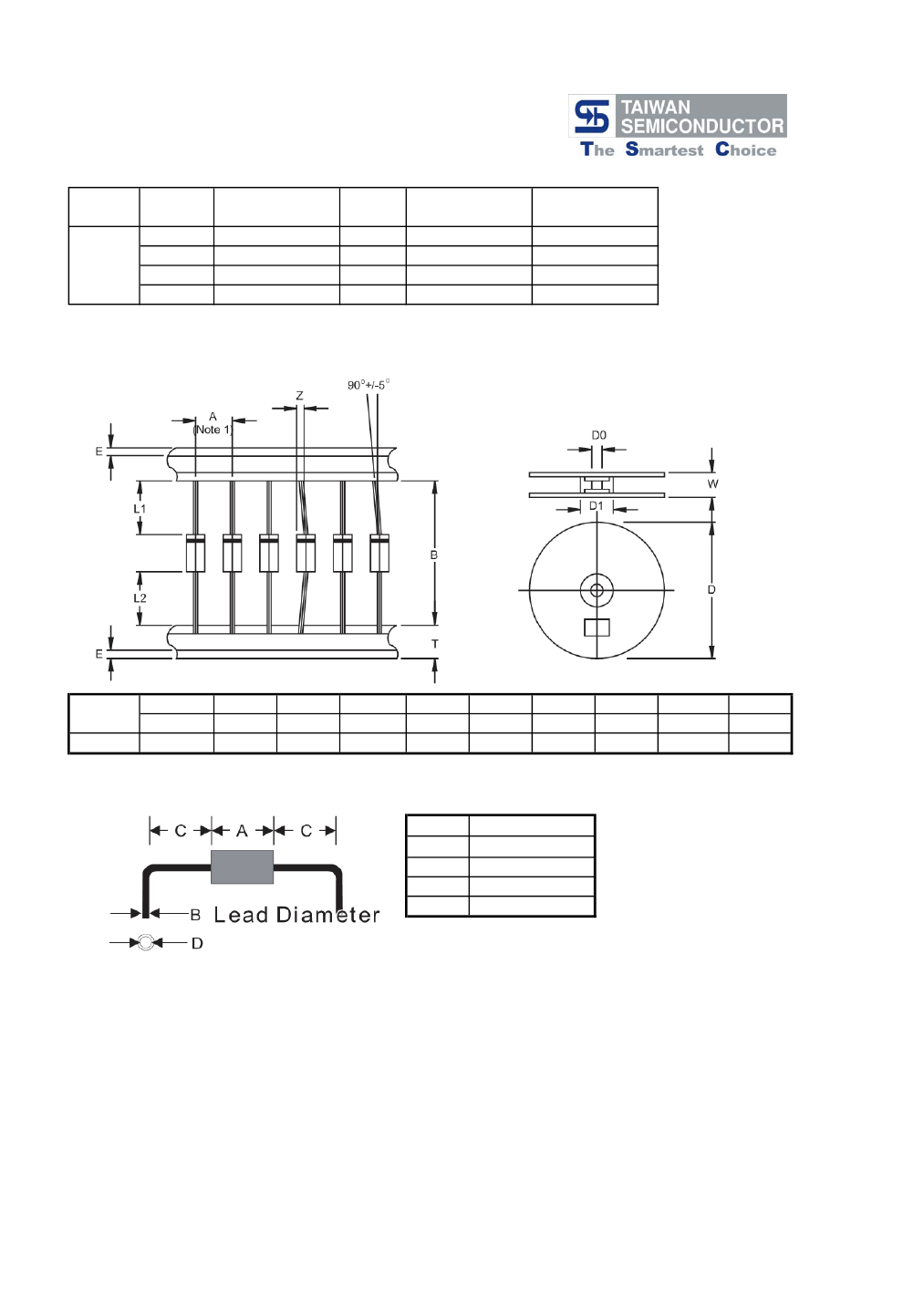

Packing
5K / 13" Reel
INNER
TAPE
52mm
Packing code
R0
Packing code
(Green)
R0G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Parameter
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@1A
Maximum DC Reverse Current at
Rated DC Blocking Voltage
@ T
A
=25
℃
@ T
A
=125
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJA
T
J
T
STG
FR
FR
FR
FR
FR
FR
FR
101SG 102SG 103SG 104SG 105SG 106SG 107SG
50
100
200
400
600
800
1000
35
50
70
100
140
200
280
400
1
30
1.3
5
100
150
15
75
- 55 to + 150
- 55 to + 150
250
500
420
600
560
800
700
1000
Units
V
V
V
A
A
V
uA
uA
nS
pF
O
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
C/W
O
O
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:E13

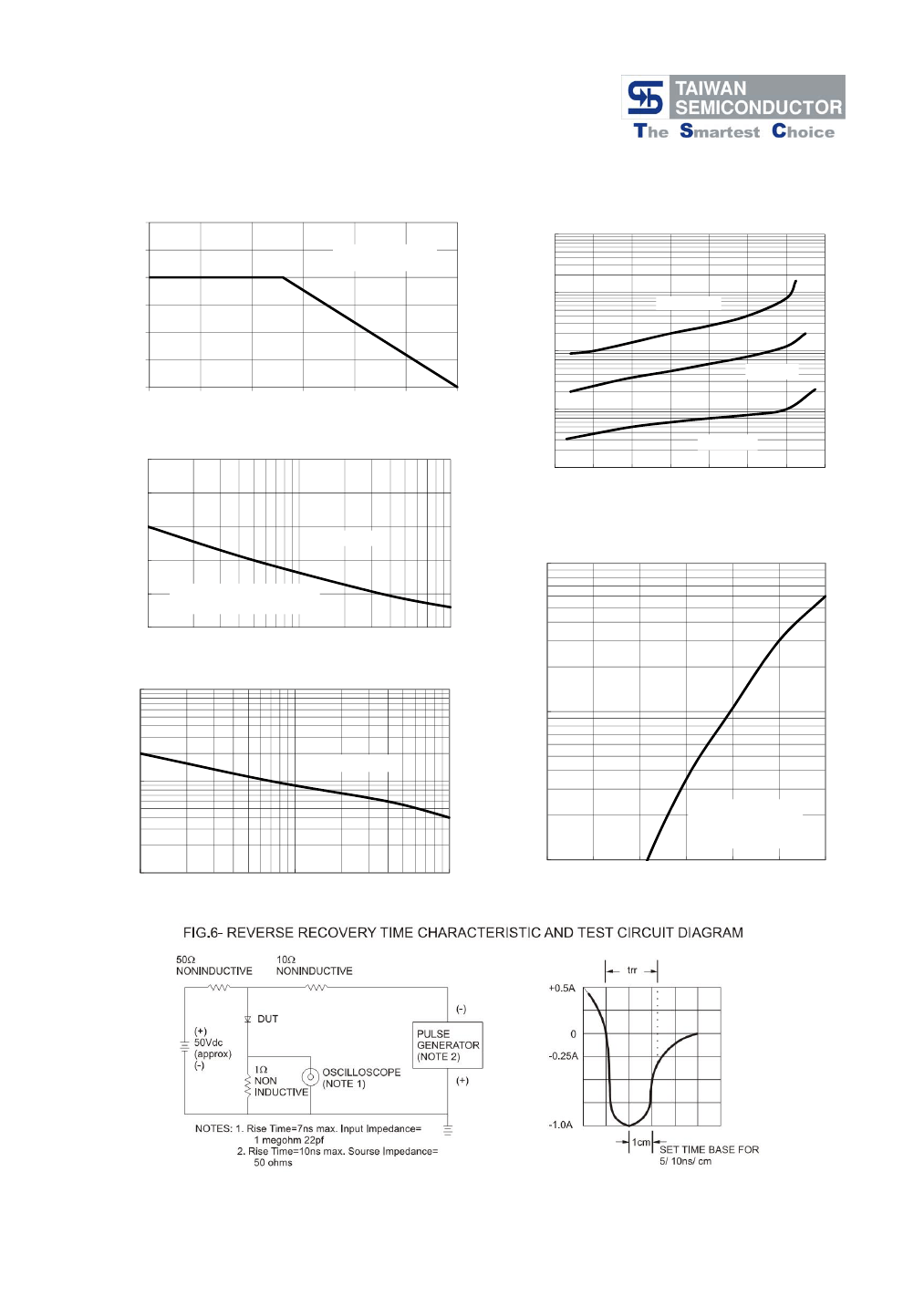

RATINGS AND CHARACTERISTIC CURVES (FR101SG THRU FR107SG)
FIG.1- MAXIMUM FORWARD CURRENT DERATING
CURVE
1000
RESISTIVE OR
INDUCTIVE LOAD
INSTANTANEOUS REVERSE CURRENT (uA)
100
TA=125℃
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
1.5
1.25
AVERAGE FORWARD
A
CURRENT (A)
1
0.75
0.5
0.25
0
0
25
10
TA=75℃
1
TA=25℃
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
50
75
100
AMBIENT TEMPERATURE (
o
C)
125
150
50
40
30
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE
CURRENT (A)
TA=25℃
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3mS Single Half Sine Wave
JEDEC Method
INSTANTANEOUS FORWARD CURRENT (A)
10
FIG. 5- TYPICAL FORWARD CHARACTERISTICS
FIG. 4- TYPICAL JUNCTION CAPACITANCE
100
1
JUNCTION CAPACITANCE (pF)
TA=25℃
10
TA=25℃
Pulse Width=300us
1% Duty Cycle
0.1
1
1
10
REVERSE VOLTAGE (V)
100
0.4
0.6
0.8
1
1.2
1.4
1.6
FORWARD VOLTAGE (V)
Version:E13
