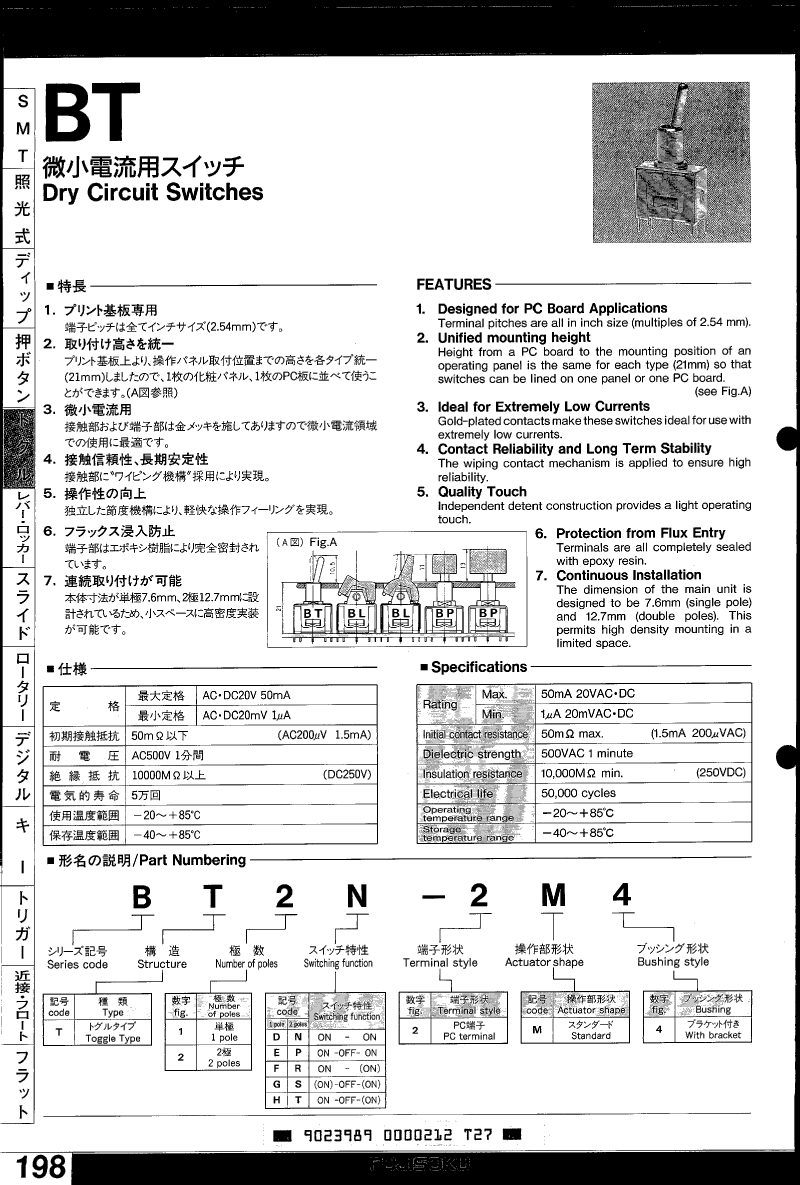

Toggle Switch, DPDT, (on)-off-(on), Momentary, 0.05A, 20VDC, 10 PCB Hole Cnt, Solder Terminal, Toggle Bat Actuator, Through Hole-straight,

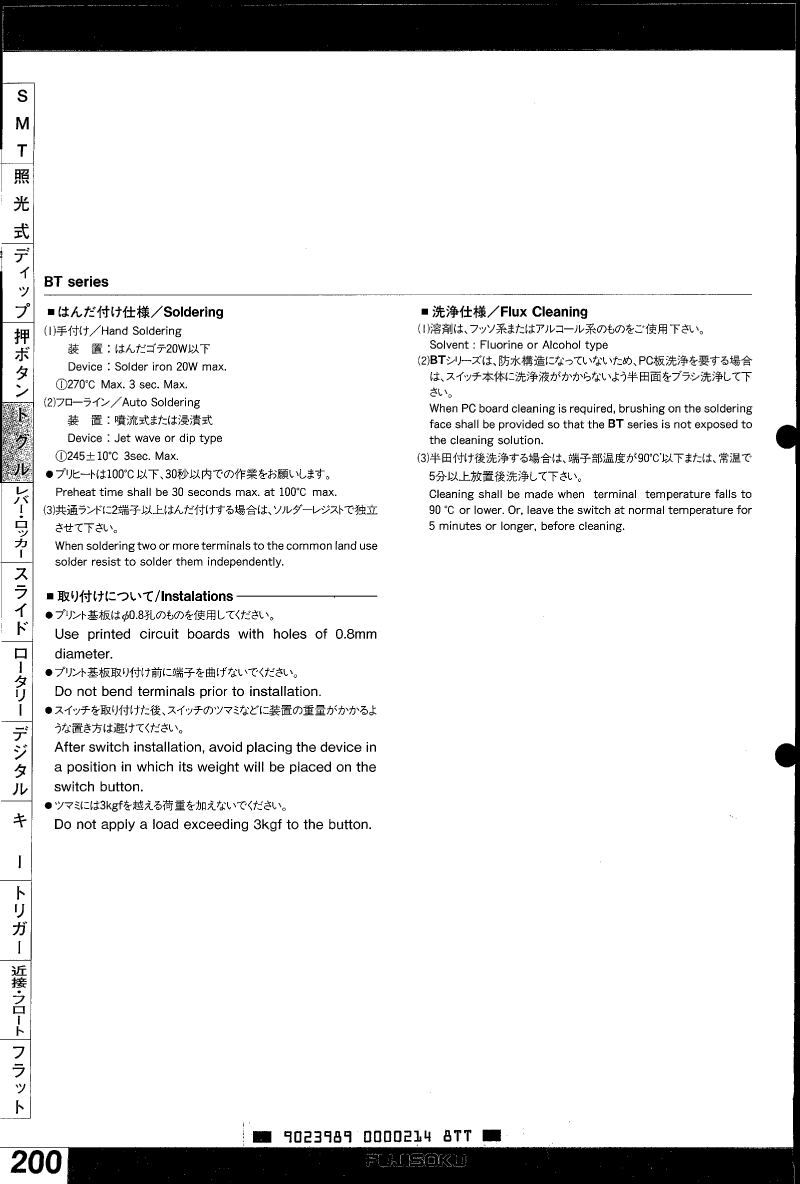

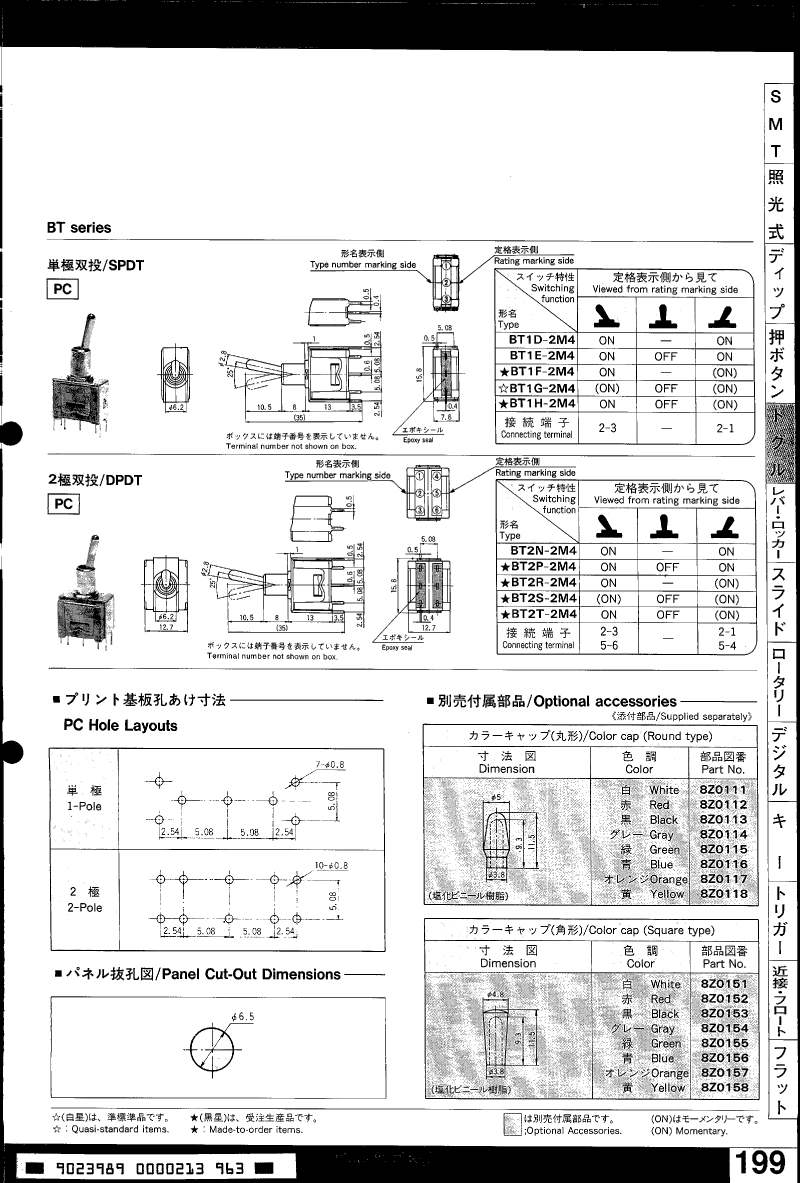

| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| Actuator angle | 25 deg |
| Actuator length | 0.413 inch |
| Actuator type | TOGGLE BAT |
| Other features | WITH BRACKET |
| body width | 12.7 mm |
| body height | 13.0048 mm |
| Body length or diameter | 15.7988 mm |
| Casing diameter | 0.244 inch |
| Nozzle length | 0.315 inch |
| Center contact plating | GOLD |
| Contact (AC) maximum rated R load | 0.05A@20VAC |
| Maximum contact current (AC) | 0.05 A |
| Maximum contact current (DC) | 0.05 A |
| Contact (DC) maximum rated R load | 0.05A@20VDC |
| Contact function | (ON)-OFF-(ON) |
| Contact resistance | 0.05 mΩ |
| contact time | BREAK-BEFORE-MAKE |
| Maximum contact voltage (AC) | 20 V |
| Maximum contact voltage (DC) | 20 V |
| Dielectric withstand voltage | 500VAC V |
| Electrical life | 50000 Cycle(s) |
| End contact plating | GOLD |
| Insulation resistance | 10000000000 Ω |
| Manufacturer's serial number | BT |
| Installation features | THROUGH HOLE-STRAIGHT |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -20 °C |
| PCB hole count | 10 |
| seal | EPOXY |
| Solderability | HAND |
| surface mount | NO |
| Switch action | MOMENTARY |
| switch function | DPDT |
| Switch type | TOGGLE SWITCH |
| Terminal length | 0.138 inch |
| Termination type | SOLDER |
| Washability | SOLVENT |
| Base Number Matches | 1 |
| BT2S-2M4 | BT2N-2M4 | |
|---|---|---|
| Description | Toggle Switch, DPDT, (on)-off-(on), Momentary, 0.05A, 20VDC, 10 PCB Hole Cnt, Solder Terminal, Toggle Bat Actuator, Through Hole-straight, | Toggle Switch, DPDT, On-on, Horizontal, 0.05A, 20VDC, 10 PCB Hole Cnt, Solder Terminal, Toggle Bat Actuator, Through Hole-straight, |
| Reach Compliance Code | unknown | unknown |
| Actuator angle | 25 deg | 25 deg |
| Actuator length | 0.413 inch | 0.413 inch |
| Actuator type | TOGGLE BAT | TOGGLE BAT |
| Other features | WITH BRACKET | WITH BRACKET |
| body width | 12.7 mm | 12.7 mm |
| body height | 13.0048 mm | 13.0048 mm |
| Body length or diameter | 15.7988 mm | 15.7988 mm |
| Casing diameter | 0.244 inch | 0.244 inch |
| Nozzle length | 0.315 inch | 0.315 inch |
| Center contact plating | GOLD | GOLD |
| Contact (AC) maximum rated R load | 0.05A@20VAC | 0.05A@20VAC |
| Maximum contact current (AC) | 0.05 A | 0.05 A |
| Maximum contact current (DC) | 0.05 A | 0.05 A |
| Contact (DC) maximum rated R load | 0.05A@20VDC | 0.05A@20VDC |
| Contact function | (ON)-OFF-(ON) | ON-ON |
| Contact resistance | 0.05 mΩ | 0.05 mΩ |
| contact time | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE |
| Maximum contact voltage (AC) | 20 V | 20 V |
| Maximum contact voltage (DC) | 20 V | 20 V |
| Dielectric withstand voltage | 500VAC V | 500VAC V |
| Electrical life | 50000 Cycle(s) | 50000 Cycle(s) |
| End contact plating | GOLD | GOLD |
| Insulation resistance | 10000000000 Ω | 10000000000 Ω |
| Manufacturer's serial number | BT | BT |
| Installation features | THROUGH HOLE-STRAIGHT | THROUGH HOLE-STRAIGHT |
| Maximum operating temperature | 85 °C | 85 °C |
| Minimum operating temperature | -20 °C | -20 °C |
| PCB hole count | 10 | 10 |
| seal | EPOXY | EPOXY |
| Solderability | HAND | HAND |
| surface mount | NO | NO |
| Switch action | MOMENTARY | HORIZONTAL |
| switch function | DPDT | DPDT |
| Switch type | TOGGLE SWITCH | TOGGLE SWITCH |
| Terminal length | 0.138 inch | 0.138 inch |
| Termination type | SOLDER | SOLDER |
| Washability | SOLVENT | SOLVENT |
| Base Number Matches | 1 | 1 |
