JHM1024S15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> JHM1024S15

JHM1024S15: DescriptionDC/DC converter 15v 10w; Categorysemiconductor Power management; File Size398KB，2 Pages; ManufacturerXP Power; Websitehttps://www.xppower.com/; Environmental Compliance

Download Datasheet View All

JHM1024S15 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JHM1024S15	-	-	View	Buy Now

JHM1024S15 Overview

DC/DC converter 15v 10w

Preview

Download Datasheet

View All

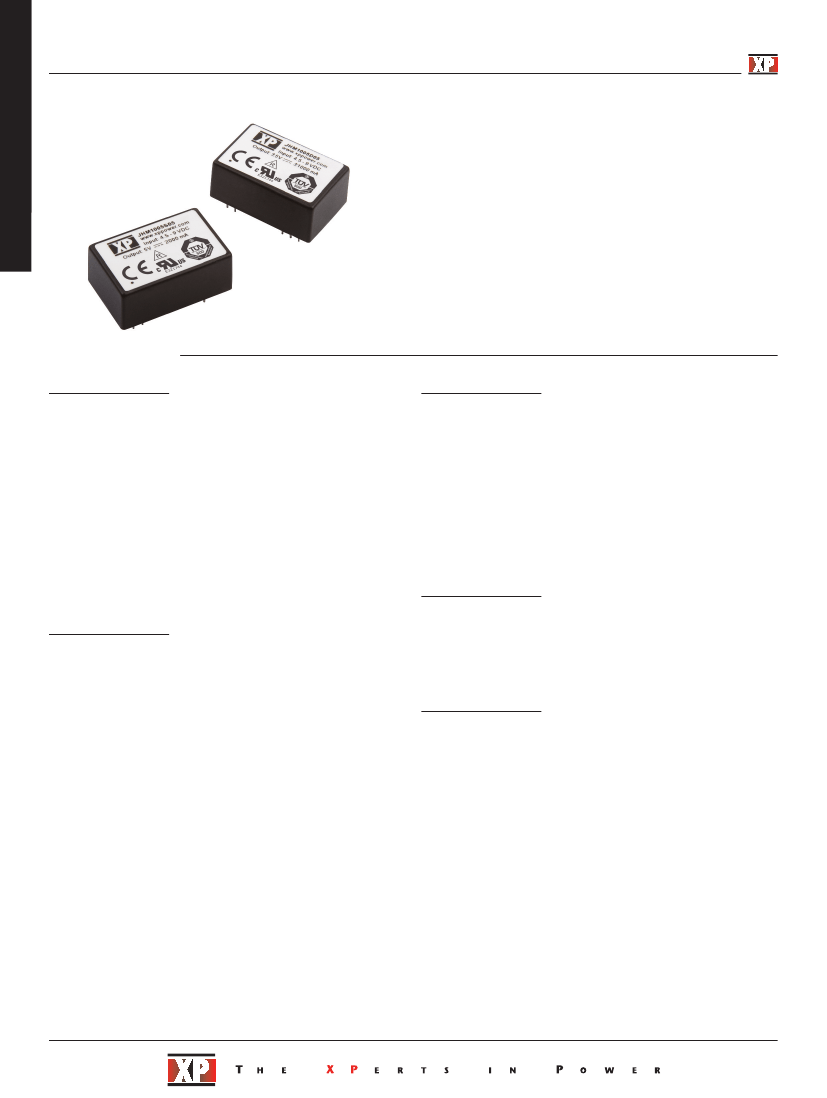

DC-DC

10 Watts

JHM10 Series

•

xppower.com

International Medical Approvals

4000 VAC Reinforced Insulation

Meets IEC60601-1

2 µA Patient Leakage Current

DIP-24 Package

EN55011 Level A With No External Components

3 Year Warranty

Specification

Input

Input Voltage Range

• 5 V (4.5-9 VDC)

12 V (9-18 VDC)

24 V (18-36 VDC)

• See table

• 20 A max at 36 V

• Pi network

• 2 µA max

• 5 V models, on at >4.4 V, off <4.2 V

12 V models, on at >8.8 V, off <8.3 V

24 V models, on at >17 V, off <17 V

• 5 V models 15 V for 3 s

12 V models 25 V for 3 s

24 V models 50 V for 3 s

General

Efficiency

Isolation

• See tables

• 4000 VAC for 1 min. double/reinforced with

a working voltage of 250 VAC. Meets 2 x

MOPP per 3rd edition of IEC60601-1

5000 VAC for 10 ms in accordance with

IEC60664-1

• 20 pF max

• 80 kHz to 1.2 MHz variable

• 20.0 W/in

• >1 MHrs typical to MIL-STD-217F

at 25 °C, GB

Input Current

Inrush Current

Input Filter

Patient Leakage

Current

Undervoltage Lockout

Input to Output

Capacitance

Switching Frequency

Power Density

MTBF

Input Surge

Environmental

Operating Temperature

Case Temperature

Storage Temperature

Operating Humidity

Cooling

•

-40 °C to +80 °C, see derating curve

+100 °C max

-40 °C to +100 °C

5-90%, non-condensing

Natural convection

Output

Output Voltage

Output Voltage Trim

Minimum Load

Initial Set Accuracy

Start Up Delay

Start Up Rise Time

Line Regulation

Load Regulation

Cross Regulation

•

See table

±10%

No minimum load required

±1% max on +Vout, ±2% max on -Vout

5 ms typical

2 ms typical

±0.3% max

±2% max 0% to 10% load,

±1% max 10% to 100% load

±4% max on dual with one output set to

50% load and the other varied from

10% to 100% load (D05 is 20% to 100%)

4% max deviation, recovery to within 1%

in <500 µs for a 50% load change at

0.25 A/µs rate

1% pk-pk max at 20 MHz bandwidth

120% - 200%, trip and restart

115% - 140%

±0.03/°C max

EMC & Safety

Emissions

Immunity

ESD Immunity

Radiated Immunity

EFT/Burst

Surge

Conducted Immunity

Magnetic Field

Safety Approvals

• EN55011 & EN55032 level A conducted &

radiated with no external components

• IEC60601-1-2, EN61204-3

• EN61000-4-2, level 2, Perf Criteria A

• EN61000-4-3, 10 V/m Perf Criteria A

• EN61000-4-4, level 2 Perf Criteria A

• EN61000-4-5, level 1 Perf Criteria A

• EN61000-4-6, 10 Vm, Perf Criteria A

• EN61000-4-8, 3 A/m Perf Criteria A

• ANSI/AMMI ES60601-1

CSA-22.2 No.60601-1

IEC60601-1

Transient Response

•

Ripple & Noise

Overload Protection

Overvoltage Protection

Temperature

Coefficient

Short Circuit Protection

•

• Trip and Restart (hiccup mode),

auto recovery
