BYV74F-300 datasheet, PDF - EEWORLD Datasheet

BYV74F-300: DescriptionDIODE 10 A, 300 V, SILICON, RECTIFIER DIODE, Rectifier Diode; CategoryDiscrete semiconductor diode; File Size177KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

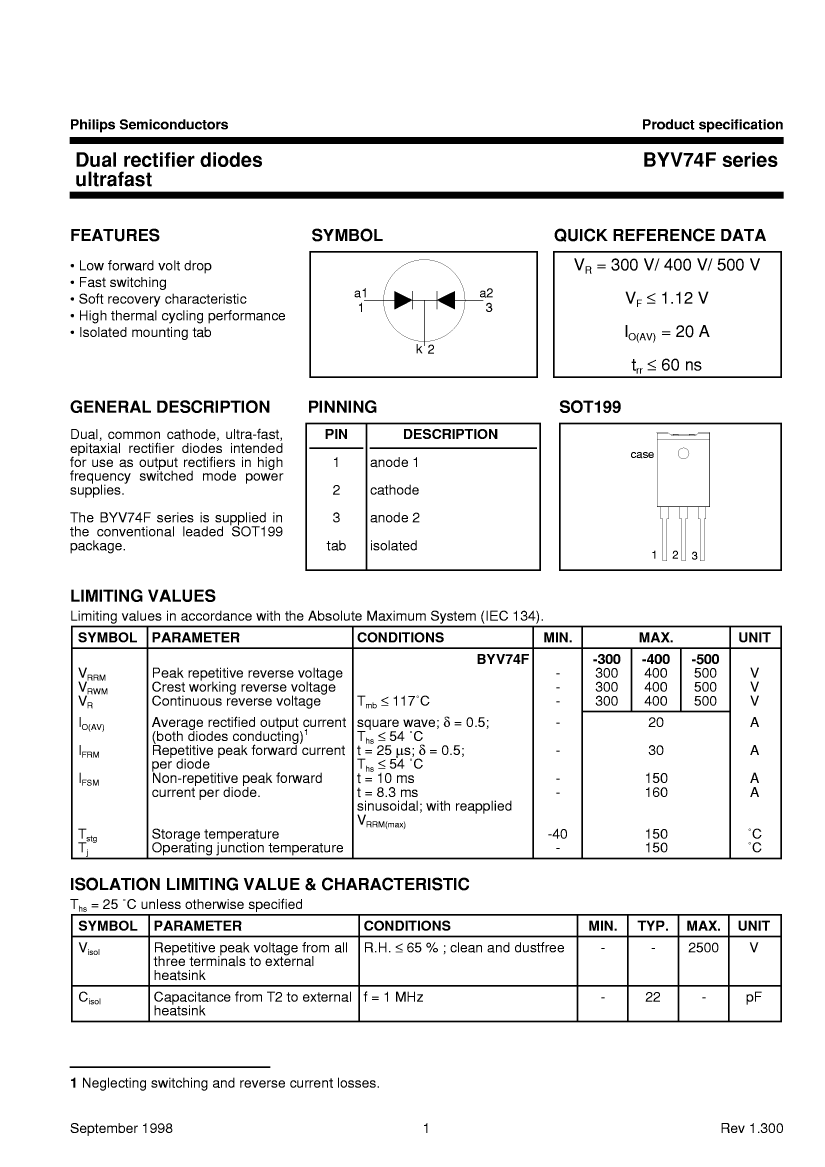

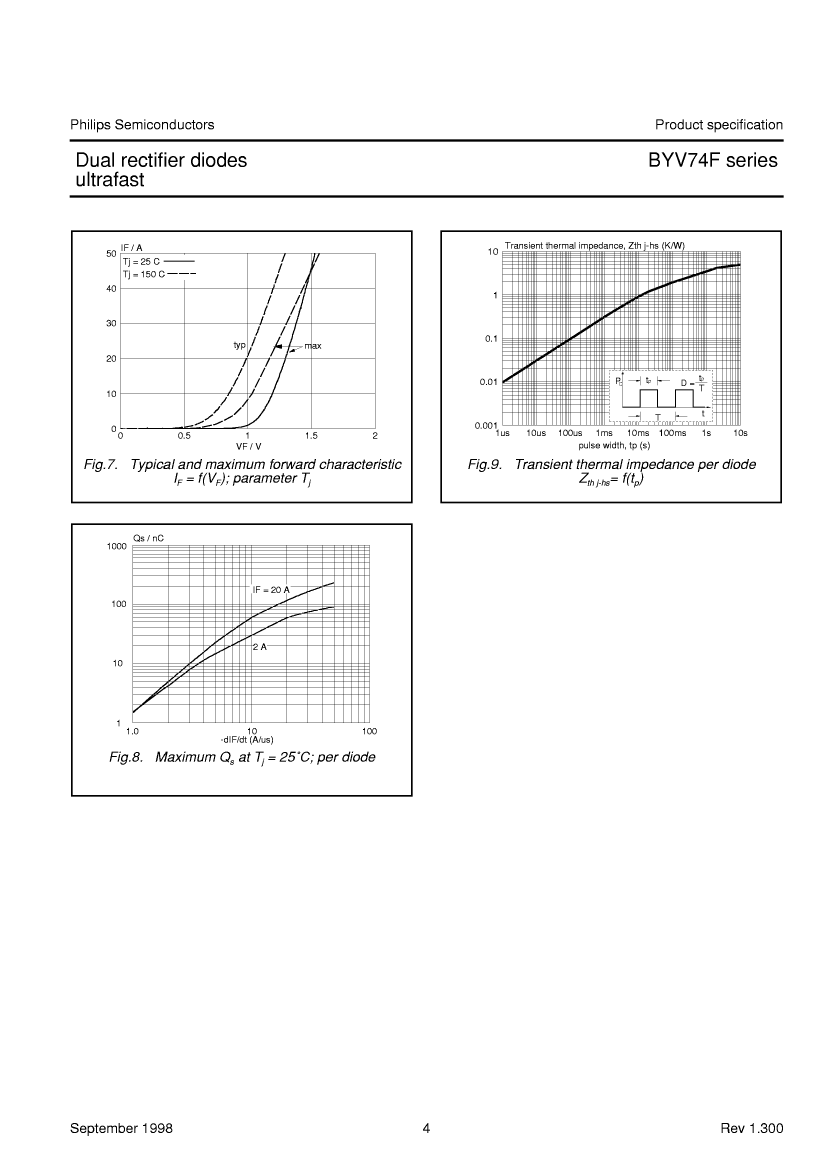

BYV74F-300 Overview

DIODE 10 A, 300 V, SILICON, RECTIFIER DIODE, Rectifier Diode

Parameter Name	Attribute value
Maker	NXP
package instruction	R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST SOFT RECOVERY
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	160 A
Number of components	2
Phase	1
Number of terminals	3
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR

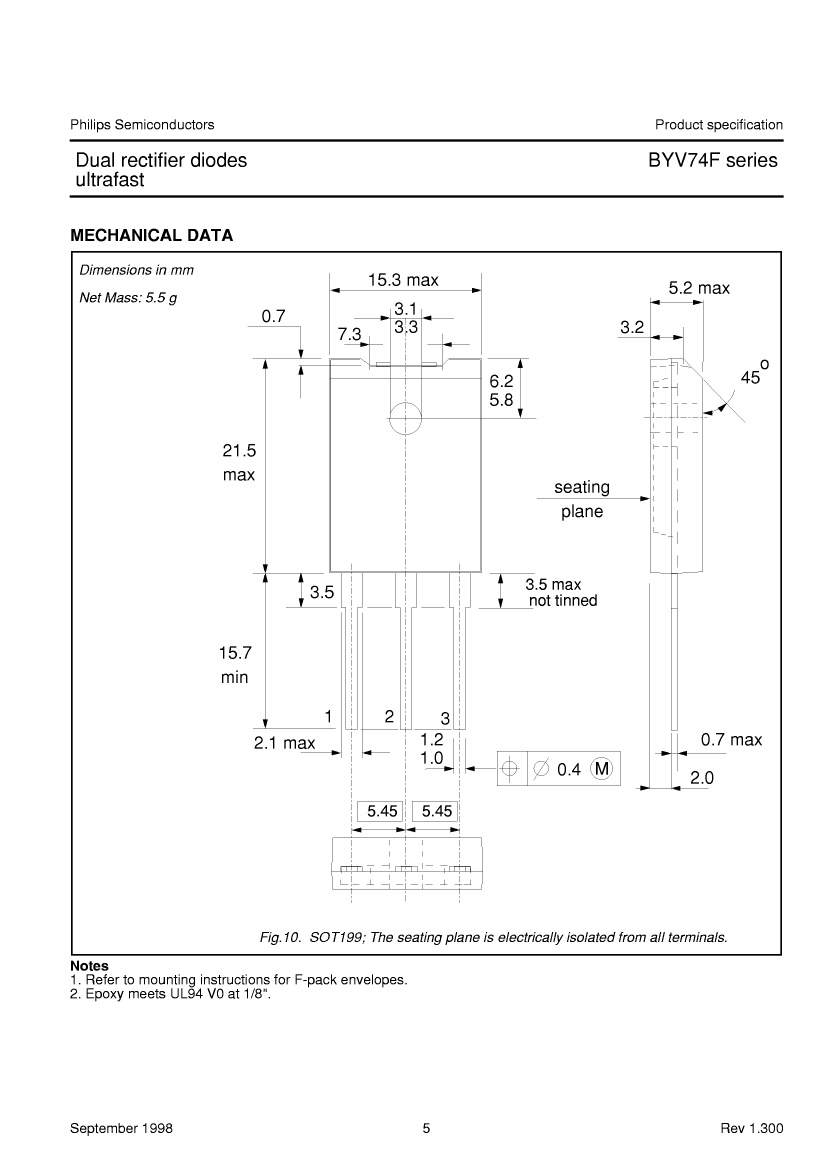

Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V

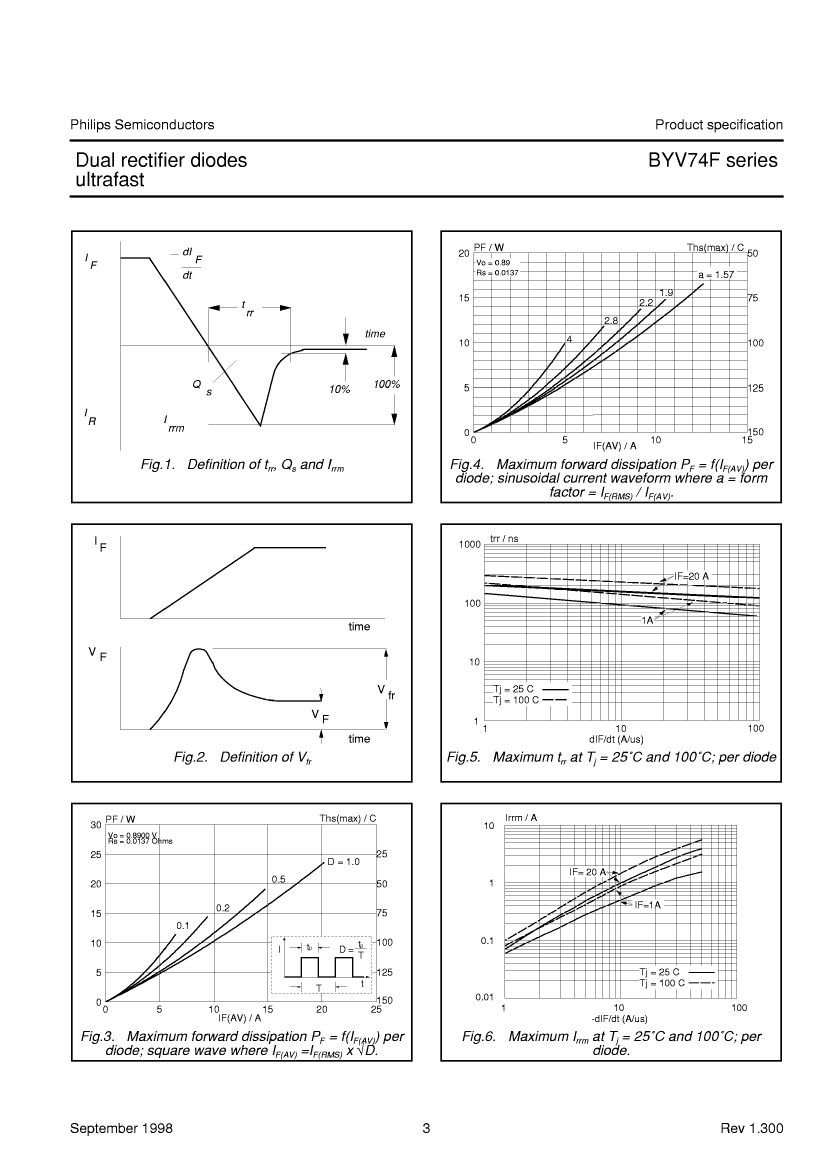

Maximum reverse recovery time	0.06 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

	BYV74F-300	BYV74F-500	BYV74F-400
Description	DIODE 10 A, 300 V, SILICON, RECTIFIER DIODE, Rectifier Diode	DIODE 10 A, 500 V, SILICON, RECTIFIER DIODE, Rectifier Diode	DIODE 10 A, 400 V, SILICON, RECTIFIER DIODE, Rectifier Diode
Maker	NXP	NXP	NXP
package instruction	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Reach Compliance Code	unknown	unknown	unknown
application	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	160 A	160 A	160 A
Number of components	2	2	2
Phase	1	1	1
Number of terminals	3	3	3
Maximum output current	10 A	10 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	300 V	500 V	400 V
Maximum reverse recovery time	0.06 µs	0.06 µs	0.06 µs
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
ECCN code	EAR99	EAR99	-
Base Number Matches	1	1	-
