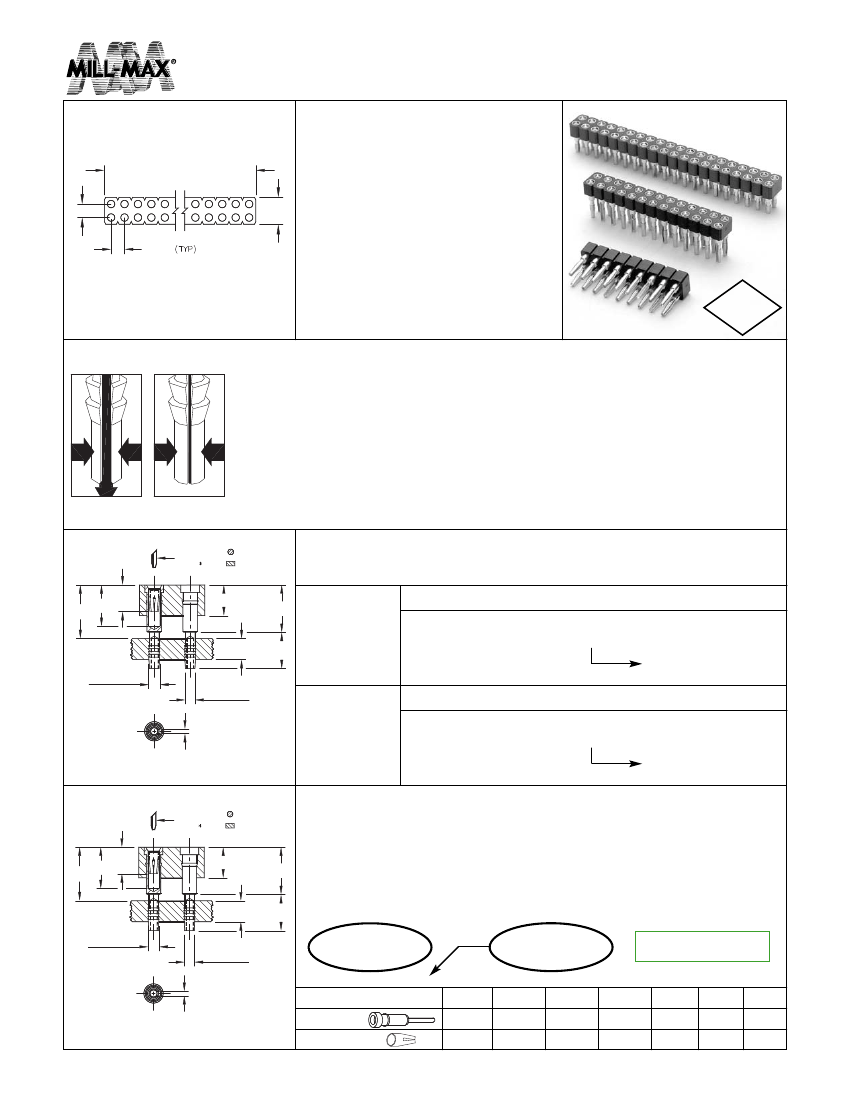

SINGLE-IN-LINE SOCKETS
2,54 Grid Compliant Tail
Double Row
•
Compliant tail solderless press-fit:
MM #4612 or #4613 pins. Use series
446...012 for 1,52 - 3,05 thick boards,
and series 446...013 for 2,29 - 3,30
thick boards. See Page 133 for details.
5,08
Series 446
Number of Pins X 2,54 / 2
2,54
2,54
•
Compliant tail receptacles can be
inserted and removed without any
degradation of the plated through-hole.
•
Hi-Rel, 4 finger BeCu #30 contact is
rated at 3 amps. See page 218 for details.
•
Insulators are high temp. thermoplastic.
2002/95/EC
RoHS
APPLICATION OF COMPLIANT TAIL PINS
Mill-Max’s patented* compliant tail features precision-machined pins that are
hollow and slotted to conform to a 1,02 ± 0,08 diameter PTH. As the pin is
inserted, the slot compresses to fit the PTH, thus avoiding damage (see illustration
at left). The pin’s tail has fine serrations that form a perfect “gas tight” connection
that doesn’t require soldering. And since the pin doesn’t damage the hole,
compliant tail sockets and connectors can be easily replaced.
*Patent No. 4,799,904.
0,38-0,64
0,25 0,46
Ordering Information
4,39
4,95
3,81
2,57
2,79
Series 446...012
1,52-2,54
0,94-1,09
DIA. PLATED
THRU HOLE
0,89 DIA.
0,46
SLOT
Fig. 1
3,05
446-XX-2_ _-41-012000
Specify # of pins
Series 446...013
02-64
Fig. 2
446-XX-2_ _-41-013000
Specify # of pins
02-64
Fig. 1
0,38-0,64
0,25 0,46
4,95
3,81
2,57
2,79
4,39
2,29-3,3
0,94-1,09
DIA. PLATED
THRU HOLE
4,45
0,89 DIA.
0,46
SLOT
For Electrical,
Mechanical & Enviromental
Data, See pg. 4
XX=Plating Code
See Below
For RoHS compliance
select
plating code.
SPECIFY PLATING CODE XX=
13
0,25µm Au
0,76µm Au
91
93
0,76µm Au
99
5,08µm Sn/Pb
41
43
44
Sleeve (Pin)
5,08µm Sn/Pb 5,08µm Sn/Pb
5,08µm Sn 5,08µm Sn
0,76µm Au 0,76µm Au
Fig. 2
Contact (Clip)
w w w. m i l l - m a x . c o m
98
516-922-6000
