55986811200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 55986811200

55986811200: DescriptionGeneral Purpose Inductor, 0.68uH, 20%, 1 Element, Ceramic-Core, SMD, 0805, CHIP, 0805, ROHS COMPLIANT; CategoryPassive components inductor; File Size287KB，4 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

55986811200 Overview

General Purpose Inductor, 0.68uH, 20%, 1 Element, Ceramic-Core, SMD, 0805, CHIP, 0805, ROHS COMPLIANT

55986811200 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	0805
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	0805
structure	Chip
core material	CERAMIC
DC Resistance	3.7 Ω
Nominal inductance(L)	0.68 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	5508
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	1.6 mm
Package length	2.2 mm
Package form	SMT
Package width	1.4 mm
method of packing	TR, 7 Inch
Minimum quality factor (at nominal inductance)	35
Maximum rated current	0.095 A
self resonant frequency	550 MHz
series	5508
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

PAGE

Wire Wound Chip Inductors

——O-Series

0805(2012)/5508

——

Features

1. Coil body of ceramic or ferrite material according to inductance value.

2. Two solderable metallized terminations of Ag/Pd/Pt.

3. Wound with lacquer-coated copper wire.

4. Wire ends welded onto the terminations.

5. Lead Free (RoHS Compliance).

1/4

Applications

1. RF technique

2. Antenna Amplifiers Tuners, Base Stations or SAT Receivers.

Ordering Information

5508

(1)

270

(2)

(3)

(4)

(5)

(4) Delivery Form

4 : coated, tape & reel

2 : standard, tape & reel

(5) Packing unit tape &

00 : reels Φ180mm,

03 : reels Φ330mm,

05 : reels Φ180mm,

reel

3,000 pcs.

10,000 pcs.

500 pcs.

(1) Series

-5508: Size 0805(2012)

(2) Inductance Value

example: 27x10

=27x10

=27(nH)

(3) Inductance Tolerance

8 : ±0.2 nH

3 : ±5%

9 : ±0.3 nH

4 : ±2%

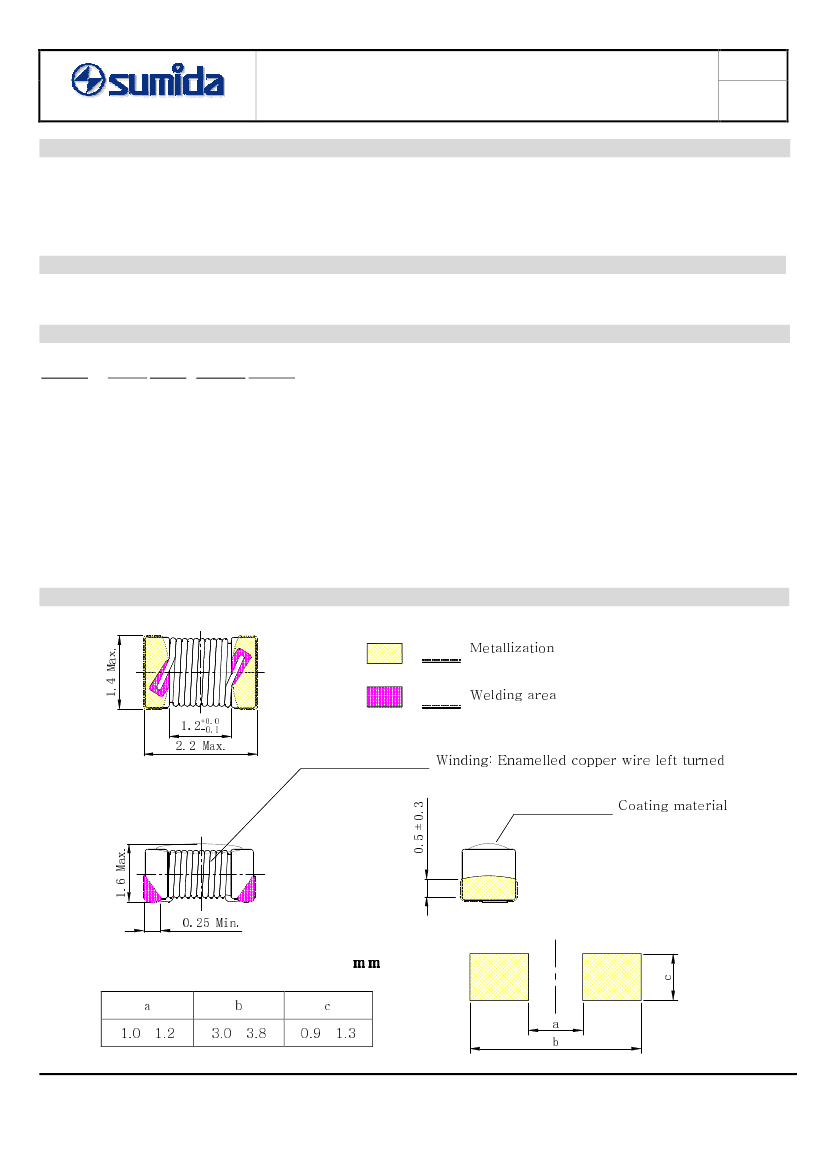

Shape and Dimensions (mm)

*All specifications are subject to change without notice.

3 .1

9 .0

8 .3

0 .3

2 .1

…

½½

Recommended land pattern dimension(

)

l ai r et a m g nit a o C

d e n r ut tf el e ri w r e p p o c d ell e m a n E : g ni d ni W

a e r a g n i dl e W

n o it a zill at e M

.niM 52.0

.xaM 2.2

1.0-

2.1

0.0+

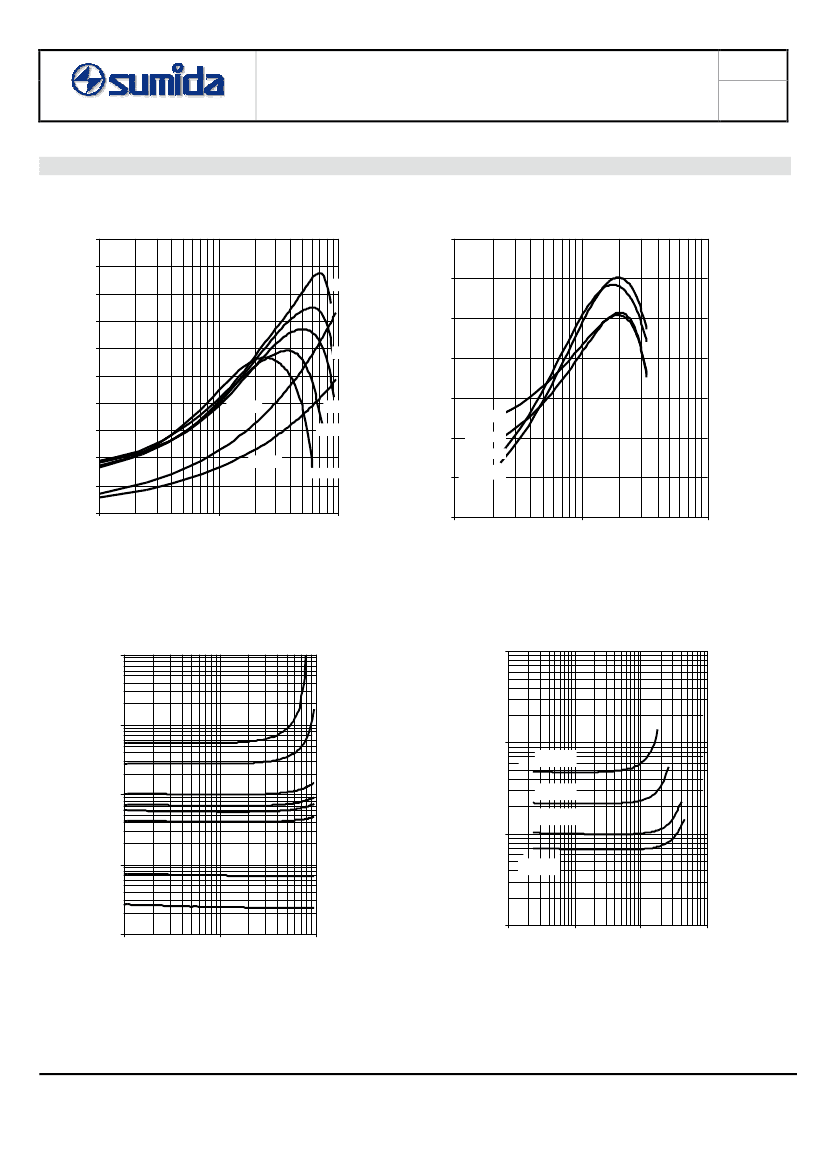

0 .1
