22-44-6152 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 22-44-6152

22-44-6152: DescriptionBoard Connector, 15 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, IDC Terminal, Locking Mech, Red Insulator, Plug; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

22-44-6152 Overview

Board Connector, 15 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, IDC Terminal, Locking Mech, Red Insulator, Plug

22-44-6152 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SPOX
body width	0.15 inch
subject depth	0.41 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN-PB
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	17.792 N
Insulation resistance	1000000000 Ω
Insulator color	RED
insulator material	POLYESTER
MIL compliance	NO
Manufacturer's serial number	42219
Plug contact pitch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	15
UL Flammability Code	94V-0
Maximum wire diameter	24 AWG
Minimum wire diameter	26 AWG
Evacuation force-minimum value	1.4734 N
Base Number Matches	1

Preview

Download Datasheet

View All

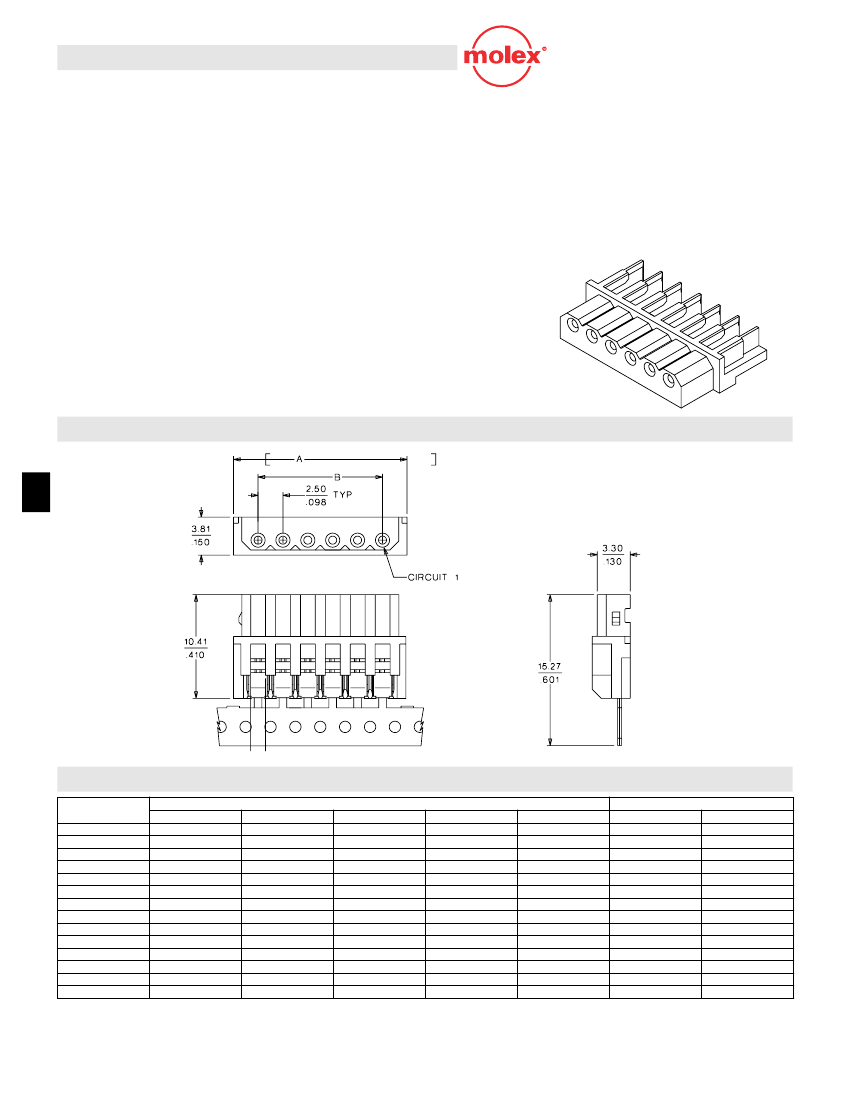

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

In-line IDT termination

Integral crimped strain relief

Available in standard white or 4 optional colors

Connections supplied on terminal carrier strip for

application tooling

Electrical

Voltage: 250V

Current: 3.0A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 1000V AC

Insulation Resistance: 1000 M

Ω

min.

Mechanical

Wire Pull-Out Force: See SMES 42219-0002

Mating Force: 1.8kg max. per contact

Unmating Force: 0.15kg min. per contact

Durability: 25 cycles

Physical

Housing: Polyester, UL 94V-0

Contact: Phosphor Bronze

Plating: Tin/Lead

Temperature: 0 to +75˚C

Wire Accommodation: 24 AWG solid or stranded with

topcoat or 26 AWG stranded with topcoat

2.50mm (.098") Pitch

SPOX

™

Wire-to-Board

Connector

42219

IDT

Spring Box

Reference Information

Product Speciﬁcation: PS-42219

Packaging: Strip

UL File No.: E29179

CSA File No.: LR19980

Mates With: 5267, 5268, 42249 and 42267 headers

Designed In: Millimeters

PCB and Wire Connectors

ORDERING INFORMATION AND DIMENSIONS

Circuits

Natural (White)

• 22-43-3020

• 22-43-3030

• 22-43-3040

• 22-43-3050

• 22-43-3060

• 22-43-3070

• 22-43-3080

• 22-43-3090

• 22-43-3100

• 22-43-3110

• 22-43-3120

• 22-43-3130

• 22-43-3140

• 22-43-3150

Red

22-44-6022

22-44-6032

22-44-6042

22-44-6052

22-44-6062

22-44-6072

22-44-6082

22-44-6092

22-44-6102

22-44-6112

22-44-6122

22-44-6132

22-44-6142

22-44-6152

Order No.

Yellow

22-44-6021

22-44-6031

22-44-6041

22-44-6051

22-44-6061

22-44-6071

22-44-6081

22-44-6091

22-44-6101

22-44-6111

22-44-6121

22-44-6131

22-44-6141

22-44-6151

Dimension

Orange

22-44-6024

22-44-6034

22-44-6044

22-44-6054

22-44-6064

22-44-6074

22-44-6084

22-44-6094

22-44-6104

22-44-6114

22-44-6124

22-44-6134

22-44-6144

22-44-6154

Green

22-44-6023

22-44-6033

22-44-6043

22-44-6053

22-44-6063

22-44-6073

22-44-6083

22-44-6093

22-44-6103

22-44-6113

22-44-6123

22-44-6133

22-44-6143

22-44-6153

7.40

9.90

12.40

14.90

17.40

19.90

22.40

24.90

27.40

29.90

32.40

34.90

37.40

39.90

(.291)

(.390)

(.488)

(.587)

(.685)

(.783)

(.882)

(.980)

(1.079)

(1.117)

(1.276)

(1.374)

(1.472)

(1.571)

2.50

5.00

7.50

10.00

12.50

15.00

17.50

20.00

22.50

25.00

27.50

30.00

32.50

35.00

(.098)

(.197)

(.295)

(.394)

(.492)

(.591)

(.689)

(.787)

(.886)

(.984)

(1.082)

(1.181)

(1.279)

(1.378)

• US Standard Product, available through Molex franchised distributors

J-4

990
