856696

Description
SAW Filter, 1 Function(s), 140MHz, ROHS COMPLIANT, HERMETIC, CERAMIC PACKAGE-12
CategoryAnalog mixed-signal IC    filter
File Size396KB,5 Pages
ManufacturerQorvo
Websitehttps://www.qorvo.com
Environmental Compliance
Download Datasheet Parametric View All

856696 Online Shopping

Suppliers Part Number Price MOQ In stock
856696 - - View Buy Now

856696 Overview

SAW Filter, 1 Function(s), 140MHz, ROHS COMPLIANT, HERMETIC, CERAMIC PACKAGE-12

856696 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerQorvo
Reach Compliance Codecompliant
Other featuresTAPE AND REEL
Center frequency or cutoff frequency (fo/fc)140 MHz
filter typeSAW FILTER
high1.35 mm
input resistance50 OHM
Maximum insertion loss10 dB
JESD-609 codee4
length9.1 mm
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output impedance50 OHM Ω
physical sizeL9.1XB4.8XH1.35 (mm)/L0.358XB0.189XH0.053 (inch)
Terminal surfaceGold (Au) - with Nickel (Ni) barrier
width4.8 mm
Base Number Matches1
Data Sheet
Features
For multiple applications
Usable bandwidth 14 MHz
Low loss
High attenuation
Balanced or Single-ended operation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS compliant (2002/95/EC), Pb-free
Pb
Part Number 856696
140 MHz SAW Filter

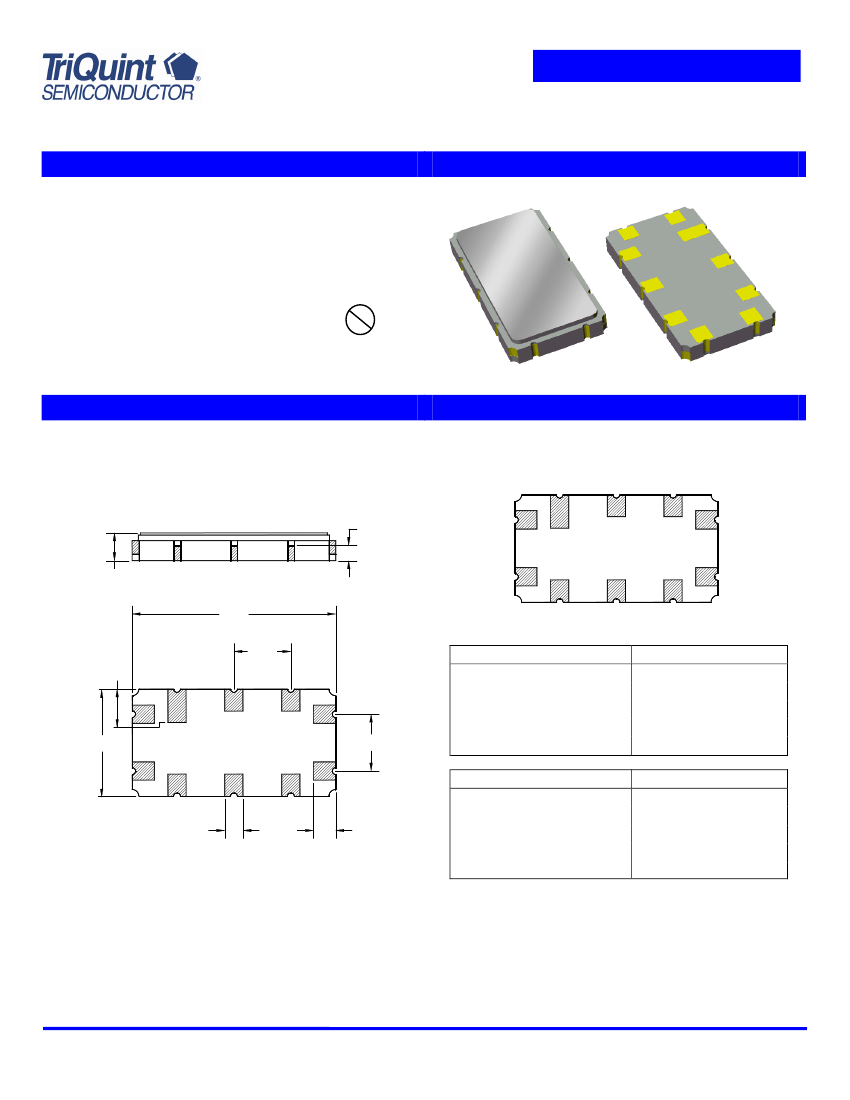

Package
Surface Mount 9.10 x 4.80 x 1.24 mm
SMP-35C
Pin Configuration
Bottom View
1
10
2
3
4
0.69
1.24 NOM.
1.35 MAX.
9.10
9
8
7
6
5
2.54
1.50
4.80
2.54
Pin No. Balanced
9
10
4
5
1,2,3,6,7,8
Pin No. Single-Ended
9
10
4
5
1,2,3,6,7,8
Description
Input +
Input -
Output +
Output -
Case Ground
Description
Input
Ground
Output
Ground
Case Ground
0.80
1.00
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev A
09-07 TriQuint Semiconductor, Inc. ©
Page 1 of 5
