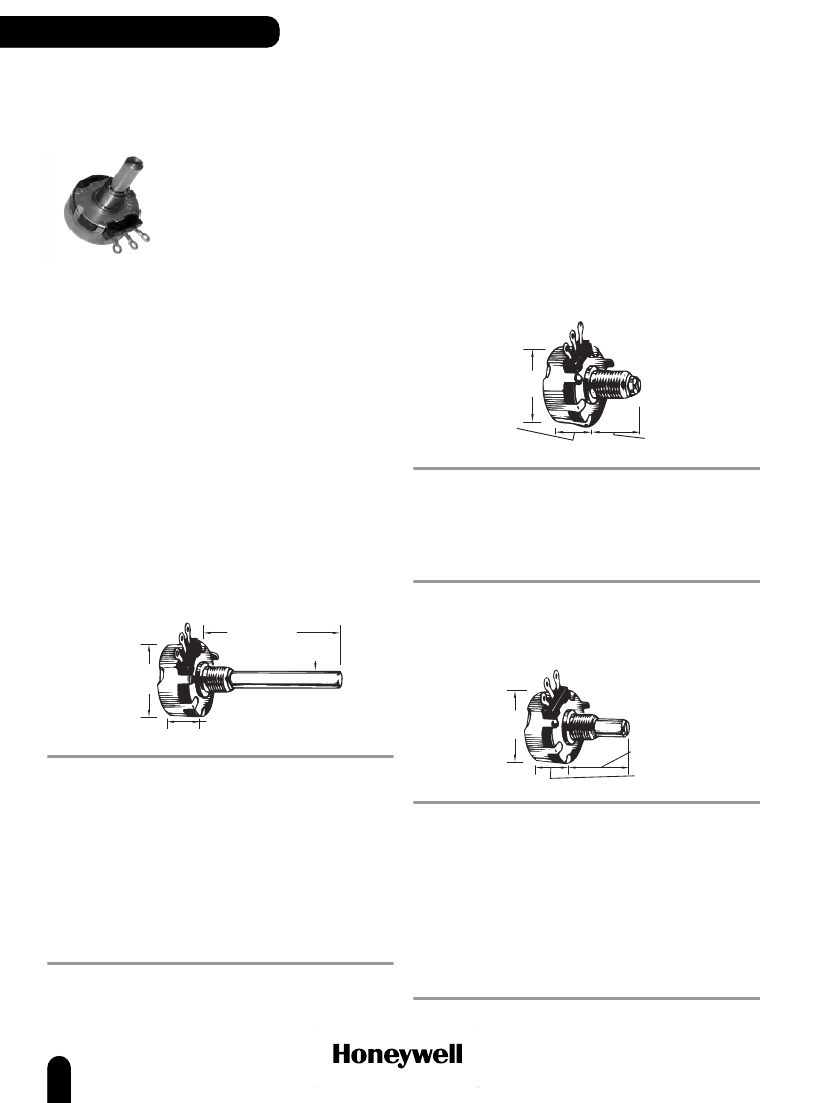

380 Series, Industrial potentiometer
The 380 Series “Quiet One” is a 2-watt conductive plastic potentiometer
offering superior dynamic noise and a long rotational life. It meets MIL-R-94
specifications where applicable.
Approvals:
Power rating:
Element type:
Terminal type:
Shaft:
Body:
Electrical taper:
Operating temperature:
Working voltage:
Linearity:
Total resistance tolerance:
Rotational cycles:
Mechanical rotation:
MIL-R-94
2.0 W max.
Conductive plastic
Solder lug
Slotted
27,79 mm (1.094 in) Ø
Linear
-55 °C to 120 °C (-67 °F to 248 °F)
500 Vdc
± 5%
± 10% (up to 500 kOhms)
± 20 % (1 MOhm and over)
100,000
312° ± 3°
C2: 0.625 in (15,88 mm) screwdriver slotted shaft;
0.5 in (12,7 mm) L locking bushing
27,78
[
1.09
]
14,27
[
0.56
]
C2
RESISTANCE
250 Ohm
1 kOhm
5 kOhm
10 kOhm
25 kOhm
50 kOhm
100 kOhm
250 kOhm
1 MOhm
15,87
[
0.625
]
OPTIONS
C1: 2.0 in (50,8 mm) Round Shaft;
0.375 in (9,5 mm) L bushing
50,8
[
2.0
]
27,78
[
1.09
]
14,27
6,35
REFERENCE
380C2250
380C21000
380C25000
380C210K
380C225K
380C250K
380C2100K
380C2250K
380C21MEG
C3: 0.875 in (22,23 mm) shaft;
0.375 in (9,5 mm) L bushing
[
.025
]
C1
RESISTANCE
100 Ohm
250 Ohm
500 Ohm
1 kOhm
1.5 kOhm
2 kOhm
2.5 kOhm
5 kOhm
10 kOhm
15 kOhm
20 kOhm
25 kOhm
50 kOhm
100 kOhm
200 kOhm
250 kOhm
500 kOhm
1 MOhm
[
0.56
]
[
1.09
]
REFERENCE
380C1100
380C1250
380C1500
380C11000
380C11500
380C12000
380C12500
380C15000
380C110K
380C115K
380C120K
380C125K
380C150K
380C1100K
380C1200K
380C1250K
380C1500K
380C11MEG
27,78
[
0.875
]
C3
RESISTANCE
100 Ohm
250 Ohm
500 Ohm
1 kOhm
2 kOhm
2.5 kOhm
5 kOhm
10 kOhm
25 kOhm
50 kOhm
100 kOhm
150 kOhm
200 kOhm
250 kOhm
500 kOhm
1 MOhm
5 MOhm
22,23
[
0.56
]
REFERENCE
380C3100
380C3250
380C3500
380C31000
380C32000
380C32500
380C35000
380C3310K
380C325K
380C350K
380C3100K
380C3150K
380C3200K
380C3250K
380C3500K
380C31MEG
380C35MEG
14,27
