APPLICATION
F
Recommended P.C. Board Layout
SCALE 8:1
.026[0.66]
.055[1.40]
.040[1.02]
F
.225[5.72]
.083[2.11]
E
E
.062[1.57]
.050[1.27]
Pin 1
WITHOUT LOCKING CLIP OR ALIGNMENT PIN
PSSHSM-5 XX - D - 06 - XX - XX - X - XX - X - LF
(A) (B) (C ) (D) (E) (F) (G) (H) (I)
.173
[4.40]
D
SIDE EARS OPTION (-SE)
.189[4.80]
.093[2.35]
.050[1.27]X No. of Positions + .125[3.18]
.050[1.27]X No. of Positions + .015[0.38]
A. Pins Per Row
- 05 through 50
B. Row Specification
- D= Double Row
C. Surface Mount
D. Plating Options
Mates with:
- See Plating Options below
PTSHS
E. Alignment Pin Option
PTSHSM
- Leave blank if not needed
- AP= With
F. Locking Clip
- Leave blank if not needed
- C= With
G,H. Packing Information
- TR-P= Tape and Reel with Plastic Pick and Place pad
- TB-P= Tube with Plastic Pick and Place pad
- TB-0= Tube without Pick and Place pad
- If left blank, packaging at MLE's discretion
Pad may be metal, mylar or plastic
I. Lead Free
G
T
GT
H
F
FT
Plating options
10µ
Gold Contact Area/ Flash on Tail
Matte Tin All Over
10µ Gold Contact Area/ Matte Tin on Tail
30µ
Gold on Contact Area/ Matte Tin on Tail
Gold Flash over Entire Pin
Golf Flash on Contact Area/ Matte Tin on Tail
D
C
.018[0.46]X .005[0.13]
C
LOCKING CLIP OPTION (-C)
.080[2.03]
02
.142[3.60]
.093[2.35]
80
.122[3.10]
01
.065[1.65]
B
79
.056[1.41]X .010[.025]
.050[1.27]
.047[1.20]
ALIGNMENT PIN OPTION (-AP)
Specifications:
Current Rating: 1.0 Ampere
Insulation Resistance: 1000M Ohms Min.
Dielectric Withstanding: 300V AC
Contact Resistance: 20M Ohms Max.
Operation Temperature: -40°C to +105°C
Max. Process Temperature
Peak: 260°C up to 10 secs.
Process: 230°C up to 60 secs.
Wave: 260°C up to 6 secs.
Reflow: 260°C up to 10 secs.
Manual Solder: 350°C up to 5 secs.
Materials:
Contact Material: Phosphor Bronze
Insulator Material: Nylon 6T
Plating: Au or Sn over 50 ” (1.27) Ni
Tails may be clipped to acheive specific dimensions.
Products cut to specific sizes are uncancellable/ nonreturnable.
Parts are subject to change without notice.
B
.093[2.35]
UNLESS OTHERWISE SPECIFIED:
NAME
DRAWN
CHECKED
ENG APPR.
MFG APPR.
INTERPRET GEOMETRIC
TOLERANCING PER:
MATERIAL
FINISH
DATE
A
.050[1.27]
.047[1.20]
.031[0.80]
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
Major League Electronics. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
Major League Electronics IS
PROHIBITED.
DIMENSIONS ARE IN
INCHES
TOLERENCES:
ONE DECIMALS ±.100
TWO DECIMAL ±.100
THREE DECIMAL ±.005
FOUR DECIMAL ±.002
NEXT ASSY
APPLICATION
USED ON
EOW
GWE
02/17/14
02/17/14
A
Q.A.
ADDRESS:
4 2 3 5 E a rn in g s W a y
N e w A l b a n y , IN 4 7 1 5 0
P h o n e : 8 1 2 -9 4 4 -7 2 4 4 F a x : 8 1 2 -
94 4 -7 26 8
e -M a il :
m l e @ m l e l e c t r o n ic s .c o m
TITLE:

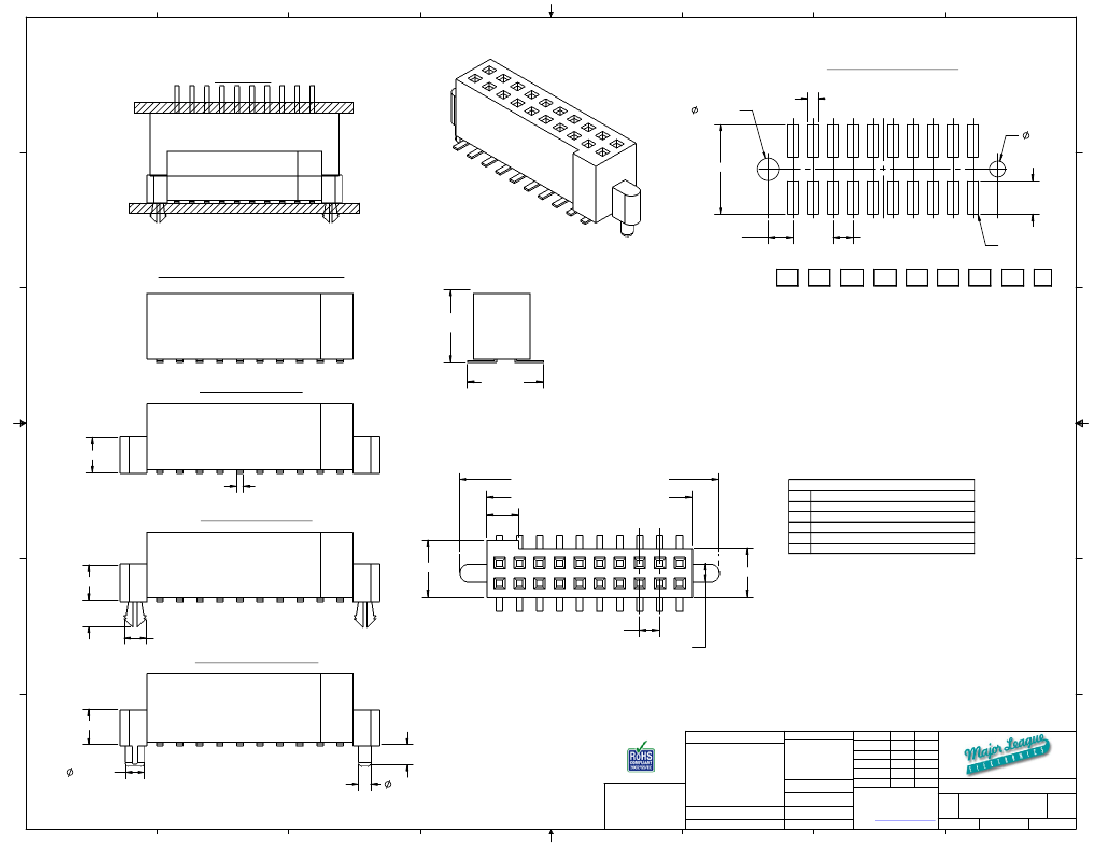

PSSHSM-5 SERIES
SIZE DWG. NO.
REV
C
SCALE 8:1
1
A
SHEET 1 OF 1
DO NOT SCALE DRAWING
