BAV10153

Description
DIODE 0.3 A, 60 V, SILICON, SIGNAL DIODE, DO-35, Signal Diode
CategoryDiscrete semiconductor    diode
File Size117KB,5 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

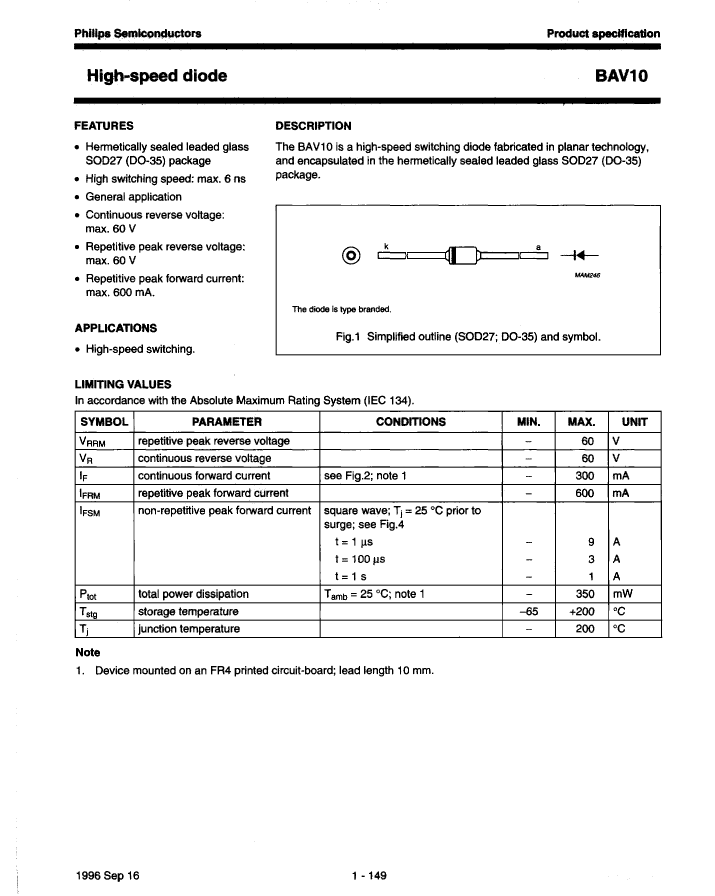

BAV10153 Overview

DIODE 0.3 A, 60 V, SILICON, SIGNAL DIODE, DO-35, Signal Diode

BAV10153 Parametric

Parameter NameAttribute value
package instructionO-LALF-W2
Reach Compliance Codeunknown
ECCN codeEAR99
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE

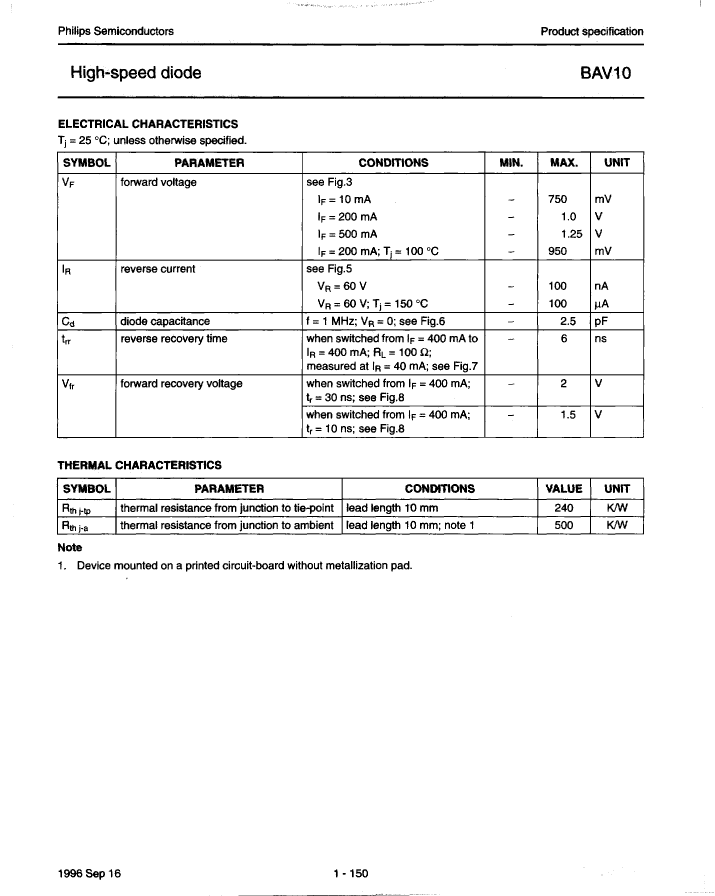

Maximum forward voltage (VF)1.25 V
JEDEC-95 codeDO-35
JESD-30 codeO-LALF-W2

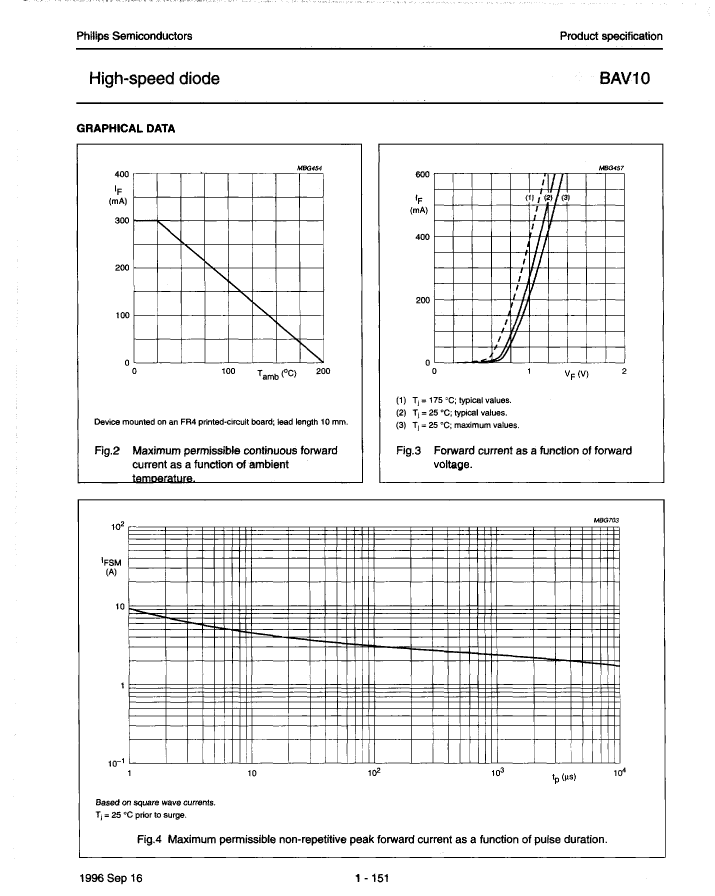

Maximum non-repetitive peak forward current9 A
Number of components1
Number of terminals2
Maximum operating temperature200 °C
Maximum output current0.3 A
Package body materialGLASS
Package shapeROUND
Package formLONG FORM
Maximum power dissipation0.35 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage60 V

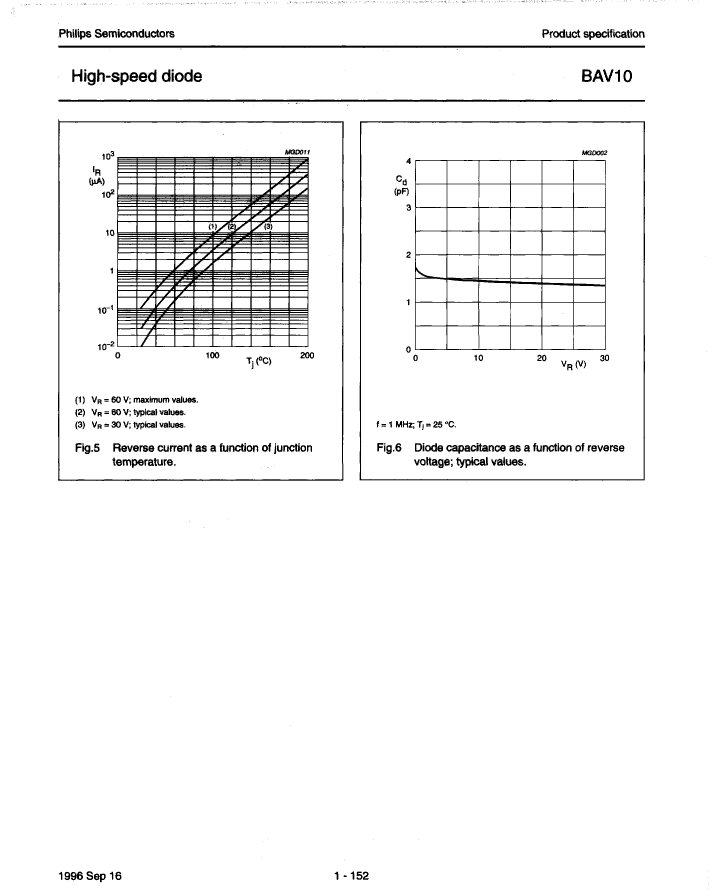

Maximum reverse current0.1 µA

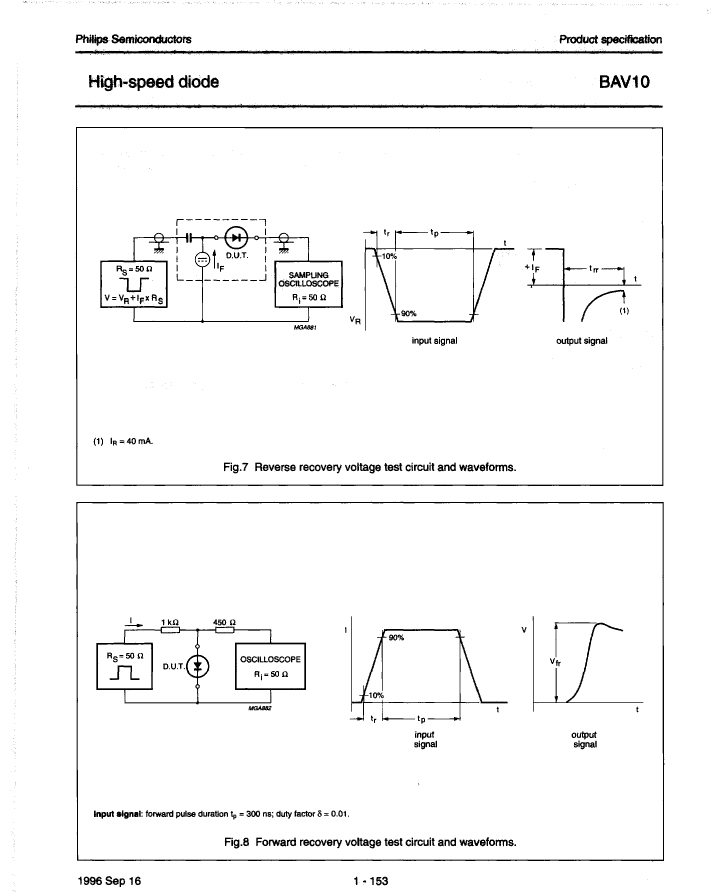

Maximum reverse recovery time0.006 µs
surface mountNO
Terminal formWIRE
Terminal locationAXIAL
Base Number Matches1

BAV10153 Related Products

BAV10153 BAV10136 BAV10116
Description DIODE 0.3 A, 60 V, SILICON, SIGNAL DIODE, DO-35, Signal Diode DIODE 0.3 A, 60 V, SILICON, SIGNAL DIODE, DO-35, Signal Diode DIODE 0.3 A, 60 V, SILICON, SIGNAL DIODE, DO-35, Signal Diode
package instruction O-LALF-W2 O-LALF-W2 O-LALF-W2
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Base Number Matches 1 1 1
Shell connection ISOLATED ISOLATED -
Configuration SINGLE SINGLE -
Diode component materials SILICON SILICON -
Diode type RECTIFIER DIODE RECTIFIER DIODE -
Maximum forward voltage (VF) 1.25 V 1.25 V -
JEDEC-95 code DO-35 DO-35 -
JESD-30 code O-LALF-W2 O-LALF-W2 -
Maximum non-repetitive peak forward current 9 A 9 A -
Number of components 1 1 -
Number of terminals 2 2 -
Maximum operating temperature 200 °C 200 °C -
Maximum output current 0.3 A 0.3 A -
Package body material GLASS GLASS -
Package shape ROUND ROUND -
Package form LONG FORM LONG FORM -
Maximum power dissipation 0.35 W 0.35 W -
Certification status Not Qualified Not Qualified -
Maximum repetitive peak reverse voltage 60 V 60 V -
Maximum reverse current 0.1 µA 0.1 µA -
Maximum reverse recovery time 0.006 µs 0.006 µs -
surface mount NO NO -
Terminal form WIRE WIRE -
Terminal location AXIAL AXIAL -
