36,50
36,50
29,36 TYPICAL
21,50
26,98 TYPICAL
M28x1 - 6g
TO SUIT H INTERFACE
1,250-0,1P-0,3L-TS
DRAWN
SALES
APPR
DESIGN
APPR
PROD
APPR
QUAL
APPR
ISSUE
7
NCAGE CODE U5792
4,
NOTES
GENERALLY TO THE REQUIREMENTS OF MIL-DTL-38999
MATES WITH AMPHENOL RJFTV
FINISH
SEE TABLE
MATERIALS
RJ45
CONTACTS COPPER WITH SELECTIVE GOLD PLATE
SHIELDING - NICKEL PLATED BRASS
BODY - PA, UL94V-0
PCB - FR4, UL94V-0
SEAL - SILICONE ELASTOMER
INSULATOR - PPS GL40 UL94, COLOUR BLACK
POTTING - QSIL 550 UL94V-0
PERFORMANCE
VOLTAGE RATING 50V DC / 35V AC
TEMPERATURE -40°C TO +120°C
93
3,25
LASER PART/BATCH MARK HERE
RJ45, CAT6a FEEDTHROUGH CONNECTOR GROUNDED TO OUTER SHELL
DATA TRANSFER RATE TESTED TO 10 GIGABIT, CONTACT SALES OFFICE FOR TEST RESULTS
OPTION X (STANDARD)
OPTION W
55,00 MAX
OPTION Y
OPTION Z
n
6,90 CABLE SEALING DIAMETER
005 CABLE SEALING BACKSHELL OPTION
CODE
1-C
1-B
1-ZB
4-J
2-Z
MATERIAL / PLATING
ALUMINIUM / ELECTROLESS NICKEL
ALUMINIUM / CADMIUM OLIVE DRAB OVER ELECTROLESS NICKEL
ALUMINIUM / ZINC COBALT OLIVE DRAB OVER ELECTROLESS NICKEL
STAINLESS STEEL / PASSIVATE
NICKEL ALUMINIUM BRONZE / SHOT BLAST
LIST NOT EXHAUSTIVE, FOR COMPREHENSIVE LIST AND SPECS, SEE WEBSITE
PC4B0029-19NX-1-C(-005)
SERIES
SHELL SIZE
KEY ARRANGEMENT (N, A, B, C, D, E)
INSERT ROTATION (W, X, Y, Z)
MATERIAL (SEE TABLE)
PLATING (SEE TABLE)
CABLE SEALING BACKSHELL OPTION
PART NUMBER FOR UNGROUNDED VERSION: PC4B0029-19NX-1-C-U
R.S.
N.W.
M.PAUL
DATE
12/10/2010
12/10/2010
12/10/2011
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
POLAMCO LTD
www.polamco.com
A S S Y U S E D O N :
CAT6A D38999/20
WESTON LOCK
LOWER BRISTOL ROAD
BATH BA2 1EP
TITLE:
DCR
MATERIAL
SEE PART NUMBER
BREAKDOWN
WEIGHT
FINISH
SEE PART NUMBER
BREAKDOWN

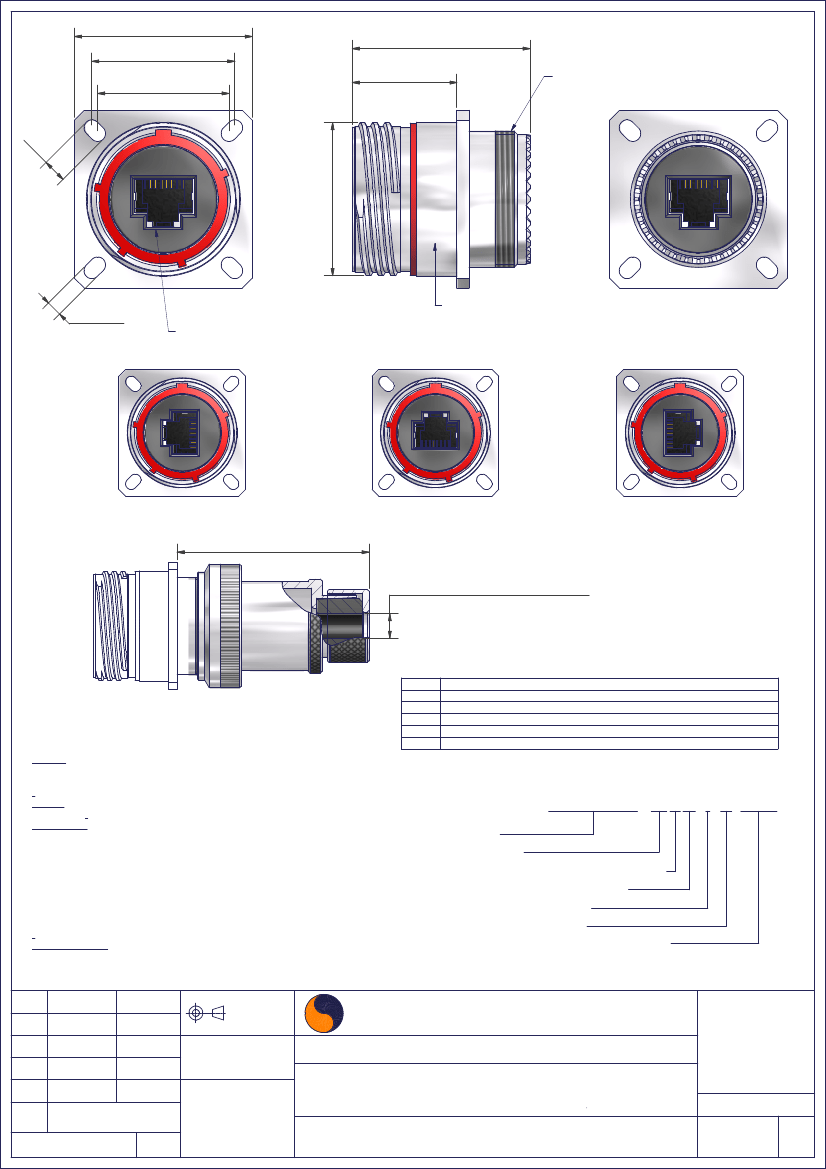

CAT6a RJ45 FEEDTHROUGH RECEPTACLE
ASSEMBLY
PC4B0029-19**-*-*(-005)
THIS DRAWING IS
COPYRIGHT AND THE
PROPERTY OF
POLAMCO LTD
IT MUST NOT BE COPIED,
USED FOR MANUFACTURE
OR OTHERWISE DISCLOSED
WITHOUT PRIOR WRITTEN
CONSENT OF THE COMPANY.
5187
PART NUMBER:
DRAWING NO: SHT
C3047
1
