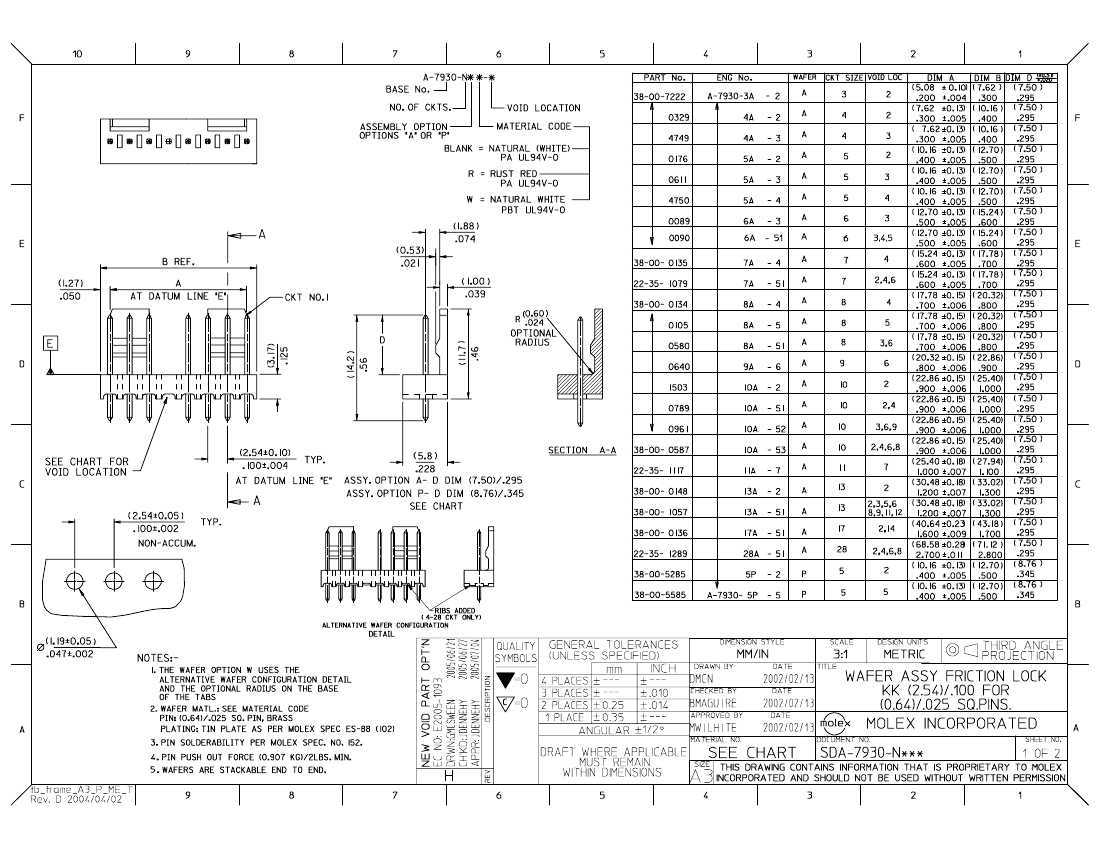

Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, White Insulator, Receptacle
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | ROHS COMPLIANT & BAG PACKAGE |
| body width | 0.228 inch |
| subject depth | 0.461 inch |
| body length | 1.7 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | SN |
| Contact completed and terminated | TIN |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| Durability | 25 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 1.946 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | WHITE |
| insulator material | POLYAMIDE |
| MIL compliance | NO |
| Manufacturer's serial number | 7930 |
| Plug contact pitch | 0.1 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation option 2 | FRICTION LOCK |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 200u inch |
| Rated current (signal) | 4 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.139 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 15 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .556 N |
| Base Number Matches | 1 |
| 38-00-0136 | 38-00-0135 | |
|---|---|---|
| Description | Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, White Insulator, Receptacle | Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, White Insulator, Receptacle |
| Reach Compliance Code | unknown | unknown |
| ECCN code | EAR99 | EAR99 |
| Other features | ROHS COMPLIANT & BAG PACKAGE | ROHS COMPLIANT & BAG PACKAGE |
| body width | 0.228 inch | 0.228 inch |
| subject depth | 0.461 inch | 0.461 inch |
| body length | 1.7 inch | 0.7 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | SN | SN |
| Contact completed and terminated | TIN | TIN |
| Contact point gender | MALE | MALE |
| Contact material | BRASS | BRASS |
| contact mode | RECTANGULAR | RECTANGULAR |
| Contact resistance | 10 mΩ | 10 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V |
| Durability | 25 Cycles | 25 Cycles |
| Filter function | NO | NO |
| IEC compliance | NO | NO |
| maximum insertion force | 1.946 N | 1.946 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω |
| Insulator color | WHITE | WHITE |
| insulator material | POLYAMIDE | POLYAMIDE |
| MIL compliance | NO | NO |
| Manufacturer's serial number | 7930 | 7930 |
| Plug contact pitch | 0.1 inch | 0.1 inch |
| Mixed contacts | NO | NO |
| Installation option 1 | LOCKING | LOCKING |
| Installation option 2 | FRICTION LOCK | FRICTION LOCK |
| Installation method | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD |
| Number of connectors | ONE | ONE |
| PCB row number | 1 | 1 |
| Number of rows loaded | 1 | 1 |
| Maximum operating temperature | 75 °C | 75 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR |
| Plating thickness | 200u inch | 200u inch |
| Rated current (signal) | 4 A | 4 A |
| Guideline | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.139 inch | 0.139 inch |
| Terminal pitch | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER |
| Total number of contacts | 15 | 6 |
| UL Flammability Code | 94V-0 | 94V-0 |
| Evacuation force-minimum value | .556 N | .556 N |
| Base Number Matches | 1 | 1 |
