22-03-1065 datasheet, PDF - EEWORLD Datasheet

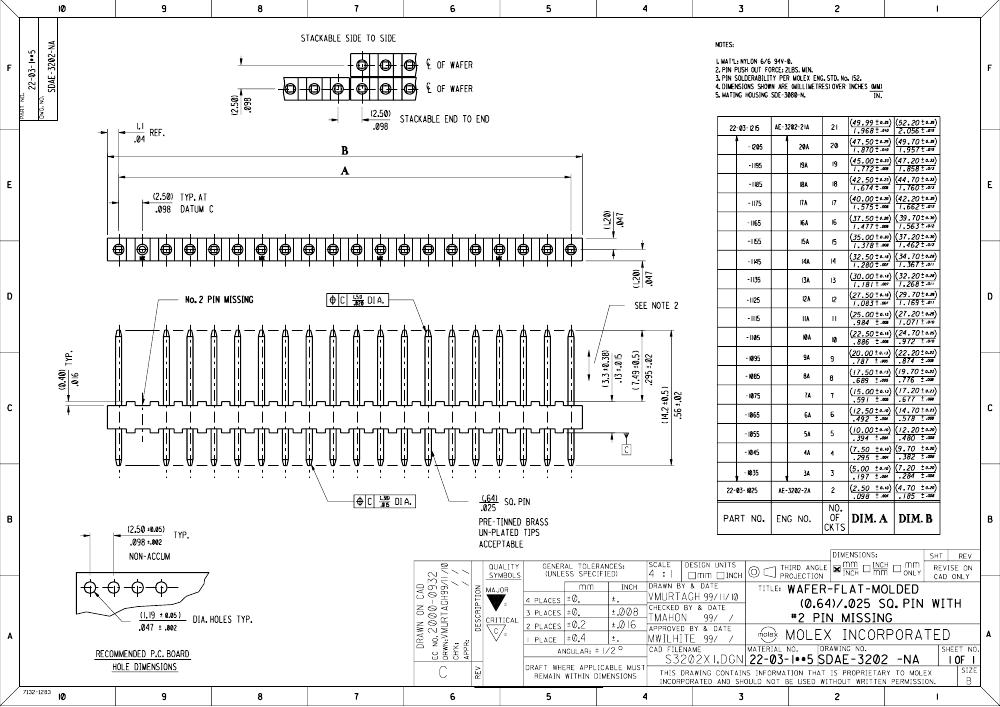

22-03-1065: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

22-03-1065 Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, Solder Terminal

Parameter Name	Attribute value
Reach Compliance Code	unknow
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	3202
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

	22-03-1065	22-03-1035	22-03-1205	22-03-1055	22-03-1155	22-03-1095
Description	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 20 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, Solder Terminal
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	3202	3202	3202	3202	3202	3202
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	6	3	20	5	15	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	-	-
Maker	-	Molex	Molex	Molex	Molex	Molex
