Datasheet -- 43C1100
2/3/06 1:26 PM
43C1100
43 Series Industrial Potentiometer, Wire Wound
Element, Solder lug Terminals, 2 W Power
Rating, 100 Ohm Resistance Value
Features
Robust nickel-plated brass shaft and bushings!
Wirewound element!
Linear taper
Very stable over the operating temperature!

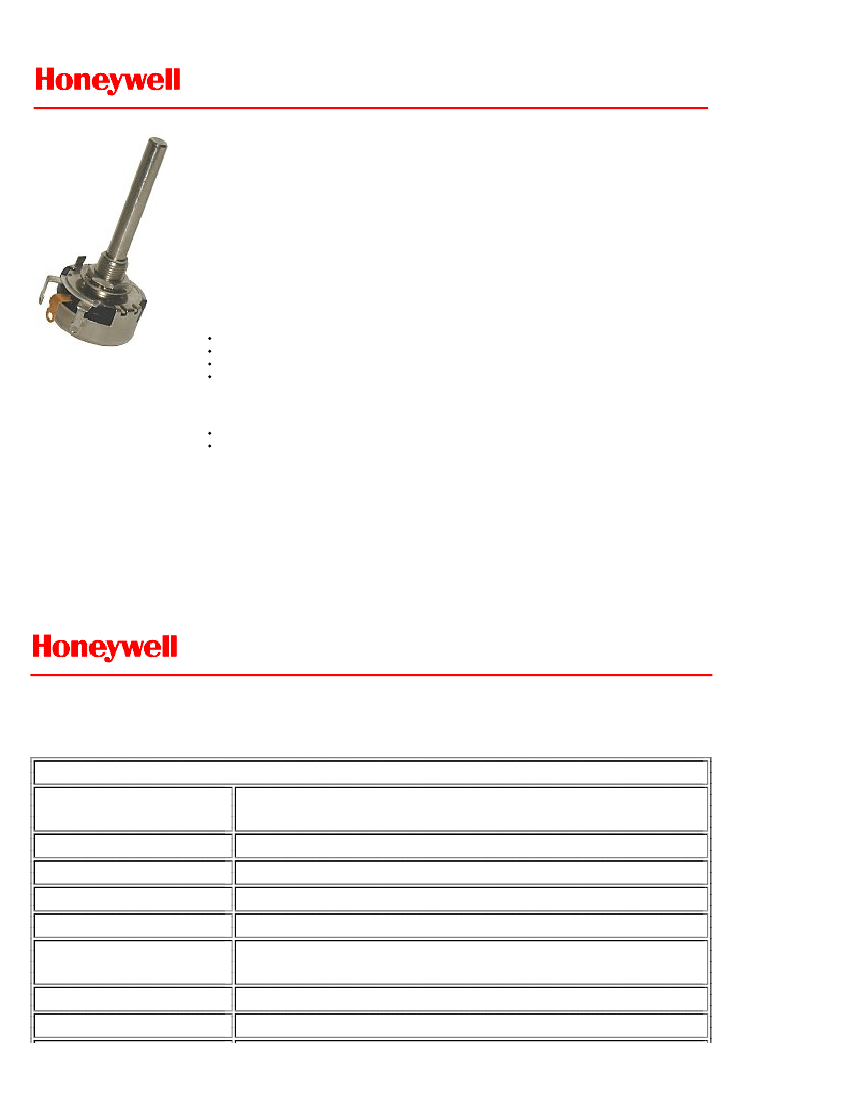

Representative
photograph, actual
product appearance
may vary.
Due to regional
agency approval
requirements, some
products may not be
available in your
area. Please contact
your regional
Honeywell office
regarding your
product of choice.
Typical Applications
Manual controls!
Welding and heating!
Description
The 43 Series is a 2 watt potentiometer made with a wirewound element. It offers a
rugged metal construction and a linear taper.!
43C1100
43 Series Industrial Potentiometer, Wire Wound Element, Solder lug
Terminals, 2 W Power Rating, 100 Ohm Resistance Value
Product Specifications
Potentiometer
Type
Element Type
Terminal Type
Power Rating
Resistance Value
Resistance
Tolerance
Linearity
Bushing Thread
Industrial
Wire Wound
Solder lug
2W
100 Ohm
±5%
±2%
9,53 mm [0.375 in] x 32 NEF-2A
Page 1 of 3
http://catalog.sensing.honeywell.com/printfriendly.asp?FAM=potentiometers&PN=43C1100
Datasheet -- 43C1100
2/3/06 1:26 PM
Bushing length
Bushing Type
Shaft Diameter
Shaft length
Shaft Ending
Body
Electrical Taper
Operating
Temperature
Working Voltage
(Max.)
Rotational Life
Mechanical
Rotation
Availability
Series Name
UNSPSC Code
UNSPSC
Commodity
9,53 mm [0.375 in]
Standard
6,35 mm [0.25 in]
50,80 mm [2.0 in]
Plain round
28.6 mm [1.125 in] diameter, ± 0.79 mm [0.031
in], except at terminal standoff
Linear
-55 °C to 105 °C [-67 °F to 220 °F]
310 V
10000 cycles
300°
Global
43 Series
4111363300
4111363300 Potentiometers
43C1100
43 Series Industrial Potentiometer, Wire Wound Element, Solder lug
Terminals, 2 W Power Rating, 100 Ohm Resistance Value
http://catalog.sensing.honeywell.com/printfriendly.asp?FAM=potentiometers&PN=43C1100
Page 2 of 3
Datasheet -- 43C1100
2/3/06 1:26 PM

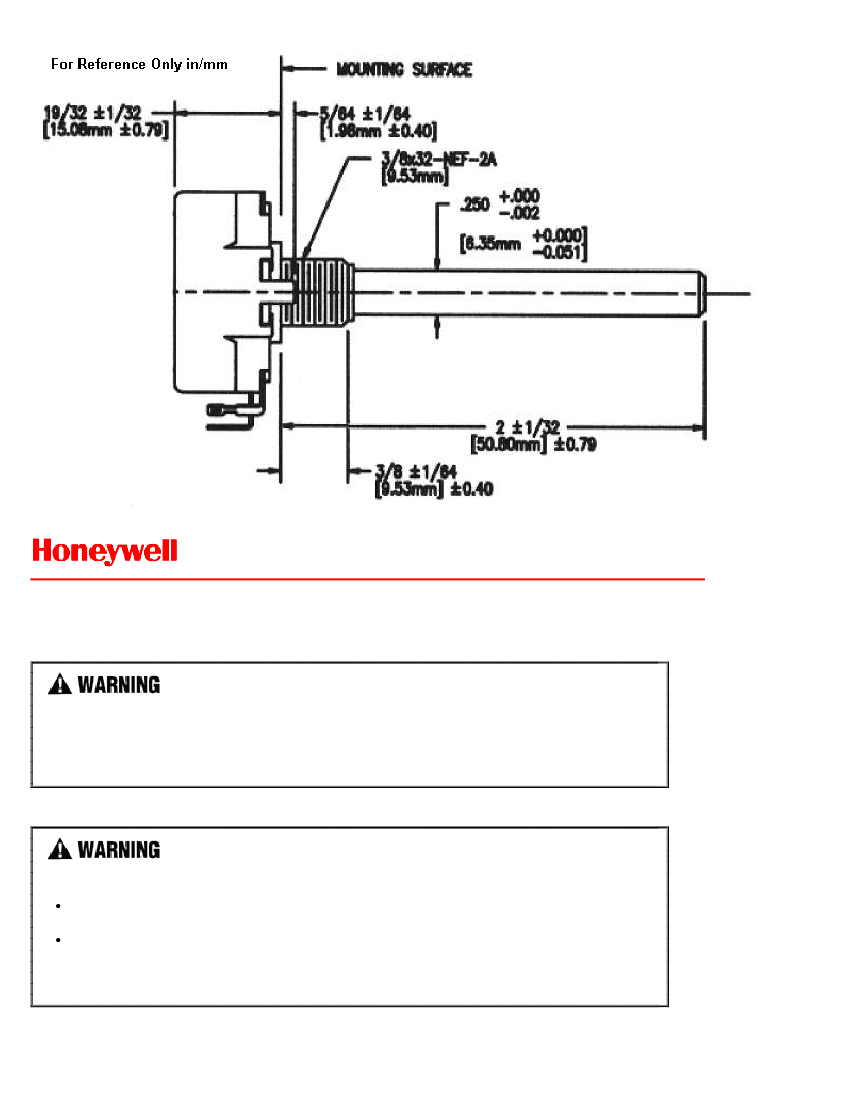

43C1100
43 Series Industrial Potentiometer, Wire Wound Element, Solder lug
Terminals, 2 W Power Rating, 100 Ohm Resistance Value
PERSONAL INJURY
DO NOT USE these products as safety or emergency stop devices, or in any other
application where failure of the product could result in personal injury.
Failure to comply with these instructions could result in death or serious injury.
MISUSE OF DOCUMENTATION
The information presented in this product sheet (or catalog) is for reference only.
DO NOT USE this document as product installation information.
Complete installation, operation and maintenance information is provided in the
instructions supplied with each product.
Failure to comply with these instructions could result in death or serious injury.
© Copyright Honeywell Inc.1998-2004 All rights reserved.
