3410.0141.02 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 3410.0141.02

3410.0141.02: DescriptionElectric Fuse, Super Fast Blow, 5A, 32VAC, 125VDC, 50A (IR), Surface Mount, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size30KB，1 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

3410.0141.02 Overview

Electric Fuse, Super Fast Blow, 5A, 32VAC, 125VDC, 50A (IR), Surface Mount, ROHS COMPLIANT

3410.0141.02 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 32 VDC: 300 A
Fusing characteristics	SUPER FAST
body width	1.55 mm
body height	1.55 mm
Body length or diameter	3.2 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal
Installation features	SURFACE MOUNT
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
method of packing	BLISTER TAPE AND REEL
physical size	3.2mm x 1.55mm x 1.55mm
Pre-discharge time - minutes	5000 ms
Rated breaking capacity	50 A
Rated current	5 A
Rated voltage (AC)	32 V
Rated voltage (DC)	125 V
Guideline	CCC; CSA; UL
surface mount	YES
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

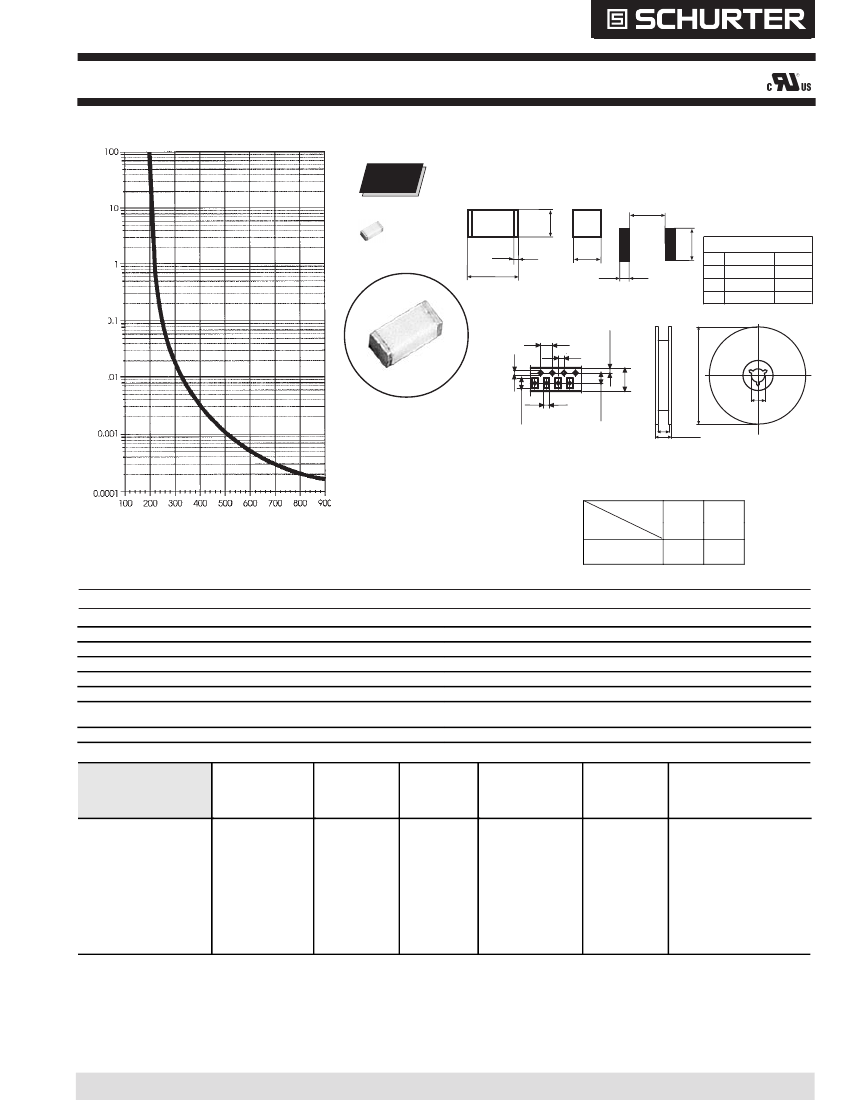

MGA 125V

125V Quick-acting Surface Mount Fuse

Built according to EIASOCM-3216 (equivalent to 1206), UL 248-14

Approvals:

c-UL-us recognition 100mA-3A/125V File #E41599

4A/ 63V

5A/ 32V

NEW

1.6

1.75

0.1

0.3

180

0.25

Enlargement

1.6

3.2

Dimensions in mm

Reflow Wave

1.14

1.65

1.52

2.93

2.03

0.1

1.5

0.05

3.56

0.1

1.91

0.01

3.5

0.05

12.8

Fusing time in seconds t

8.4

max. 14.4

Rated current I

• "Flip chip" design mounts on

any side

• Lowest resistance

• Quick-acting

• Hermetically sealed for operating

temperatures in excess of 150˚C

• Low energy let-through

• Superior cycling

Technical Data

Time Current Characteristics

n • In

rated current In

2.5 • In

≤

200mA – 5A

≥

Rated current

Time current characteristic

Breaking capacity

Ambient temperature max.

Climatic category

Solderability

Material: Housing

Terminals

Packaging

see chart

quick-acting

50A AC / DC

Tu -40˚C / to +125˚C

50/ 150/ 21 acc. to IEC 60068

reflow and wave: 245˚C / 5 sec. acc. to EIA-722, 4.8

ceramic

copper alloy, tin plated

8mm tape and reel per EIA-RS481 (equivalent to IEC 286-3)

Order Numbers –

Standard

Series MGA 125V

3410.0021.XX

3410.0022.XX

3410.0025.XX

3410.0027.XX

3410.0029.XX

3410.0031.XX

3410.0033.XX

3410.0035.XX

3410.0036.XX

3410.0037.XX

3410.0240.XX

3410.0141.XX

Rated current /

voltage

mA / A / V ~

200 mA / 125V

250 mA / 125V

375 mA / 125V

500 mA / 125V

750 mA / 125V

A / 125V

1.5 A / 125V

A / 125V

2.5 A / 125V

A / 125V

A / 63V

A / 32V

Breaking

capacity

A ~ ac / dc

cos phi 1

50A / 125V

50A / 63V

50A / 32V

Voltage drop

at In

typical mV

202

176

140

126

118

114

123

117

115

112

110

Power dissipation Pre-arcing l

at 1.5 • In

at 4 • In

typical mV

114

185

234

288

336

440

450

typical A

0.0013

0.0034

0.0037

0.0067

0.015

0.043

0.12

0.20

0.54

0.34

0.76

1.04

Packaging

Order No.Suffix

100 pieces taped & bagged:

.XX = .01

750 pieces taped & reeled:

.XX = .02

3,000 pieces taped &

reeled: .XX = .03

10,000 pieces taped &

reeled: .XX = .04

Schurter, Inc. • Phone 707-778-6311 • Fax 707-778-6401 • E-mail info@schurterinc.com • Website http://www.schurterinc.com
