BI2-EH6.5-AP6X-0.2-RS4T datasheet, PDF

Datasheet> All Categories > The sensor> Sensor/transducer> BI2-EH6.5-AP6X-0.2-RS4T

BI2-EH6.5-AP6X-0.2-RS4T: DescriptionInductive Sensor,; CategoryThe sensor Sensor/transducer; File Size154KB，2 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric View All

BI2-EH6.5-AP6X-0.2-RS4T Overview

Inductive Sensor,

BI2-EH6.5-AP6X-0.2-RS4T Parametric

Parameter Name	Attribute value
Maker	TURCK Inc.
Reach Compliance Code	unknown
Sensor/Transducer Type	PROXIMITY SENSOR,INDUCTIVE
Base Number Matches	1

Preview

Download Datasheet

View All

BI2-EH6.5-AP6X-0.2-RS4T

Inductive sensor – With increased switching distance

Features

■

Smooth barrel, Ø 6.5 mm

■

Stainless steel, 1.4427 SO

■

Large sensing range

■

DC 3-wire, 10…30 VDC

■

NO contact, PNP output

■

Pigtail with male end M12 x 1

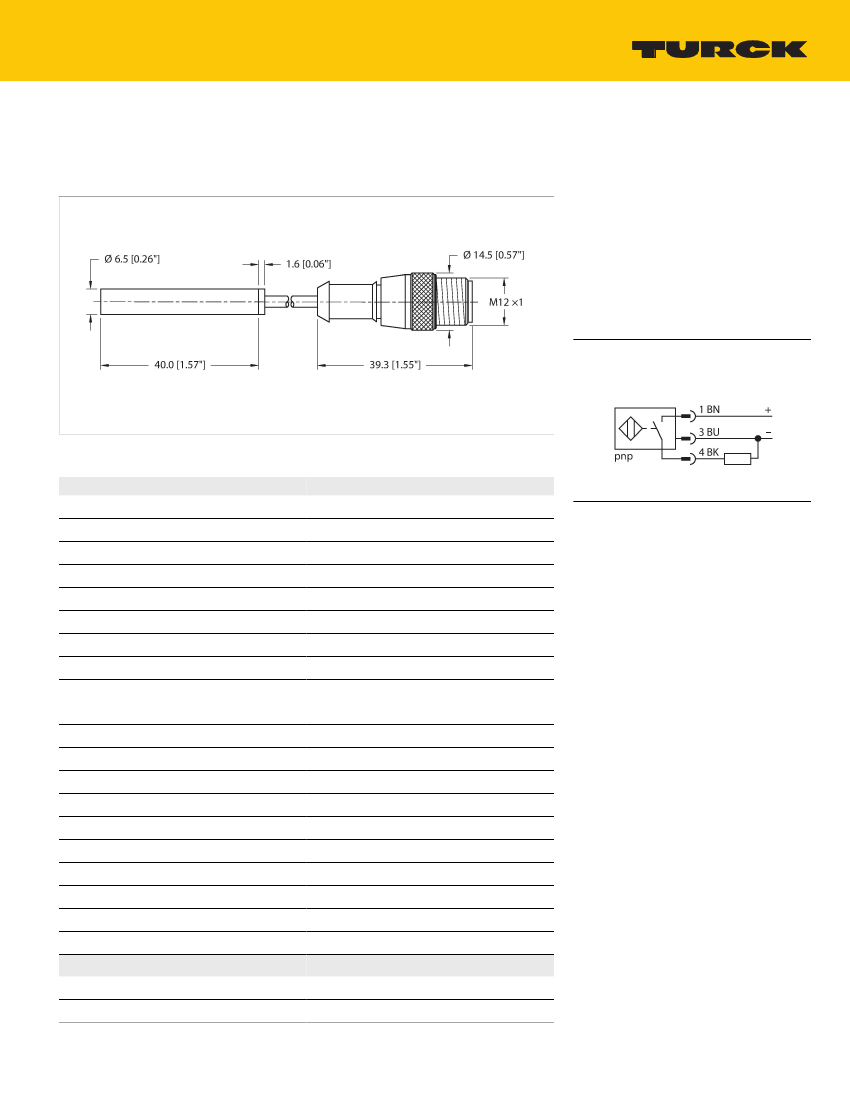

Wiring diagram

Technical data

Type

Ident. no.

Rated switching distance

Mounting conditions

Secured operating distance

Correction factors

Repeat accuracy

Temperature drift

Hysteresis

Ambient temperature

Operating voltage

Residual ripple

DC rated operational current

No-load current

Residual current

Isolation test voltage

Short-circuit protection

Voltage drop at

Wire breakage/Reverse polarity protection

Output function

Switching frequency

Design

Dimensions

Housing material

BI2-EH6.5-AP6X-0.2-RS4T

4612292

2 mm

Flush

≤ (0,81 x Sn) mm

St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4

≤ 2 % of full scale

≤ ± 10 %

3…15 %

10…30 VDC

≤ 10 % U

≤ 150 mA

≤ 15 mA

≤ 0.1 mA

≤ 0.5 kV

yes / Cyclic

≤ 1.8 V

yes / Complete

3-wire, NO contact, PNP

3 kHz

Smooth barrel,6.5 mm

42 mm

Stainless steel, 1.4427 SO

BI2-EH6.5-AP6X-0.2-RS4T| 11/19/2019 15-48 | technical changes reserved

1|2

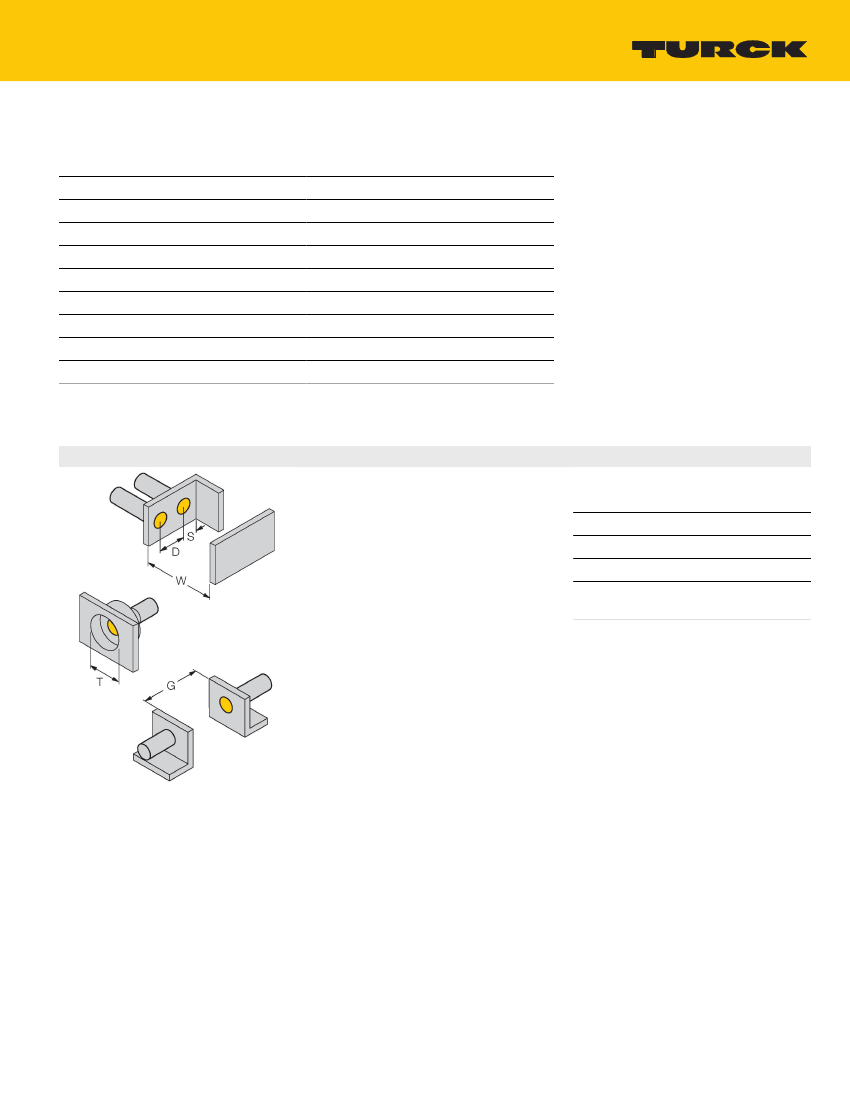

Functional principle

Inductive sensors detect metal objects contactless

and wear-free. For this, they use a high-frequency

electromagnetic AC field that interacts with the

target. Inductive sensors generate this field via an

RLC circuit with a ferrite coil.

-25…+70 °C
